Zetor Tractor 7520 7540 8520 TURBO 8540 TURBO 9520 TURBO 9540 TURBO 10540 TURBO Parts Catalog Manual – PDF DOWNLOAD
FILE DETAILS:
Zetor Tractor 7520 7540 8520 TURBO 8540 TURBO 9520 TURBO 9540 TURBO 10540 TURBO Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages : 421
Downloadable : Yes
File Type : PDF
Size: 6.29 MB
DESCRIPTION:
Zetor Tractor 7520 7540 8520 TURBO 8540 TURBO 9520 TURBO 9540 TURBO 10540 TURBO Parts Catalog Manual – PDF DOWNLOAD
EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG
The Spare Parts Catalog lists items of spare parts composing Zetor tractor models 7520-10540. Items forming the tractor are grouped into section (Engine, Gearbox)
composed of groupes formed by one ore more sheets.
TEXT SECTION
The section index and alphabetical index of groupes hepls to identity easy a part. In the text section you will find six columns on each text page:
column 1 – contains the group nubber
column 2 – contains the drawing number
column 3 – contains the item number
column 4 – contains the part ordering number
column 5 – contains parts name, tractor model
column 6 – shows quantity of parts used on tractor
column 7 – contains additional explanatory notes: dimension, standard, note
TABLE OF CONTENTS:
Zetor Tractor 7520 7540 8520 TURBO 8540 TURBO 9520 TURBO 9540 TURBO 10540 TURBO Parts Catalog Manual – PDF DOWNLOAD
EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG 15
ENGINE 18
002 CRANKCASE 18
003 CRANKSHAFT MECHANISM 25
004 VALVE GEAR 27
005 CYLINDER HEAD 28
007 OIL PUMP 32
009 FUEL SUPPLY 33
010 COMPRESSOR 52
011 DRY AIR CLEANER 54
012 AIR SUPPLY 56
013 COOLING SYSTÉM 58
014 EXHAUST 66
016 FILTERING AND COOLING OF THE ENGINE OIL 68
017 WATER PUMP 70
020 BALANCING UNIT 73
021 CLUTCH 74
022 TURBOCHARGING 78
028 COOLANT HEATER 81
029 TURBOCHARGING AND INTERCOOLER 82
030 ENGINE ACCESSORIES 85
TRANSMISSION MECHANISM 86
108 CLUTCH HOUSING 86
120 CLUTCH SHAFT 90
121 GEARBOX 91
123 REDUCTION GEAR BOX 95
124 CLAW CLUTCH 97
126 TORQUE MULTIPLIER 98
128 REDUCER FOR GEAR CREEP SPEEDS 101
129 REVERSING EQUIPMENT 105
130 DEPENDENT POWER TAKE OFF SHAFT 110
131, 134 PTO SHAFT FOR 540 (750 r p m ) and 1000 r p m 112
132 PTO SHAFT FOR 1000 r p m 114
133 PTO SHAFT GUARD 115
135 THE FRONT PTO SHAFT 117
137 ELECTROHYDRAULIC CONTROLS OF FRONT AND REAR PTO SHAFT 121
140 GEAR BOX DISTRIBUTOR 122
147, 148 GEARBOX SHIFTING MECHANISM 126
153,154 FINAL DRIVE HOUSING 128
158 ACCESSORIES FINAL DRIVE HOUSING PHOENIX 132
161 REAR HALF-AXLES 133
170 FINAL DRIVE HOUSING OF THE FRONT DRIVEN AXLE 135
171 FINAL DRIVE HOUSING OF THE FRONT DRIVEN AXLE WITH AUTOMATIC DIFERENTIAL 140
172 FRONT WHEEL AXLE 142
175 WHEEL HUB WITH REDUCTION GEAR 148
176 JOINT SHAFT ASSY 151
177 JOINT SHAFT WITH BRAKE ASSY 153
178 HYDRAULIC CIRCUIT PUMP DRIVE AND AIR CONDITION COMPRESSOR DRIVE 155
181 GEAR BOX OIL COOLER 156
185 FRONT DRIVE AXLE CLUTCH 158
186 FRONT DRIVE AXLE CLUTCH CARRARO 160
190 GEAR BOX DISTRIBUTOR 162
191, 192 THREE-STAGE GEAR BOX 165
193 REDUCTION GEAR BOX 169
196 THREE-STAGE TORQUE MULTIPLIER 171
197, 198 THREE-STAGE GEAR BOX SHIFTING MECHANISM 174
UNDER-CARRIAGE 178
200 FRONT AXLE WITH BRACKET 178
203 FRONT AXLE WITH BRACKET 180
205 UNSPRUNG EXTENSIONS 183
206 BRAKED UNSPRUNG EXTENSIONS 185
211-218 REAR WHEELS 187
220 STEERING RODS 190
221 STEERING RODS 191
225 FRONT CARDAN BRAKE 192
226 FRONT DRUM BRAKES 197
227 FOOT OPERATED BRAKE 203
228 AIR BRAKES CONTROL 207
229 PRESSURE AIR BRAKES 1 AND 2 HOSE TYPE FOR TRAILERS 209
231 HAND BRAKE 211
234 AIR EQUIPMENT FOR OPERATING DEVICES 213
235 PRESSURE AIR BRAKES FOR TRAILERS 216
236 PRESSURE AIR BRAKES 1 AND 2 HOSE TYPE FOR TRAILERS 218
237 PRESSURE AIR BRAKES 2 HOSE TYPE FOR TRAILERS 224
238 HYDRAULIK TRAILER BRAKES 227
245 REAR WHEEL BALLAST WEIGHTS 229
246 FRONT AXLE BALLAST WEIGHTS UNDER FRAME 231
247 FRONT AXLE BALLAST WEIGHTS IN FRONT OF THE FRAME 232
8
Group Designation Page
248 FRONT AXLE BALLAST WEIGHTS IN FRONT OF THE FRAME 233
249 THREE-POINT FRONT SUSPENSION WEIGHTS 234
250 STANDARD EQUIPMENT AND SPARE PARTS 235
255 PEDALS 238
258,259 FRONT WHEELS 244
263-265 TWIN WHEELS 246
266, 267 FRONT WHEELS 248
270 BRAKED SPRUNG EXTENSIONS 250
271 SPRUNG EXTENSIONS 253
272 STEERING WHEEL WITH SEATING 256
273 INICIABLE STEERING WHEEL 258
274 HYDROSTATIC STEERING 260
275 HYDROSTATIC STEERING 263
280 FRAME 267
282 HYDRAULIC CIRCUIT OF HYDROSTATIC STEERING 268
295 PTO SHAFT CONTROL 274
295a THROTLE CONTROL 278
295c CONTROL OF CLUTCH 279
297 MECHANICAL CONTROL OF THE TORQUE MULTIPLIER 281
298 FRONT DRIVEN AXLE CONTROL 283
BODY 284
302 ENGINE BONNET 284
306 STEERING BRACKET 288
312 FUEL TANK 290
334 MUDGUARDS AND FLOOR 293
342 DRIVERS SEAT 296
54 SEAT 298
344 MATE’S SEAT 301
345 CAB SPECIAL OUTFIT 303
347 APRON (for Czech Republic only) 305
361 CAB FRAME 306
364 SAFETY FRAME 307
365 TWO-COLUMN FRAME 309
368 SAFETY CAB 310
371 CAB WARM-WATER HEATING EQUIPMENT 311
381, 382 FRONT MUDGUARDS 320
383 FRONT MUDGUARDS 324
384 FRONT MUDGUARDS CARRARO 326
802 PLATES WITH TRACTOR MARK 328
ELECTRICAL INSTALLATION 330
350 ELECTRICAL INSTALLATION 330
351 CAB ELECTRIC INSTALLATION 350
352 ELECTRO CONTROL OF THE HYDRAULICS 354
353 ELECTRO CONTROL OF THE HYDRAULICS 355
354 ELECTRICAL INSTALLATION – DASHBOARD PHOENIX 357
358 ELECTRICAL INSTALLATION DASHBOARD 360
HYDRAULIC SYSTÉM 363
400 LIFTING MECHANISM 363
401 IMPULSE COMPARATOR 368
402 CONTROLS 371
403 ELECTROPNEUMATIC CONTROL OF THE HYDRAULICS 373
406 REAR OUTER CIRCUIT TAPPING 375
407 FRONT OUTER HYDRAULIC CIRCUIT TAPPING 376
408 OUTER CIRCUITES TAPPING TO HYDRAULIC POWER AUXILIARY DISTRIBUTOR 377
409 HYDRAULIC POWER LIFT ASSISTER RAM 379
413 DISTRIBUTOR 380
415 DISTRIBUTOR OF HYDRAULIC CIRCUIT 384
420 PUMPS AND OIL FILTERING OF HYDRAULIC CIRCUIT I 390
431 STEERING PUMP 397
440 LIFTING TIE ROD OPERATED FROM SAFETY CAB 398
444 TELESCOPIC STRUT 399
445 LOWER TIE RODS WITH SLIPPING OUT ENDPIECES 400
446 DRAWBAR CBM 401
448 FRONT THREE-POINT HITCH 405
450 THREE-POINT HITCH 408
452 SWINGING DRAWBAR 414
453 COUPLING FOR SEMI-TRAILER 415
454 DRAWBAR 417
458 TRAILER COUPLING MULTISTAGE SUSPENSION LINKAGE 418
459 AUTOMATIC MOUTHPIECE FOR TRAILER COUPLING 419
INDEX

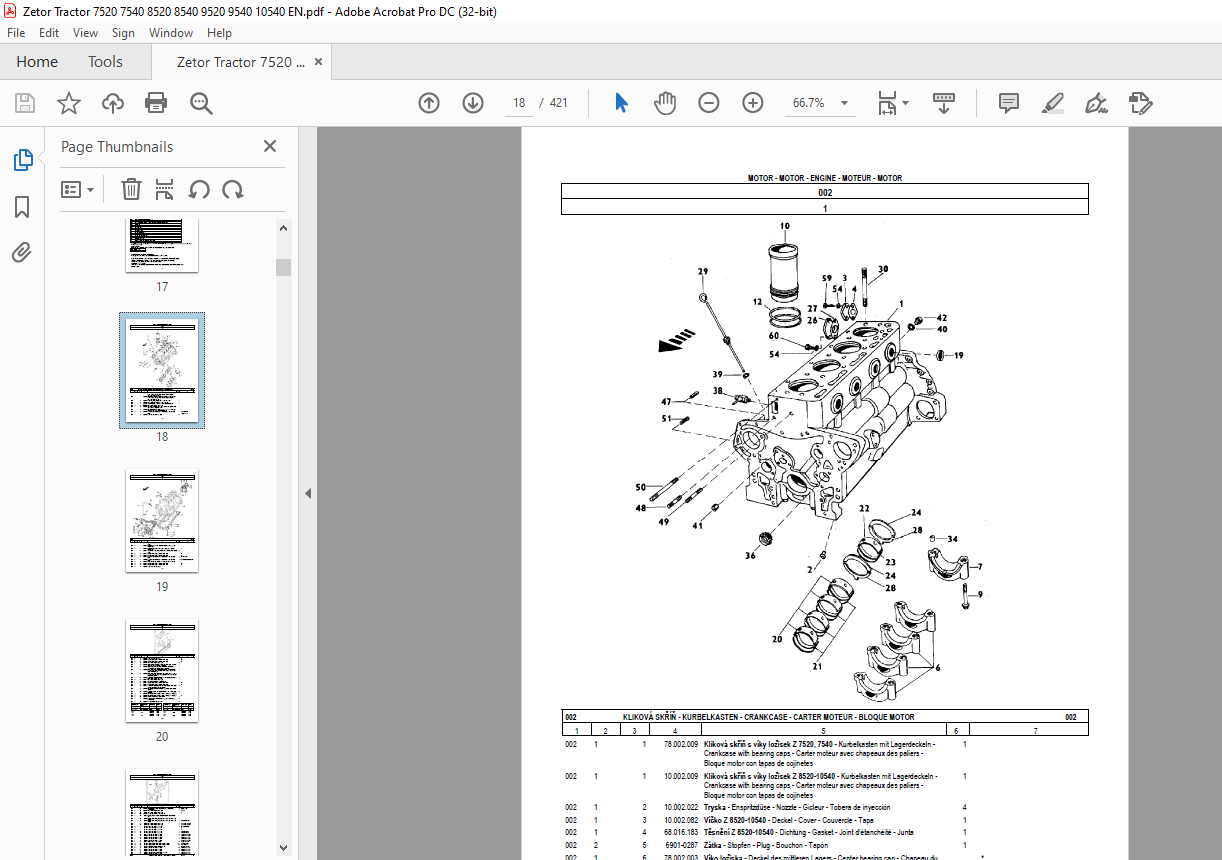

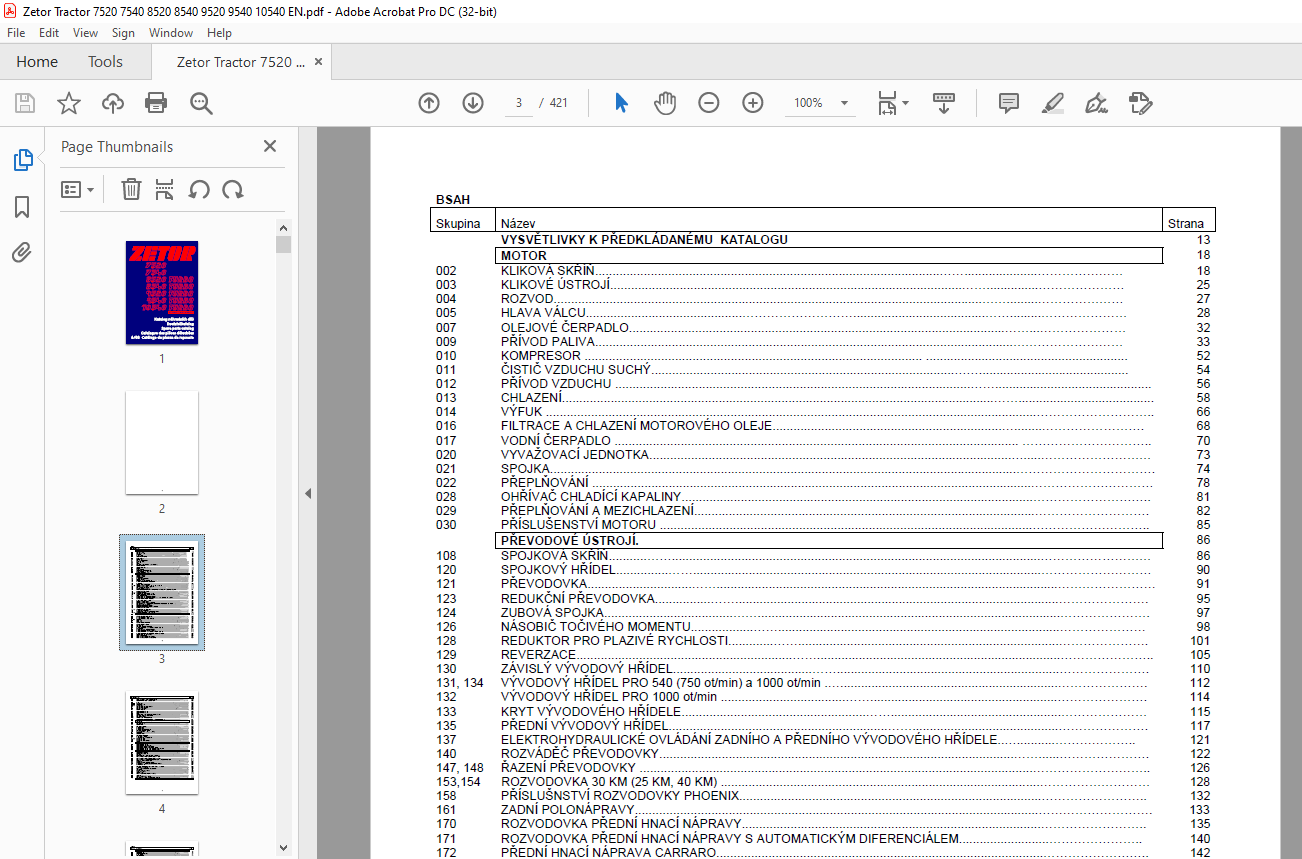

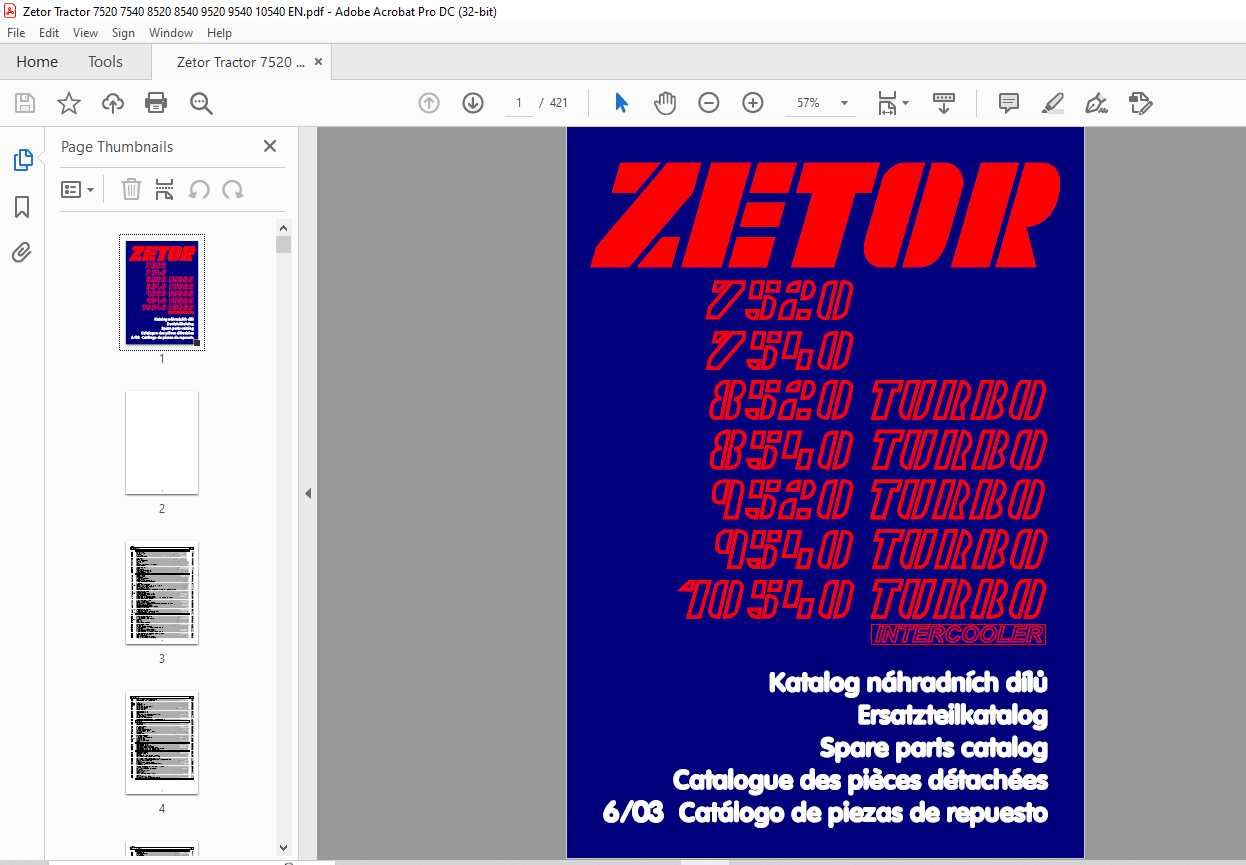

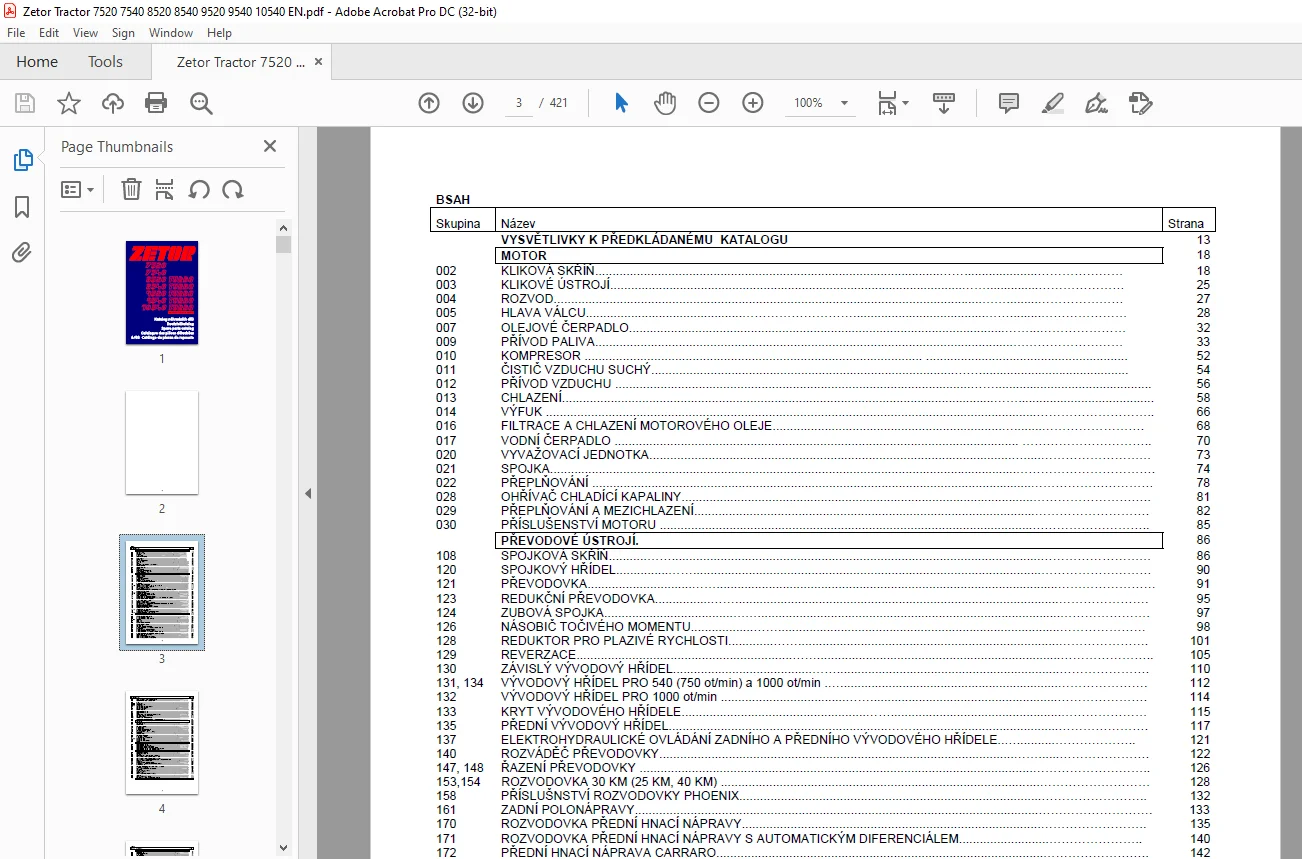

IMAGES PREVIEW OF THE MANUAL:
