Zetor Tractor 3320 3340 4320 4340 5320 5340 5340 HORAL 6320 6340 6340 HORAL 7320 Turbo 7340 Turbo Spare Parts Catalog Manual – PDF DOWNLOAD
FILE DETAILS:
Zetor Tractor 3320 3340 4320 4340 5320 5340 5340 HORAL 6320 6340 6340 HORAL 7320 Turbo 7340 Turbo Spare Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages : 475
Downloadable : Yes
File Type : PDF
Size: 7.66 MB
DESCRIPTION:
Zetor Tractor 3320 3340 4320 4340 5320 5340 5340 HORAL 6320 6340 6340 HORAL 7320 Turbo 7340 Turbo Spare Parts Catalog Manual – PDF DOWNLOAD
EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG:
The Spare Parts Catalog lists items of spare parts composing Zetor tractor models 3320 – 7340 TURBO.
Items forming the tractor are grouped into section (Engine, Gearbox) composed of groupes formed by one ore more sheets. All information,
illustrations and specifications in this catalog are based on the latest information available at the time of publication.
The up-dating of the catalog will take place by including information in ZETOR SERVICE REPORTS published regularly.
TEXT SECTION
The section index and alphabetical index of groupes hepls to identity easy a part. In the text section you will find six columns on each text page:
column 1 – contains the group nubber
column 2 – contains the drawing number
column 3 – contains the item number
column 4 – contains the part ordering number
column 5 – contains parts name, tractor model
column 6 – shows quantity of parts used on tractor
column 7 – contains additional explanatory notes: dimension, standard, note
TABLE OF CONTENTS:
Zetor Tractor 3320 3340 4320 4340 5320 5340 5340 HORAL 6320 6340 6340 HORAL 7320 Turbo 7340 Turbo Spare Parts Catalog Manual – PDF DOWNLOAD
EXPLANATORY NOTES TO THE PRESENT SPARE PARTS CATALOG
15
01 CRANKCASE I
19
02 CRANKCASE II
24
03 CRANKSHAFT MECHANISM
29
04 VALVE GEAR
33
05 CYLINDER HEAD
36
06 WATER PUMP
42
07 LUBRICATING SYSTÉM
44
08 FUEL SYSTÉM
50
09 COMPRESSOR
66
11 DUAL CLUTCH
70
12 AIR SUPPLY
72
13 COOLING SYSTÉM
80
13a COVERING
82
14 EXHAUST
83
15 TURBOCHARGING
86
17 COOLING LIQUIT HEATER
88
18,120 GEARBOX
89
19 TRANSMISSION MECHANISM
91
121 TRANSMISSION MECHANISM
99
122 TRANSMISSION MECHANISM
108
20 GEAR SHIFTING MECHANISM
115
147 GEAR SHIFTING MECHANISM
119
21 MECHANICAL HAND CONTROLLED DECLUTCHING OF PTO
123
21a PNEUMATICALLY OPERAD DECLUTCHING OF PTO
125
21b PNEUMATICALLY OPERATED TORQUE CONVERTER DISENGAGING CYLINDER
128
22 TORQUE CONVERTER
129
23 REVERSING EQUIPMENT
132
23a GRAWLING GEARS REDUCER
136
24 SYNCHONIZING CLUTCH
139
25 FINAL DRIVE HOUSING
141
26 DRUM TYPE FOOT BRAKE
145
26a DISK TYPE FOOT BRAKE
148
27 PEDALS
153
28 REAR HALF – AXLE VITH PORTAL
160
29 HAND BRAKE
163
30 DRIVE AND CARDAN SHAFT
166
185,186 DRIVE AND CARDAN SHAFT
172
31 FRONT WHEEL AXLE – LIGHTE AXE
176
31a FRONT WHEEL AXLE – HEAVY AXLE
181
32 FRONT WHEEL DRIVE – LIGHTE AXE
188
32a FRONT WHEEL DRIVE – HEAVY AXLE
191
172 FRONT WHEEL AXLE CARRARO
195
275 FRONT WHEEL AXLE – HYDROSTATIC STEERING CARRARO
203
33 FRONT AXLE WITH BRACKET
205
203 FRONT AXLE WITH BRACKET CARRARO
207
34 RIGID EXTENSIONS
208
35 STEERING AND THROTTLE CONTROL
213
36 SPRUNG EXTENSIONS
220
37,275 HYDROSTATIC STEERING
227
39 POWER-STEERING
240
41 INDEPENDENT HYDRAULIC PUMP
247
422 INDEPENDENT HYDRAULIC PUMP
253
42 LOWER TIE RODS WITH SLIPPING OUT ENDPIECES
258
43 DAMPER OF THE STEERING
259
44 TELESCOPIC STRUT
261
45 OIL FILTERING OF HYDRAULIC POWER LIFT SYSTEM
262
46 HYDRAULIC POWER LIFT PUMP
265
48 HYDRAULIC OUTER CIRCUIT TAPING
269
49 LIFTING TIE ROD OPERATED FROM CAB
271
50 THREE-POINT LINKAGE
273
51 INCLINABLE TRAILER COUPLING
278
51a TRAILER COUPLING MULTISTAGE SUSPENSION LINKAGE
279
459 AUTOMATIC MOUTHPIECE FOR TRAILER COUPLING
281
52 FUEL TANK
283
53 ENGINE BONNET
285
54 SEAT
290
55 REAR MUNGUARDS AND FLOOR
293
56 ELECTRICAL EQUIPMENT DASHBOARD
297
57 ELECTRICAL EQUIPMENT
300
58 CAB ELECTRICAL EQUIPMEMT
315
59 PTO SHAFT FOR 540 AND 1000 R P M
326
60 FRONT PTO SHAFT
329
62 REAR WHEEL BALLAST WEIGHTS
335
63,246 FRONT AXLE BALLAST WEIGHTS
337
64 FIXED AND SWINGING DRAWBAR
339
66 SPECIAL EQUIPEMENT OF THE DRIVER’S CAB
341
67,258 ASSEMBLY OF DISPARATE WHEELS
344
68 AIR BRAKES
358
69 FRONT PTO SHAFT CONTROL
364
69a AIR EQUIPMENT FOR OPERATING DEVICES
365
70 FRONT MUDGUARDS
367
71 STEERING BRACKET
377
72 LIFTING SPRING BRACKET
379
72a FRONT THREE-POINT HITCH
380
73 MATE’S SEAT
384
74 HYDRAULIK TRAILER BRAKES
385
75 COUPLING FOR SEMI-TRAILER
387
77 SAFETY FRAME
390
78 CAB WARM – WATER HEATING EQUIPMENT
392
79 SAFETY CAB
398
80 LIFTING MECHANISM
422
81 DISTRIBUTOR OF HYDRAULIC
429
82 CONTROLS OF THE HYDRAULIC
432
84 SAFETY CAB
438
85 STANDARD EQUIPMENT AND SPARE PARTS
441
87 FLOOR
444
89 SMALL SUPPLEMENTS
447
90 SMALL SUPPLEMENTS
448
93 PLATES WITH TRACTOR MARK
449
INDEX

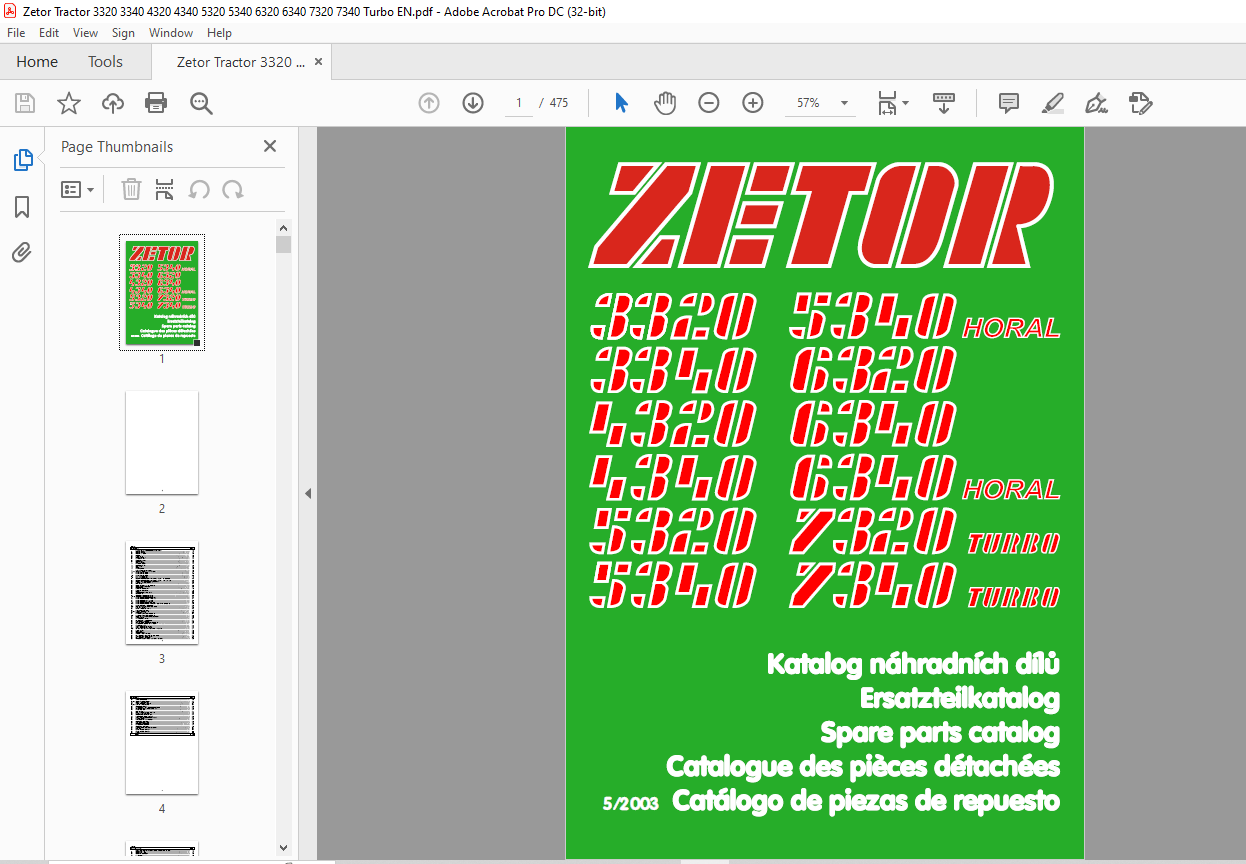

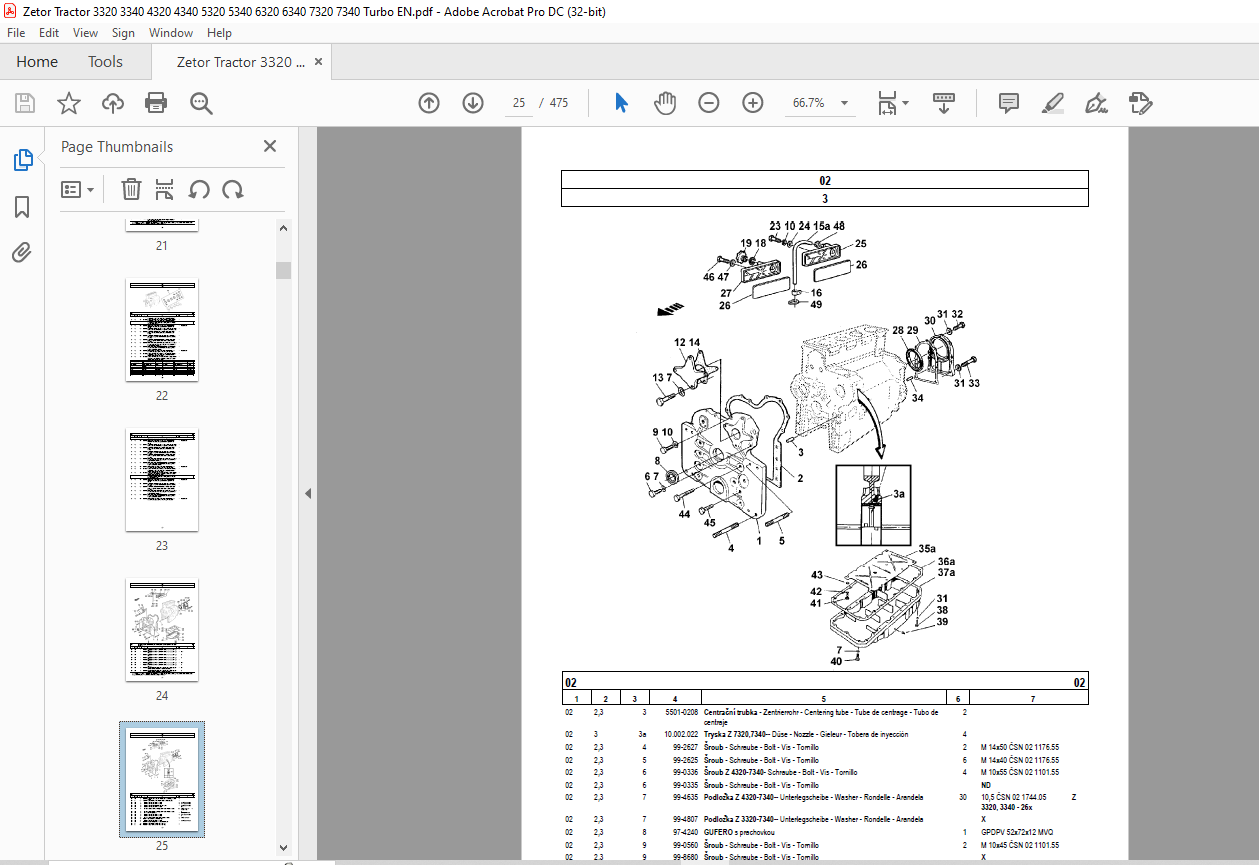

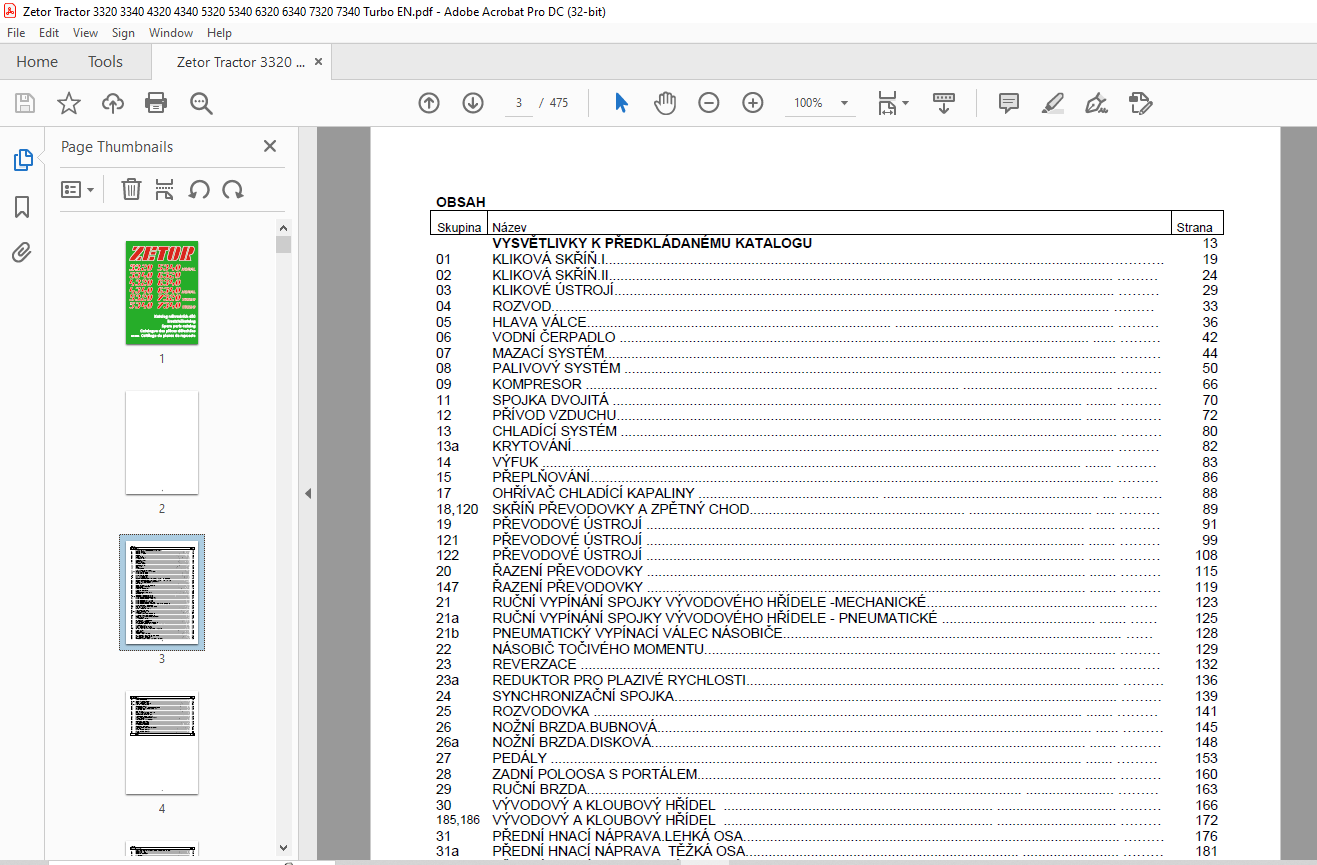

IMAGES PREVIEW OF THE MANUAL:
