Yale A974 (GLP050LX, GDP50LX) Service Manual – PDF DOWNLOAD
FILE DETAILS:
Yale A974 (GLP050LX, GDP50LX) Service Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Yale
DESCRIPTION:
Yale A974 (GLP050LX, GDP50LX) Service Manual – PDF DOWNLOAD

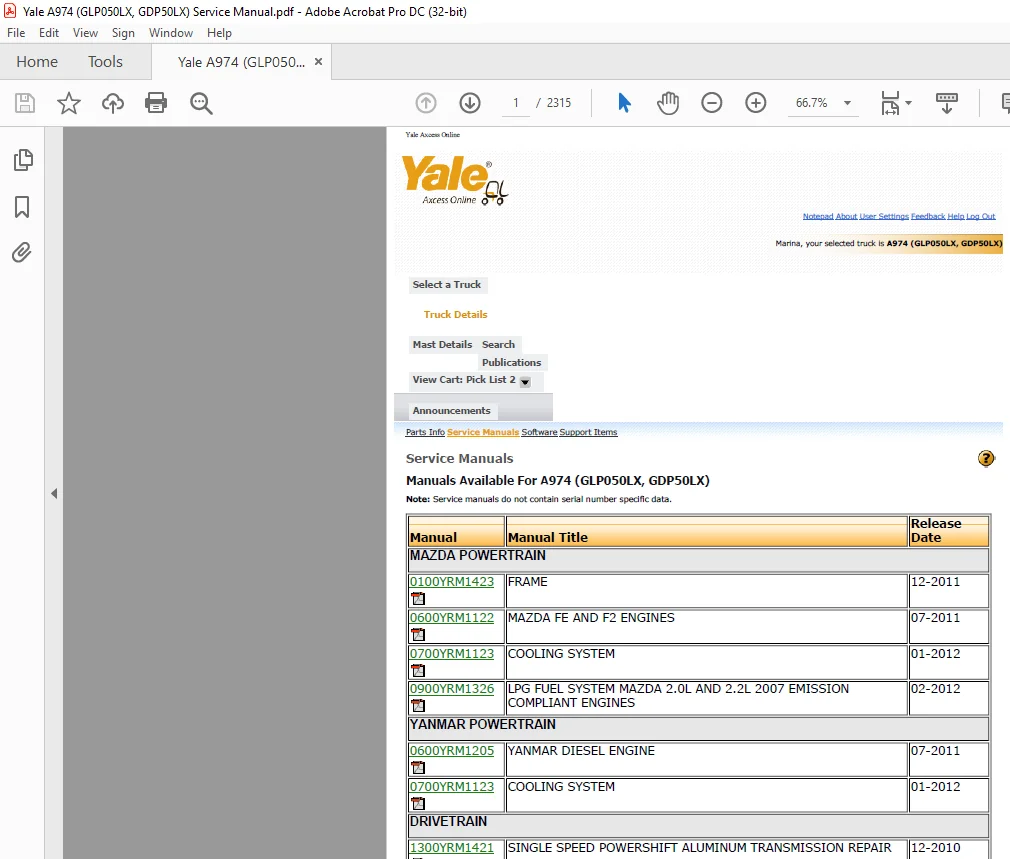

Manuals Available For A974 (GLP050LX, GDP50LX)

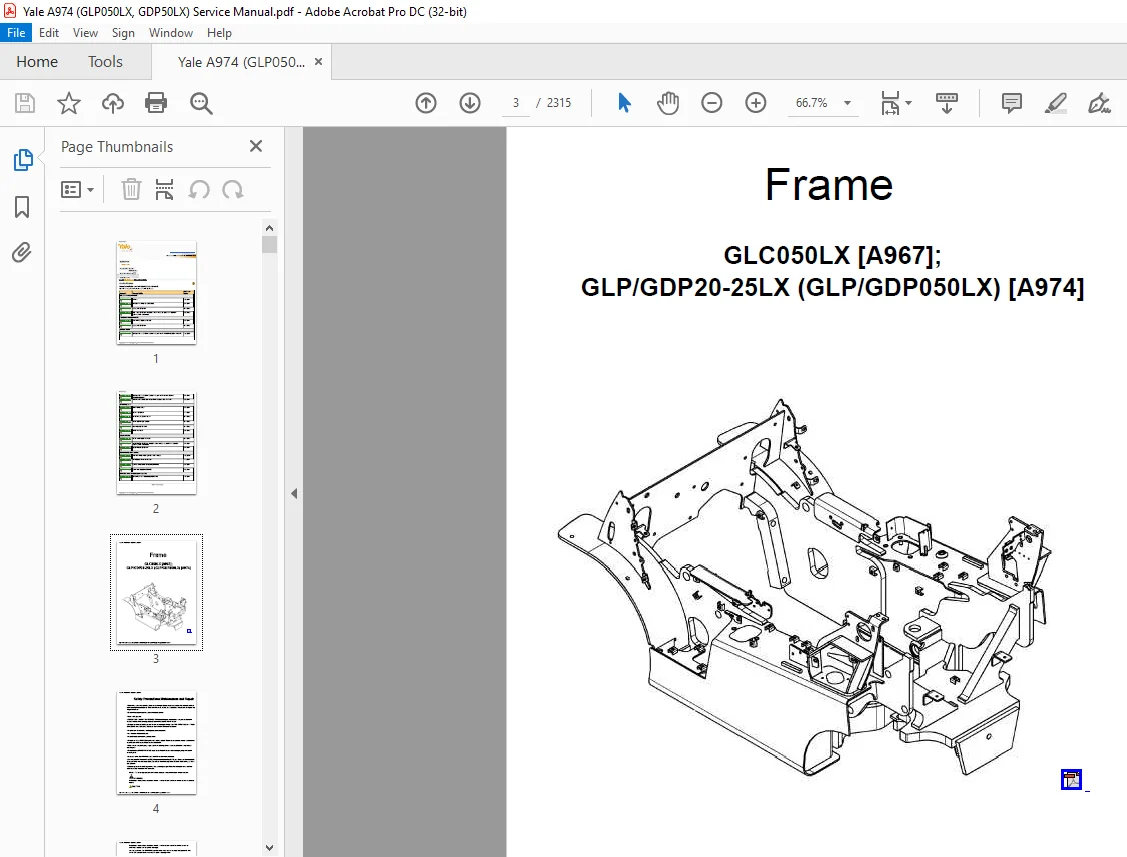

Frame
GLC050LX [A967];
GLP/GDP20-25LX (GLP/GDP050LX) [A974]
- When lifting parts or assemblies, make sure all slings, chains, or cables are correctly fastened, and that the load being lifted is balanced. Make sure the crane, cables, and chains have the capacity to support the weight of the load. Do not lift heavy parts by hand, use a lifting mechanism. Wear safety glasses. DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift trucks.
- Disconnect the battery ground cable on internal combustion lift trucks. Always use correct blocks to prevent the unit from rolling or falling. See HOW TO PUT THE LIFT TRUCK ON BLOCKS in the Operating Manual or the Periodic Maintenance section. Keep the unit clean and the working area clean and orderly. Use the correct tools for the job. Keep the tools clean and in good condition. Always use YALE APPROVED parts when making repairs. Replacement parts must meet or exceed the specifications of the original equipment manufacturer. Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to remove parts.
- Always fasten a DO NOT OPERATE tag to the controls of the unit when making repairs, or if the unit needs repairs. Be sure to follow the WARNING and CAUTION notes in the instructions. Gasoline, Liquid Petroleum Gas (LPG), Compressed Natural Gas (CNG), and Diesel fuel are flammable.
- Be sure to follow the necessary safety precautions when handling these fuels and when working on these fuel systems. Batteries generate flammable gas when they are being charged. Keep fire and sparks away from the area. Make sure the area is well ventilated. NOTE: The following symbols and words indicate safety information in this manual.
TABLE OF CONTENTS:
Yale A974 (GLP050LX, GDP50LX) Service Manual – PDF DOWNLOAD
General
Hood, Seat, and Side Covers Replacement
Remove
Install
Steering Column
Description
Steering Column Repair
Remove
Disassemble
Clean
Inspect
Assemble
Install
Counterweight Replacement
Remove
Install
Overhead Guard Replacement
Remove
Install
Operator Restraint System Replacement
Description
Emergency Locking Retractor (ELR)
Engine Replacement
Remove
LPG Engine
Diesel Engine
Install
LPG Engine
Diesel Engine
Transmission Replacement
Remove
Install
Throttle Pedal and Cable Adjustment
Mazda LPG Engine
Throttle Pedal Stop Adjustment
Yanmar Diesel Engine
Yanmar Diesel Engine With Electronic Throttle
Cooling System
Description
Hydraulic Filter Repair
Remove
Clean and Inspect
Install
Tank Repair
LPG Tank Repair
Hydraulic and Diesel Tanks
Inspect
Clean
Steam Method of Cleaning
Chemical Solution Method of Cleaning
Additional Preparations for Repair
Small Leaks, Repair
Large Leaks, Repair
Preparations for Use After Repair
Label Replacement
