Wacker Neuson WL44 Wheel Loader Operator’s Manual – PDF DOWNLOAD

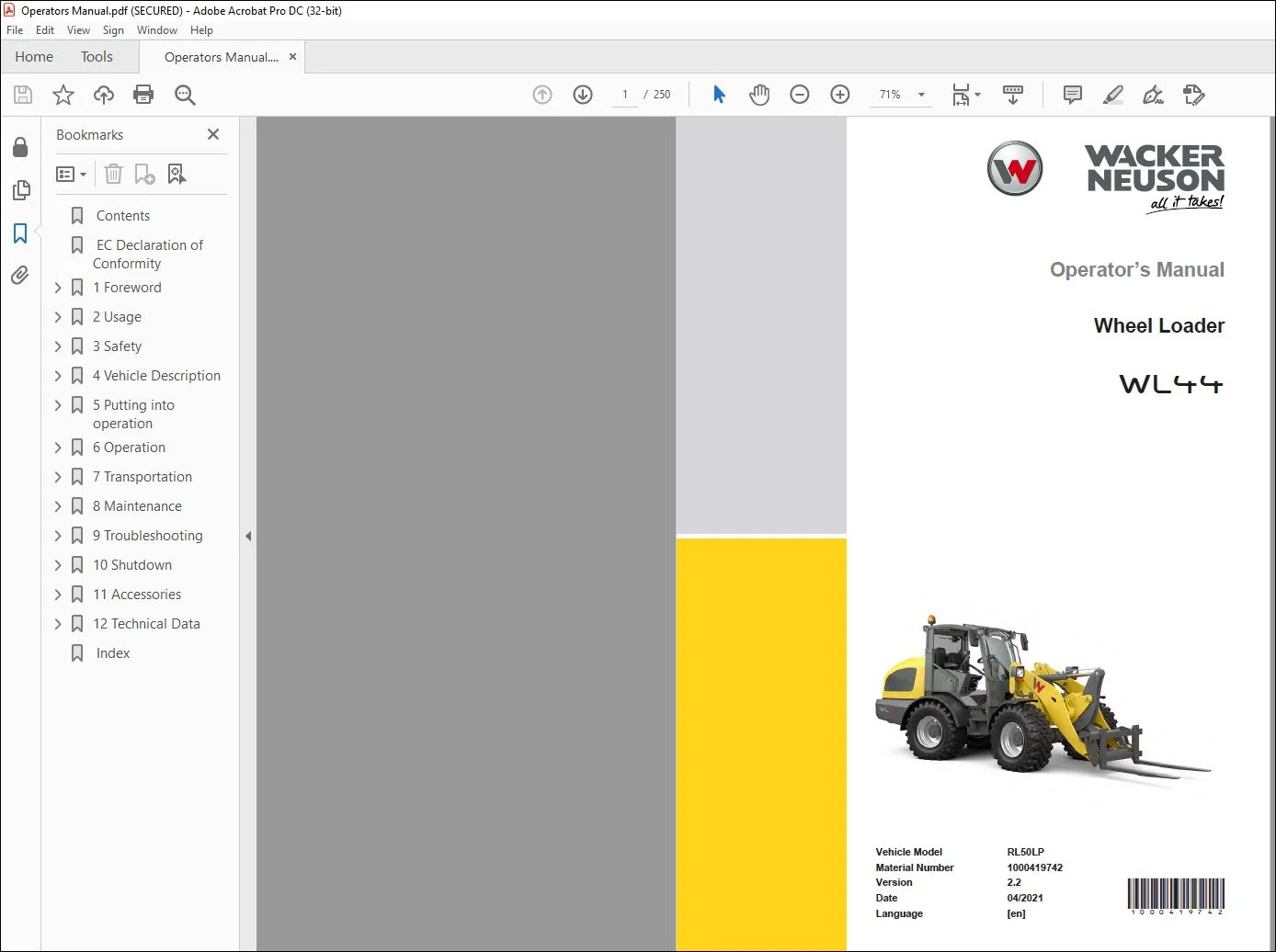

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Wacker Neuson WL44 Wheel Loader Operator’s Manual – PDF DOWNLOAD
1 Foreword
1.1 Operator’s manual
1.1.1 Information on this operator’s manual
This operator’s manual is only valid for the vehicles listed on the title
page.
• The operator’s manual provides information on the use, settings, operation
and maintenance of the vehicle, including different attachments
approved for the vehicle. The operator’s manual is therefore intended
for the operator and the operating company.
• This operator’s manual also includes descriptions of additional equipment
and options. These sections are not marked separately . The
scope of description in the operator’s manual can therefore deviate
from the actual equipment present on your vehicle without a claim for
retrofitting being able to be derived from this.
• The operator’s manual and any amendments form part of the vehicle
and must always be available at the place of use of the vehicle .
• Store this operator’s manual in the place provided for this in or on the
vehicle.
• Immediately replace an incomplete or illegible operator’s manual with
a new one.
• In addition to the operator’s manual, observe statutory, generally applicable
and other binding regulations on accident prevention and environmental
protection.
• The manufacturer constantly keeps abreast of the latest technical developments
and constantly improve its products. For this reason, we
may from time to time need to make changes to figures and descriptions
in this documentation that do not reflect products that have
already been delivered and that will not be implemented on these
vehicles.
• Technical specifications, dimensions and weights are not binding and
correspond to the state at the time of printing. Responsibility for errors
or omissions not accepted.
• The specifications “left” and “right” in the descriptions always refer to
the vehicle in the travel direction.
• For further questions about the vehicle and the operator’s manual,
please contact your service partner at any time.

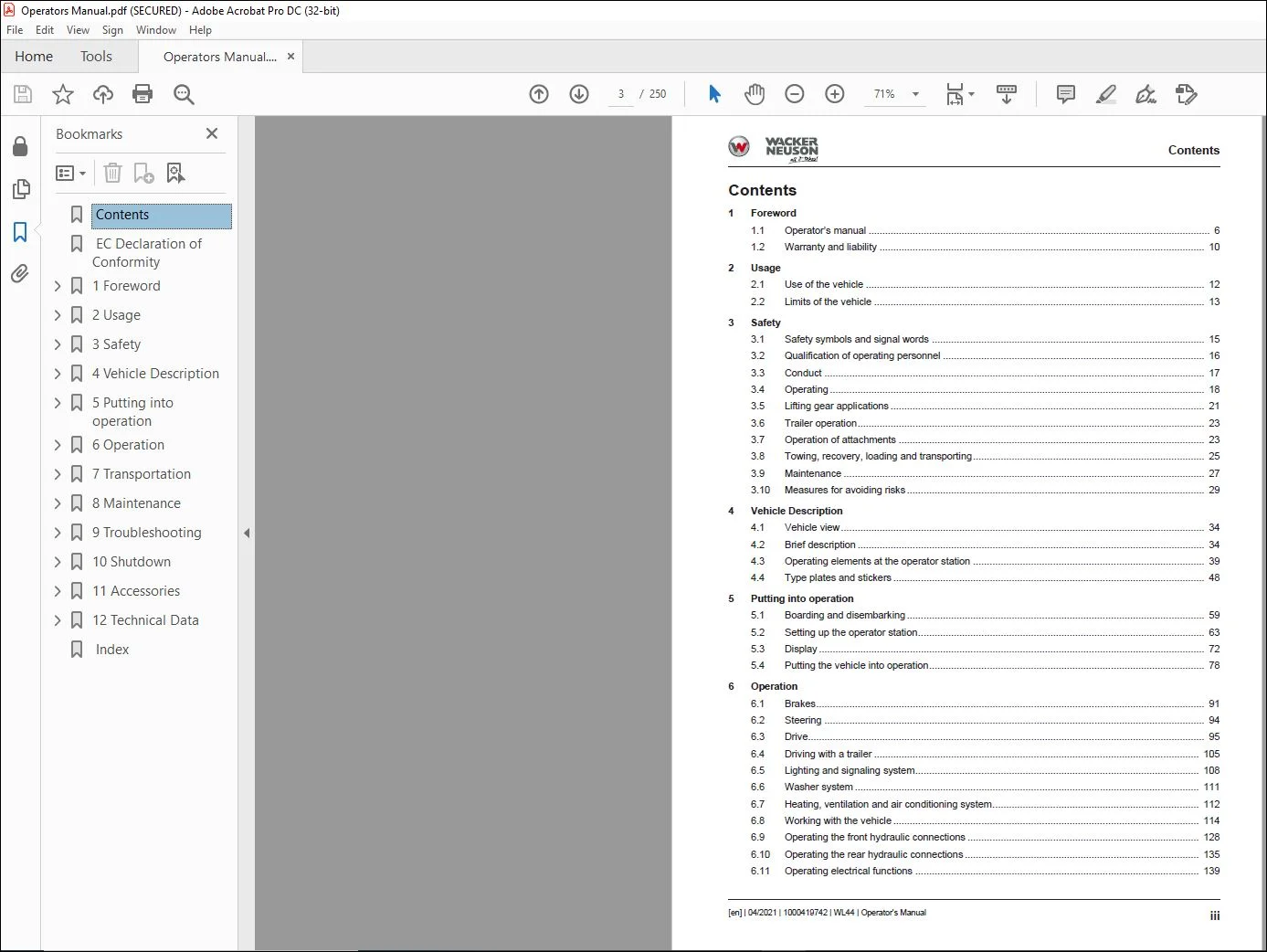

TABLE OF CONTENTS:
Wacker Neuson WL44 Wheel Loader Operator’s Manual – PDF DOWNLOAD
1 Foreword
11 Operator’s manual 6
12 Warranty and liability 10
2 Usage
21 Use of the vehicle 12
22 Limits of the vehicle 13
3 Safety
31 Safety symbols and signal words 15
32 Qualification of operating personnel 16
33 Conduct 17
34 Operating 18
35 Lifting gear applications 21
36 Trailer operation 23
37 Operation of attachments 23
38 Towing, recovery, loading and transporting 25
39 Maintenance 27
310 Measures for avoiding risks 29
4 Vehicle Description
41 Vehicle view 34
42 Brief description 34

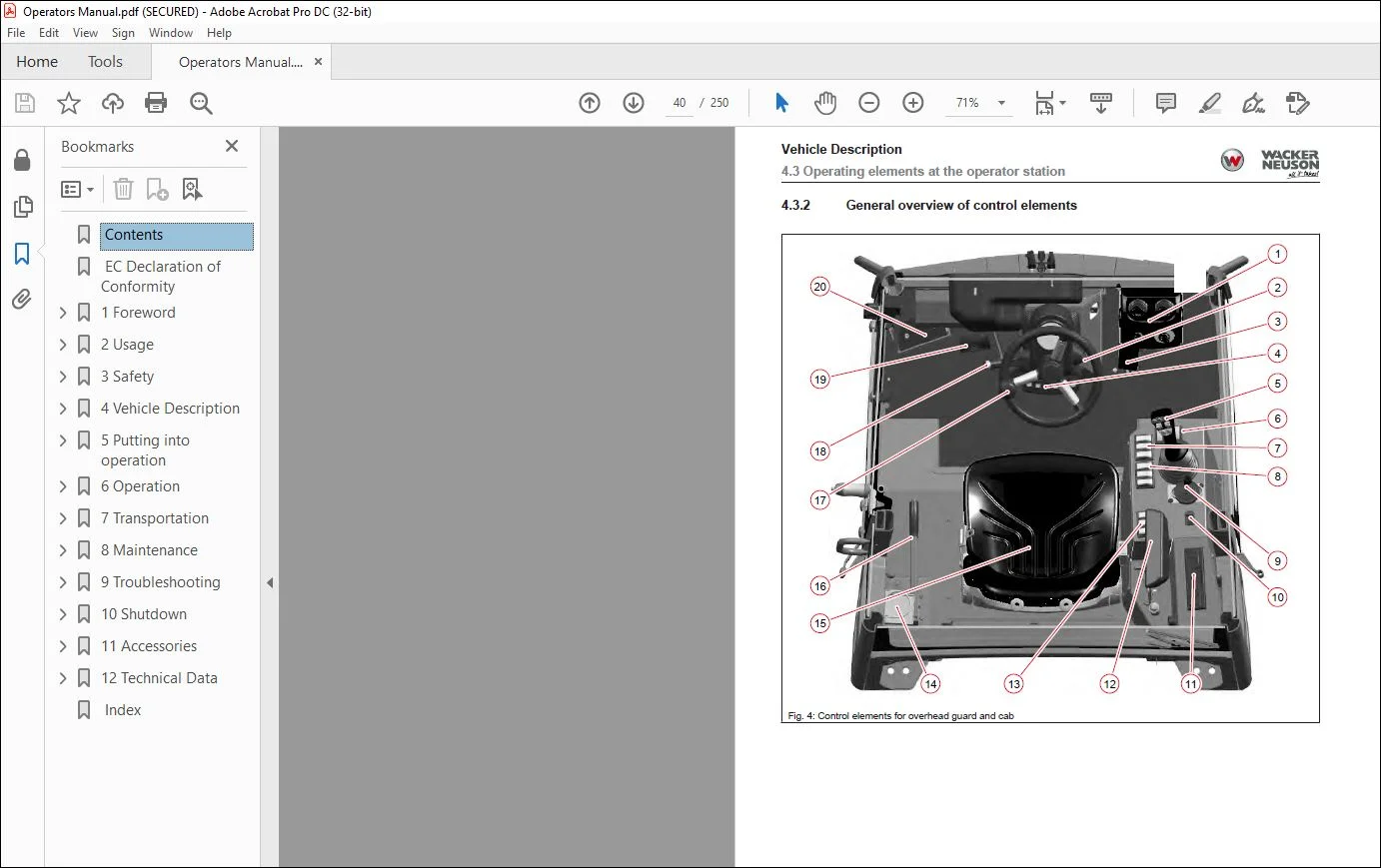

43 Operating elements at the operator station 39
44 Type plates and stickers 48
5 Putting into operation
51 Boarding and disembarking 59
52 Setting up the operator station 63
53 Display 72
54 Putting the vehicle into operation 78
6 Operation
61 Brakes 91
62 Steering 94
63 Drive 95
64 Driving with a trailer 105
65 Lighting and signaling system 108
66 Washer system 111
67 Heating, ventilation and air conditioning system 112
68 Working with the vehicle 114
69 Operating the front hydraulic connections 128
610 Operating the rear hydraulic connections 135
611 Operating electrical functions 139
Contents
iv Operator’s Manual | WL44 | 1000419742 | 04/2021 | [en]
612 Working with attachments 141
7 Transportation
71 Towing 152
72 Loading 156
73 Transportation 161
8 Maintenance
81 Information on maintenance 164
82 Maintenance accesses 165
83 Visual check 168
84 Maintenance plan 169
85 Vehicle fluids 171
86 Levels 173
87 Lubricating the vehicle and attachment 183
88 Cleaning and care 188
89 Braking system 197
810 Steering system 198
811 Electrical system 199
812 Working hydraulics 202
813 Engine 203
814 Exhaust gas aftertreatment 204
815 Cab 211
816 Tires 213
9 Troubleshooting
91 Faults, causes, remedy 217
92 Fault indications 219
10 Shutdown
101 Temporary shutdown 223
102 Permanent shutdown 224
11 Accessories
111 Attachments 226
12 Technical Data
121 Dimensions 231
122 Weights 232
123 Engine 233
124 Electrical system 234
125 Drive system 238
126 Hydraulics 239
127 Emissions 240
128 Bearing load 242
Index 244
