Wacker Neuson WL20e Wheel loader SPARE PARTS LIST manual – PDF DOWNLOAD

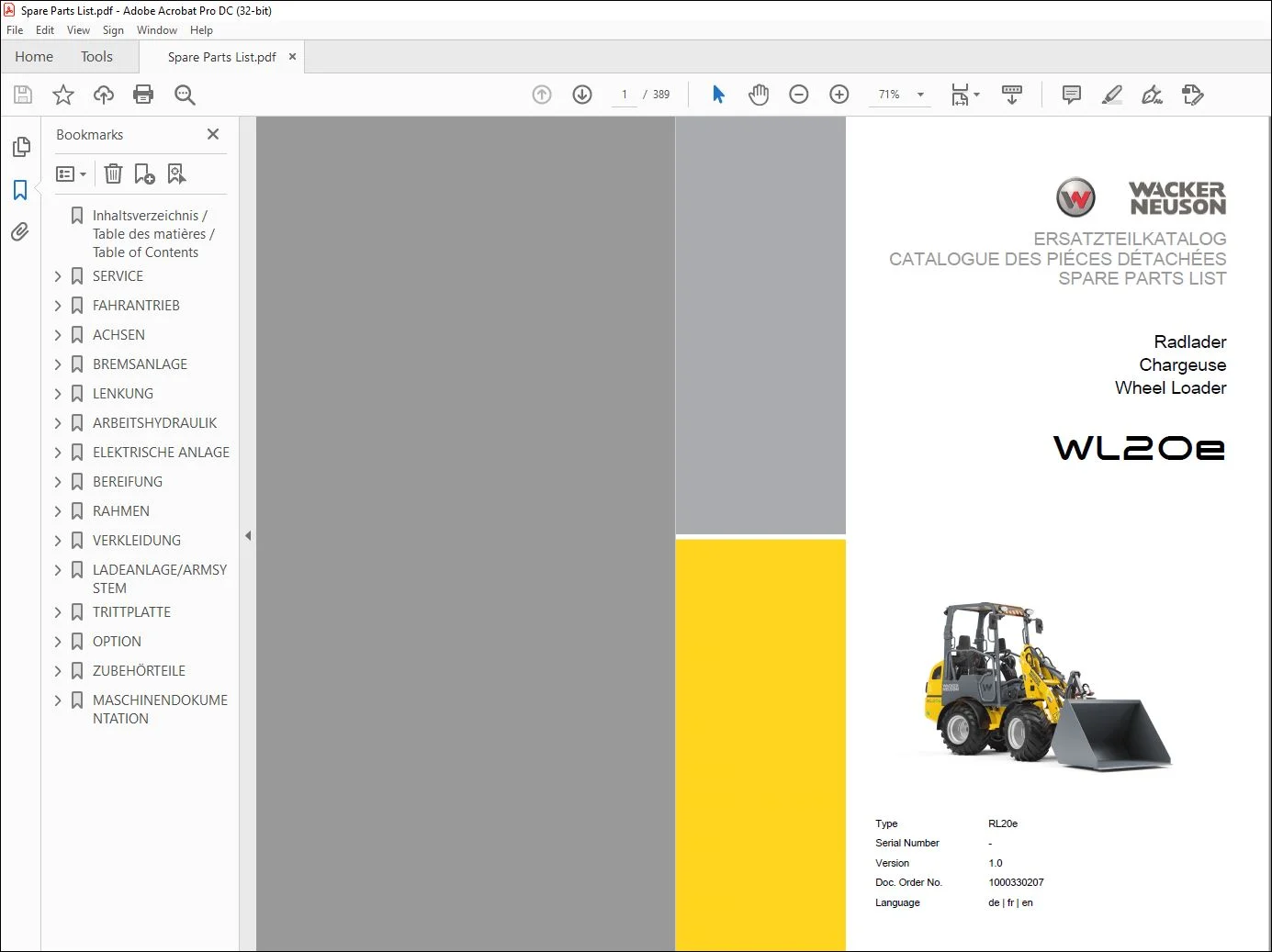

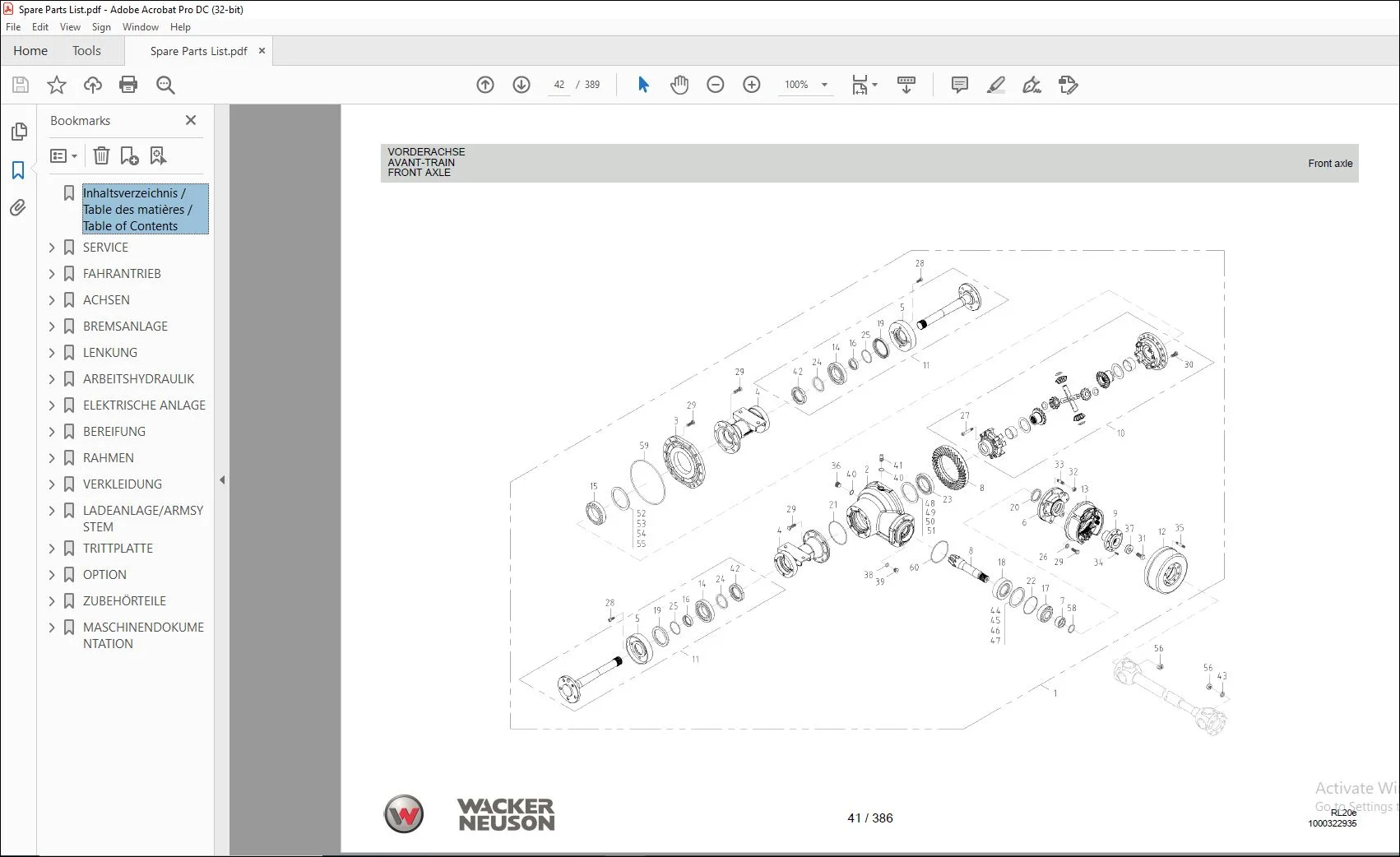

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Wacker Neuson WL20e Wheel loader SPARE PARTS LIST manual – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary:
- material number and position number. The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full. In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model.
- We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer. Technical information, dimensions, weights and the given quantity of spare parts are not binding.
- Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model. Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers
- only to the quantity installed at this point. This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions.
- Some options can be retrofitted. However, please note that it is not possible to combine all options with each other. In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered. Any unauthorized modification
- (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety.
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts. Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

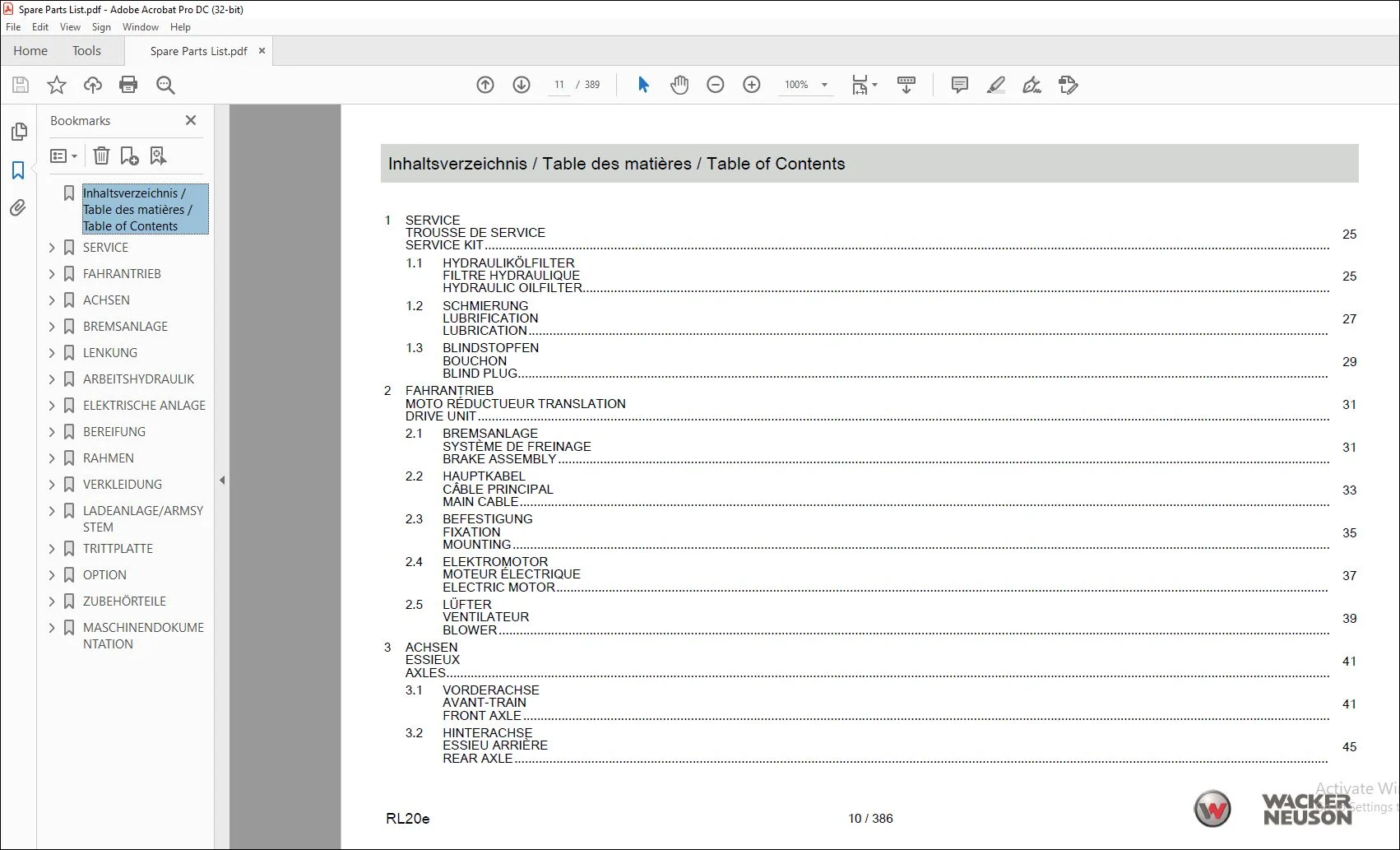

TABLE OF CONTENTS:
Wacker Neuson WL20e Wheel loader SPARE PARTS LIST manual – PDF DOWNLOAD
Inhaltsverzeichnis / Table des matières / Table of Contents 11
SERVICE 26
HYDRAULIKÖLFILTER 26
SCHMIERUNG 28
BLINDSTOPFEN 30
FAHRANTRIEB 32
BREMSANLAGE 32
HAUPTKABEL 34
BEFESTIGUNG 36
ELEKTROMOTOR 38
LÜFTER 40
ACHSEN 42
VORDERACHSE 42
HINTERACHSE 46
BEFESTIGUNG 52
GELENKWELLE 54
BREMSANLAGE 56
BREMSANLAGE 56
BREMSPEDAL 58
HAUPTBREMSZYLINDER 60
LENKUNG 62
VERSCHLAUCHUNG LENKZYLINDER 62
LENKZYLINDERBOLZEN 64
LENKZYLINDER 66
LENKUNG HYDROSTATISCH 68
LENKUNG HYDROSTATISCH 70
LENKRAD 72
ARBEITSHYDRAULIK 74
ARBEITSHYDRAULIK 74
ARBEITSHYDRAULIK 76
ARBEITSHYDRAULIK 78
SCHWIMMSTELLUNG 80
ARBEITSHYDRAULIK 82
ARBEITSHYDRAULIK 84
ARBEITSHYDRAULIK 86
ARBEITSHYDRAULIK 88
3 STEUERKREIS 90
3 STEUERKREIS 92
3 STEUERKREIS 94
3 STEUERKREIS 96
3 STEUERKREIS 98
ZUSATZSTEUERKREIS100
RÜCKLAUFLEITUNG102
ZUSATZSTEUERKREIS HI104
HUBZYLINDER106
HUBZYLINDER108
HUBZYLINDER110
KIPPZYLINDER112
KIPPZYLINDER114
KIPPZYLINDER116
KIPPZYLINDER118
HAUPTKABEL120
BEFESTIGUNG122
ELEKTROMOTOR124
ANBAUTEILE PUMPE126
ZAHNRADPUMPE128
BEFESTIGUNG130
BETÄTIGUNG132
VERSCHRAUBUNG VENTIL134
STEUERVENTIL136
VERSCHRAUBUNG VENTIL138
STEUERVENTIL140
HYDRAULIKÖLFILTER142
WEGEVENTIL144
SCHNELLVERSCHLUßKUPPLUNG146
ELEKTRISCHE ANLAGE148
ARMATURENBRETT148
LENKSÄULE150
LENKSÄULE154
ELEKTRISCHE ANLAGE158
FAHRZEUGBELEUCHTUNG162
ARBEITSBELEUCHTUNG164
RUNDUMKENNLEUCHTE166
RUNDUMKENNLEUCHTE168
BATTERIEKABEL170
STECKER172
HALTER BATTERIE174
BATTERIE176
BATTERIE178
HALTER BATTERIE180
BATTERIE182
BATTERIE184
LADEGERAET186
NACHFÜLLSYSTEM188
BEFESTIGUNG190
HAUPTSCHÜTZ192
HALTERUNG194
HALTERUNG196
ELEKTRONIK198
ELEKTRONIK200
BEFESTIGUNG202
SPANNUNGSWANDLER204
BEFESTIGUNG206
SPANNUNGSWANDLER208
LADESCHALTUNG210
ELEKTRONIK212
GASPEDAL214
HAUPTKABELBAUM216
HAUPTKABELBAUM222
SPANNUNGSWANDLER228
SPANNUNGSWANDLER230
SPANNUNGSWANDLER232
ZUSATZKABELBAUM234
ZUSATZKABELBAUM236
ZUSATZKABELBAUM238
KABELBAUM SITZ240
KABELBAUM FAHRERSITZ242
KABELBAUM BELEUCHTUNG244
KABELBAUM BELEUCHTUNG246
KABELBAUM BELEUCHTUNG248
ZUSATZKABELBAUM250
KABELBAUM DACH252
ZUSATZKABELBAUM254
BEREIFUNG256
BEREIFUNG256
BEREIFUNG258
BEREIFUNG260
BEREIFUNG262
KOTFLÜGEL264
KOTFLÜGEL266
SPURVERBREITERUNG268
RAHMEN270
VORDERTEIL RAHMEN270
HINTERTEIL RAHMEN272
HINTERTEIL RAHMEN276
KNICKGELENK280
HYDRAULIKTANK282
BEFESTIGUNG284
KUPPLUNG286
VERKLEIDUNG288
MOTORHAUBE288
SCHARNIER290
GASFEDER292
VERRIEGELUNG MOTORHAUBE294
SCHLIEßBLECH296
LADEANLAGE/ARMSYSTEM298
LADEANLAGE/ARMSYSTEM298
LADEANLAGE300
SCHNELLWECHSELPLATTE302
SCHNELLWECHSELPLATTE304
SCHNELLWECHSELPLATTE306
SCHNELLWECHSELPLATTE308
SCHNELLWECHSELPLATTE310
SCHNELLWECHSELPLATTE312
TRITTPLATTE314
TRITTPLATTE314
TRITTPLATTE318
SCHUTZDACH322
HECKSCHEIBE324
KABINENTÜR326
KABINENTÜR328
SCHUTZDACH330
SCHUTZDACH336
HYDRAULIK340
SITZ MSG 20344
LUFTGEFEDERTER SITZ346
SCHONBEZUG348
DOKUMENTENBOX350
ARMLEHNE352
OPTION354
FETTPRESSE354
FEUERLÖSCHER356
WERKZEUGSATZ358
ZUBEHÖRTEILE360
KFZ-KOMBITASCHE362
HALTER KENNZEICHEN364
ZUBEHÖRTEILE366
ERDSCHAUFEL366
PALETTENGABEL368
KROKODILGEBISS370
MASCHINENDOKUMENTATION372
AUFKLEBER372
TRAGLASTDIAGRAMM376
MASCHINENDOKUMENTATION378
MASCHINENDOKUMENTATION380
KURZANLEITUNG384
