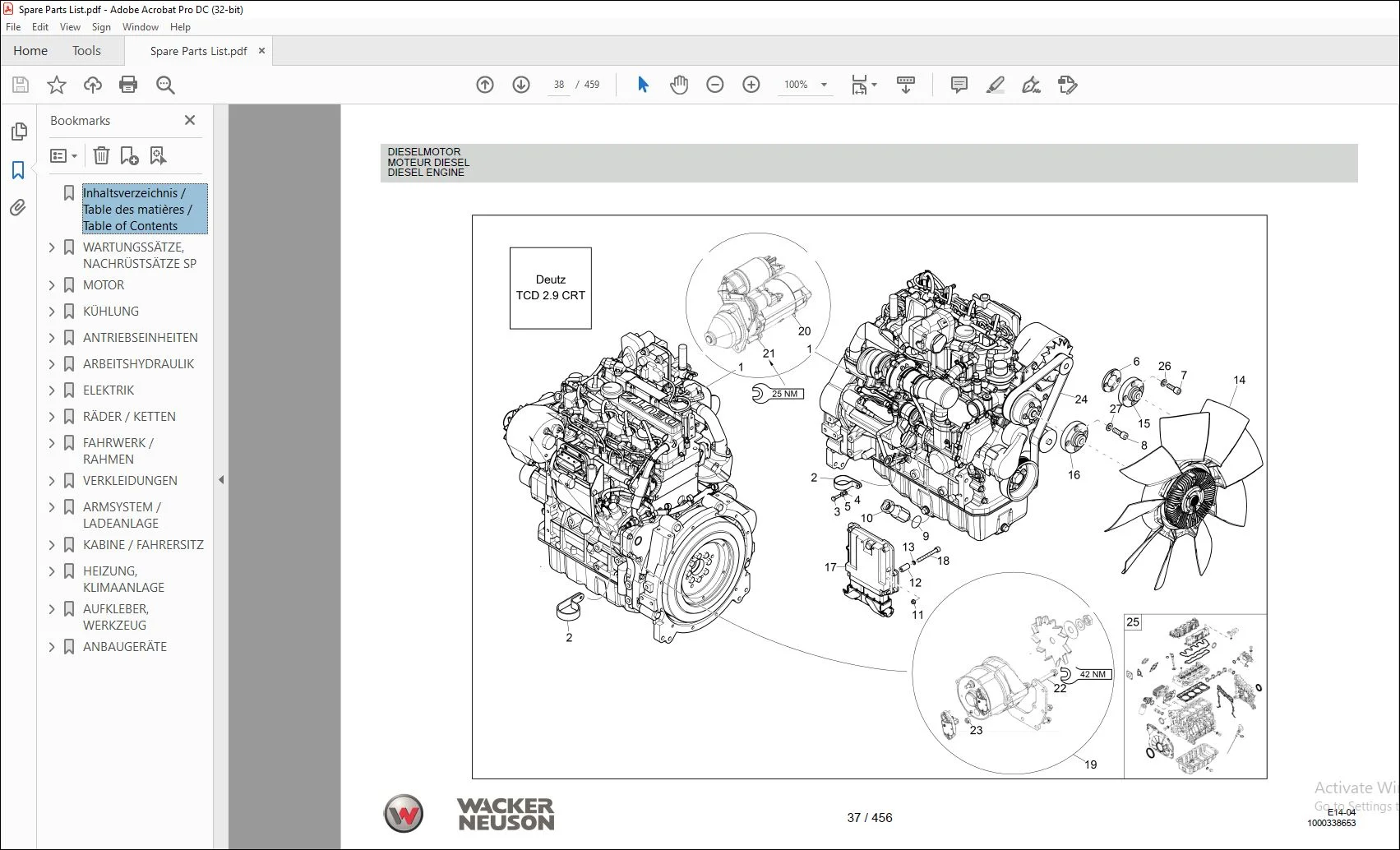

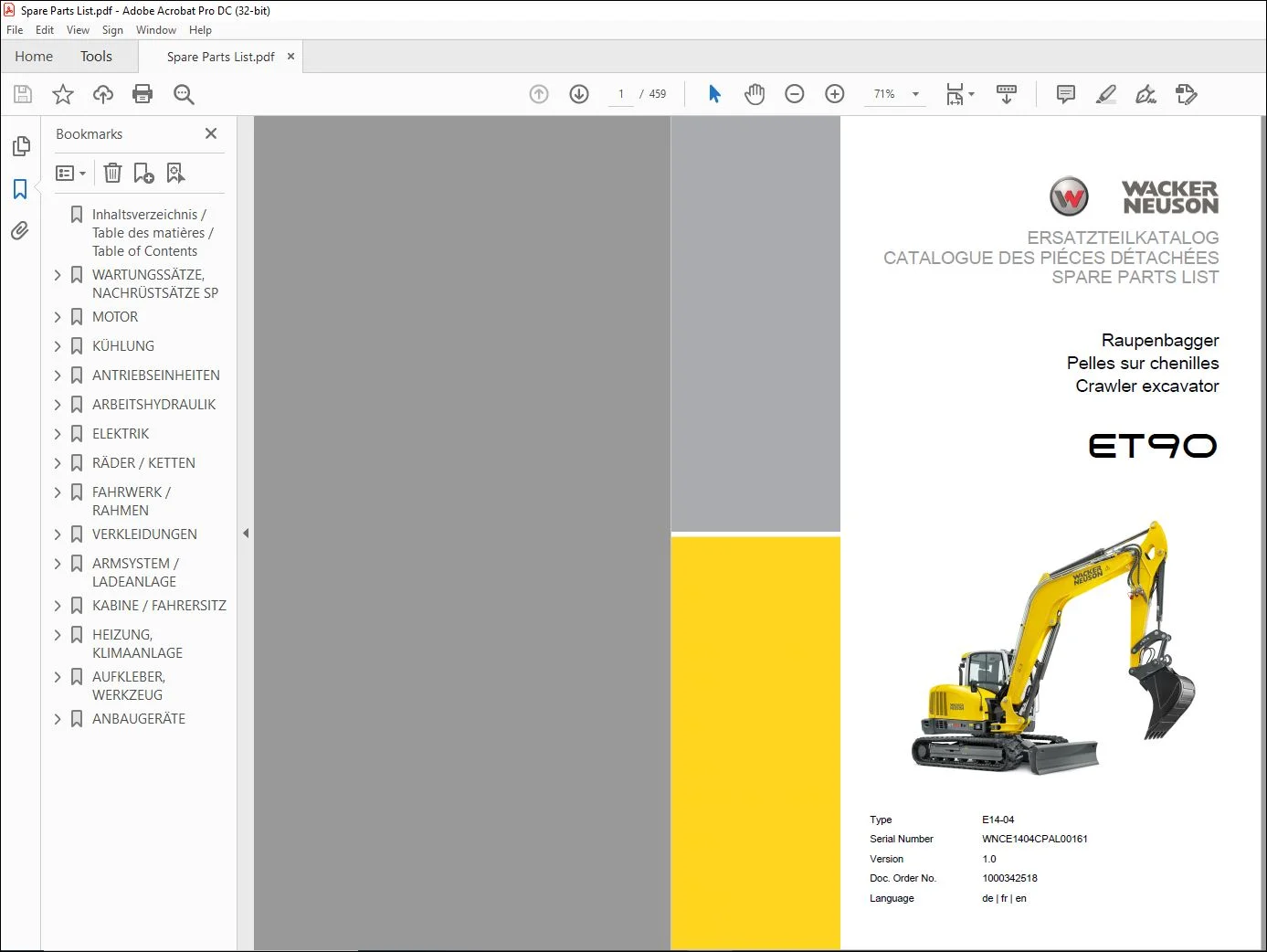

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Wacker Neuson ET90 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number. The serial number is stamped on the machine chassis. It is also located on the type label.
- The serial number must be given in full. In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time.
- This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer. Technical information, dimensions, weights and the given quantity of spare parts are not binding.
- Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted.
- However, please note that it is not possible to combine all options with each other. In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety. The operational safety is only ensured when original spare parts and additional devices that we have approved are used.
- We do not accept liability for damage incurred due to a technical change or non-use of original spare parts. Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction

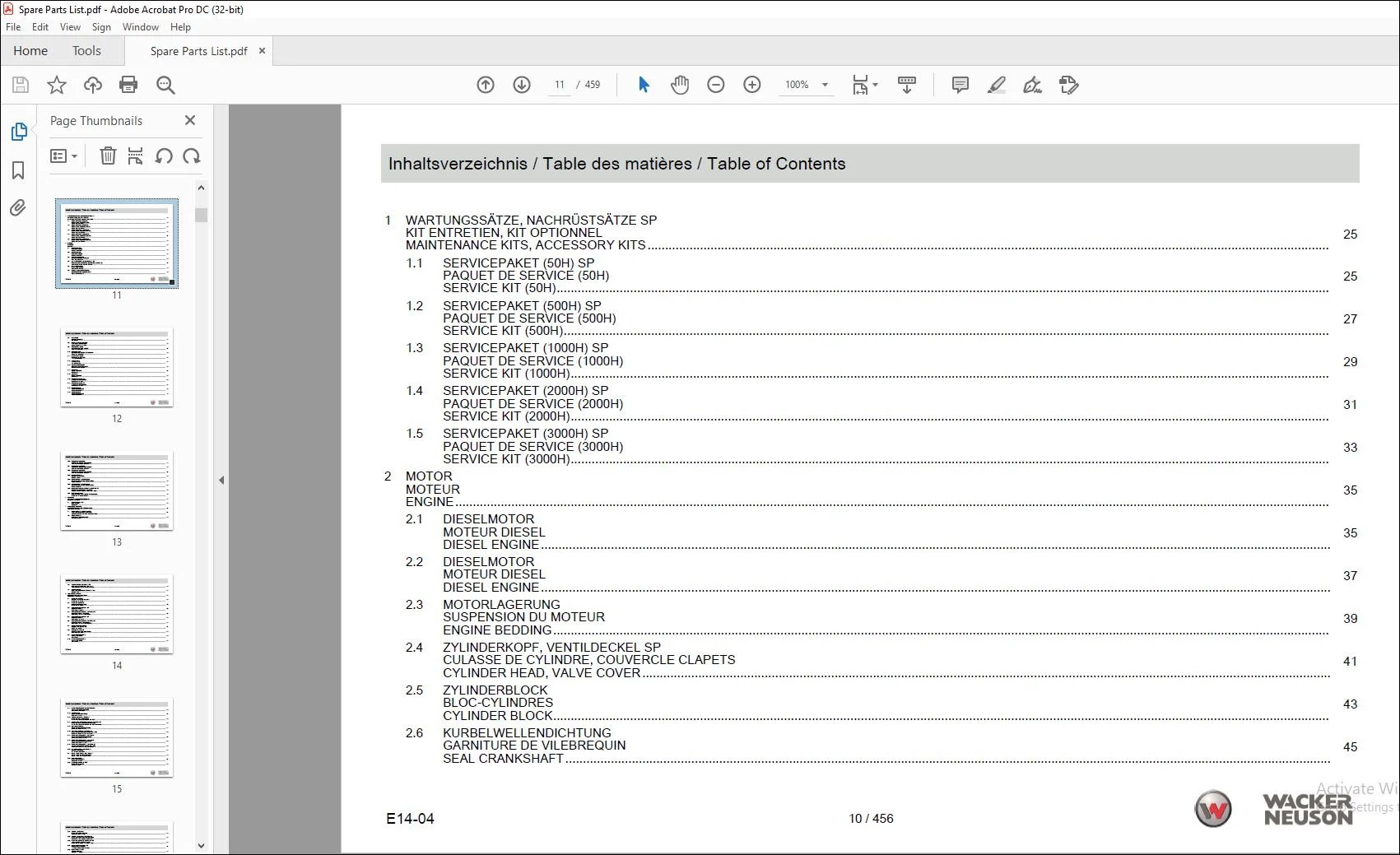

TABLE OF CONTENTS:
Wacker Neuson ET90 Crawler excavator SPARE PARTS LIST Manual – PDF DOWNLOAD
Inhaltsverzeichnis / Table des matières / Table of Contents 11
WARTUNGSSÄTZE, NACHRÜSTSÄTZE SP 26
SERVICEPAKET (50H) SP 26
SERVICEPAKET (500H) SP 28
SERVICEPAKET (1000H) SP 30
SERVICEPAKET (2000H) SP 32
SERVICEPAKET (3000H) SP 34
MOTOR 36
DIESELMOTOR 36
DIESELMOTOR 38
MOTORLAGERUNG 40
ZYLINDERKOPF, VENTILDECKEL SP 42
ZYLINDERBLOCK 44
KURBELWELLENDICHTUNG 46
ÖLWANNE 48
KURBELWELLE, KOLBEN 50
SCHMIERSYSTEM 52
KÜHLSYSTEM 54
EINSPRITZPUMPE 56
LUFTFILTER 58
AUSPUFFKRÜMMER 60
AUSPUFF 62
AUSPUFF 64
PARTIKELFILTER SP 66
PARTIKELFILTER SP 68
TURBOLADER 70
TURBOLADER 74
KABELBAUM MOTOR 78
KABELBAUM MOTOR 80
KABELBAUM MOTOR 82
DIESELTANK SP 84
KRAFTSTOFFVERSORGUNG 86
KRAFTSTOFFVERSORGUNG 90
DIESELBETANKUNGSPUMPE (OPTION) SP 94
PUMPENANTRIEB 96
KÜHLUNG 98
KOMBIKÜHLER SP 98
ANTRIEBSEINHEITEN102
DREHANTRIEB INSTALLATION102
DREHANTRIEB104
FAHRANTRIEB INSTALLATION106
FAHRANTRIEB108
ARBEITSHYDRAULIK110
HYDRAULIKTANK110
HYDRAULIKPUMPE114
MOBILSTEUERBLOCK 1 SP116
MOBILSTEUERBLOCK 1 (OPTION) SP120
MOBILSTEUERBLOCK 2 SP124
MOBILSTEUERBLOCK 2 (OPTION) SP128
DREHDURCHFÜHRUNG132
STEUERÖLEINHEIT134
HANDSTEUERVENTIL136
HANDSTEUERVENTIL138
HANDSTEUERVENTILE (OPTION) SP140
FAHRVENTIL142
VENTIL ZUSATZHYDRAULIK144
VENTIL FÜR ZUSATZHYDRAULIK (OPTION) SP146
UMSCHALTVENTIL148
UMSCHALTVENTIL (OPTION) SP150
PROPORTIONALVENTIL 1-FACH SP152
PROPORTIONALVENTIL 4-FACH SP154
PROPORTIONALVENTIL (OPTION) SP156
8/2 WEGEVENTIL (OPTION) SP158
EASY LOCK VENTIL (OPTION) SP160
SAMMELBLOCK162
WECHSELVENTILBLOCK164
VERTEILERBLOCK166
VERTEILERBLOCK (OPTION) SP168
HYDRAULIKPUMPE INSTALLATION170
HUBARMBETÄTIGUNG SP172
HUBARMZYLINDER174
LÖFFELSTIELBETÄTIGUNG SP176
LÖFFELSTIELZYLINDER178
LÖFFELSTIELZYLINDER (OPTION) SP180
LÖFFELBETÄTIGUNG182
LÖFFELZYLINDER184
KNICKARMZYLINDERBETÄTIGUNG (OPTION) SP186
KNICKARMZYLINDER (OPTION) SP188
KNICKARM INSTALLATION (OPTION) SP190
SCHWENKZYLINDERBETÄTIGUNG192
SCHWENKZYLINDER194
PLANIERSCHILDBETÄTIGUNG SP196
PLANIERSCHILDBETÄTIGUNG (OPTION) SP198
PLANIERSCHILDZYLINDER200
ZUSATZHYDRAULIKBETÄTIGUNG202
GREIFERANBAU (OPTION) SP204
GREIFERANBAU (OPTION) SP206
8/2 WEGEVENTIL INST (OPTION) SP208
VORSTEUERDRUCKLEITUNGEN210
TANKLEITUNGEN212
3STEUERKREIS (OPTION) SP214
VORBEREITUNG POWERTILT (OPTION) SP216
VORBEREITUNG POWERT EASY L (OPTION) SP218
VORBEREITUNG POWERTILT (OPTION) SP222
VORBEREITUNG POWERT EASY L (OPTION) SP226
EASY LOCK INSTALLATION (OPTION) SP230
EASY LOCK INSTALLATION (OPTION) SP232
ELEKTRIK234
BATTERIE234
ARMATURENBRETT236
RADIO (OPTION) SP240
VORBEREITUNG RADIO (OPTION) SP242
RELAISKASTEN244
HUPE248
FAHRSIGNAL (OPTION) SP250
CHASSISSCHEINWERFER252
CHASSISSCHEINWERFER (OPTION) SP254
ARBEITSSCHEINWERFER256
ARBEITSSCHEINWERFER LED (OPTION) SP258
KABINENSCHEINWERFER VO+HI (OPTION) SP260
KABINENSCHEINW LED VO+HI (OPTION) SP262
KABELBAUM CHASSIS, MOTOR264
KABELBAUM CHASSIS, MOTOR270
KABELBAUM ARMSCHEINWERFER276
KABELBAUM ARMSCHEINWERFER (OPTION) SP278
KABELBAUM SITZKONSOLE280
KABELBAUM DACH284
KABELBAUM KLIMA (OPTION) SP288
KABELBAUM RÜCKFAHRKAMERA (OPTION) SP290
KABEL ÜBERLASTWARNEINRICHTUNG SP292
WEGFAHRSPERRE (OPTION) SP294
RÄDER / KETTEN296
GUMMIKETTE296
STAHLKETTE (OPTION) SP298
HYBRIDKETTE (OPTION) SP300
FAHRWERK / RAHMEN302
FAHRWERK302
SPANNLAGER306
SPANNLAGER (OPTION STAHL/HYBRIDKETTE) SP308
FÜHRUNGSROLLE 1 SP310
FÜHRUNGSROLLE 2 SP312
STÜTZROLLE314
PLANIERSCHILD316
CHASSIS318
SCHMIERUNG322
STOSSSTANGE324
ZUSATZGEWICHT (OPTION) SP326
VERKLEIDUNGEN328
MOTORHAUBE328
SITZKONSOLE330
TANKABDECKUNG334
SPIEGEL336
TRENNWAND SP338
DÄMMMATTE340
ABDECKUNG CHASSIS342
ABDECKUNG FAHRWERK344
ARMSYSTEM / LADEANLAGE346
HUBARM346
KNICKARM (OPTION) SP350
LÖFFELSTIEL354
LÖFFELSTIEL HYD DAUMEN (OPTION) SP358
LÖFFELSTIEL LANG (OPTION) SP362
LÖFFELSTIEL LG HYDR DAUMEN (OPTION) SP366
SCHMIERUNG LÖFFELSTIELZYLINDER SP370
KABINE / FAHRERSITZ372
KABINENLAGERUNG372
RAHMENANBAUTEILE SP374
RAHMENANBAUTEILE (OPTION) SP380
TÜR (OPTION) SP386
FRONTSCHEIBE (OPTION) SP388
GLÄSER392
VERKLEIDUNGSTEILE394
SCHUTZGITTER FRONTSCHEIBE/FOPS OPTION SP396
RUNDUMLEUCHTE (OPTION) SP398
SPIEGEL400
STEUERHEBELTRÄGER402
KABINENBODEN406
SICHTFELDKAMERA (OPTION) SP408
FAHRERSITZ410
FAHRERSITZ LUFTGEFEDERT (OPTION) SP412
HEIZUNG, KLIMAANLAGE414
HEIZUNG414
KLIMAANLAGE (OPTION) SP418
ANBAUTEILE (OPTION KLIMAANLAGE) SP422
KLIMAAUTOMATIK (OPTION) SP424
AUFKLEBER, WERKZEUG428
AUFKLEBER428
AUFKLEBER ANSI (OPTION) SP432
HUBKRAFTAUFKLEBER SP434
HUBKRAFTAUFKLEBER (KNICKARM) SP436
WERKZEUG438
ANBAUGERÄTE440
MECH SCHNELLWECHSELSYSTEM (OPTION) SP440
EASY LOCK SCHNELLWECHSLEREINH(OPTION)SP442
EASY LOCK (OPTION) SP444
TIEFLÖFFEL SWS446
TIEFLÖFFEL EASY LOCK SP448
GRABRÄUMLÖFFEL SWS450
GRABRÄUMLÖFFEL EASY LOCK SP452
EASY LOCK KONSOLEN SP454
KIT HYDRAULIKHAMMER NE36/42 SP456
