Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 PDF
$27.95
Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 – PDF DOWNLOAD
Description
Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 – PDF DOWNLOAD
FILE DETAILS:
Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 – PDF DOWNLOADย
Language : English_German_French
Pages : 194
Downloadable : Yes
File Type : PDF

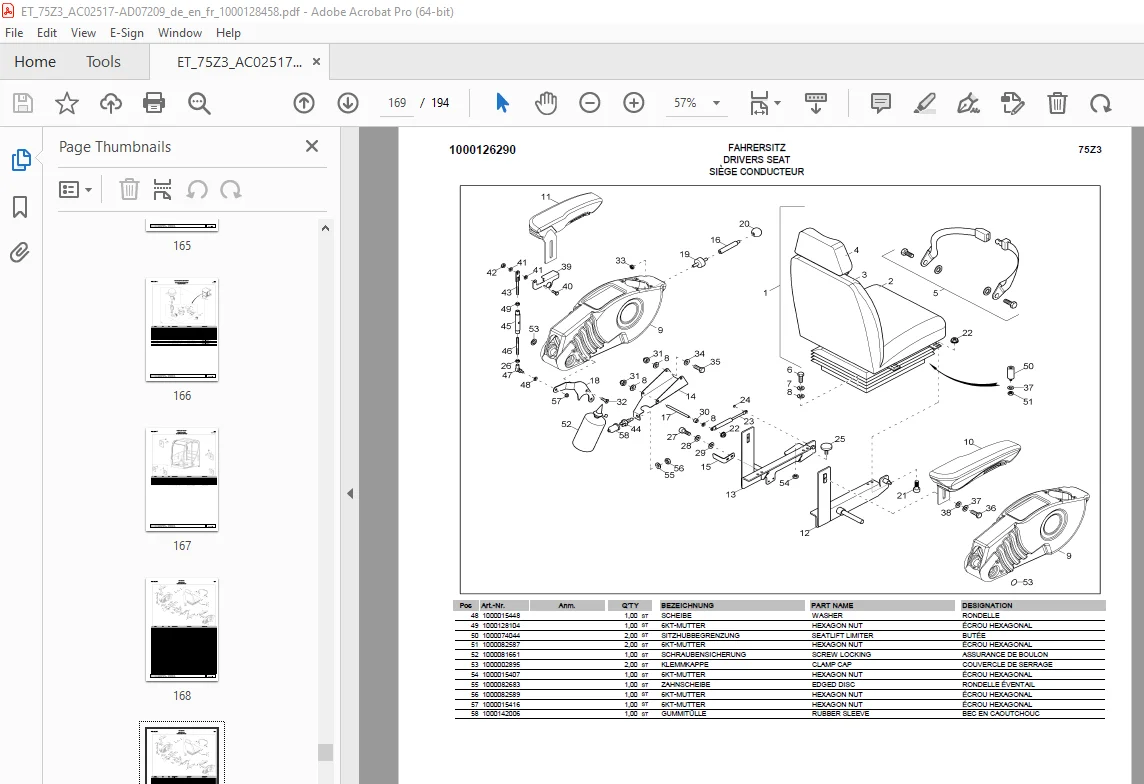

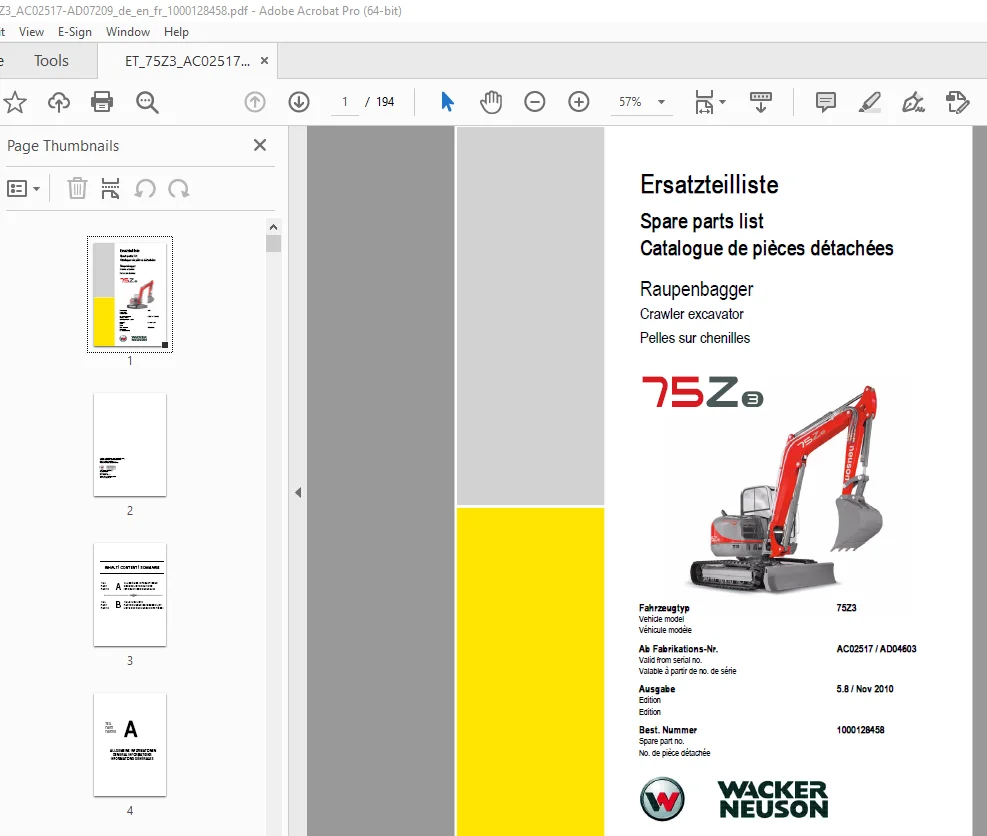

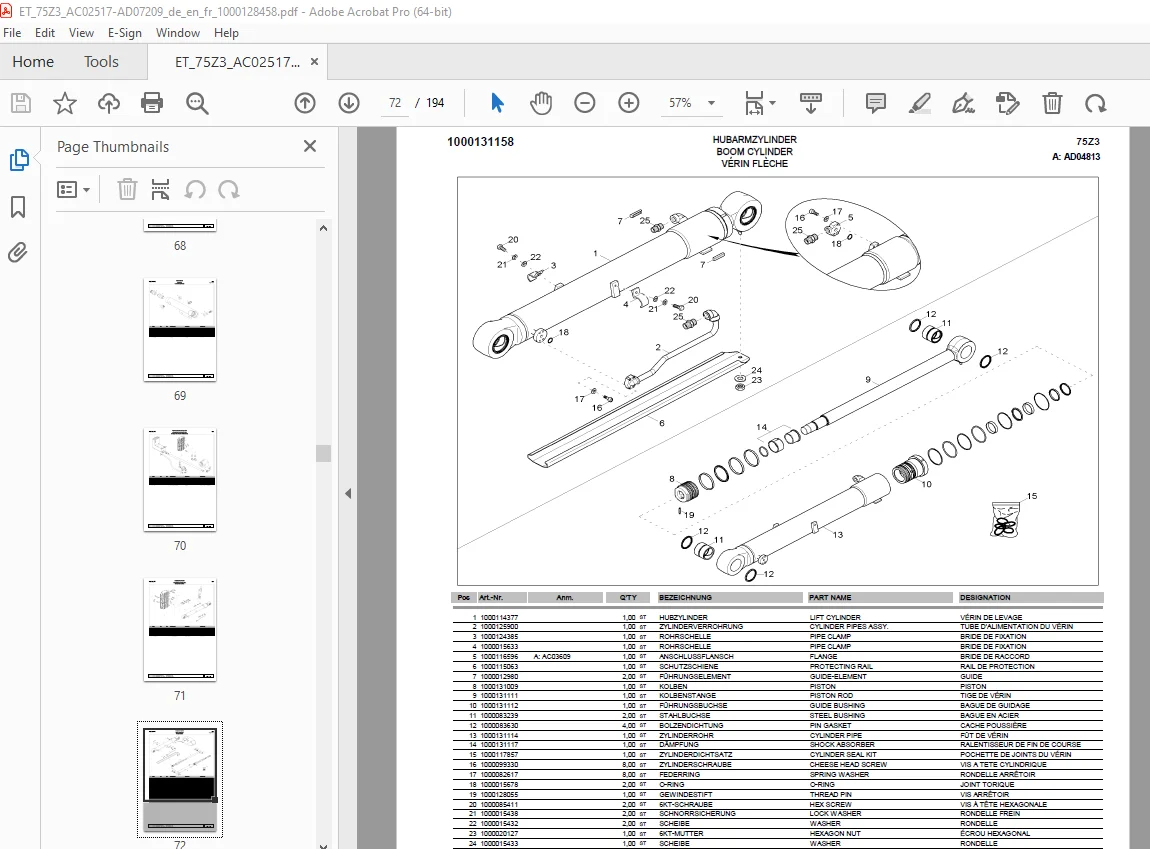

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 – PDF DOWNLOADย
INFORMATION
1. TEXTURE OF SPARE PARTS MANUAL
1.1. EXAMPLE
Pos Art.-Nr. Anm. Q’TY BEZEICHNUNG PART NAME DESIGNATION
1 1408410 A: AA00733V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
1 1408309 E: AA00734V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
2 9901175 2,00 ST SCHRAUBE SCREW VIS
3 9910021 1,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
4 9910024 4,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
5 9910022 2,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
๔ฃ ๔ค ๔ฅ ๔ฆ ๔ง
1.3. EXPLANATION
๔ฃIllustration reference number
๔คPart number
๔ฅRemarks (see symbols and notes)
๔ฆquantity required (see note below)
๔งPart name
1.3. NOTES
The quantity shown in column ๔ฆ is the quantity required for the particular application that is illustrated. If the parts are components of an
assembly, this refers to the quantity in one assembly or sub assembly.
1.4. REMARKS
The in column ๔ฅ listed information shows, from which serial number the new part is valid.
A๔N: Old and new part are exchangeable
A=>N: Old part is exchangeable through the new one, but not in the opposite
A#N: Old and new part not exchangeable
XX: The part is only sold as assembly
KDN 17/00: KDN Service news No../ Year
A: Valid to serial number
E: Valid from serial number
: Part includes a surcharge, redeemable upon return of old unit
2. ORDERING INSTRUCTIONS
Please pass the order with the following information to your dealer:
Your dealer:
Dealer stamp
– type of vehicle
– serial number
– type and serial number of the motor (for motor
spare parts)
– page
– reference number
– item number
3. GENERAL INFORMATION
The descriptive pictures shown in the spare manual can differ from the actual versions.
Not all the shown options are available in every country
Parts without item numbers are not available as spare parts.
TABLE OF CONTENTS:
Wacker Neuson 75Z3 Crawler Excavator Parts Manual 1000128458 – PDF DOWNLOAD
AllgHinweise_D_E_F_NEU_22 09 09 pdf 0
LISTE DES RECHERCHE DES PIรCES 3
TEIL 4
PART 4
ALLGEMEINE INFORMATIONEN 4
INFORMATIONS GรNรRALES 4
TEIL 10
PART 10
TEILESUCHLISTE 10
PARTS NUMBER REFERENCE LIST 10
LISTE DE RECHERCHE DES PIรCES 10
