Wacker Neuson 5001 Crawler Excavator Parts Manual 1000015257 PDF

Description

Wacker Neuson 5001 Crawler Excavator Parts Manual 1000015257 – PDF DOWNLOAD

FILE DETAILS:

Wacker Neuson 5001 Crawler Excavator Parts Manual 1000015257 – PDF DOWNLOAD

Language : English_German_French
Pages : 125
Downloadable : Yes
File Type : PDF

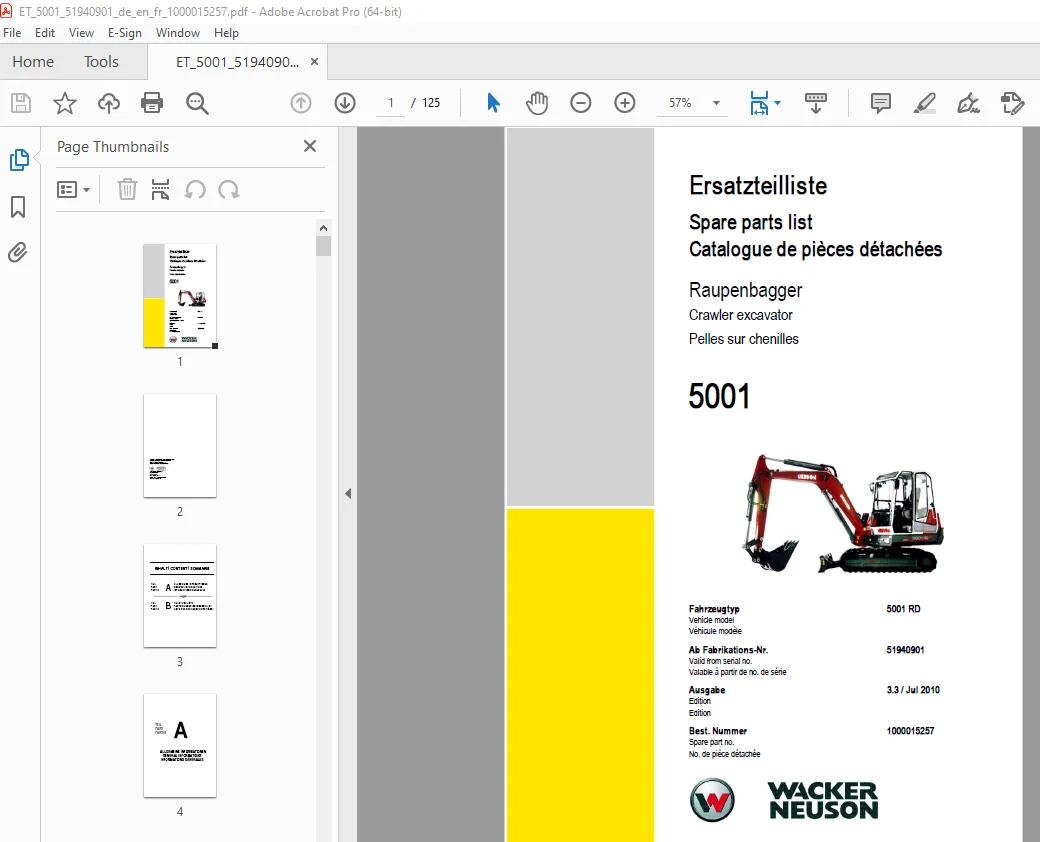

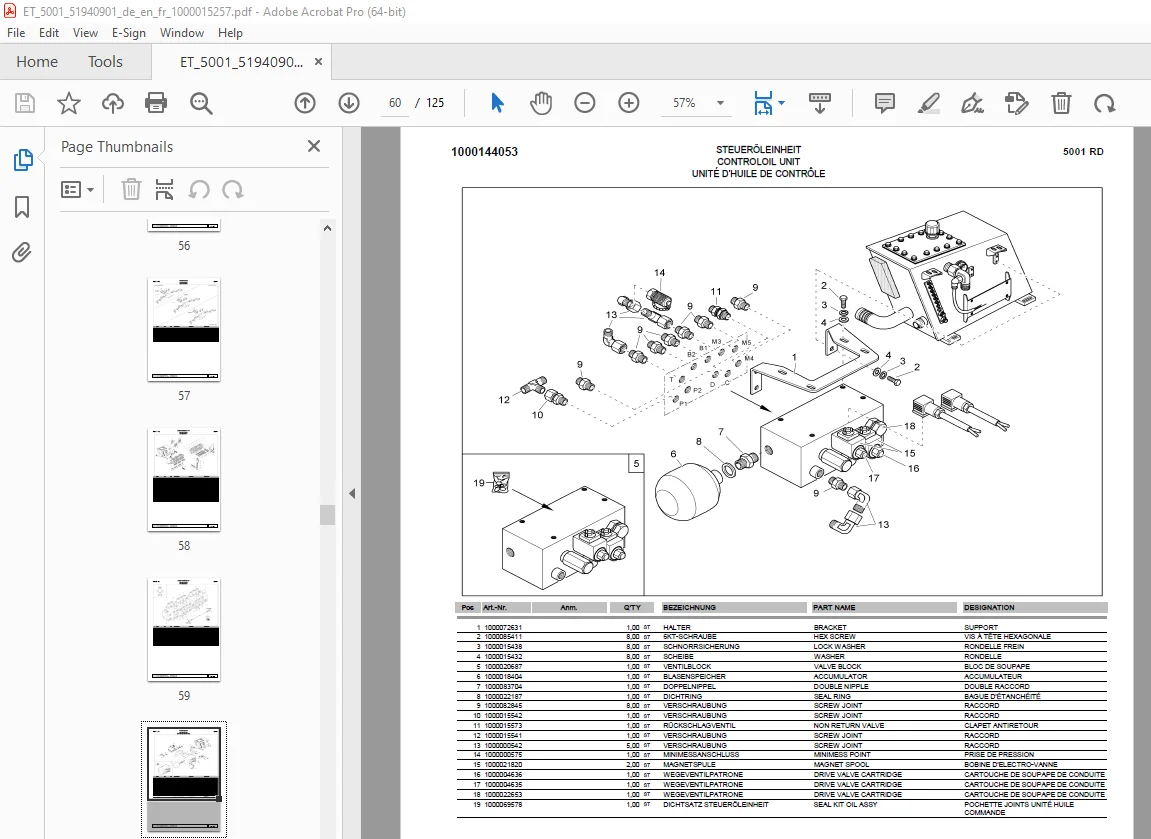

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Wacker Neuson 5001 Crawler Excavator Parts Manual 1000015257 – PDF DOWNLOAD

UNTERWAGEN
UNDERCARRIAGE
CHÂSSIS INFERIEUR
RAUPENFAHRWERK
TRACKLAYING GEAR
CHENILLE DE ROULEMENT
01/10
RAUPENFAHRWERK STAHLKETTE (OPTION) SP
TRACKLAYING GEAR (OPTION STEEL CHAIN)
CHENILLE DE ROULEMENT (OPTION)
01/20
SPANNLAGER
TRACK TENSIONER COMPLETE
PALIER DE SERRAGE
01/30
PLANIERSCHILD
DOZER BLADE
LAME DE TERRASSEMENT
01/40
OBERWAGEN
UPPERCARRIAGE
CHÂSSIS
CHASSIS
CHASSIS
CHÂSSIS
02/10
ABDECKUNG CHASSIS
CHASSIS COVER
COUVERCLE DU CHASSIS
02/20
SCHMIERUNG
LUBRICATION
LUBRIFICATION
02/30
RÜCKWAND
REAR PLATE
MUR ARRIÈRE
02/40
MOTORHAUBE
ENGINE HOOD
CAPOT
02/50
VENTILABDECKUNG
VALVE COVER
COUVERCLE DE CLAPET
02/60
ARMSYSTEM
BOOM
FLÈCHE
HUBARM
LIFT ARM
FLÈCHE
03/10
LÖFFELSTIEL
DIPPERSTICK
MANCHE DE GODET
03/20
LÖFFELGELENK
CONNECTING LINK
BRAS DE GODET
03/30
KABINE
CABIN
CABINE
KABINE-MONTAGE
CABIN MOUNTING
MONTAGE DE CABINE
04/10
RAHMENANBAUTEILE 1 SP
CABIN FRAME 1
CADRE DE CABINE 1
04/20
RAHMENANBAUTEILE 2 SP
CABIN FRAME 2
CADRE DE CABINE 2
04/30
FRONTSCHEIBE
FRONT WINDOW
PARE-BRISE
04/40
GLÄSER
CABIN WINDOWS
VITRES DE LA CABINE
04/50
SCHIEBEFENSTER
SLIDE WINDOW
FENÊTRE COULISSANTE
04/60
TÜR
DOOR
PORTE
04/70
TAPEZIERUNG
COATING
TAPISSAGE
04/80
HEIZUNG
HEATING
CHAUFFAGE
04/90
FAHRERSITZ VERSION 1 SP
DRIVER SEAT VERSION 1
SIÈGE DU CONDUCTEUR VERSION 1
04/100
FAHRERSITZ VERSION 2 SP
DRIVER SEAT VERSION 2
SIÈGE DU CONDUCTEUR VERSION 2
04/110
DIESELMOTOR
ENGINE
MOTEUR
DIESELMOTOR
DIESEL ENGINE
MOTEUR DIESEL
05/10
MOTORLAGERUNG
ENGINE BEDDING
SUSPENSION DU MOTEUR
05/20
ZYLINDERKOPF, VENTILDECKEL SP
CYLINDER HEAD, VALVE COVER
CULASSE DE CYLINDRE, COUVERCLE CLAPETS
05/30
ZYLINDERBLOCK
CYLINDER BLOCK
BLOC-CYLINDRES
05/40
KURBELWELLE, KOLBEN
CRANKSHAFT, PISTON
PISTONS/VILEBREQUIN
05/50
SCHMIERSYSTEM
LUB OIL SYSTEM
SYSTEME DE GRAISSAGE
05/60
LUFTFILTER
AIR CLEANER
FILTRE À AIR
05/70
AUSPUFF
EXHAUST
ÉCHAPPEMENT
05/80
KRAFTSTOFFTANK
FUEL TANK
RÉSERVOIR DE CARBURANT
05/90
KRAFTSTOFFVERSORGUNG
FUEL SYSTEM
RAVITAILLEMENT EN CARBURANT
05/100
GASBETÄTIGUNG
SPEED ACTUATING
COMMANDE D’ACCÉLÉRATEUR
05/110
WASSERKÜHLER
WATER COOLER
RÈFRIGÉRANT D’EAU
05/120
PUMPENANTRIEB
HYDRAULIC PUMP DRIVE
EMBRAYAGE PAR POMPE HYRAULIQUE
05/130
HYDRAULIKKOMPONENTEN
HYDRAULIC COMPONENTS
SYSTEM HYDRAULIQUE
HYDRAULIKTANK
HYDRAULIC TANK
RÉSERVOIR HYDRAULIQUE
06/10
ÖLKÜHLER
OIL COOLER
RADIATEUR D’HUILE
06/20
FAHRANTRIEB
DRIVE UNIT
MOTO RÉDUCTUEUR TRANSLATION
06/30
DREHDURCHFÜHRUNG
TURNING JOINT
EXÉCUTION ROTATIVE
06/40
HYDRAULIKPUMPE
HYDRAULIC PUMP
POMPE HYDRAULIQUE
06/50
DREHANTRIEB VERSION 1 SP
TURNTABLE DRIVE UNIT VERSION 1
MOTEUR D’ORIENTATION VERSION 1
06/60
DREHANTRIEB VERSION 2 SP
TURNTABLE DRIVE UNIT VERSION 2
MOTEUR D’ORIENTATION VERSION 2
06/70
NACHSAUGBLOCK
SUCTION BLOCK
BLOC À SUCCION
06/80
MOBILSTEUERBLOCK 1 SP
CONTROL VALVE 1
DISTRIBUTEUR 1
06/90
MOBILSTEUERBLOCK 2 SP
CONTROL VALVE 2
DISTRIBUTEUR 2
06/100
STEUERÖLEINHEIT
CONTROLOIL UNIT
UNITÉ D’HUILE DE CONTRÔLE
06/110
VERTEILERBLOCK
DISTRIBUTOR BLOCK
BLOC DE DISTRIBUTION
06/120
UMSCHALTVENTIL
CHANGE OVER VALVE
SOUPAPE DE COMMUTATION
06/130
SPERRVENTIL
BLOCK VALVE
SOUPAPE DE D’ARRÊT
06/140
HANDSTEUERVENTIL
JOYSTICK
LEVIER DE JEUX
06/150
PLANIERSCHILDVENTIL
BLADE VALVE
SOUPAPE DE BOUCLIER
06/160
FAHRVENTIL LINKS SP
CONTROL VALVE TRAVELLING LEFT
MANIPULATEUR DU TRANSLATION GAUCHE
06/170
FAHRVENTIL RECHTS SP
CONTROL VALVE TRAVELLING RIGHT
MANIPULATEUR DU TRANSLATION DROITE
06/180
ZUSATZHYDRAULIKBETÄTIGUNG
AUXILIARY HYDRAULICS OPERATION
COMMANDE HYDRAULIQUE AUXILIAIRE
06/190
HYDRAULIKZYLINDER
HYDRAULIC CYLINDER
VERINS HYDRAULIQUE
HUBARMZYLINDER VERSION 1 SP
LIFTING BOOM CYLINDER VERSION 1
VÉRIN DE FLÈCHE VERSION 1
07/10
HUBARMZYLINDER VERSION 2 SP
LIFTING BOOM CYLINDER VERSION 2
VÉRIN DE FLÈCHE VERSION 2
07/20
HUBARMZYLINDER VERSION 3 SP
LIFTING BOOM CYLINDER VERSION 3
VÉRIN DE FLÈCHE VERSION 3
07/30
LÖFFELSTIELZYLINDER VERSION 1 SP
DIPPER ARM CYLINDER VERSION 1
VERIN DE BRAS DE LA PELLE VERSION 1
07/40
LÖFFELSTIELZYLINDER VERSION 2 SP
DIPPER ARM CYLINDER VERSION 2
VERIN DE BRAS DE LA PELLE VERSION 2
07/50
LÖFFELSTIELZYLINDER VERSION 3 SP
DIPPER ARM CYLINDER VERSION 3
VERIN DE BRAS DE LA PELLE VERSION 3
07/60
LÖFFELSTIELZYLINDER VERSION 4 SP
DIPPER ARM CYLINDER VERSION 4
VERIN DE BRAS DE LA PELLE VERSION 4
07/70
LÖFFELZYLINDER VERSION 1 SP
DIPPER CYLINDER VERSION 1
VÉRIN DE GODET VERSION 1
07/80
LÖFFELZYLINDER VERSION 2 SP
DIPPER CYLINDER VERSION 2
VÉRIN DE GODET VERSION 2
07/90
LÖFFELZYLINDER VERSION 3 SP
DIPPER CYLINDER VERSION 3
VÉRIN DE GODET VERSION 3
07/100
SCHWENKZYLINDER VERSION 1 SP
BOOM OFFSET CYLINDER VERSION 1
VÉRIN DEPORT DE FLÈCHE VERSION 1
07/110
SCHWENKZYLINDER VERSION 2 SP
BOOM OFFSET CYLINDER VERSION 2
VÉRIN DEPORT DE FLÈCHE VERSION 2
07/120
SCHWENKZYLINDER VERSION 3 SP
BOOM OFFSET CYLINDER VERSION 3
VÉRIN DEPORT DE FLÈCHE VERSION 3
07/130
PLANIERSCHILDZYLINDER VERSION 1 SP
DOZER BLADE CYLINDER VERSION 1
VÉRIN LAME NIVELEUSE VERSION 1
07/140
SEITE / PAGE / PAGE 1
INHALT / CONTENT / SOMMAIRE
BEZEICHNUNG
PART NAME
DESIGNATION
SEITE
PAGE
PAGE
PLANIERSCHILDZYLINDER VERSION 2 SP
DOZER BLADE CYLINDER VERSION 2
VÉRIN LAME NIVELEUSE VERSION 2
07/150
HYDRAULIK INSTALLATION
HYDRAULIC INSTALLATION
INSTALLATION HYDRAULIQUE
HYDRAULIKPUMPE INSTALLATION
HYDRAULIC PUMP INSTALLATION
INST. POMPE HYDRAULIQUE
08/10
ÖLKÜHLER INSTALLATION VERSION 1 SP
HYDRAULIC OIL COOLER INST. VERSION 1
INSTALLATION RADIATEUR D’HUILE VERSION 1
08/20
ÖLKÜHLER INSTALLATION VERSION 2 SP
HYDRAULIC OIL COOLER INST. VERSION 2
INSTALLATION RADIATEUR D’HUILE VERSION 2
08/30
DREHANTRIEB INSTALLATION VERSION 1 SP
TURNTABLE DRIVE UNIT INST. VERSION 1
INST. MOTEUR D’ORIENTATION VERSION 1
08/40
DREHANTRIEB INSTALLATION VERSION 2 SP
TURNTABLE DRIVE UNIT INST. VERSION 2
INST. MOTEUR D’ORIENTATION VERSION 2
08/50
FAHRANTRIEB INSTALLATION
TRAVELLING GEAR INSTALLATION
MOTEUR DE TRANSLATION INST.
08/60
STEUERÖLEINHEIT INSTALLATION
INST. PILOT OIL SUPPLY UNIT
INST. UNITE DE PILOTAGE A BASSE PRESSION
08/70
SCHWENKZYLINDER INSTALLATION VERSION1 SP
BOOM OFFSET CYLINDER INST. VERSION 1
INSTALLATION CYLINDRE PIVOTANT VERSION 1
08/80
SCHWENKZYLINDER INSTALLATION VERSION2 SP
BOOM OFFSET CYLINDER INST. VERSION 2
INSTALLATION CYLINDRE PIVOTANT VERSION 2
08/90
PLANIERSCHILDZYLINDER INSTALLATION
DOZER BLADE CYLINDER INSTALLATION
INST. VERIN LAME NIVELEUSE
08/100
ARMSYSTEM INSTALLATION
ARMSYSTEM INSTALLATION
INSTALLATION FLÈCHE
08/110
HANDSTEUERVENTILE INSTALLATION
HAND LEVERS INSTALLATION
INSTALLATION MANIPULATEURS
08/120
FAHRVENTIL INSTALLATION
TRAVELLING VALVE INSTALLATION
INST. CLAPET DE TRANSLATION
08/130
ÜBERLASTWARNEINRICHTUNG SP
STALLING LOAD – WARNING DEVICE
EFFORT DE CALAGE D`AVERISSEMENT
08/140
ELEKTRO INSTALLATION
ELECTRICAL INSTALLATION
INSTALLATION ELECTRIQUE
ELEKTRO-INSTALLATION MOTOR SP
ELECTRICAL INSTALLATION ENGINE
INSTALLATION ELECTRIQUE MOTEUR
09/10
ARMATURENBRETT RECHTS SP
CONTROL BOARD
TABLEAU DE BORD
09/20
RELAISKASTEN
RELAY CASE
BOÎTE DE RELAIS
09/30
KABELBAUM
WIRING HARNESS
FAISCEAU ÉLECTRIQUE
09/40
FRONTBELEUCHTUNG
FRONTLIGHTS
PHARES AVANT
09/50
ARBEITSSCHEINWERFER
WORKING LIGHT
PHARE DE TRAVAIL
09/60
BATTERIE
BATTERY
BATTERIE
09/70
HUPE
HORN
AVERTISSEUR
09/80
ZUBEHÖR
ATTACHEMENT
OUTILLAGE
AUFKLEBER
STICKER
AUTOCOLLANT
10/10
WERKZEUG
TOOLS
OUTIL
10/20
SWS-GABEL
QUICK-HITCH COUPLER
ATTACHE RAPIDE
10/30
TIEFLÖFFEL
BUCKET
GODET
10/40
TIEFLÖFFEL SWS
BUCKET QHS
GODET ATTACHE RAPIDE
10/50
GRABENRÄUMLÖFFEL
DITCHING BUCKET
GODET DE CURAGE
10/60
GRABRÄUMLÖFFEL SWS
DITCHING BUCKET QHS
GODET DE CURAGE ATT.RAP.
10/70
SCHWENKLÖFFEL
TILTING BUCKET
GODET DE CURAGE ORIENT.
10/80
SCHWENKLÖFFEL (LÖFFELSTIEL LANG) SP
BUCKET OFFSET (DIPPER STICK LONG)
DEPORT DE GODET (BALANCIER LONG)
10/90
SCHWENKLÖFFEL SWS
TILTING BUCKET QHS
GODET DE CURAGE ORIENT.
10/100
SCHWENKLÖFFEL SWS (LÖFFELSTIEL LANG) SP
BUCKET OFFSET (DIPPER STICK LONG)
DEPORT DE GODET (BALANCIER LONG)
10/110
SCHWENKLÖFFELZYLINDER
SWIVEL BUCKET CYLINDER
CYLINDRE À GODET PIVOTANT
10/120
ZWEISCHALENGREIFER
2 BOWL GRIPPER
GRAPPIN
10/130
ZYLINDER FÜR ZWEISCHALENGREIFER
2 BOWL GRIPPER CYLINDER
CYLINDRE DU GRAPPIN
10/140
ROTATOR FÜR ZWEISCHALENGREIFER
ROTATOR
ROTATEUR
10/150
ZWEISCHALENGREIFER INSTALLATION
2 BOWL GRIPPER INSTALLATION
INSTALLATION GRAPPIN
10/160
ZWEISCHALENGREIFER SWS INSTALLATION SP
2 BOWL GRIPPER QHS INSTALLATION
INSTALLATION GRAPPIN ATTACHE RAPIDE
10/170
SWS KONSOLEN
QHS CONSOLE
CONSOLE ATTACHE RAPIDE
10/180

DESCRIPTION:

Wacker Neuson 5001 Crawler Excavator Parts Manual 1000015257 – PDF DOWNLOAD

INFORMATION
1. TEXTURE OF SPARE PARTS MANUAL
1.1. EXAMPLE
Pos Art.-Nr. Anm. Q’TY BEZEICHNUNG PART NAME DESIGNATION
1 1408410 A: AA00733V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
1 1408309 E: AA00734V A<->N 1,00 ST UMSCHALTVENTIL SELECTION VALVE CLAPET SELECTIF
2 9901175 2,00 ST SCHRAUBE SCREW VIS
3 9910021 1,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
4 9910024 4,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
5 9910022 2,00 ST GERADE VERSCHRAUBUNG SCREW JOINT UNION
􀁣 􀁤 􀁥 􀁦 􀁧
1.3. EXPLANATION
􀁣Illustration reference number
􀁤Part number
􀁥Remarks (see symbols and notes)
􀁦quantity required (see note below)
􀁧Part name
1.3. NOTES
The quantity shown in column 􀁦 is the quantity required for the particular application that is illustrated. If the parts are components of an
assembly, this refers to the quantity in one assembly or sub assembly.
1.4. REMARKS
The in column 􀁥 listed information shows, from which serial number the new part is valid.
A􀃙N: Old and new part are exchangeable
A=>N: Old part is exchangeable through the new one, but not in the opposite
A#N: Old and new part not exchangeable
XX: The part is only sold as assembly
KDN 17/00: KDN Service news No../ Year
A: Valid to serial number
E: Valid from serial number
: Part includes a surcharge, redeemable upon return of old unit
2. ORDERING INSTRUCTIONS
Please pass the order with the following information to your dealer:
Your dealer:
Dealer stamp
– type of vehicle
– serial number
– type and serial number of the motor (for motor
spare parts)
– page
– reference number
– item number
3. GENERAL INFORMATION
The descriptive pictures shown in the spare manual can differ from the actual versions.
Not all the shown options are available in every country
Parts without item numbers are not available as spare parts.

S.V 04/01/2025
