Volvo Penta 4.3GIPLKDCE, 4.3GIPLKECE, 4.3GLPLKD, 4.3GLPLKE, 4.3GSJLKD, 4.3GSPLKD, 4.3GSPLKE Parts Manual PDF

Description

Volvo Penta 4.3GIPLKDCE, 4.3GIPLKECE, 4.3GLPLKD, 4.3GLPLKE, 4.3GSJLKD, 4.3GSPLKD, 4.3GSPLKE Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Volvo Penta 4.3GIPLKDCE, 4.3GIPLKECE, 4.3GLPLKD, 4.3GLPLKE, 4.3GSJLKD, 4.3GSPLKD, 4.3GSPLKE Parts Manual – PDF DOWNLOAD

Language : English
Pages : 119
Downloadable : Yes
File Type : PDF

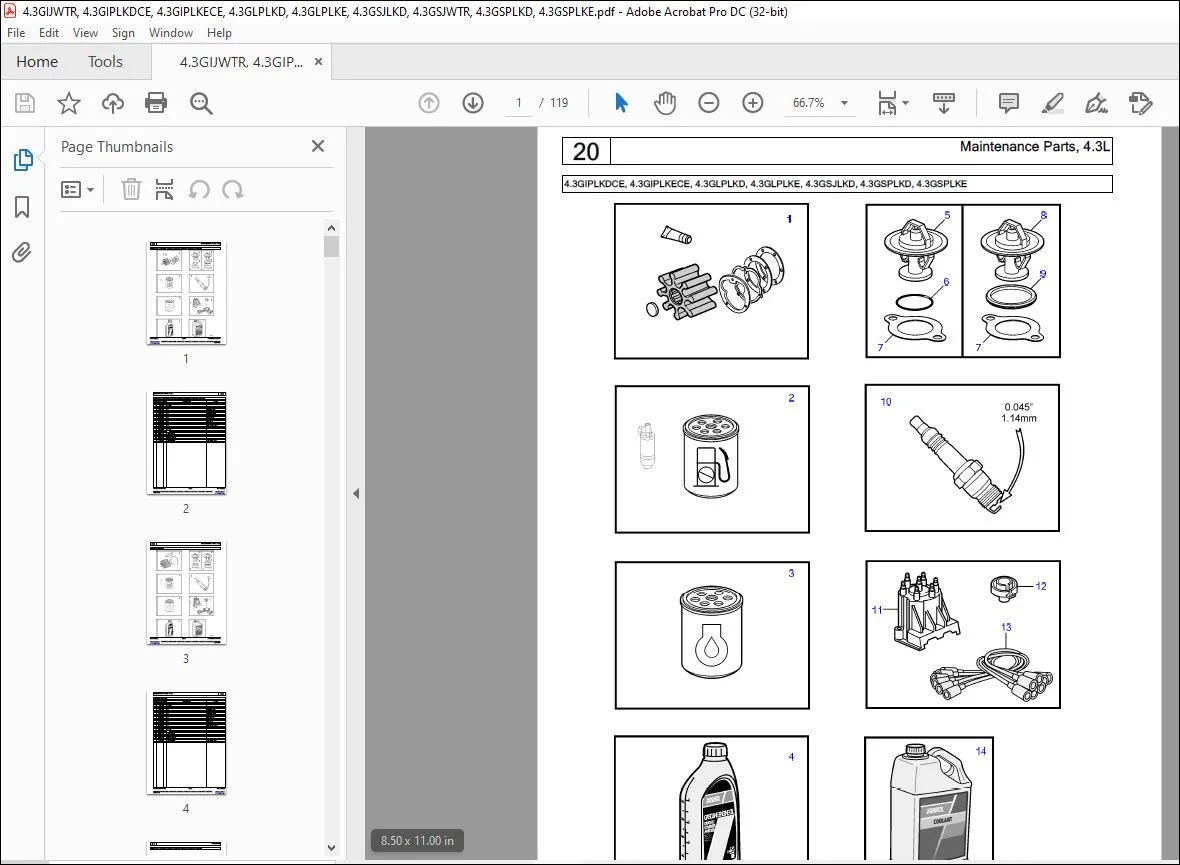

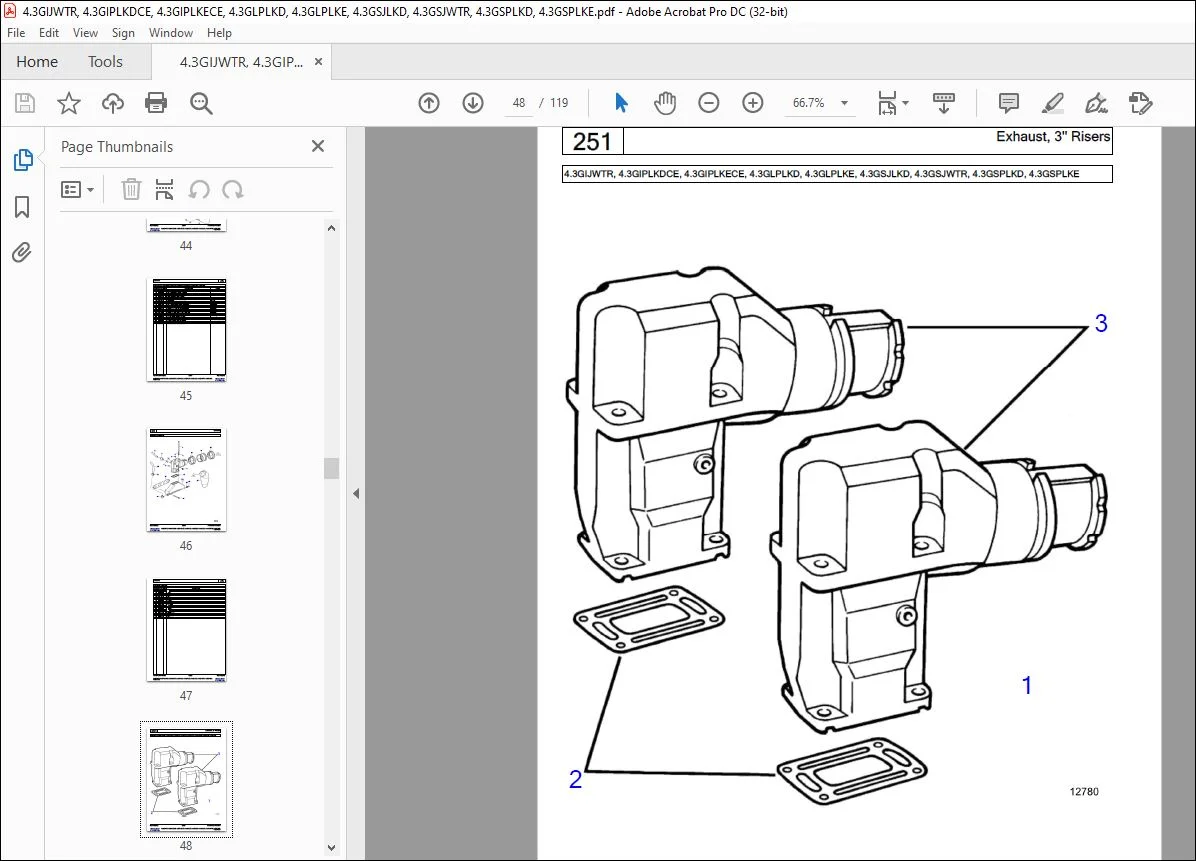

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Volvo Penta 4.3GIPLKDCE, 4.3GIPLKECE, 4.3GLPLKD, 4.3GLPLKE, 4.3GSJLKD, 4.3GSPLKD, 4.3GSPLKE Parts Manual – PDF DOWNLOAD

1 3856682 1 Longblock
2 3855742 6 Piston, standard
(3855743) 6 Piston, 0.50 mm os 0.020 in.
3 3855740 1 Piston ring, standard
(3855741) 1 Piston ring, 0.50 mm os 0.020 in.
4 3853208 3 Cap plug, oil gallery
5 (3856778) 1 Bearing
3853210 2 Bearing, camshaft, #1 & #4
3853212 2 Bearing, camshaft, #2 & #3
6 3853206 1 Nut, oil pan
7 3856140 1 Pin, rear oil seal housing Not shown
8 3852100 8 Core plug, engine block
9 3853209 1 Core plug, camshaft
10 3852471 1 Plug
11 (3856772) 1 Bearing, standard
(3856773) 1 Bearing, 0.010 in. U.S. 0.25mm
(3856774) 1 Bearing, 0.020 in. U.S. 0.51mm
12 3853114 8 Locating pin, cylinder head
13 3855972 2 Pin, front cover
14 3856001 2 Pin, trans line-up
15 3853214 8 Bolt, bearing cap
16 3854955 6 Bearing, standard
17 3854173 6 Connecting rod
18 (3853148) 16 Nut, connecting rod
19 3853179 12 Bolt, connecting rod
20 3857716 1 Housing, rear oil seal
21 3857718 2 Stud, oil pan, rear
22 3852657 1 Seal, rear crankshaft
23 3852656 1 Gasket, rear oil seal
24 3853204 1 Bolt, seal retainer
25 3853206 1 Nut, seal retainer
26 3853205 1 Stud, seal retainer
27 3855733 1 Crankshaft
28 3853200 1 Pin, flywheel dowel
29 3853203 2 Bolt, seal retainer
30 3852685 1 Chain, camshaft timing
31 3855969 1 Pin
32 (3854319) 1 Sprocket, camshaft
33 3854329 1 Retainer, camshaft sprocket
34 3855735 1 Timing gear casing
35 3855738 1 Stud, timing cover
36 3855737 3 Screw, timing cover
37 3854494 2 Drain cock, engine Early
3850802 1 Plug, water drain, engine Late
38 3853917 1 Clutch, flywheel SX, DP-S
39 3855734 1 Vibration damper
40 (3855736) 2 Screw, timing cover
3855737 3 Screw, timing cover
3855738 5 Stud, timing cover
41 3853274 6 Stud, flywheel & coupler to crankshaft SX, DP-S
42 3853648 2 Woodruff key, crankshaft
43 3855817 4 Bolt, valve lifter guide
44 3855739 6 Grommet, timing cover
45 3855776 1 Adapter
46 3854323 2 Bolt, camshaft retainer
47 3853800 1 Pressure sensor, oil pressure
872064 1 Pressure sensor, oil pressure, dual station
48 3852690 1 Sprocket, crankshaft
49 (3854330) 3 Bolt, camshaft sprocket
50 3852503 1 Elbow, oil pressure sender to adapter
51 3855824 1 Lifting bracket GL
52 3853273 6 Nut, flywheel & coupler to crankshaft SX, DP-S
53 (3854325) 1 Flywheel
