Volvo A35C Articulated Dump Truck Shop Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:988
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

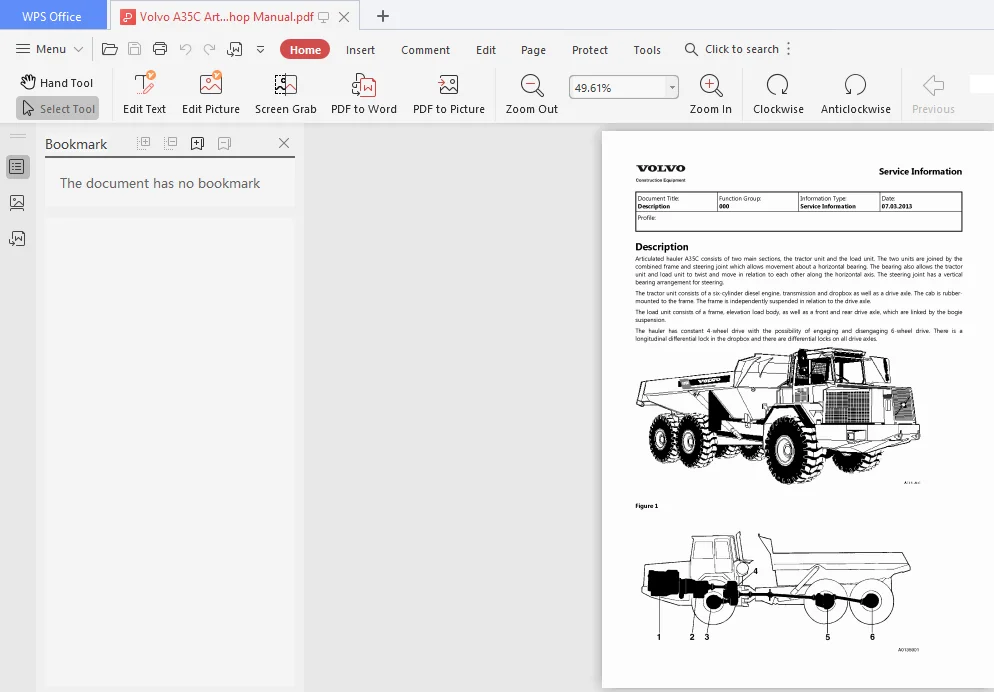

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
- Articulated hauler A35C consists of two main sections, the tractor unit and the load unit. The two units are joined by the combined frame and steering joint which allows movement about a horizontal bearing.
- The bearing also allows the tractor unit and load unit to twist and move in relation to each other along the horizontal axis. The steering joint has a vertical bearing arrangement for steering.
- The tractor unit consists of a six—cylinder diesel enginer transmission and dropbox as well as a drive axle. The cab is rubber— mounted to the frame. The frame is independently suspended in relation to the drive axle.
- The load unit consists of a frame, elevation load body, as well as a front and rear drive axle, which are linked by the bogie suspension. The hauler has constant 4—wheel drive with the possibility of engaging and disengaging 6-wheel drive. There is a longitudinal differential lock in the dropbox and there are differential locks on all drive axles.
PLEASE NOTE:
⦁ This is the SAME MANUAL used by the dealerships to diagnose your vehicle
⦁ No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
⦁ Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
⦁ So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
