Toyota Land Cruiser Station Wagon 1996 FZJ80 Electrical Wiring Diagram Manual PDF

Description

Toyota Land Cruiser Station Wagon 1996 FZJ80 Electrical Wiring Diagram Manual – PDF DOWNLOAD

FILE DETAILS:

Toyota Land Cruiser Station Wagon 1996 FZJ80 Electrical Wiring Diagram Manual – PDF DOWNLOAD

Language : English
Pages : 213
Downloadable : Yes
File Type : PDF

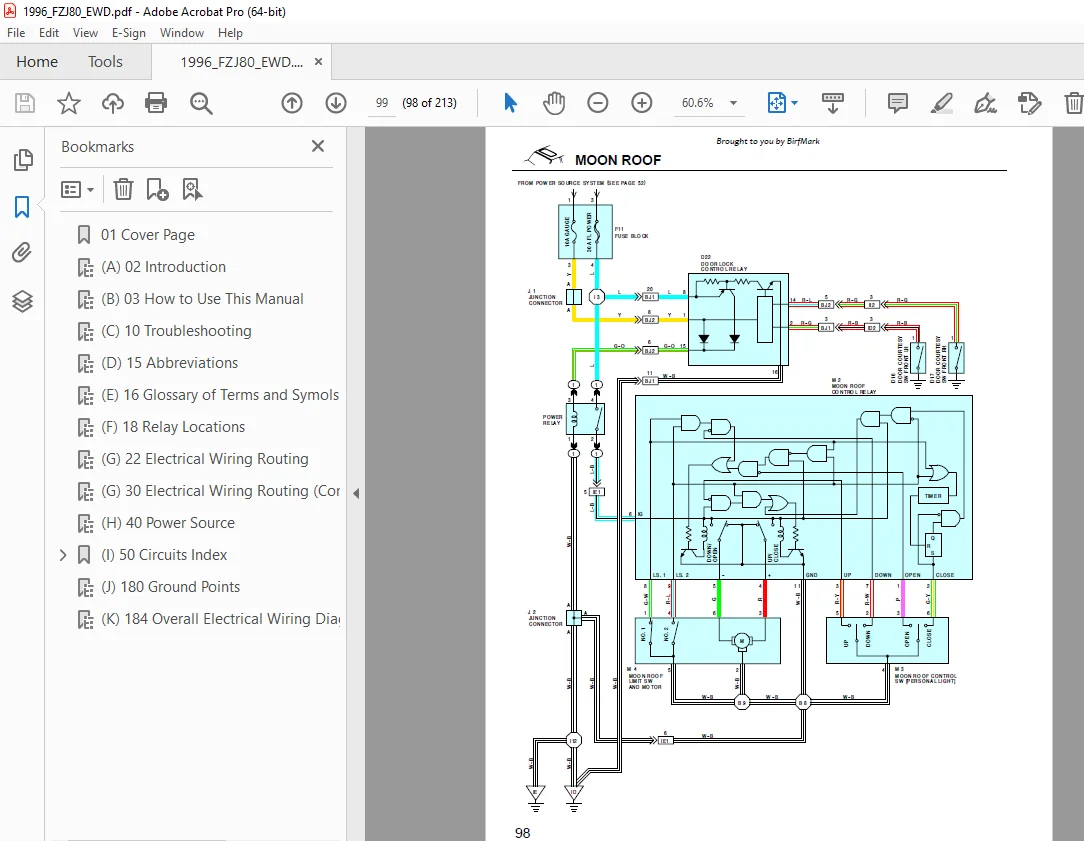

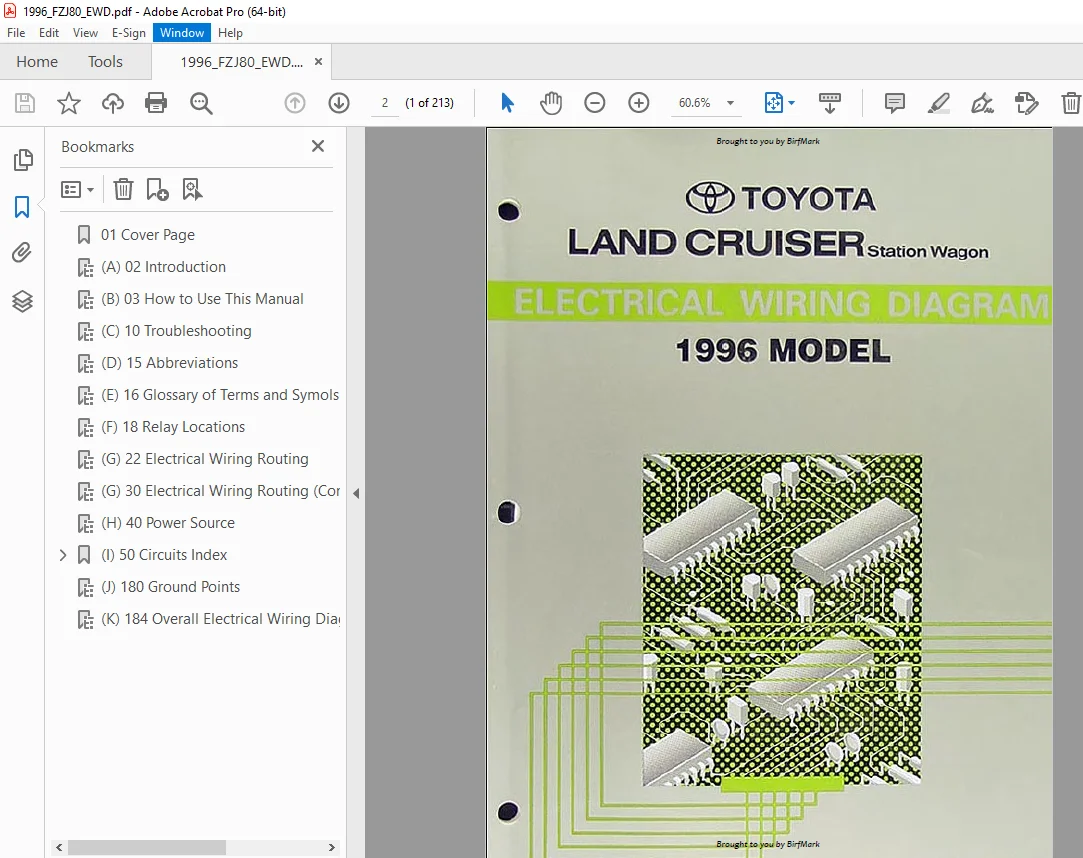

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Land Cruiser Station Wagon 1996 FZJ80 Electrical Wiring Diagram Manual – PDF DOWNLOAD

• 01 Cover Page
• (A) 02 Introduction
• (B) 03 How to Use This Manual
• (C) 10 Troubleshooting
• (D) 15 Abbreviations
• (E) 16 Glossary of Terms and Symols
• (F) 18 Relay Locations
• (G) 22 Electrical Wiring Routing
• (G) 30 Electrical Wiring Routing (Connectors & Ground Points)
  (H) 40 Power Source
• (l) 50 Circuits Index
  52 Power Source
• 54 Starting And Ignition
• 56 Charging
• 58 Engine Control
• 70 Headlight
• 72 Taillight
• 74 Stop Light
• 76 Back-up Light
• 78 Illumination
• 82 Interior Light
• 86 Turn Signal And Hazard Warning Light
  88 Light Auto Turn Off
• 91 Front Wiper And Washer
• 94 Rear Wiper And Washer
• 97 Horn
• 98 Moon Roof
• 102 Cigarette Lighter And Clock
  104 Remote Control Mirror
• 106 Shift Lock
  108 Power Window
• 112 Door Lock Control
• 117 Auto Antenna
• 118 Power Seat
• 121 ABS
• 126 Cruise Control
• 130 ECT And A/T Indicator
• 138 Rear Window Defogger
  140 Unlock And Seat Belt Warning
  143 SRS
• 150 Center Differential Lock
  152 Front/Rear Differential Lock
  156 Radio And Player
• 160 Rear Heater
• 162 Combination Meter
• 168 Air Conditioning
• (J) 180 Ground Points
• (K) 184 Overall Electrical Wiring Diagram

DESCRIPTION:

Toyota Land Cruiser Station Wagon 1996 FZJ80 Electrical Wiring Diagram Manual – PDF DOWNLOAD

HOW TO USE THIS MANUAL :

• This manual provides information on the electrical circuits installed on vehicles by
  dividing them into a circuit for each system.
• The actual wiring of each system circuit is shown from the point where the power
  source is received from the battery as far as each ground point. (All circuit diagrams
  are shown with the switches in the OFF position.)
• When troubleshooting any problem, first understand the operation of the circuit where
  the problem was detected (see System Circuit section), the power source supplying
  power to that circuit (see Power Source section), and the ground points (see Ground
  Points section). See the System Outline to understand the circuit operation.
• When the circuit operation is understood, begin troubleshooting of the problem circuit
  to isolate the cause. Use Relay Location and Electrical Wiring Routing sections to find
  each part, junction block and wiring harness connectors, wiring harness and wiring
  harness connectors, splice points, and ground points of each system circuit. Internal
  wiring for each junction block is also provided for better understanding of connection
  within a junction block.
• Wiring related to each system is indicated in each system circuit by arrows (from
  ,to ). When overall connections are required, see the Overall Electrical Wiring
  Diagram at the end of this manual.
