Toyota Forklift 7SM12F Operator’s Manual SN 936513 PDF

Description

Toyota Forklift 7SM12F Operator’s Manual SN 936513 – PDF DOWNLOAD

FILE DETAILS:

Toyota Forklift 7SM12F Operator’s Manual SN 936513 – PDF DOWNLOAD

Language : English
Pages : 66
Downloadable : Yes
File Type : PDF

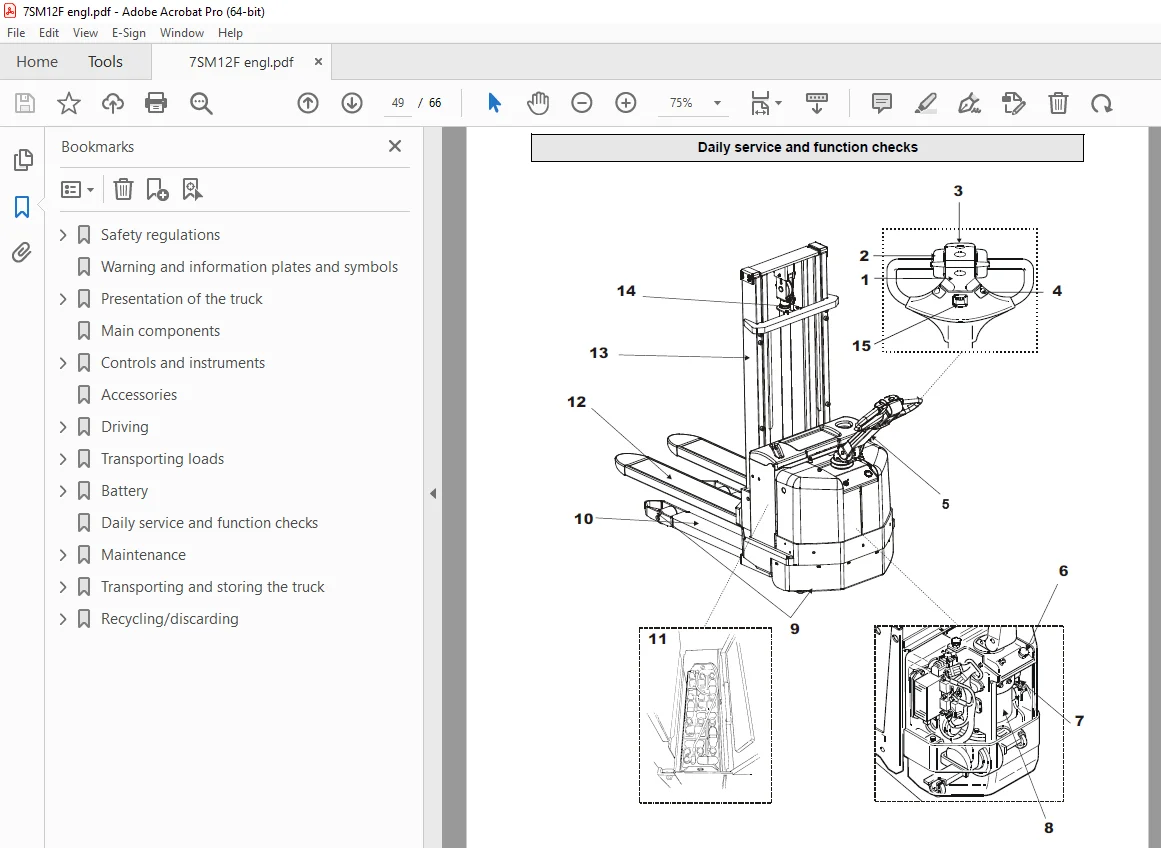

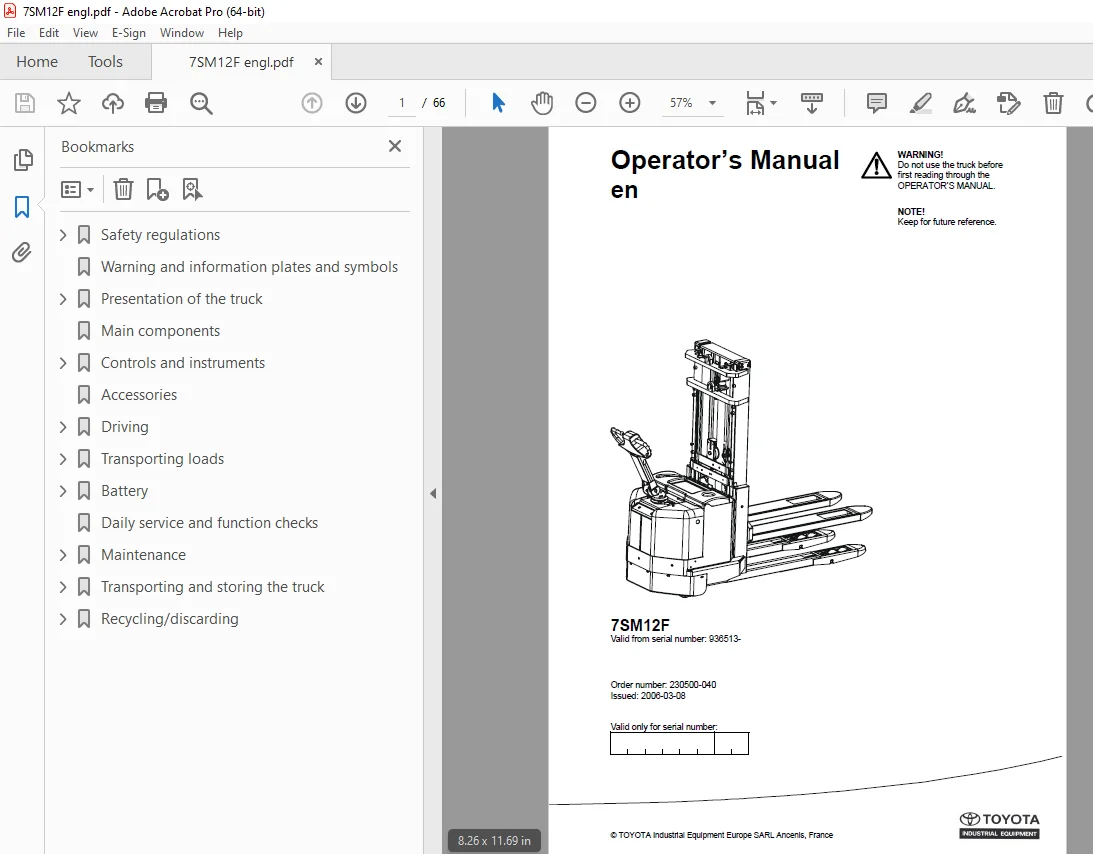

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Toyota Forklift 7SM12F Operator’s Manual SN 936513 – PDF DOWNLOAD

Valid from serial number: 936513-
Order number: 230500-040

Safety regulations 5
Warning symbols 5
General safety regulations 7
Warning and information plates and symbols12
Presentation of the truck14
Intended application of the truck14
Prohibited application of the truck14
Truck data15
Truck dimensions16
Identification plate17
Capacity plate18
Modification plate18
Main components20
Controls and instruments22
Display and programming28
Warning codes31
Error codes32
Accessories33
Driving38
Starting the truck38
Braking39
Deceleration39
Steering39
Parking the truck39
Transporting loads40
Collecting a load42
Depositing a load42
Battery43
Replacing the battery43
Charging the battery44
Battery maintenance46
Daily service and function checks48
Maintenance50
Cleaning and washing52
Maintenance chart54
Lubrication chart58
Oil and grease specification58
Transporting and storing the truck61
The truck’s dimensions and weight as standard61
Lifting the truck61
Towing and transporting a defective truck62
Storing the truck63
Starting after a period of disuse63
Recycling/discarding64
Discarding the battery64
Scrapping the truck64
EC Declaration of Conformity66

DESCRIPTION:

Toyota Forklift 7SM12F Operator’s Manual SN 936513 – PDF DOWNLOAD

General safety regulations:

Always carry out daily service before the truck is used, see chapter Daily service and function checks. The working order of all safety equipment, guards and safety switches should be checked before you use the truck. Such safety equipment must not be disengaged or removed.
•Check to make sure that all warning and machine designation plates are clean and undamaged.
The battery must be secured in its intended compartment. The battery shall have a weight that corresponds with the information stated on the truck’s identification plate.
The truck must not be used if it is damaged or has faults that affect safety or its safe use. The truck may not be used if it has been repaired, modified or adjusted unless it has been checked and approved by personnel authorised by TOYOTA.
Operating the truck:
The truck is designed and produced to be your tool when collecting and depositing goods at different heights.
If the truck is to be used in cold storage rooms the truck must be especially built for this type of use.
It is not permitted to use the truck for purposes that it has not been designed and produced for, e.g. the following applications:
-In areas where the atmosphere contains dust or gases that can cause fires or explosions.
-As a towing truck for trailers.
-To tow other trucks.
-To transport/lift passengers.
