Terex TR70 Off-Highway Truck (Detroit Diesel 12V2000 760 hp Engine) Parts Manual PDF

Description

Terex TR70 Off-Highway Truck (Detroit Diesel 12V2000 760 hp Engine) Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Terex TR70 Off-Highway Truck (Detroit Diesel 12V2000 760 hp Engine) Parts Manual – PDF DOWNLOAD

Language : English
Pages : 412
Downloadable : Yes
File Type : PDF

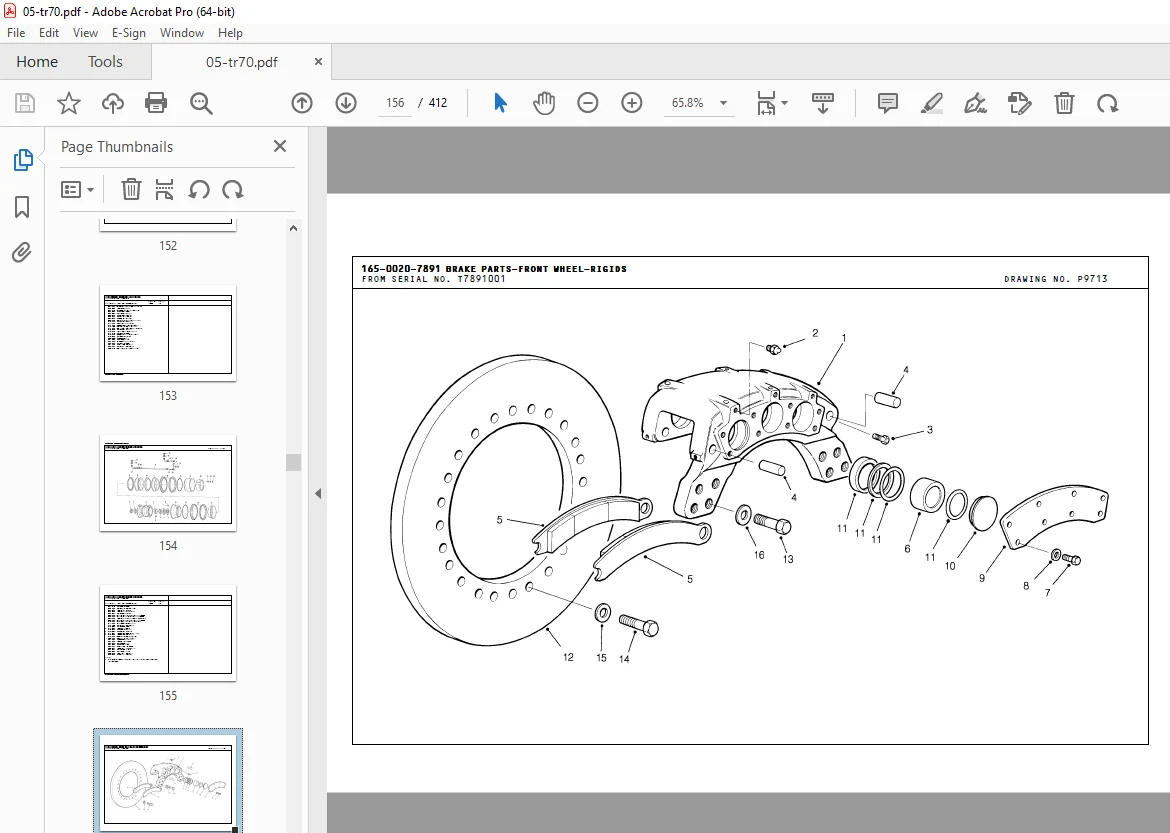

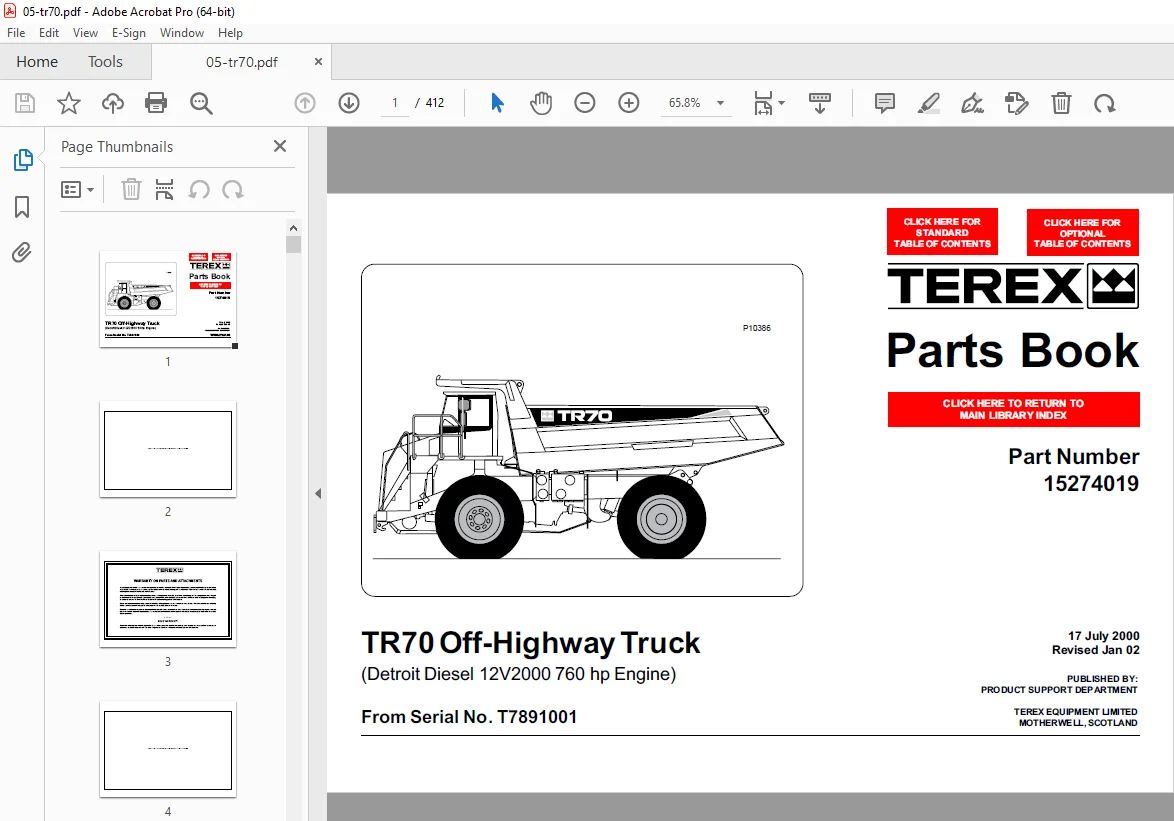

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Terex TR70 Off-Highway Truck (Detroit Diesel 12V2000 760 hp Engine) Parts Manual – PDF DOWNLOAD

Part Number 15274019
From Serial No. T7891001

CHASSIS 100
ENGINE 110
TRANSMISSION 120
DRIVELINE 130
FRONT AXLE 140
REAR AXLE 160
BRAKE PARTS 165
SUSPENSION SYSTEM 180
ELECTRICAL SYSTEM 190
FUEL SYSTEM 200
COOLING SYSTEM 210
STEERING SYSTEM 220
BODY SYSTEM 230
BRAKING SYSTEM 250
CAB 260
BODY 270
DECALS 290
MISCELLANEOUS 300

DESCRIPTION:

Terex TR70 Off-Highway Truck (Detroit Diesel 12V2000 760 hp Engine) Parts Manual – PDF DOWNLOAD

Part Number 15274019
From Serial No. T7891001

INSTRUCTIONS FOR USE OF TEREX PARTS BOOK:

• This Parts Book is divided into Major Sections which cover components corresponding to specific areas of the machine.
• Printed at the top left hand corner of each Parts Page is an Index Code which includes three numbers – the first of these relates to a Major Section, the second indicates a Sub-section within a Major Section and the last the model PLI number. Certain Major Sections may not apply to the particular model covered in this Parts Book and, consequently, will be omitted.

An illustrated Index page shows all the Major Component Section numbers included in the book. For example –
SECTION 100 – CHASSIS SECTION 140 – FRONT AXLE GROUP SECTION 230 – BODY HOIST SYSTEM etc.
Major Component Sections are listed in the ‘Table Of Contents’ pages together with Sub-section headings.
For example to locate the serviceable items of a Steering Cylinder –
1. The Table of Contents shows the steering components to be in Major Section 220.
2. The steering cylinder is listed in Major Section 220, Sub-section 0120
3. Select the Parts Page Code that applies to the unit Serial number for which parts are needed and locate the Page with reference number.
EXAMPLE – 220-0120.
SERIAL NUMBERS – Each Parts Book covers a particular range of unit Serial Numbers.
It is important that unit Serial Numbers are quoted on all orders for Parts.
PARTS LISTS – Parts Forms usually consist of detailed parts information listed on one page together with a parts illustration on the opposite page. The parts list is printed in the order of the reference numbers shown on the parts illustration. The first column lists Note Letters; the second lists the reference numbers; the third shows quantity required and the fourth gives the parts descriptions. Parts which are part of an assembly have their descriptions indented beneath the assembly description.
ILLUSTRATIONS – These show typical assemblies and individual piece parts.They are intended for general reference only and may not always show exact details of parts. Parts are identified on each illustration with an item number. Note the item number of the part required and locate it in the parts list. The part number opposite the item number is the part to order.

S.V 20/02/2025
