Taylor-Dunn B,BN,M Operation & Maintenance With Parts Manual S.NO 19300-54833 PDF

Description

Taylor-Dunn B,BN,M Operation & Maintenance With Parts Manual S.NO 19300-54833 – PDF DOWNLOAD

FILE DETAILS:

Taylor-Dunn B,BN,M Operation & Maintenance With Parts Manual S.NO 19300-54833 – PDF DOWNLOAD

Language : English
Pages : 109
Downloadable : Yes
File Type : PDF

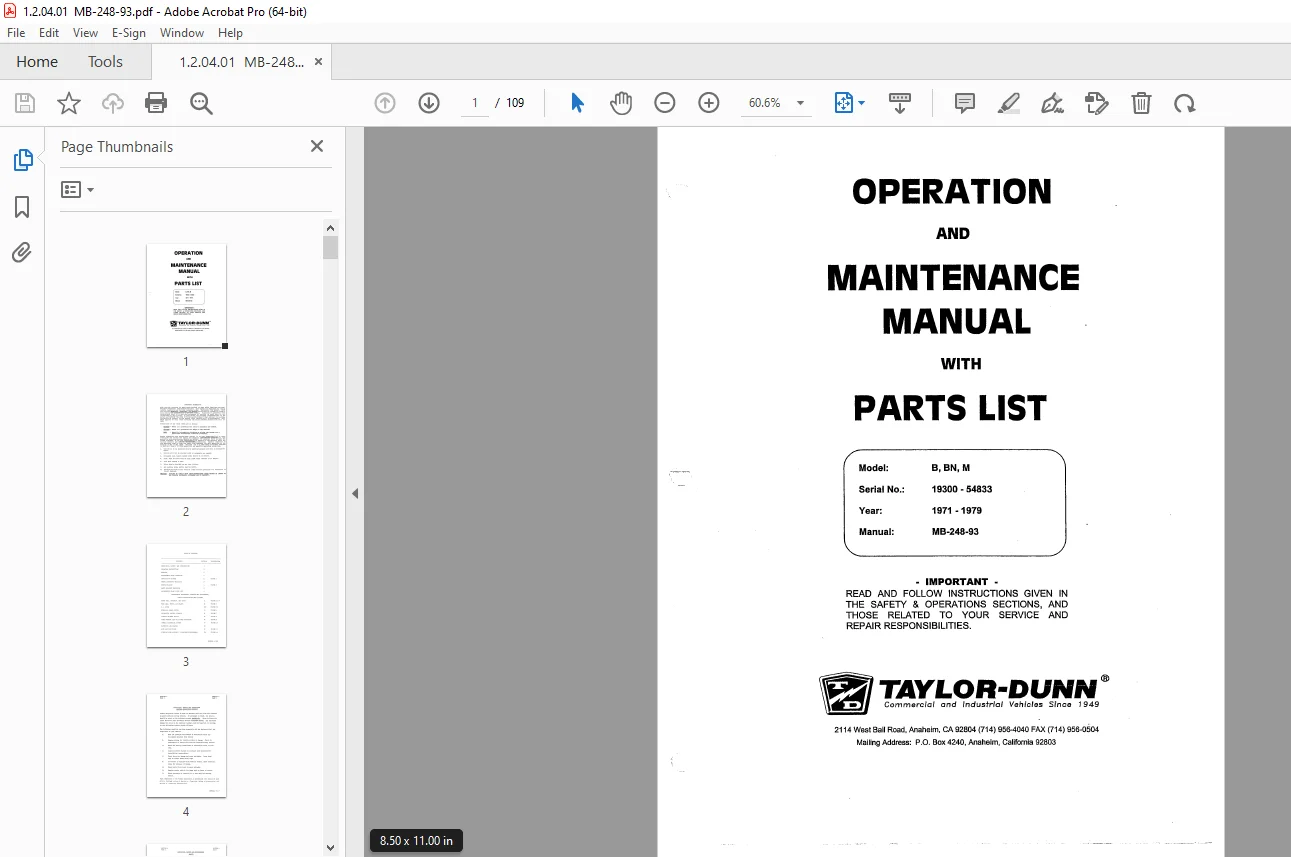

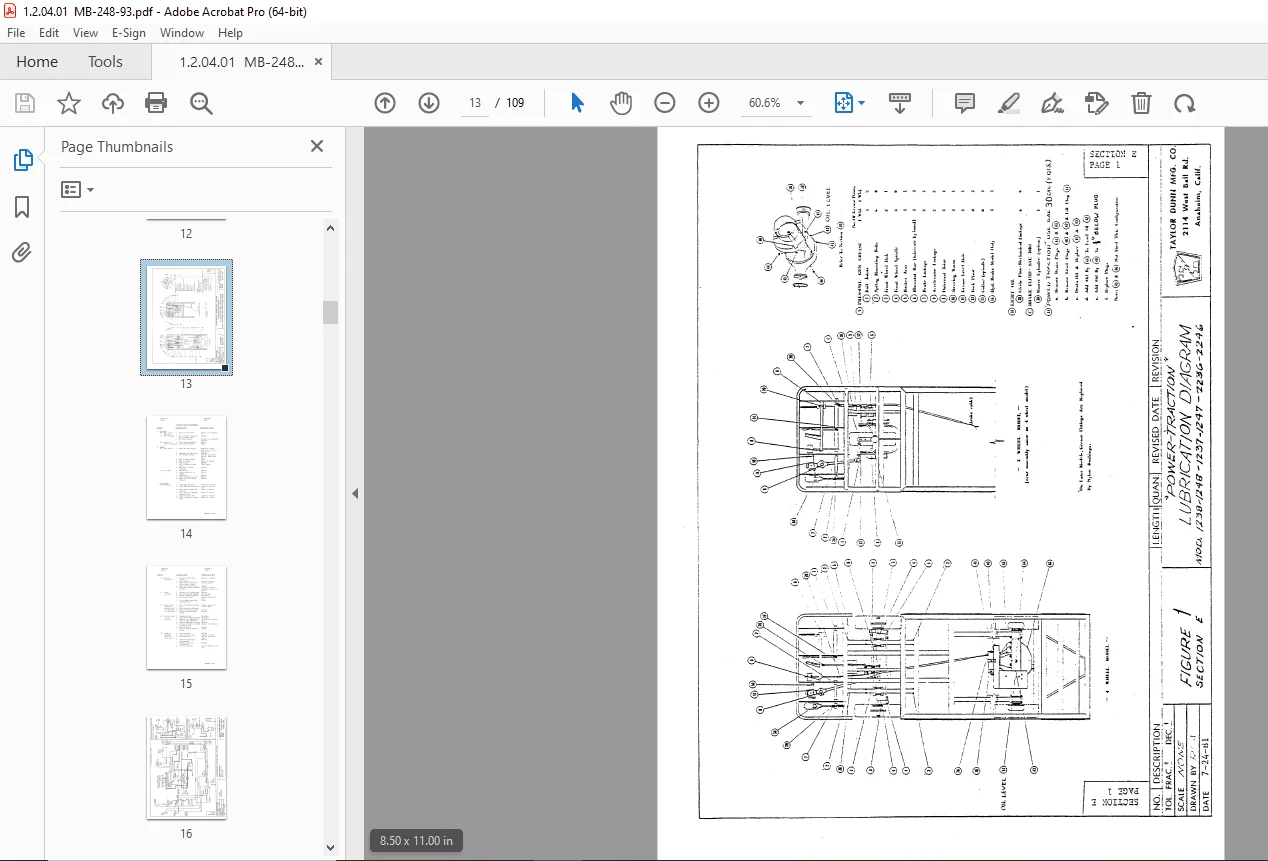

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Taylor-Dunn B,BN,M Operation & Maintenance With Parts Manual S.NO 19300-54833 – PDF DOWNLOAD

MB-248-93 Operation and Maintenance Manual with Part List 1
Important Information 2
Table of Contents 3
Section A: Inspection, Safety, and Introduction 4
Section B: Operating Instructions 7
Section C: 90 Day Warranty 10
Section D: Maintenance Guide Checklist 11
Section E: Lubrication Diagram 13
Section F: Trouble Shooting Procedures 14
Section G: Wiring Diagram 16
Section H: Parts Ordering Procedure 17
Section I: Suggested Spare Parts List 18
Section J1: Front Axle, Steering and Tires – Maintenance Procedures 20
Section J1A: Steering Worm Assembly – Service and Adjustments 37
Section J2: “Power Traction” Rear Axle, Motor and Brakes – Maintenance Procedures 40
Section J2M: Electric Motors – Maintenance, Service and Adjustment 55
Section J3: Hydraulic Brake System – Maintenance Procedures 60
Section J2: Assembly Diagram (Out of Place) 66
Section J4: Mechanical Control Linkage – Maintenance Procedures 75
Section J5: Forward/Reverse Control Switch – Maintenance Procedures 78
Section J6: Rheostat Control Switch – Maintenance Procedures 83
Section J7: General Electrical System – Maintenance Procedures 88
Section J8: Batteries – Maintenance Procedures 90
Section J9: Body and Trim – Maintenance Procedures105
Notice of Change109

DESCRIPITION:

Taylor-Dunn B,BN,M Operation & Maintenance With Parts Manual S.NO 19300-54833 – PDF DOWNLOAD

OPERATING INSTRUCTIONS:

The controls _on your Taylor-Dunn vehicle have been designed and located for convenience of operation and efficient performance. Before driving your vehicle for the first time, familiarize yourself with each of the controls. Read the following instructions and with power OFF, operate each control.

• STEERING The steering wheel and steering system is similar to automotive types. Turn the steering wheel to the right (clockwise) for a right turn and left (counterclockwise) for a left turn.
• KEY LOCK Your vehicle 1.s equipped with a keyed lock located on the corner of forward reverse switch. It is designed to lock the switch in the neutral position only.The key will remove from the lock in the locked position (neutral) only.
• PARK B RAKE (HAND) The hand parking brake is located in the right center of floor board. To engage hand brake, grasp top lever and pull towards rear, all the way, till hand lever stops. To release brake, push hand lever all the way forward.
• SERVICE BRAKE (FOOT) The brake pedal is designed and located for right foot operation. It is the pedal located to the left of accelerator pedal. It functions the same as the brake pedal in your automobile. Depressing the pedal applies the braking action. The greater the effort applied to the pedal with your foot, the greater the braking action to your vehicle. Removing your foot from the pedal allows immediate release of the braking action to your vehicle.
• FORWARD/REVERSE SWITCH The forward/reverse switch is located to the right of the drivers seat. It is operated by the red handle. To place in forward position pull the red handle to the left towards the driver. To place in reverse position~ the red handle to the right,~ from the driver.
• CAUTION: The forward/reverse switch serves the same purpose as the transmission in your automobile. Treat it with the same respect and care. DO NOT SHIFT from forward to reverse or vice-versa while the vehicle is in motion. Shifting while in motion, especially near top speed, causes great strain to your entire vehicle and will eventually cause severe damage, complete loss of power and could cause an accident
