Tadano Crane TM-ZX500 41050601196A FRAME Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Crane TM-ZX500 41050601196A FRAME Parts Manual – PDF DOWNLOAD’
Language : English
Pages : 478
Downloadable : Yes
File Type : PDF

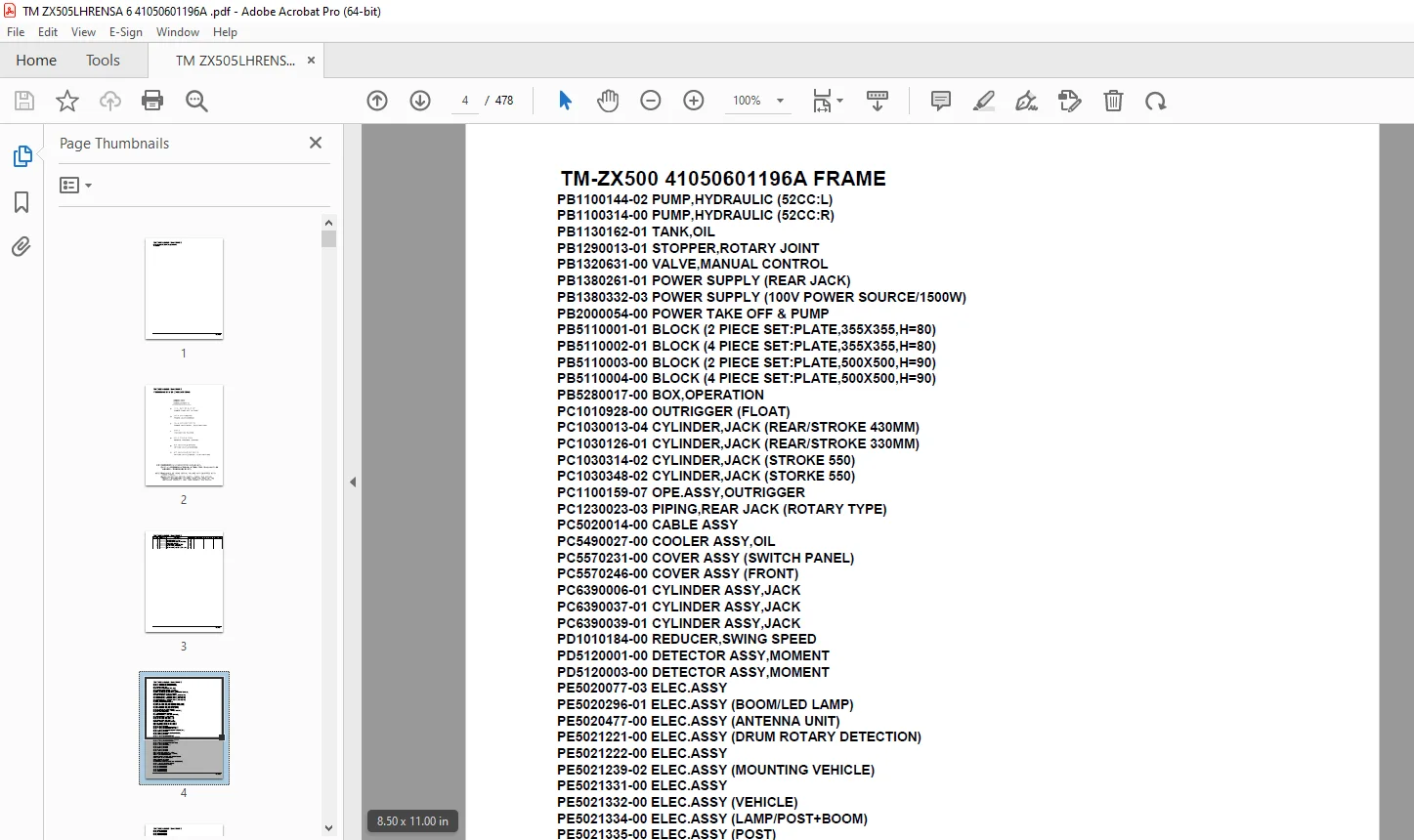

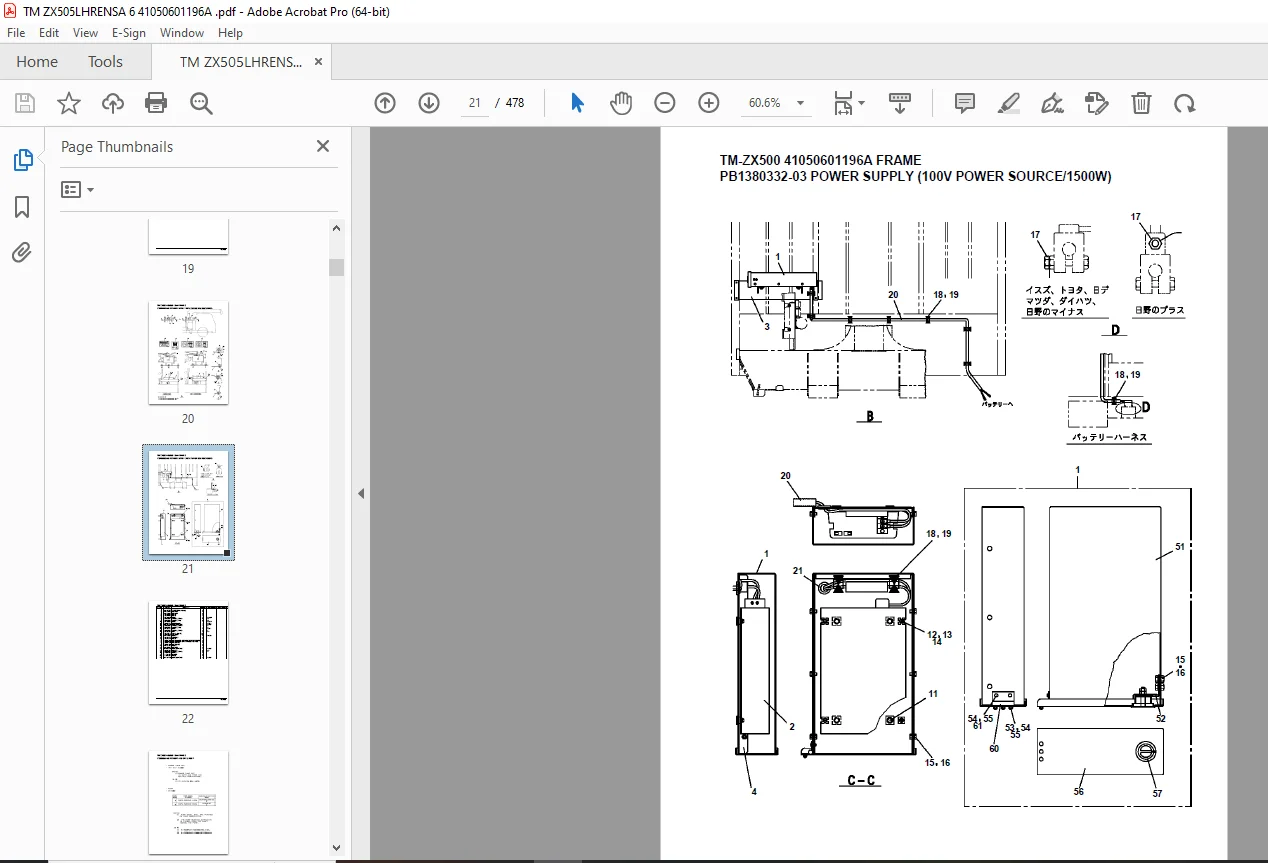

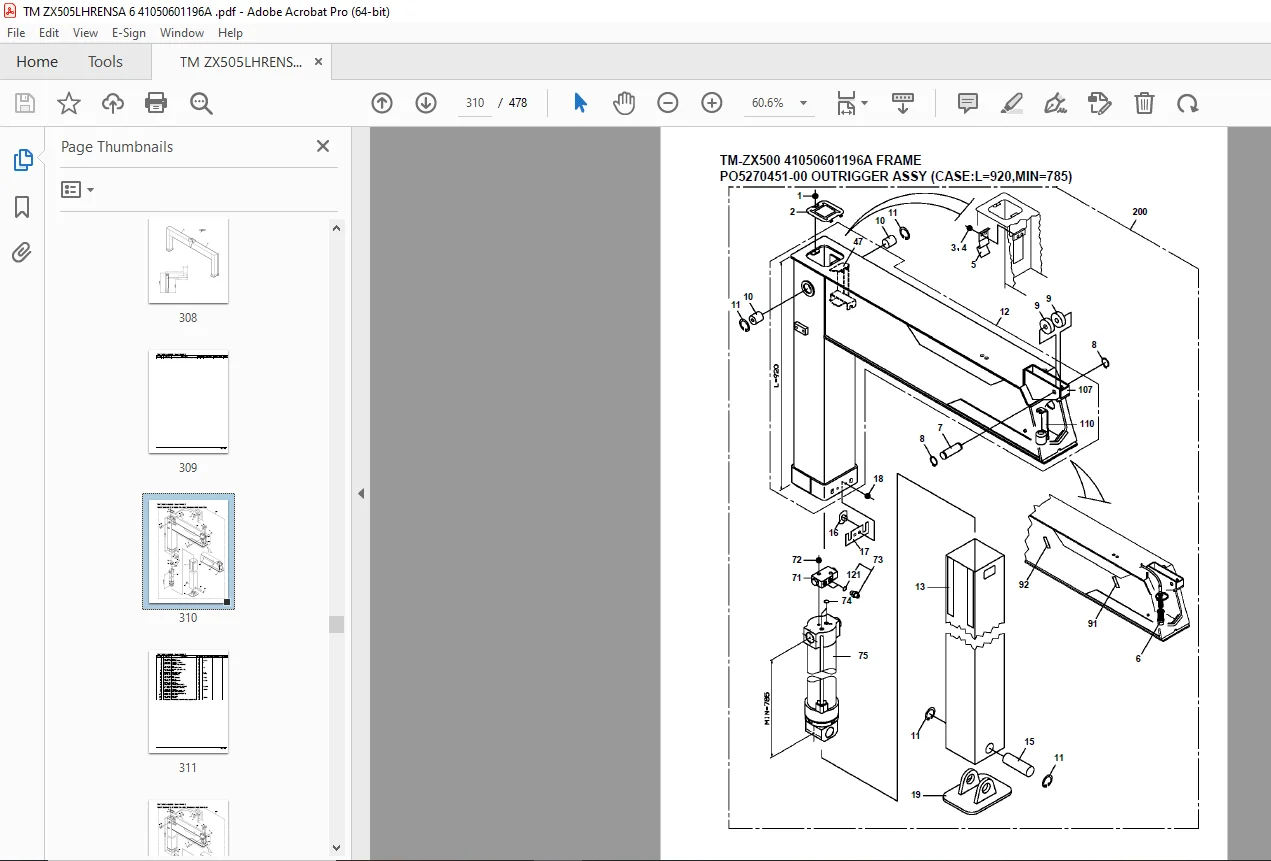

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Tadano Crane TM-ZX500 41050601196A FRAME Parts Manual – PDF DOWNLOAD
PB1100314-00 PUMP,HYDRAULIC (52CC:R)
PB1130162-01 TANK,OIL
PB1290013-01 STOPPER,ROTARY JOINT
PB1320631-00 VALVE,MANUAL CONTROL
PB1380261-01 POWER SUPPLY (REAR JACK)
PB1380332-03 POWER SUPPLY (100V POWER SOURCE/1500W)
PB2000054-00 POWER TAKE OFF & PUMP
PB5110001-01 BLOCK (2 PIECE SET:PLATE,355X355,H=80)
PB5110002-01 BLOCK (4 PIECE SET:PLATE,355X355,H=80)
PB5110003-00 BLOCK (2 PIECE SET:PLATE,500X500,H=90)
PB5110004-00 BLOCK (4 PIECE SET:PLATE,500X500,H=90)
PB5280017-00 BOX,OPERATION
PC1010928-00 OUTRIGGER (FLOAT)
PC1030013-04 CYLINDER,JACK (REAR/STROKE 430MM)
PC1030126-01 CYLINDER,JACK (REAR/STROKE 330MM)
PC1030314-02 CYLINDER,JACK (STROKE 550)
PC1030348-02 CYLINDER,JACK (STORKE 550)
PC1100159-07 OPE.ASSY,OUTRIGGER
PC1230023-03 PIPING,REAR JACK (ROTARY TYPE)
PC5020014-00 CABLE ASSY
PC5490027-00 COOLER ASSY,OIL
PC5570231-00 COVER ASSY (SWITCH PANEL)
PC5570246-00 COVER ASSY (FRONT)
PC6390006-01 CYLINDER ASSY,JACK
PC6390037-01 CYLINDER ASSY,JACK
PC6390039-01 CYLINDER ASSY,JACK
PD1010184-00 REDUCER,SWING SPEED
PD5120001-00 DETECTOR ASSY,MOMENT
PD5120003-00 DETECTOR ASSY,MOMENT
PE5020077-03 ELEC.ASSY
PE5020296-01 ELEC.ASSY (BOOM/LED LAMP)
PE5020477-00 ELEC.ASSY (ANTENNA UNIT)
PE5021221-00 ELEC.ASSY (DRUM ROTARY DETECTION)
PE5021222-00 ELEC.ASSY
PE5021239-02 ELEC.ASSY (MOUNTING VEHICLE)
PE5021331-00 ELEC.ASSY
PE5021332-00 ELEC.ASSY (VEHICLE)
PE5021334-00 ELEC.ASSY (LAMP/POST+BOOM)
PE5021335-00 ELEC.ASSY (POST)
PE5021336-00 ELEC.ASSY (POST/HEAD BULB)
PE5021337-00 ELEC.ASSY (POST/LED)
PE5021338-00 ELEC.ASSY (POST:HARNESS)
PE5021342-00 ELEC.ASSY
PE5021343-00 ELEC.ASSY (R/J)
PE5021351-00 ELEC.ASSY
PE5021364-00 ELEC.ASSY
PE5021365-00 ELEC.ASSY
PE5021430-00 ELEC.ASSY
PF1020029-00 DRUM,WINCH (Y.G.TEC)
PF1050161-03 HOOK (1-PART LINE ,OPTION)
PF1050425-03 HOOK (LOCKING)
PF1180067-01 DETECTOR,DISORDERLY WINDING
PF5100042-04 FRAME ASSY (REAR)
PF5100517-01 FRAME ASSY
PG1020006-03 GUIDE,ROPE
PG5240017-00 GUIDE ASSY (RETAINING WIRE ROPE)
PH1060491-01 DETECTOR,OVERWIND
PH5032122-00 HARNESS (L=1000)
PH5032321-00 HARNESS
PH5033355-00 HARNESS
PH5033590-00 HARNESS
PH5033592-00 HARNESS
PH5033594-00 HARNESS
TM-ZX500 41050601196A FRAME
000002
PH5033823-01 HARNESS
PH5033843-00 HARNESS
PH5033870-00 HARNESS
PH5033871-00 HARNESS
PH5033872-00 HARNESS
PH5034112-00 HARNESS
PH5034114-00 HARNESS
PH5034305-00 HARNESS
PH5034439-00 HARNESS (CRANE)
PH5034471-00 HARNESS
PH5080281-00 HOOK ASSY
PI1010223-01 MOTOR,HYDRAULIC
PI1250160-02 VALVE,COUNTERBALANCE
PI1280051-00 VALVE,PILOT CHECK
PI1280162-00 VALVE,PILOT CHECK
PI1300026-01 FILTER,OIL (WAKO)
PI1300028-01 FILTER,OIL (CARTRIDGE)
PI5200001-00 INDICATOR
PJ3410034-02 LOCK ASSY (REAR OUTRIGGER)
PJ5090110-00 JOINT ASSY,SWIVEL
PJ5090137-00 JOINT ASSY,SWIVEL
PJ5140001-00 JOINT ASSY,SELF SEAL
PK1130007-00 COVER,BEARING
PK1330402-00 COVER (O/R HARNESS PROTECT)
PK2002529-00 FRAME UNIT (COMMON)
PK2002561-00 FRAME UNIT (SPEC. DISTINCTION)
PL1010734-01 OPE.ASSY,CONT.VALVE (POWER SUPPLY)
PL1010863-00 OPE.ASSY,CONT.VALVE (REMOCON)
PL1011157-00 OPE.ASSY,CONT.VALVE
PL1031164-02 OPE.ASSY,ACCELERATOR
PL5020224-00 LAMP ASSY (BOOM/24V-55W)
PL5020225-00 LAMP ASSY (POST/24V-60W)
PL5020226-00 LAMP ASSY (BOOM/24V-20W)
PL5020227-00 LAMP ASSY (POST/24V-20W)
PL5190011-00 LEVER ASSY
PL5190012-00 LEVER ASSY
PL5270003-02 LOCK ASSY (OUTRIGGER)
PL5330004-00 LAMP
PM5210003-00 MOTOR ASSY,OIL
PN1014687-03 ELEC.ASSY (UPPER/WORKING LAMP)
PN1140239-00 SWITCH ASSY (WITH HARNESS,2-SW)
PN1420020-00 CHARGER,BATTERY
PN5012012-01 NAME PLATE ASSY (FRAME:TDN-LAYOUT)
PN5012013-01 NAME PLATE ASSY (FRAME:U-LAYOUT)
PN5012016-01 NAME PLATE ASSY (KNOB:TDN-LAYOUT)
PN5012017-01 NAME PLATE ASSY (KNOB:U-LAYOUT)
PN5012020-01 NAME PLATE ASSY (TANK)
PN5012021-02 NAME PLATE ASSY (OUTRIGGER CAUTION PLATE ETC.)
PN5012046-00 PLATE ASSY,NAME (SWITCH,BOX/U)
PN5012063-00 NAME PLATE ASSY
PN5012089-01 NAME PLATE ASSY (PERIODICAL VOLUNTARY INSPECTION)
PN5012097-01 NAME PLATE ASSY
PN5012122-00 NAME PLATE ASSY
PN5012123-00 NAME PLATE ASSY
PN5012124-00 NAME PLATE ASSY
PN5012125-00 NAME PLATE ASSY
PN5012126-00 NAME PLATE ASSY
PN5012165-01 NAME PLATE ASSY (JSAS)
PN5012180-00 NAME PLATE ASSY (REAR OUTRIGGER)
PN5012187-00 NAME PLATE ASSY
PN5012189-00 NAME PLATE ASSY (0.49T)
PN5012194-00 NAME PLATE ASSY (NETIS/S-SIZE)
PN5012195-00 NAME PLATE ASSY
PN5012205-00 NAME PLATE ASSY
TM-ZX500 41050601196A FRAME
000002
PN5012270-00 NAME PLATE ASSY
PO1000186-00 INDICATION PLATES
PO1012608-00 PLATE ASSY,NAME (POWER SUPPLY)
PO1014946-01 PLATE ASSY,NAME (POST)
PO1015028-02 PLATE ASSY,NAME (FRAME SERIAL NO.)
PO1015371-01 PLATE ASSY,NAME (HOOK)
PO1080084-00 PLATE,NAME (NETIS)
PO5080298-01 OPE.ASSY,CONT.VALVE (JACK,SWING)
PO5080301-00 OPE.ASSY,CONT.VALVE (ELEVATING,WINCH,TELESCOPING/TDN)
PO5080302-00 OPE.ASSY,CONT.VALVE (ELEVATING,WINCH,TELESCOPING/U)
PO5080312-01 OPE.ASSY,CONT.VALVE (ELEVATING,WINCH,TELESCOPING/U)
PO5080317-00 OPE.ASSY,CONT.VALVE (U-LAYOUT/REPLACEMENT KIT)
PO5270445-00 OUTRIGGER ASSY (L=592)
PO5270446-00 OUTRIGGER ASSY (L=722)
PO5270447-00 OUTRIGGER ASSY (L=922)
PO5270448-00 OUTRIGGER ASSY (L=592,CASE:L=920)
PO5270449-00 OUTRIGGER ASSY (L=722,CASE:L=1050)
PO5270450-00 OUTRIGGER ASSY (L=922,CASE:L=1250)
PO5270451-00 OUTRIGGER ASSY (CASE:L=920,MIN=785)
PO5270452-00 OUTRIGGER ASSY (CASE:L=1050,MIN=915)
PO5270453-00 OUTRIGGER ASSY (CASE:L=1250,MIN=805)
PO5290013-00 OUTRIGGER ASSY,REAR
PO5290016-00 OUTRIGGER ASSY,REAR
PP5150037-00 PARTS ASSY,RADIO CONTROLLER
PP5150046-00 PARTS ASSY,RADIO CONTROLLER
PP5150047-00 PARTS ASSY,RADIO CONTROLLER (U)
PP5200778-00 PERFORMANCE DATA (A)
PP5200779-00 PERFORMANCE DATA (B)
PP5200780-00 PERFORMANCE DATA (C)
PP5240012-00 PLATE,NAME
PP5240027-00 PLATE,NAME (JCAS)
PP5300026-00 POST ASSY
PP6010483-00 PIPING ASSY (UPPER)
PP6010603-00 PIPING ASSY (LOWER)
PP6160004-02 PIPING ASSY,GREASE
PP6220090-00 PIPING ASSY,OUTRIGGER
PR5170002-00 ROPE,WIRE (KISWIRE)
PS5100001-00 SENDER,PRESSURE
PS5380001-00 STOPPER ASSY (OUTRIGGER)
PS5500058-00 SWING ASSY
PS5530447-00 SWITCH ASSY
PS5530488-00 SWITCH ASSY
PS5540019-00 SWITCH (S/W 2PC’S)
PS5540020-00 SWITCH (S/W 2PC’S)
PT5060008-01 TANK ASSY
PV1000145-00 REMOTE CONTROL SYSTEM
PV1050013-02 CYLINDER,ACCELERATOR
PV1250011-02 STOWING BOX (BAG,REMOTE CONTROL)
PV1250013-00 BOX,STOWING
PV5060046-00 VALVE ASSY,CONTROL (TELESCOPING)
PV5060050-00 VALVE ASSY,CONTROL (JACK 2)
PV5060051-00 VALVE ASSY,CONTROL (JACK 1)
PV5060052-00 VALVE ASSY,CONTROL
PV5060067-00 VALVE ASSY,CONTROL
PV5060068-00 VALVE ASSY,CONTROL
PV5140033-01 VALVE ASSY,RELIEF
PV5140039-00 VALVE ASSY,RELIEF
PV5150053-00 VALVE ASSY,REMOTE CONTROL
PV5150064-00 VALVE ASSY,REMOTE CONTROL
PW1050011-00 STOPPER,TIRE
PW5060005-01 WINCH ASSY (Y.G.TEC)
PW5070045-00 WINCH ASSY (MOUNT)
PY2000300-00 OPTION UNIT,2 (COMMON)
PY5170080-00 ALARM ASSY
TM-ZX500 41050601196A FRAME
000002
PY5170081-00 ALARM ASSY (CRANE)
PZ0000000-00 DERRICK ASSY (WITH CV)
PZ0000000-00 ELEC.ASSY (UPPER/COMMON)
PZ0000000-00 HARNESS
PZ0000000-00 ELEC.ASSY (PRESSURE DETECTOR)
PZ0000000-00 PARTS ASSY,BML
PZ0000000-00 BOX,OPERATION
PZ0000000-00 PARTS ASSY,REMOTE CONTROL
PZ0000000-00 PARTS ASSY,REMOTE CONTROL
PZ0000000-00 ELEC.ASSY (COMMUNICATION UNIT CONNECTION CABLE)
PZ0000000-00 HARNESS
PZ0000000-00 JOINT ASSY
PZ0000000-00 HARNESS
PZ0000000-00 COOLER ASSY,OIL
PZ0000000-00 MOUNT ASSY
PZ0000000-00 PIPING ASSY
PZ0000000-00 ELEC.ASSY
PZ0000000-00 HARNESS
PZ0000000-00 MOUNT ASSY (ACCELERATOR)
PZ0000000-00 ELEC.ASSY
PZ0000000-00 HARNESS
PZ0000000-00 PIPING ASSY
PZ0000000-00 MOUNT ASSY (POWER SUPPLY,SERVICE PORT)
PZ0000000-00 PIPING ASSY (CRANE)
PZ0000000-00 OUTRIGGER ASSY,REAR (LOW TRUCK BED)
PZ0000000-00 OUTRIGGER ASSY,REAR (HIGH TRUCK BED)
PZ0000000-00 MOUNT ASSY
PZ0000000-00 PIPING ASSY
PZ0000000-00 ELEC.ASSY (FRAME)
PZ0000000-00 MOUNT ASSY (FOR CARRY-OVER VALVE)
PZ0000000-00 OUTRIGGER ASSY,REAR
PZ0000000-00 PIPING ASSY (CRANE)
PZ0000000-00 PIPING ASSY (VEHICLE)
PZ0000000-00 CYLINDER ASSY,DERRICK
PZ0000000-00 SENDER,PRESSURE
PZ0000000-00 OPTION UNIT,3 (SPEC. DISTINCTION)
