Tadano Crane TM-Z600 31102000082A FRAME/STD,3 SECT. BOOM Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

Tadano Crane TM-Z600 31102000082A FRAME/STD,3 SECT. BOOM Parts Manual –  PDF DOWNLOAD

Language : English
Pages : 154
Downloadable : Yes
File Type : PDF

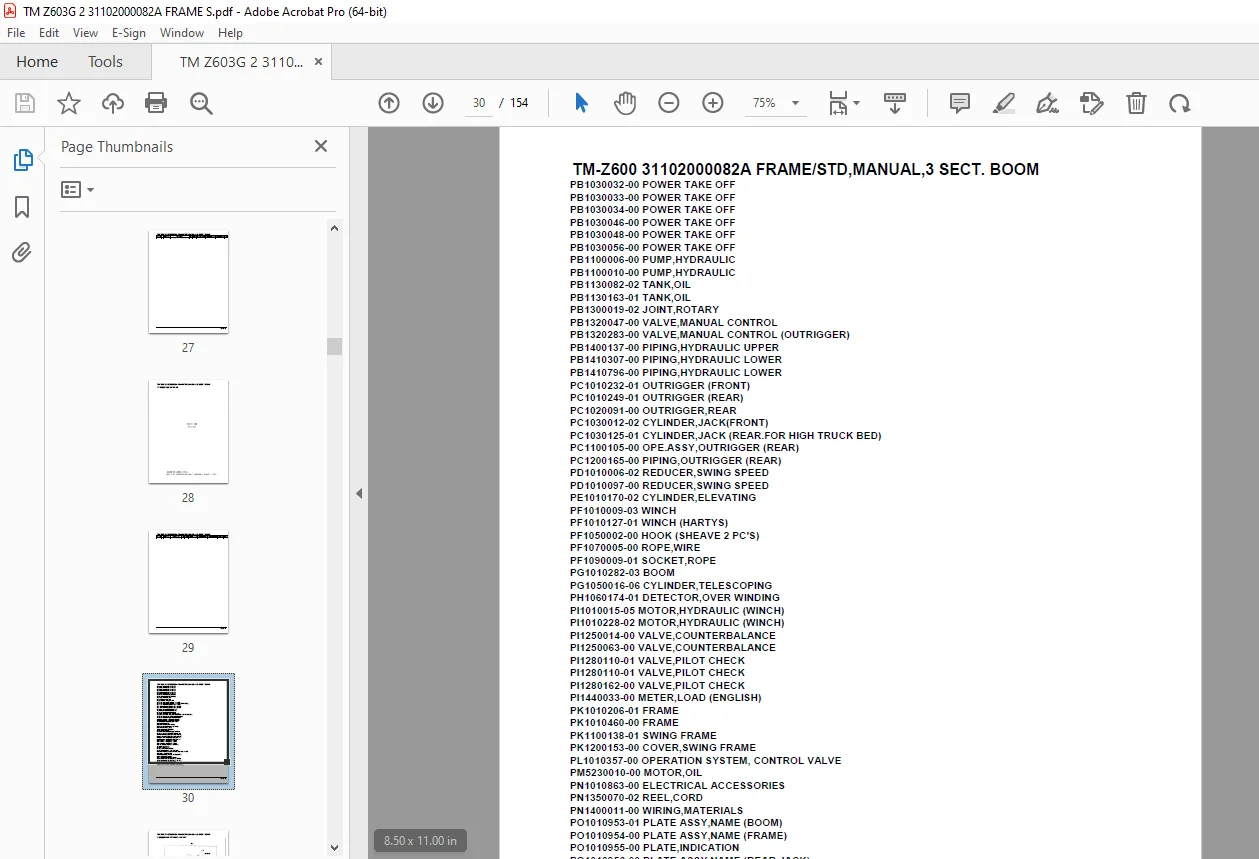

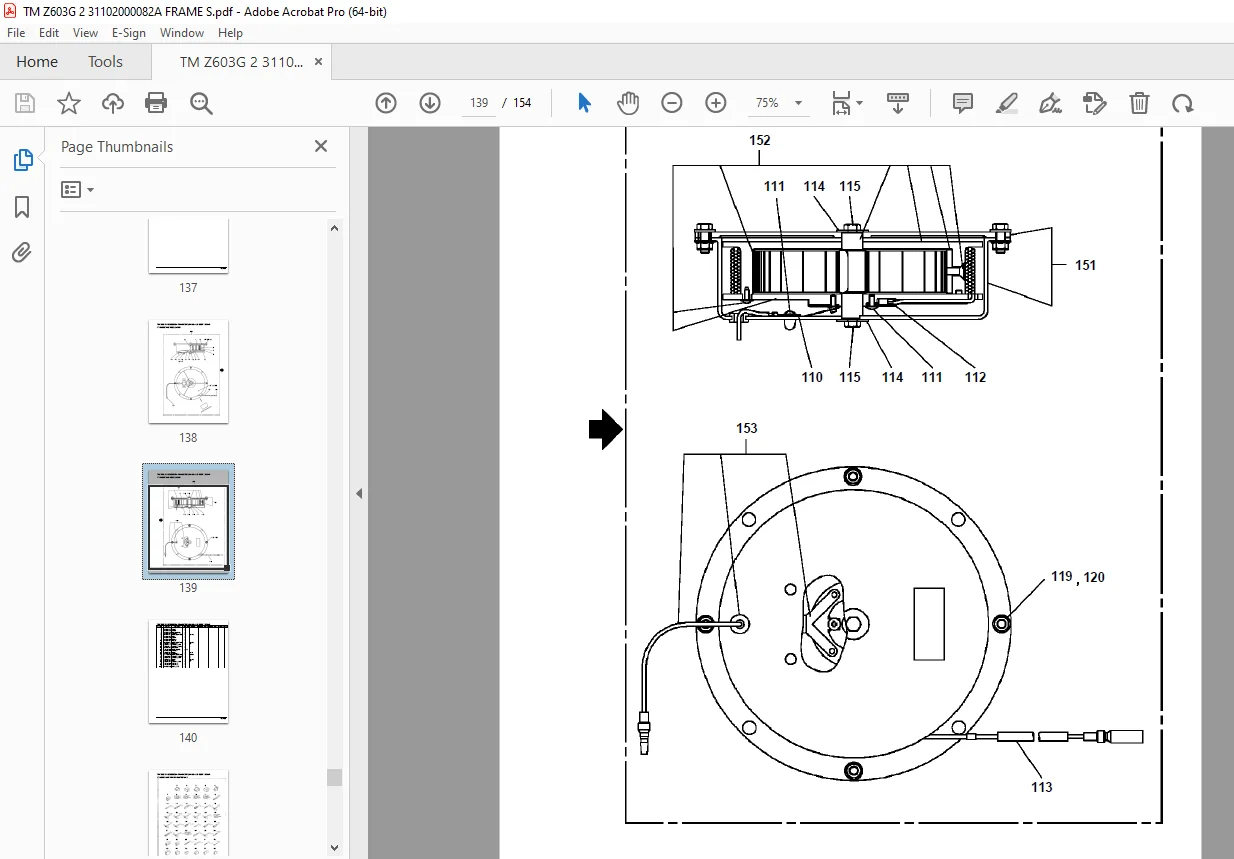

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Tadano Crane TM-Z600 31102000082A FRAME/STD,3 SECT. BOOM Parts Manual –  PDF DOWNLOAD

TM-Z600 31102000082A FRAME/STD,MANUAL,3 SECT. BOOM
000015
PB1030032-00 POWER TAKE OFF
PB1030033-00 POWER TAKE OFF
PB1030034-00 POWER TAKE OFF
PB1030046-00 POWER TAKE OFF
PB1030048-00 POWER TAKE OFF
PB1030056-00 POWER TAKE OFF
PB1100006-00 PUMP,HYDRAULIC
PB1100010-00 PUMP,HYDRAULIC
PB1130082-02 TANK,OIL
PB1130163-01 TANK,OIL
PB1300019-02 JOINT,ROTARY
PB1320047-00 VALVE,MANUAL CONTROL
PB1320283-00 VALVE,MANUAL CONTROL (OUTRIGGER)
PB1400137-00 PIPING,HYDRAULIC UPPER
PB1410307-00 PIPING,HYDRAULIC LOWER
PB1410796-00 PIPING,HYDRAULIC LOWER
PC1010232-01 OUTRIGGER (FRONT)
PC1010249-01 OUTRIGGER (REAR)
PC1020091-00 OUTRIGGER,REAR
PC1030012-02 CYLINDER,JACK(FRONT)
PC1030125-01 CYLINDER,JACK (REAR.FOR HIGH TRUCK BED)
PC1100105-00 OPE.ASSY,OUTRIGGER (REAR)
PC1200165-00 PIPING,OUTRIGGER (REAR)
PD1010006-02 REDUCER,SWING SPEED
PD1010097-00 REDUCER,SWING SPEED
PE1010170-02 CYLINDER,ELEVATING
PF1010009-03 WINCH
PF1010127-01 WINCH (HARTYS)
PF1050002-00 HOOK (SHEAVE 2 PC’S)
PF1070005-00 ROPE,WIRE
PF1090009-01 SOCKET,ROPE
PG1010282-03 BOOM
PG1050016-06 CYLINDER,TELESCOPING
PH1060174-01 DETECTOR,OVER WINDING
PI1010015-05 MOTOR,HYDRAULIC (WINCH)
PI1010228-02 MOTOR,HYDRAULIC (WINCH)
PI1250014-00 VALVE,COUNTERBALANCE
PI1250063-00 VALVE,COUNTERBALANCE
PI1280110-01 VALVE,PILOT CHECK
PI1280110-01 VALVE,PILOT CHECK
PI1280162-00 VALVE,PILOT CHECK
PI1440033-00 METER,LOAD (ENGLISH)
PK1010206-01 FRAME
PK1010460-00 FRAME
PK1100138-01 SWING FRAME
PK1200153-00 COVER,SWING FRAME
PL1010357-00 OPERATION SYSTEM, CONTROL VALVE
PM5230010-00 MOTOR,OIL
PN1010863-00 ELECTRICAL ACCESSORIES
PN1350070-02 REEL,CORD
PN1400011-00 WIRING,MATERIALS
PO1010953-01 PLATE ASSY,NAME (BOOM)
PO1010954-00 PLATE ASSY,NAME (FRAME)
PO1010955-00 PLATE,INDICATION
PO1010956-00 PLATE ASSY,NAME (REAR,JACK)
PW1010020-00 ACCESSORIES (PUMP,GREASE)
