Tadano Cargo Crane TM-ZF300 31013010190A FRAMESTD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Tadano Cargo Crane TM-ZF300 31013010190A FRAMESTD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD
Language : English
Pages :250
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Tadano Cargo Crane TM-ZF300 31013010190A FRAMESTD,REMOTE-RADIO CONT. Parts Manual – PDF DOWNLOAD
TM-ZF300 31013010190A FRAME/STD,REMOTE-RADIO CONT.
000000
PB2000019-01 POWER TAKE OFF & PUMP
PK2000826-00 FRAME UNIT
PO1000122-01 INDICATION PLATES
PV1000075-02 REMOTE CONTROL SYSTEM
ASSEMBLY
TM-ZF300 31013010190A FRAME/STD,REMOTE-RADIO CONT.
000005
PB1100382-00 PUMP,HYDRAULIC (36CC:L)
PB1130109-03 TANK,OIL
PB1300177-03 JOINT,ROTARY (MOUNT)
PB1300181-01 JOINT,ROTARY
PB1300301-01 JOINT,ROTARY
PB1400186-01 PIPING,HYDRAULIC UPPER
PB1410539-04 PIPING,HYDRAULIC LOWER
PC1030168-00 CYLINDER,JACK
PD1010062-01 REDUCER,SWING SPEED
PD1010085-02 REDUCER,SWING SPEED
PD1010133-00 REDUCER,SWING SPEED
PD1200067-03 PIPING,SWING
PE1010183-02 CYLINDER,ELEVATING
PF1010102-01 WINCH
PF1010128-03 WINCH (OOKUBO)
PF1010135-02 WINCH (HARTYS)
PF1010167-02 WINCH (HARTYS)
PF1010229-01 WINCH (Y.G.TEC)
PF1010237-01 WINCH (OOKUBO)
PF1020004-01 DRUM,WINCH (HARTYS)
PF1020035-00 DRUM,WINCH (Y.G.TEC)
PF1400204-06 MOUNT,WINCH
PH5034323-00 HARNESS
PI1010058-00 MOTOR,HYDRAULIC (WINCH)
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1010074-00 MOTOR,HYDRAULIC (SWING)
PI1250073-01 VALVE,COUNTERBALANCE (ELEVATING)
PI1280051-00 VALVE,PILOT CHECK
PI1300061-02 FILTER,OIL (YAMASHIN)
PI1440017-00 METER,LOAD (3.0TON NAGANO/FRENCH)
PI1440020-00 METER,LOAD (3.0TON NAGANO/ENGLISH)
PI1440021-00 METER,LOAD (3.0TON ENG.&RUSSIAN/NAGANO)
PI1440022-00 METER,LOAD (3.2TON ENG.&CHINESE/NAGANO)
PI1440023-00 METER,LOAD (7000IDS ENGLISH/NAGANO)
PI1440035-01 METER,LOAD (2.9TON KUSABA/ENG.& JAPANESE)
PI1440036-01 METER,LOAD (2.9TON NAGANO/ENG.& JAPANESE)
PK1010324-01 FRAME
PK1100192-00 SWING FRAME
PK1200221-00 COVER,SWING FRAME
PL1010529-04 OPE.ASSY,CONT.VALVE (CRANE)
PL1030415-05 OPERATION SYSTEM, ACCELERATOR
PN1011249-05 ELEC.ASSY
PN1011315-03 ELEC.ASSY
PN1011414-03 ELEC.ASSY (RADIO CONTROL)
PN1011415-03 ELEC.ASSY (REMOTE CONTROL)
PN1011649-04 ELEC.ASSY
PN1011652-05 ELEC.ASSY
PN1012038-02 ELEC.ASSY (RADCON ANTENNA)
PO1011492-01 PLATE,INDICATION
PO1011493-01 PERFORMANCE DATA
PO1012650-00 PLATE ASSY,NAME (RADIO CONTROL)
PR5130002-00 RING ASSY,SLIP
PR5210001-00 RELAY (WITH HARNESS)
PS5530075-00 SWITCH ASSY (GREEN:PANASONIC)
PV1010046-00 REMOTE CONTROL
PV1020027-05 VALVE,REMOTE CONTROL(NACHI)
PV1020174-03 VALVE,REMOTE CONTROL (NACHI)
PV1020254-00 VALVE,REMOTE CONTROL
PV1030014-05 SWITCH BOX (RADIO CONTROL.M2.TYPE-B)
PV1030019-05 SWITCH BOX (RADIO CONTROL.M2.TYPE-A)
PV1030030-02 SWITCH BOX (RADIO CONTROL,C-TYPE)
PV1030034-05 SWITCH BOX (RADIO CONTROL,TYPE-D)
PV1030037-05 SWITCH BOX (RADIO CONTROL,TYPE-E)
PV1030052-00 SWITCH BOX (RADIO CONTROL)
TM-ZF300 31013010190A FRAME/STD,REMOTE-RADIO CONT.
000005
PV1030086-00 SWITCH BOX (FUTABA)
PV1030089-00 SWITCH BOX
PV1030090-00 SWITCH BOX
PV1030091-00 SWITCH BOX
PV1030092-00 SWITCH BOX
PV1040013-02 CONTROL BOX (RADIO CONTROL.M2.B)
PV1040014-00 CONTROL BOX (REMOTE CONTROL.M2)
PV1040018-02 CONTROL BOX (RADIO CONTROL.M2.A)
PV1040035-00 CONTROL BOX (RADIO CONTROL C-TYPE)
PV1040036-01 CONTROL BOX (RADIO CONTROL,D)
PV1040038-02 CONTROL BOX (RADIO CONTROL,TYPE-E)
PV1040050-00 CONTROL BOX
PV1040051-00 CONTROL UNIT (ANTENNA)
PV1040076-00 CONTROL BOX
PV1040094-00 CONTROL BOX
PV1040099-00 CONTROL UNIT
PV1040106-00 CONTROL UNIT
PV1040108-00 CONTROL UNIT
PV1040109-00 CONTROL UNIT
PV1050003-02 CYLINDER,ACCELERATOR (NACHI)
PV1070002-00 RADIO CONTROL (KIT)
PV1070195-00 RADIO CONTROL (FREQ.A OR FREQ.B)
PV1070196-00 RADIO CONTROL (FREQ.C,FOR TAIWAN)
PV1070197-00 RADIO CONTROL (FREQ.D OR FREQ.E)
PV1070198-00 RADIO CONTROL
PV1250002-04 STOWING BOX (REMOTE CONTROL)
PV1250006-00 STOWING BOX (BAG,RADIO CONTROL)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400014-02 ANTENNA (FOR RADIO CONTROL)
PV1400030-01 ANTENNA
PV1410003-01 MOUNT,ANTENNA (FOR RADIO CONTROL)
PV1410004-02 MOUNT,ANTENNA (RADIO CONTROL,C-TYPE)
PV1410012-02 MOUNT,ANTENNA (RADIO CONTROL,D.E-TYPE)
PW5060005-01 WINCH ASSY (Y.G.TEC)
PX1100152-00 TANK SUPPORT INSTALLATION

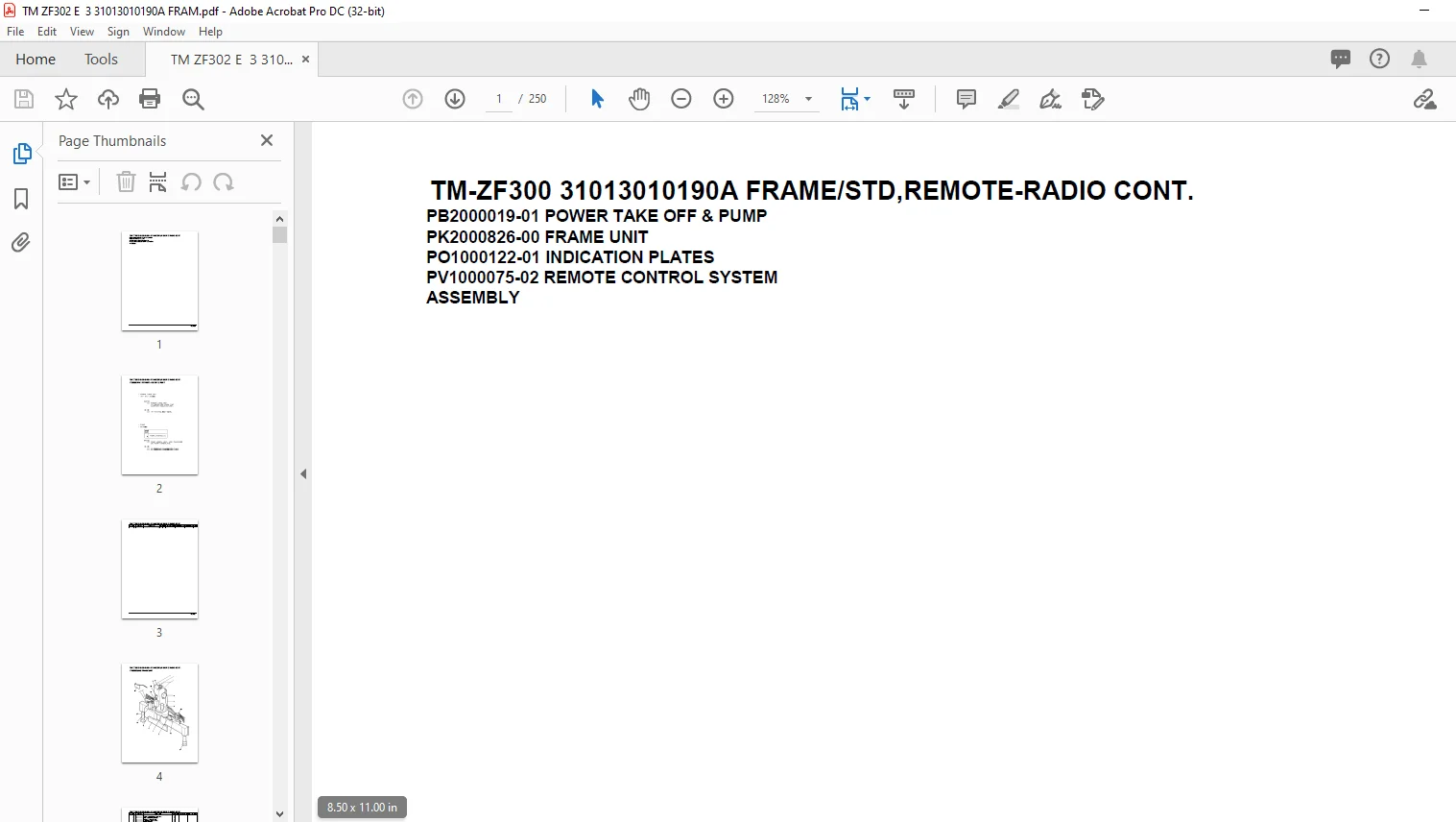

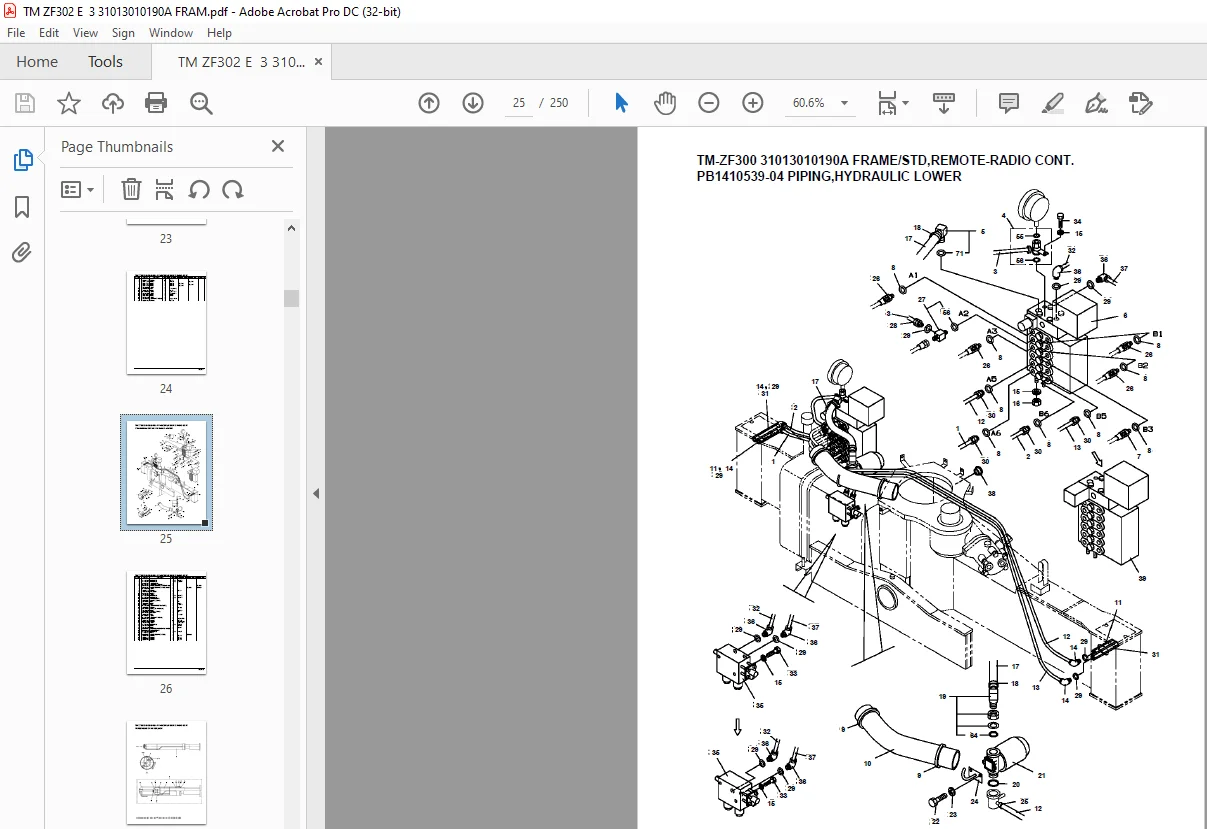

IMAGES PREVIEW OF THE MANUAL:
