Suzuki Equator 2010 2012 Workshop Service Repair Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:4699
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

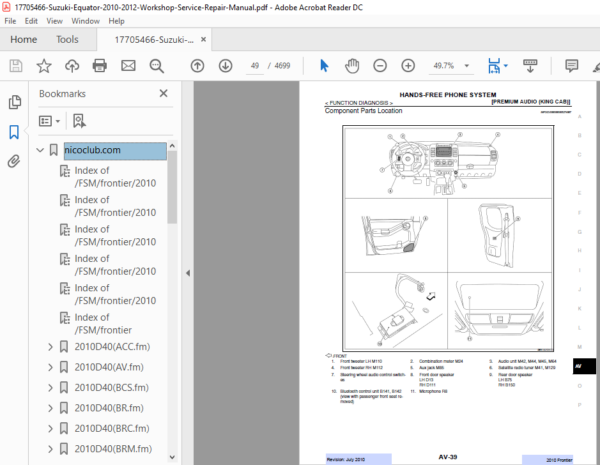

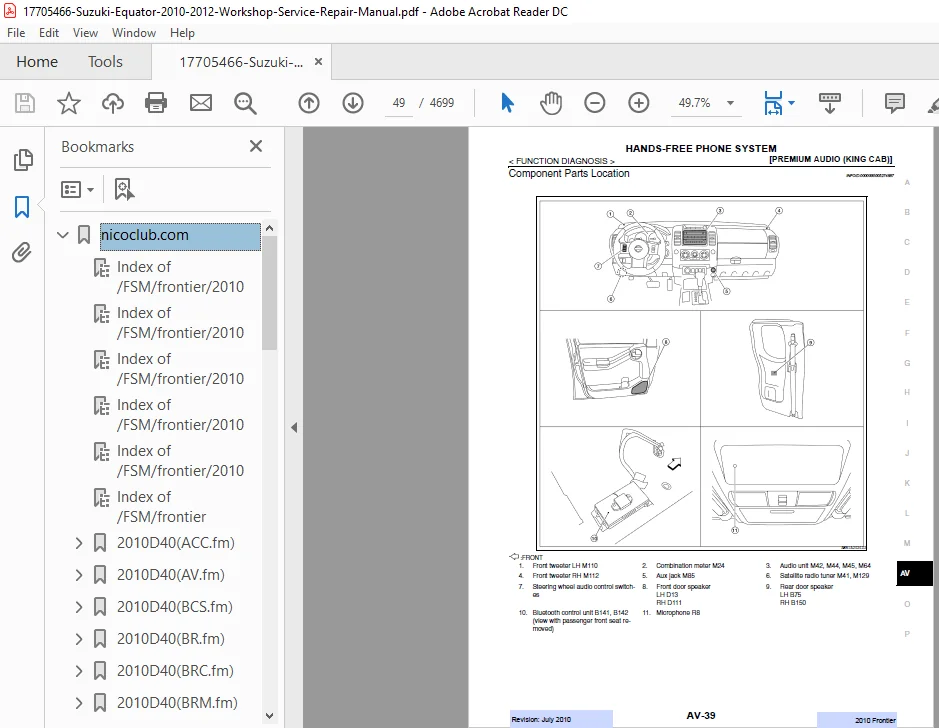

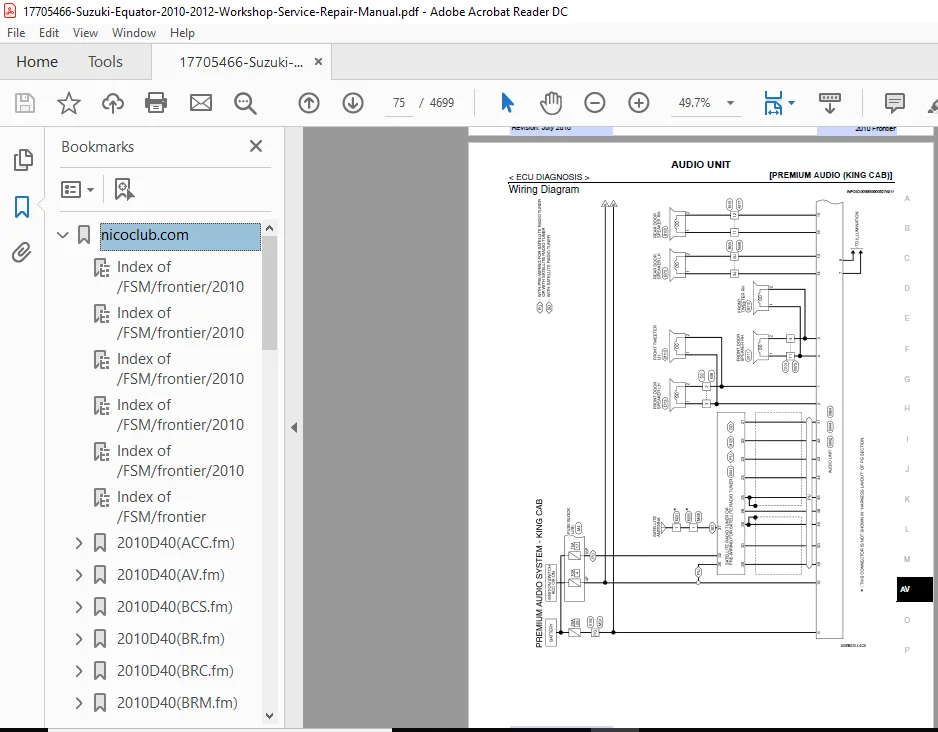

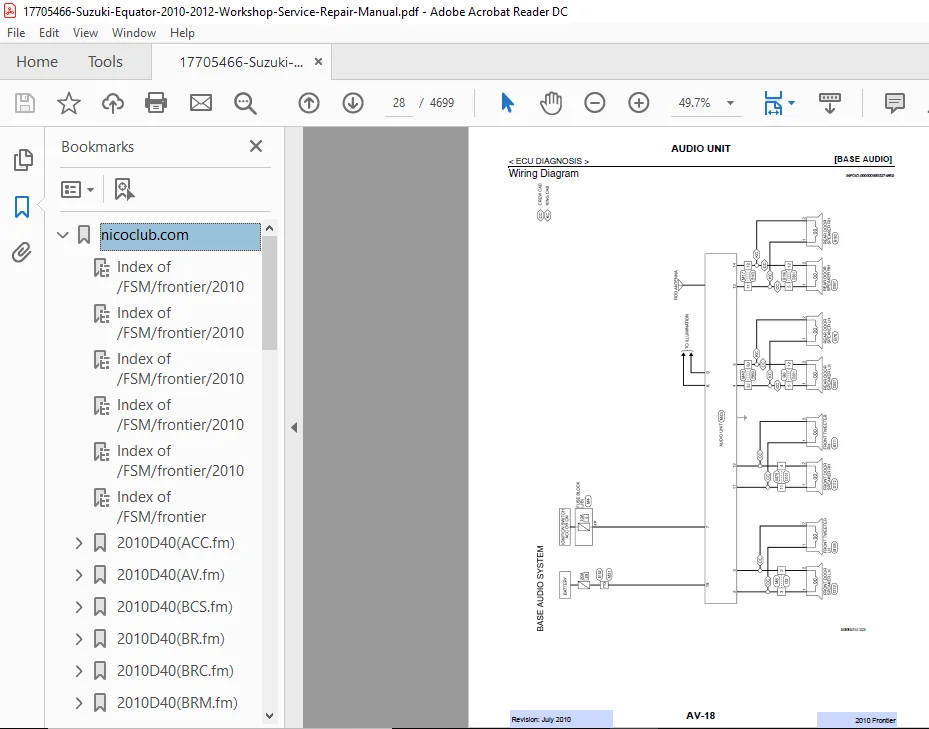

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
- Precaution for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER” INFOID:0000000005530131 The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision.
- This system includes seat belt switch inputs and dual stage front air bag modules. The SRS system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
- Information necessary to service the system safely is included in the SR and SB section of this Service Manual.
WARNING:
- • To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision which would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer.
- • Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the SR section.
- • Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS WARNING:
- • When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
- • When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service. Revision:
TABLE OF CONTENTS:
Suzuki Equator 2010 2012 Workshop Service Repair Manual
PRECAUTION 2
PRECAUTIONS 2
Precaution for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”
REMOVAL AND INSTALLATION 3
ACCELERATOR CONTROL SYSTEM 3
Component 3
Removal and Installation 3
SERVICE DATA AND SPECIFICATIONS
(SDS) 5
SERVICE DATA AND SPECIFICATIONS
(SDS) 5
Accelerator Control
PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
