Still Fork Truck R70 20 R70 25 R70 30 Factory Service Repair Workshop Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:450
DOWNLOADABLE:YES
FILE TYPE:PDF
VIDEO PREVIEW OF THE MANUAL:

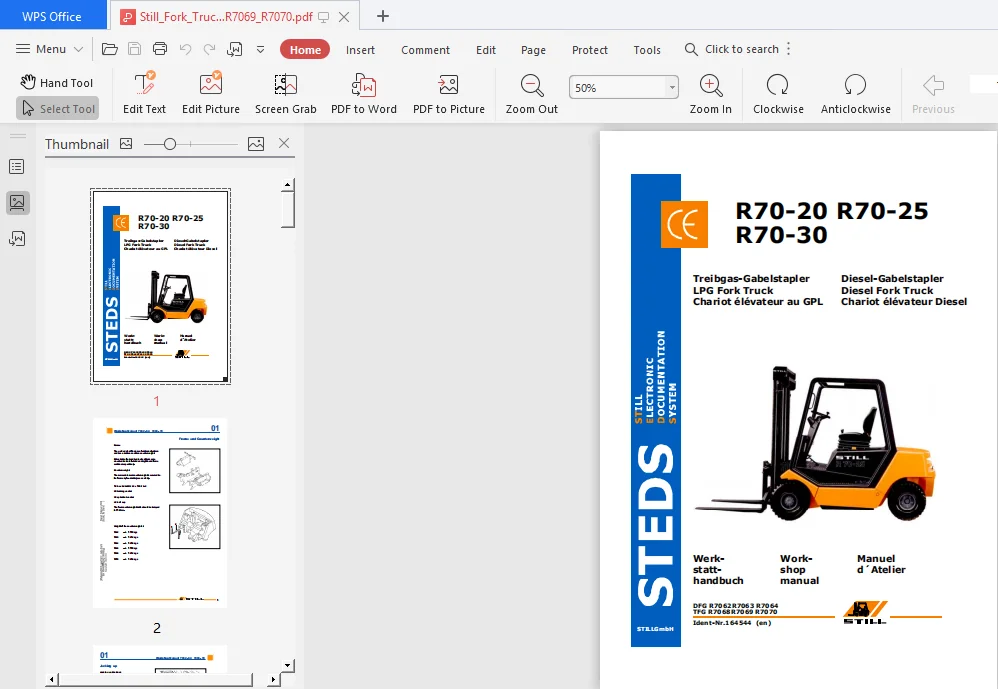

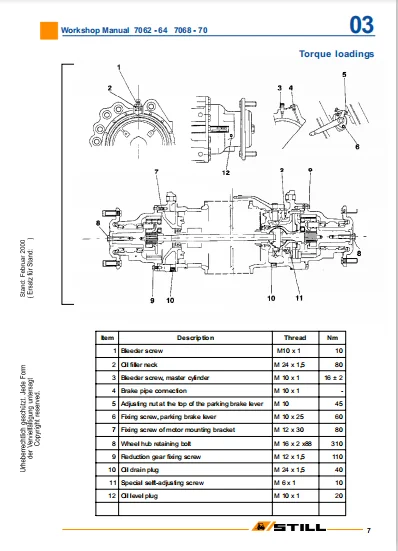

IMAGES PREVIEW OF THE MANUAL:

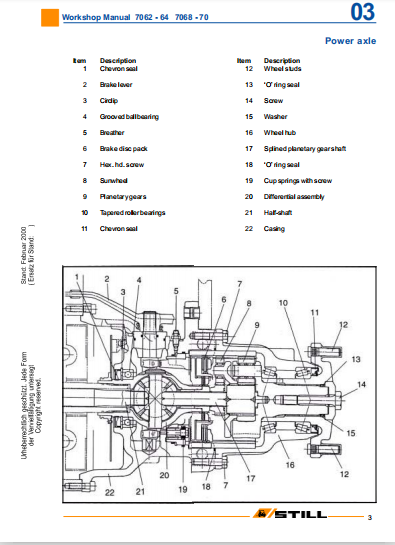

SAMPLE PAGE FROM MANUAL:
Still Fork Truck R70 20 R70 25 R70 30 Factory Service Repair Workshop Manual
Frame The welded steel frame is of unit construction and has a bolt-on cast iron counterweight. Detachable fuel and hydraulic oil tanks are mounted inside left-hand and right-hand frame sections respectively.
Jacking up Jacking up the truck CAUTION : Before jacking up the truck : Apply the parking brake! To carry out certain maintenance tasks the truck must be jacked up and securely chocked into position. Always make sure only jacks of suitable capacity are used.Before jacking up the thck, position it on level ground and secure against slipping or rolling. Jack up the truck by placing a jack at locations shown in the figures, i.e. beneath the mast right or left and beneath the frame at the front or at the rear. Neverjack up the truck at rear counterweight! When jacking up the truck observe safety rules covering maintenance and servicejobs on the mast.
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
