STA VH 1700 LUBRICATION & MAINTENANCE MANUAL – PDF DOWNLOAD
FILE DETAILS:
STA VH 1700 LUBRICATION & MAINTENANCE MANUAL – PDF DOWNLOAD
Language : English
Pages : 92
Downloadable : Yes
File Type : PDF

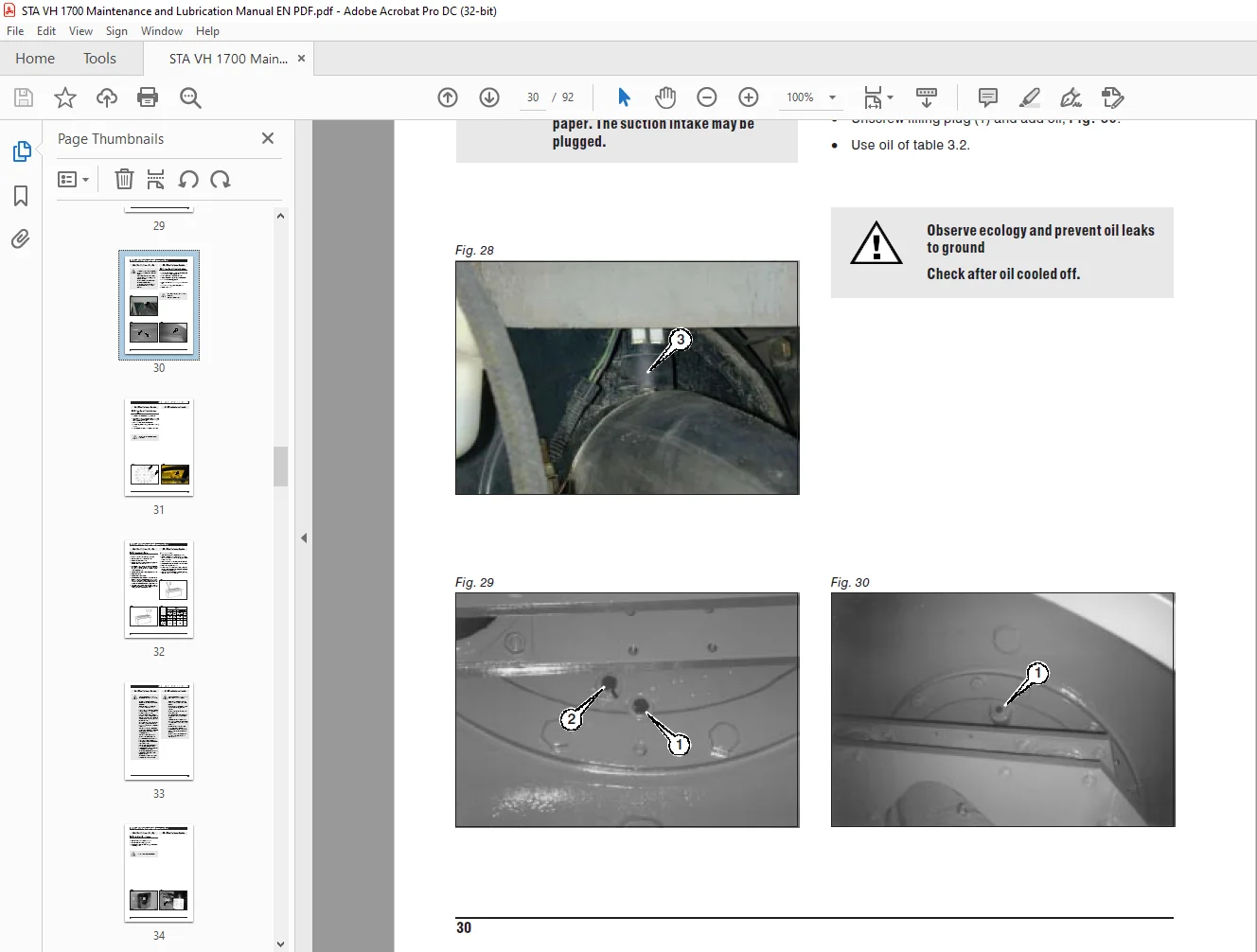

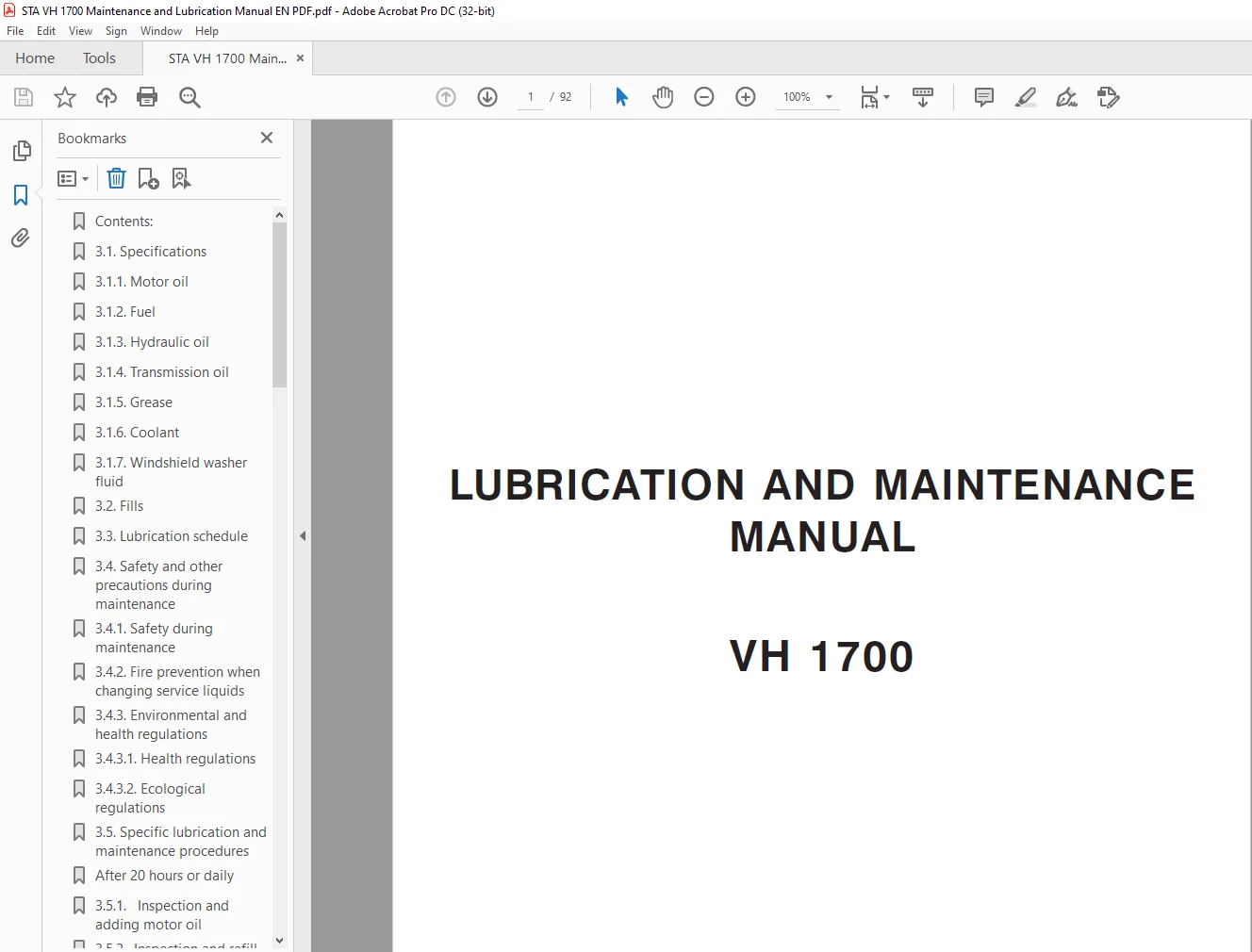

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
STA VH 1700 LUBRICATION & MAINTENANCE MANUAL – PDF DOWNLOAD
Perform lubrication, maintenance, and adjustments
- using trained personnel,
- as scheduled in table, or during inspection of technical conditions,
- as specified in safety, fire, ecological, and health regulations in Operations Manual VH 1700 roller,
- after the machine, lubrication points, and spots for maintenance or repair have been washed,
- with the machine on a firm, flat surface,
- wedged against spontaneous movement,
- with electrical breaker off, locked batteries cover, and ignition key removed, and with notice ”Machine under repair fixed to the dashboard,
- with machine cooled off,
- using undamaged tools,
- with zero hydrostatic pressure, and to valid regulations,
- by replacing defective or worn out parts with new, original ones. The manufacturer is not responsible for damages caused by the use of unauthorized parts.
- with satisfactory illumination at night and poor visibility,
- with covers and safety elements re-installed,
- with connectors and bolts tightened to specified torque, and inspection of tightness of connectors that were loosened during maintenance,
- after the fills warmed up by the operation of the machine, preferably in rest – watch out for being burnt – use recommended fills.

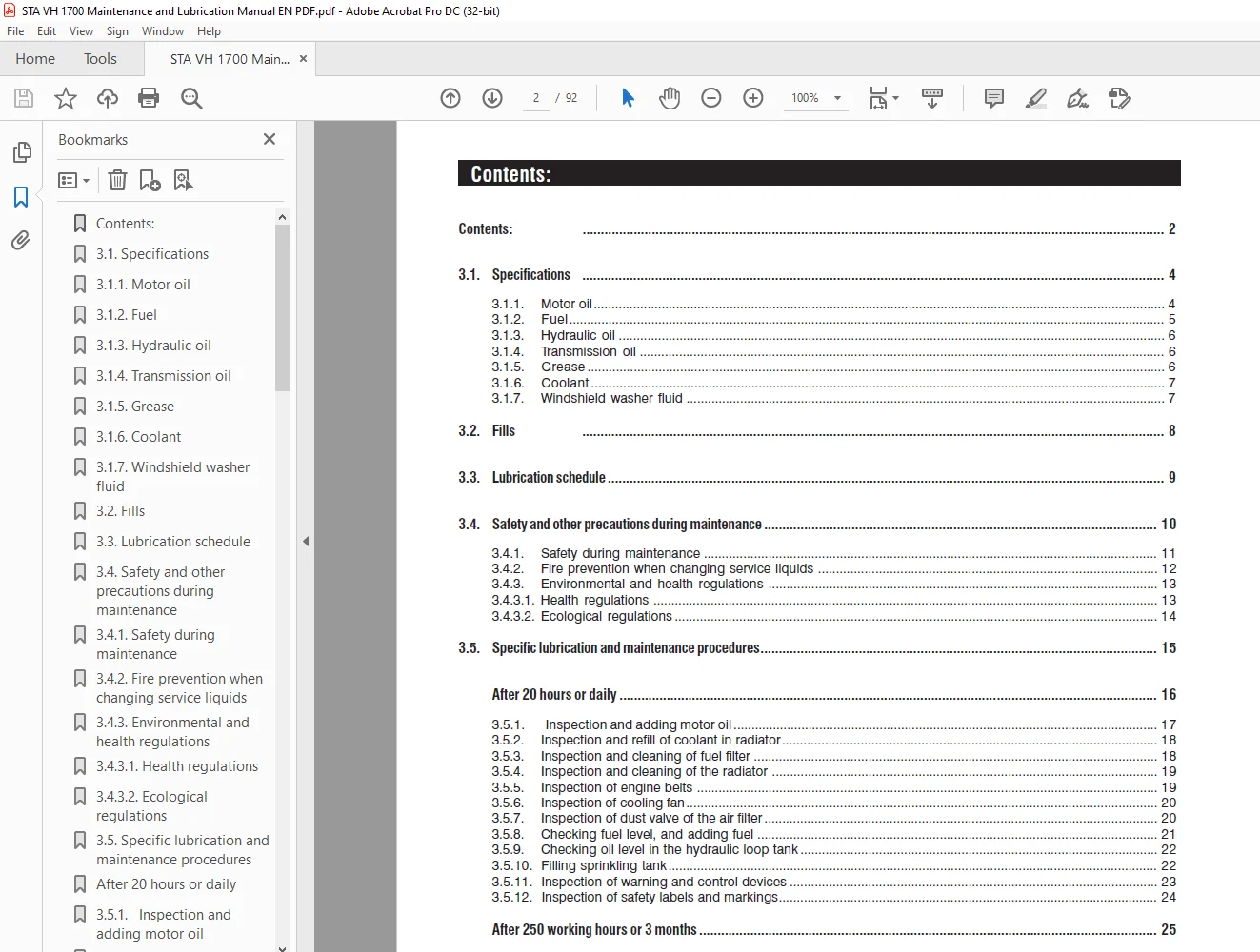

TABLE OF CONTENTS:
STA VH 1700 LUBRICATION & MAINTENANCE MANUAL – PDF DOWNLOAD
Contents: .................................................. 2 3.1. Specifications ........................................ 4 3.1.1. Motor oil ............................................ 4 3.1.2. Fuel ................................................ 5 3.1.3. Hydraulic oil ........................................ 6 3.1.4. Transmission oil ..................................... 6 3.1.5. Grease ............................................... 6 3.1.6. Coolant .............................................. 7 3.1.7. Windshield washer fluid .............................. 7 3.2. Fills ................................................. 8 3.3. Lubrication schedule .................................... 9 3.4. Safety and other precautions during maintenance .........10 3.4.1. Safety during maintenance .............................11 3.4.2. Fire prevention when changing service liquids .........12 3.4.3. Environmental and health regulations ..................13 3.4.3.1. Health regulations ..................................13 3.4.3.2. Ecological regulations ..............................14 3.5. Specific lubrication and maintenance procedures .........15 After 20 hours or daily ......................................16 3.5.1. Inspection and adding motor oil ....................17 3.5.2. Inspection and refill of coolant in radiator .........18 3.5.3. Inspection and cleaning of fuel filter ...............18 3.5.4. Inspection and cleaning of the radiator ..............19 3.5.5. Inspection of engine belts ............................19 3.5.6. Inspection of cooling fan .............................20 3.5.7. Inspection of dust valve of the air filter ...........20 3.5.8. Checking fuel level, and adding fuel ..................21 3.5.9. Checking oil level in the hydraulic loop tank .........22 3.5.10. Filling sprinkling tank ..............................22 3.5.11. Inspection of warning and control devices ............23 3.5.12. Inspection of safety labels and markings .............24 After 250 working hours or 3 months ..........................25 3.5.13. Engine oil and oil filter change .....................26 3.5.14. Inspection of engine cooling ........................28 3.5.15. Inspection of engine intake manifold .................28 3.5.16. Inspection of vacuum switch of the air filter ........29 3.5.17. Inspection of oil level in the vibrator ..............30 3.5.18. Inspection of oil level in the drum reducer ..........31 3.5.19. Inspection of batteries ..............................32 3.5.20. Sprinkling filter - cleaning .........................34 3.5.21. Lubrication of steering joint bearings ...............35 3.5.22. Lubrication of steering pins .........................36 3.5.23. Lubricating pins of scrapers .........................36 3.5.24. Lubrication of hinge pins ............................36 After 500 working hours (after 6 months) .....................37 3.5.25. Replacement of fuel filters ..........................38 3.5.26. Inspection of anti-freeze fluid ......................40 After 1000 working hours (after 12 months) ...................41 3.5.27. Inspection, adjustment of engine valves ..............42 3.5.28. Inspection of engine belt ............................45 3.5.29. Inspection of exhaust system. ........................46 3.5.30. Oil change in drum reducer. ..........................46 3.5.31. Inspection of rubberized metal parts .................48 3.5.32. Cleaning of water tanks ..............................49 After 2000 hours of service (after 2 years) ..................50 3.5.33. Change of cooling fluid .............................51 3.5.34. Inspection of damper of engine torsion vibrations ....52 3.5.35. Vibrator oil change ..................................52 3.5.36. Cleaning of fuel tank ................................53 3.5.37. Oil and filter change in the hydraulic loop ..........54 Maintenance as needed ........................................58 3.5.38. Cleaning and replacement of air filter cartridge .....59 3.5.39. Cleaning of fuel separator ...........................61 3.5.40. Venting the fuel system ..............................62 3.5.41. Cleaning of the radiator .............................64 3.5.42. Adjustment of vibrating frequency ....................64 3.5.43. Scrapers adjustment ..................................66 3.5.44. Cleaning of filter in the cabin ventilation ..........67 3.5.45. Cleaning the roller ..................................67 3.5.46. Inspection of screw joints ...........................68 3.6. Maintenance records ....................................72 3.7. Identifying defects .....................................76 3.7.1. Identifying engine defects ............................76 3.7.2. Electrical wiring defects .............................79 3.7.3. Defects in hydraulic system ...........................80 Appendix ...................................................82 Electrical installation ......................................82 Diagram of hydraulics ........................................90
