STA Pneumatic Tired Compactor AP240 Hydraulic Schematic Diagram Manual – PDF DOWNLOAD
$12.95
STA Pneumatic Tired Compactor AP240 Hydraulic Schematic Diagram Manual – PDF DOWNLOAD
Description
STA Pneumatic Tired Compactor AP240 Hydraulic Schematic Diagram Manual – PDF DOWNLOAD
FILE DETAILS:
STA Pneumatic Tired Compactor AP240 Hydraulic Schematic Diagram Manual – PDF DOWNLOAD
Language : English
Pages : 6
Downloadable : Yes
File Type : PDF

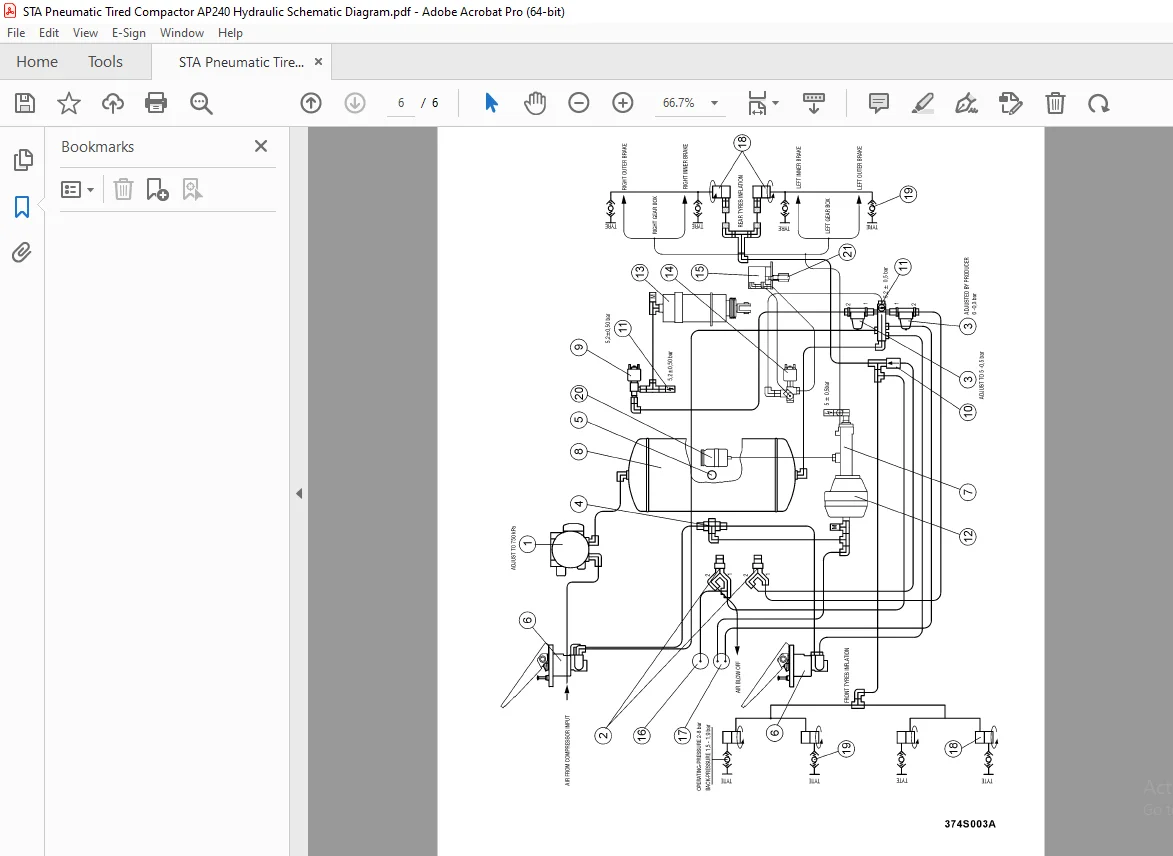

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
STA Pneumatic Tired Compactor AP240 Hydraulic Schematic Diagram Manual – PDF DOWNLOAD
A 1 Interrupter of direction lights
A 2 Electronics switches steering
B 1 Sensor of engine temperature
B 2 Sensor of gear – box temperature
B 3 Float of fuel level
B 4 Sensor of gear – box lubrication
E 1 Instruments illumination
E 2, 3 Front outline lights
E 4, 5 Tail lights
E 6, 7 Front headlights
E 8, 9 Rear headlights
E 10 Safety beacon (optional)
E 11, 12 Cabin illumination
E 13, 14 Brake lights
E 15-17 Left directions lights
E 18-20 Right directions lights
E 21 Backup light
F 1-12 Fuses
G 1 Battery
G 2 Alternator
H 1 Horn
H 2 Indicator of dir. lights
H 3 Back – up alarm (Optional)
H 4 Indicator of neutral position of the travel control
H 5 Indicator right steering
H 6 Indicator left steering
H 7 Indicator of charging
H 8 Indicator of engine lubrication
H 9 Indicator of brake filature
H 10 Alarm of brake filature
H 11 Indicator of air filter clogging
H 12 Indicator of brake
H 13 Indicator sprikling
K 1 Contactor
K 2-6 Auxiliary relay
M 1 Starter
M 2 Front wiper
M 3 Rear wiper
M 4 Front windscreen washer
M 5 Rear windscreen washer
M 6 Pump sprikling
M 7 Fan
P 1 Hour counter
P 2 Thermometer of engine
P 3 Thermometer of gear – box
P 4 Fuel level meter
P 5 Pressure gauges of Gear – box lubrication
Q 1 Battery disconnection
S 1 Switch box
S 2 Switch of front headlights
S 3 Switch of rear headlights
S 4 Switch of beacon (Optional)
S 5 Pressure switch of brake lights
S 6, 7 Push – button of Horn
S 8 Switch of warning lights
S 9 Left switch directions lights
S 10 Right switch directions lights
S 11 Left controller
S 12 Right controller
S 13, 14 Push – button of emergency brake
S 15 Switch of differential lock (optional)
S 16 Indicator of differential lock (optional)
S 17 Switch of engine lubrication
S 18 Switch of brake filature
S 19 Undpressure switch of air filter clogging
S 20 Pressure switch of brake
S 21 Switch of front wiper
S 22 Switch of rear wiper
S 23 Push – button of washer
S 24 Switch cycle sprikling
S 25 Overpressure switch sprikling (pump sprikling)
S 26 Switch of van
S 27 Switch of air conditioning (optional)
S 28 Thermostat of air conditioning (optional)
S 29 Safety cup of air conditioning (zvlรกลกtnรญ vรฝbava)
S 30 Position switch heating
S 31 Switch of parking brake
S 32 Thermostat of cold start (options)
S 50 Push buton of the edge cuter – up (options)
S 51 Push buton of the edge cuter – down (options)
V 1, 2 Diodes
X 1 Hand lamp socket
X 2-29 Conectors
Y 1, 2 Electromagnet gear changing
Y 3 Electromagnet travel forvard
Y 4 Elektromagnet travel revers
Y 5 Electromagnetic valve of engine STOP
Y 6 Electromagnetic valve of brake
Y 7 Electromagnetic valve of differential lock (optional)
Y 8 Electromagnetic clutch of compressor of air conditionig
(optional)
Y 10 Valve solenoid of the cuter edge – up (options)
Y 11 Valve solenoid of the cuter edge – down (options)
Y 12 Cold start solenoid of the engine
