RAUCH UKS GB 150/190/230/270/300 Sand, salt, grit & fertiliser spreader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
RAUCH UKS GB 150/190/230/270/300 Sand, salt, grit & fertiliser spreader Parts Manual – PDF DOWNLOAD
Language : English, German & French
Pages : 89
Downloadable : Yes
File Type : PDF

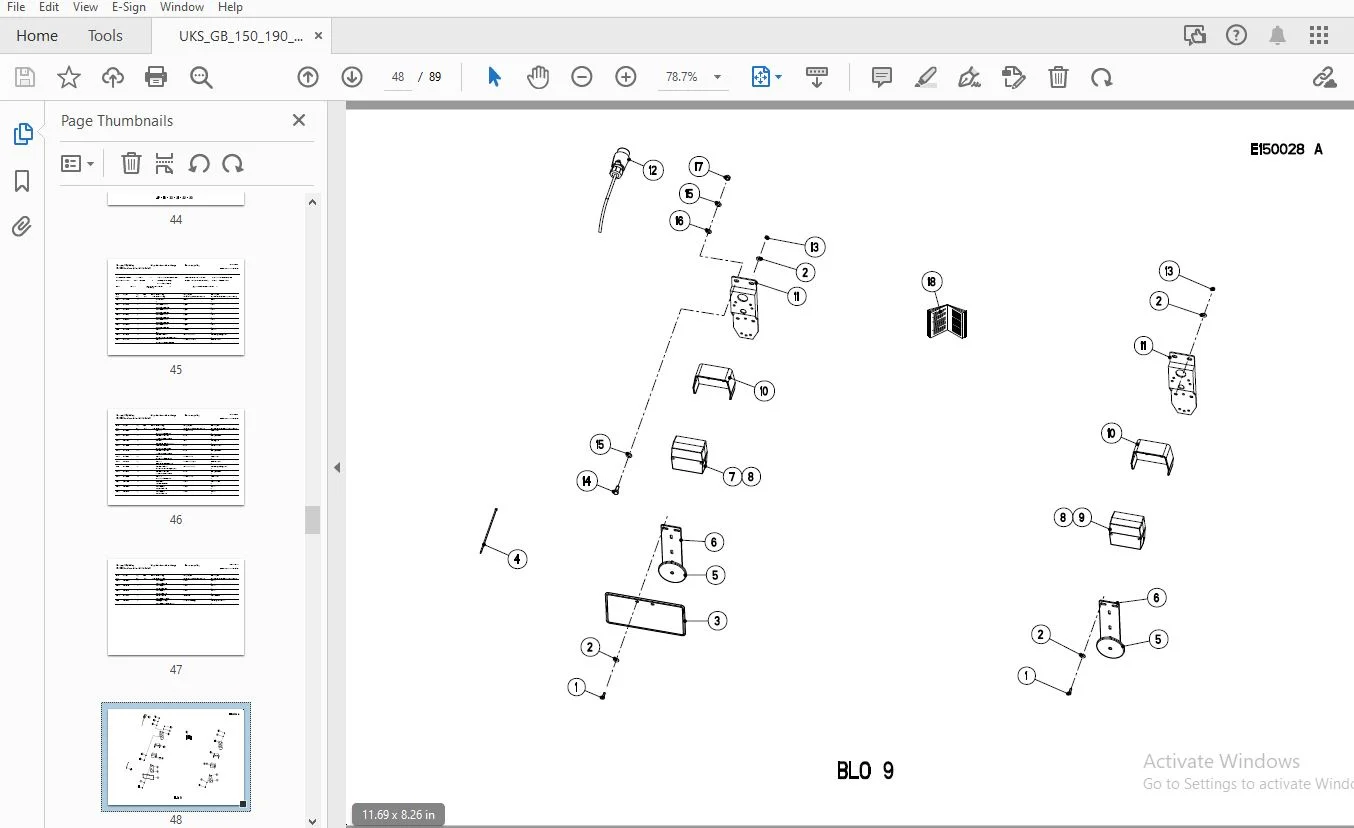

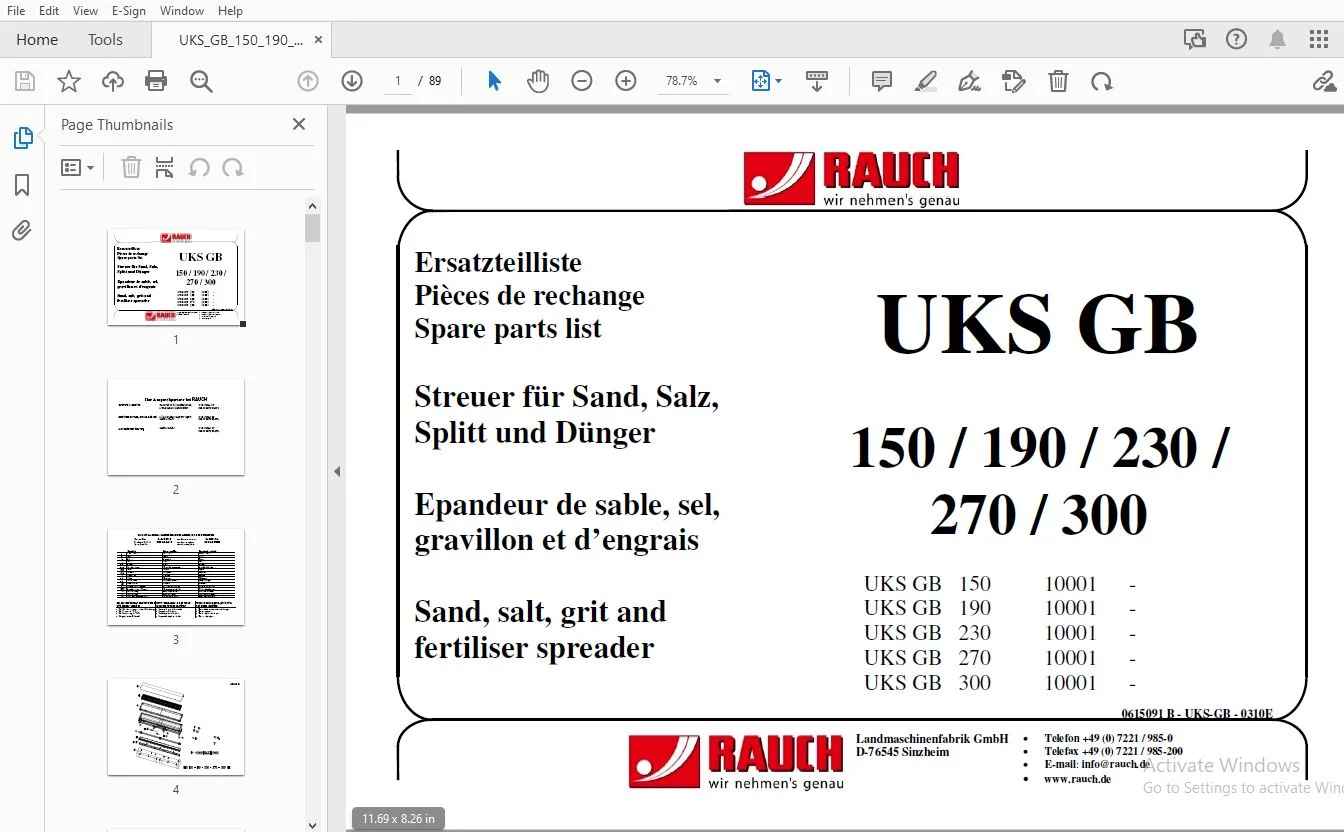

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
RAUCH UKS GB 150/190/230/270/300 Sand, salt, grit & fertiliser spreader Parts Manual – PDF DOWNLOAD
- Hopper and Related Components:
- E150018 C: Hopper with yoke (upper/lower link connection).
- E150019 A: Hopper with trapezium coupler (Geraetedreieck).
- E150020 A: Hopper with stand (Abstellfüsse).
- Safety Screen and Protective Components:
- E150021 A: Safety screen (UKS GB).
- Drive and Adjustment Mechanisms:
- E150022 B: Hydraulic drive system (UKS GB).
- E150023 A: Adjustment device for accurate operation.
- Hopper Bottom and Metering Shaft:
- E150024 B: Hopper bottom (Streuboden, UKS GB).
- E150025 A: Metering shaft for precision spreading (UKS GB).
- Extensions and Covers:
- E150026 A: Hopper extension (Rehausse, UKS GB).
- E150027 A: Hopper cover for AP 16, 20, 21, 22, 23.
- Lighting Systems:
- E150028 A: Rear lighting system (BLO 9 – hinten).
- E150029 A: Front lighting system (BLO 10 – vorne).
- Remote Control:
- E150012 A: Mechanical remote control (MFB 6 + 7).
- E150013 B: Electrical remote control (EF 25).
- Row Spreading and Windbreak Equipment:
- E150031 A: Row spreading equipment (Reihenstreuvorrichtung, UKS GB).
- E150033 B: Windbreak (Windschutz, UKS GB).
- Stickers and Reflectors:
- 2053190: Safety sticker for protective equipment.
- 2020186: Yellow reflector, adhesive type.
- 2044415: Red reflector, adhesive type.
- Various stickers for instructions, maximum payload, and operational safety.
Parts for Paint Repair:
- 4021150: 1 kg primer (sand yellow).
- 4021149: 1 kg red paint can (RAL 2002).
- 4087073: Paint repair kit (RAL 2002).
- 2055416: Red spray paint (blood orange RAL 2002, glossy).
Spare Pins and Connections:
- Safety Pins:
- 2053898: Safety pin + PVC cord (8×42 DIN 11023).
- 2044463: Larger safety pin + PVC cord (11×55).
- Lower Link Pins:
- 2053587: Lower link pin (Kat. I).
- 2044461: Lower link pin (Kat. II).
- Top Link Pin:
- 2053863: Top link pin (Kat. I/II-A4G).
Reflectors:
- Yellow adhesive reflector (2020186).
- Red adhesive reflector (2044415).
Payload Stickers:
- 2054078: Max payload of 700 kg for UKS 150/190/230.
- 2054101: Max payload of 1000 kg for UKS 270/300.
