Rauch Alpha MDS 1141W 1142W Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Rauch Alpha MDS 1141W 1142W Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
Language : German, French & English
Pages : 251
Downloadable : Yes
File Type : PDF

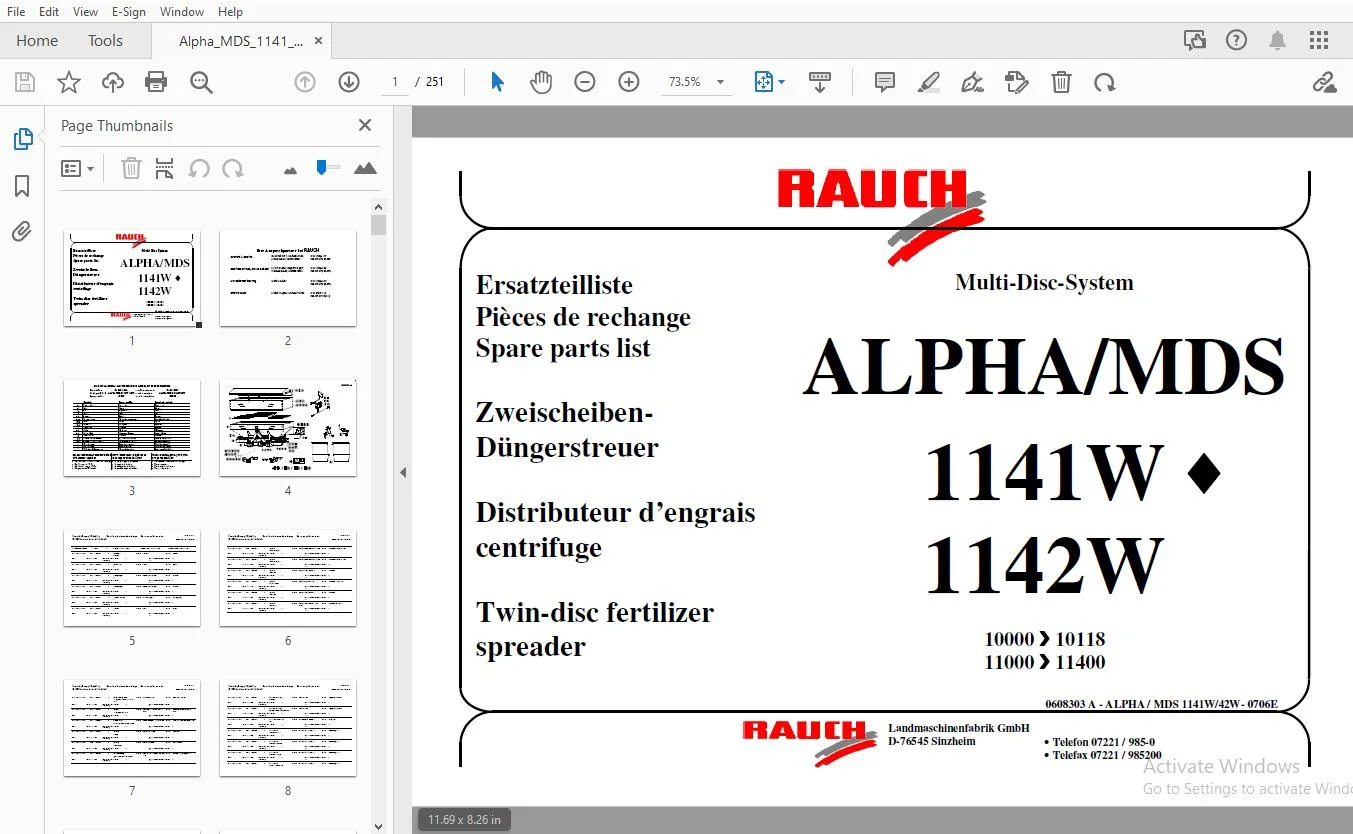

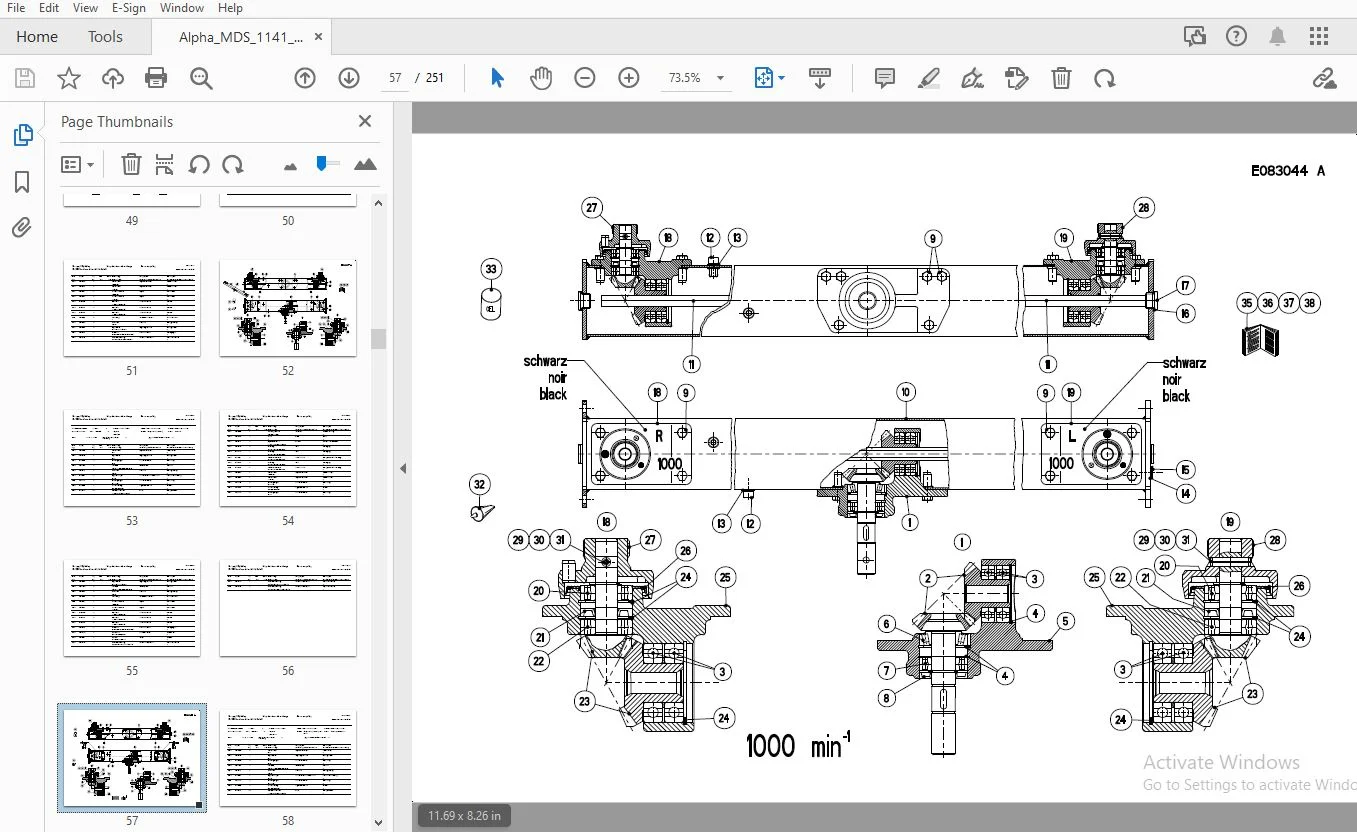

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Rauch Alpha MDS 1141W 1142W Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
Hopper and Related Components
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0001 | E083043 | A | Behaelter | Groupe Tremie | Group Hopper | ALPHA W, Series 10000–11400 |
| 0002 | E072010 | A | Einfuellsieb | Groupe Tamis | Group Sieve | Series 10000–11400 |
Brackets and Safety Supports
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0003 | E083002 | A | Schutzbuegel | Groupe Support protecteur | Group Bracket | Series 10000–10005 |
| 0004 | E073038 | A | Schutzbuegel | Groupe Support protecteur | Group Bracket | Series 10006–11400 |
Mechanical Components
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0005 | E072001 | A | Ruehrwerkswelle | Groupe Arbre Agitateur | Group Stirring Shaft | Series 10000–11400 |
| 0006 | E072002 | A | Bremse | Groupe Frein | Group Brake | Series 10000–11400 |
| 0007 | E083051 | A | Getriebe | Groupe Carter, commande excentrique | Group Gearbox, Eccentric Drive | Series 10000–10118 |
| 0008 | E083026 | A | Getriebe | Groupe Carter, commande excentrique | Group Gearbox, Eccentric Drive | Series 11000–11400 |
| 0009 | E083047 | A | Getriebe | Groupe Carter d’entrainement | Group Gearbox | Einzelteile, Series 10000–10118 |
Hydraulic and Electrical Components
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0013 | E083006 | A | Elektro-Stellzylinder | Groupe Verin electrique | Group Electrical Actuator | Quantron L + M with CAN, Series 10000–11400 |
| 0014 | E072011 | A | Rechner | Groupe Computer Quantron M avec CAN | Group Computer (Quantron M with CAN) | Series 10000–11400 |
Spreading Discs
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0022 | E083037 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 3-VxR – White) | Series 10000–11106 |
| 0023 | E083038 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 4-VxR – Black) | Series 10000–11106 |
| 0024 | E083039 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 5-VxR – Orange) | Series 10000–11106 |
Lighting and PTO Drive Shafts
Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
0040 | E083008 | A | Beleuchtung mit Warntafeln | Groupe Installation d’eclairage | Group Lighting Plant (BLW 11) | Series 10000–11400 |
0049 | 2052809 | A | Gelenkwelle | Groupe Transmission | Group PTO Drive Shaft (SD 05 1 3/8″x810xD30) | Series 10000–11400 |
