Porsche 928s Model 1986 Wiring Diagram – DOWNLOAD

Description

Porsche 928s Model 1986 Wiring Diagram

PORSCHE 928S MODEL 1986 WIRING DIAGRAM – DOWNLOAD:

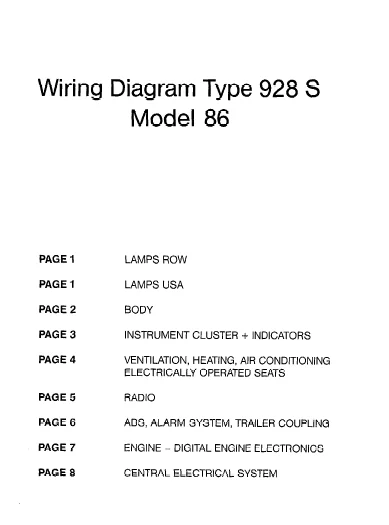

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

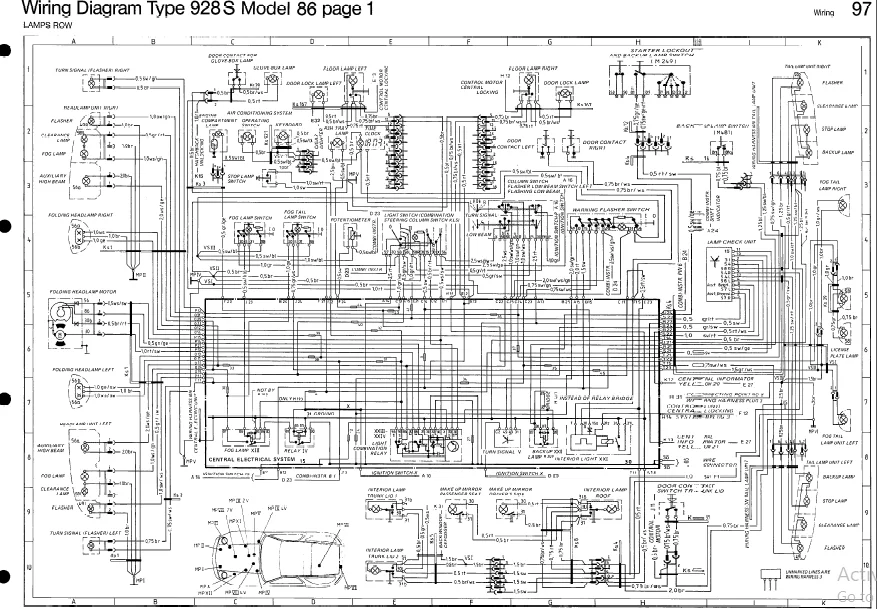

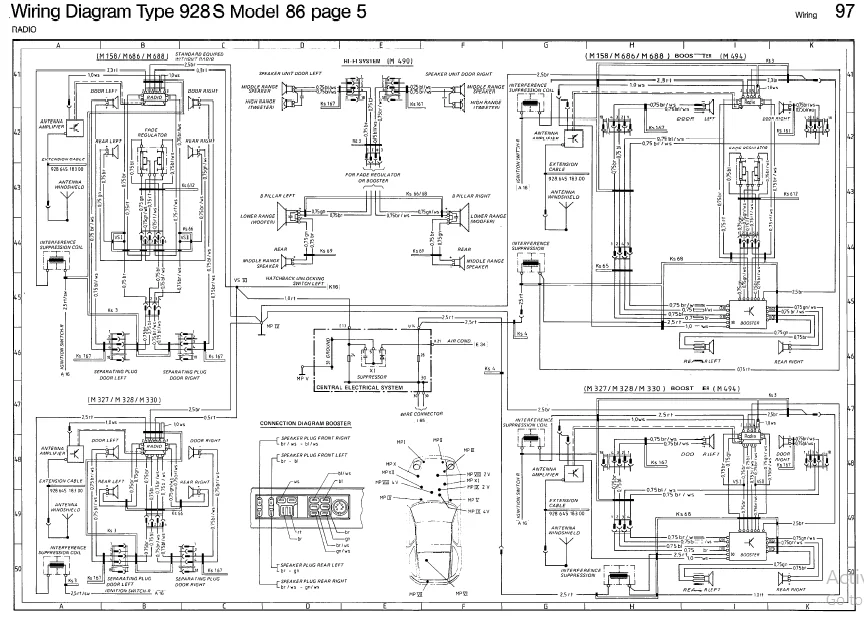

The wiring diagram comprises nine individual wiring diagrams. They are subdivided into coordinate fields.
Each individual wiring diagram comprises a part of the central electrical system within a dash-dot frame.
This part of the central electrical system shows all the lines and relays required for individual wiring diagram.
The ground-connecting points are designated with “MP” and their location is shown in a vehicle diagram.
The IO- pole plugs on central electrical system are clipped together from 3 parts.
Part 1, with the cast-on fastening pin, is the “initial element”.
Part 2 is the “module element”.
Both parts are identified by the digits 1 . . . 5.
Part 3 is a “coding element”.
The designations of the plug connections in wiring diagram for central electrical system refer e. g. from A 11 . . . 15 to the “initial element”, from A 21 . . . 26 to module element.

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:20
DOWNLOADABLE:YES
FILE TYPE:PDF
