Perkins 100 Series Models 102-05,103-07, 103-10, 103-13, 103-15, 104-19,104-22 Service Repair Manual
Description:
Perkins 100 Series Models 102-05,103-07, 103-10, 103-13, 103-15, 104-19,104-22 Service Repair Manual
Introduction
- This Workshop Manual has been written to provide the trained technician with enough information to service and overhaul all of the latest Perkins 100 Series engines. It has been compiled for use in conjunction with normal workshop practice and information contained in current service bulletins. Certain accepted practices have been purposely omitted in order to avoid repetition. For overhaul procedures the assumption is made that the engine is removed from the application.
How to use this manual
- This manual is illustration based and is divided into 16 chapters. The illustrations in each chapter follow the sequence for the complete dismantle of a particular assembly or component. Assembly is achieved by the use of the illustrations in reverse order from the rear of the chapter. In assembly and inspection, all parts are to be thoroughly cleaned, lubricated, and where present, burrs and scale to be removed. Any open ports of high precision components, e.g. fuel injection equipment that are exposed when dismantled, must be blanked off until assembly, to prevent the ingress of foreign matter.
- Where the information applies to certain types of engine only, this is indicated in the illustrations. When set screws are fitted in “through” holes into the cylinder block, a suitable sealant should be used. In this manual, when the “left” or “right” of the engine is referred to, it is that side of the engine when viewed from the flywheel end.
- Special tools have been made available and a list of these is given in Chapter 16. At the start of each operation reference to the relevant special tools is made.
Table Of Contents:
Perkins 100 Series Models 102-05,103-07, 103-10, 103-13, 103-15, 104-19,104-22 Service Repair Manual
1 General information
2 Specifications
3 Cylinder head assembly
4 Piston and connecting rod assemblies
5 Crankshaft assembly
6 Timing case and drive assembly
7 Cylinder block assembly
8 Engine timing
9 Aspiration system
10 Lubrication system
11 Fuel system
12 Cooling system
13 Flywheel and housing
14 Electrical equipment
15 Auxiliary equipment
16 Special tools

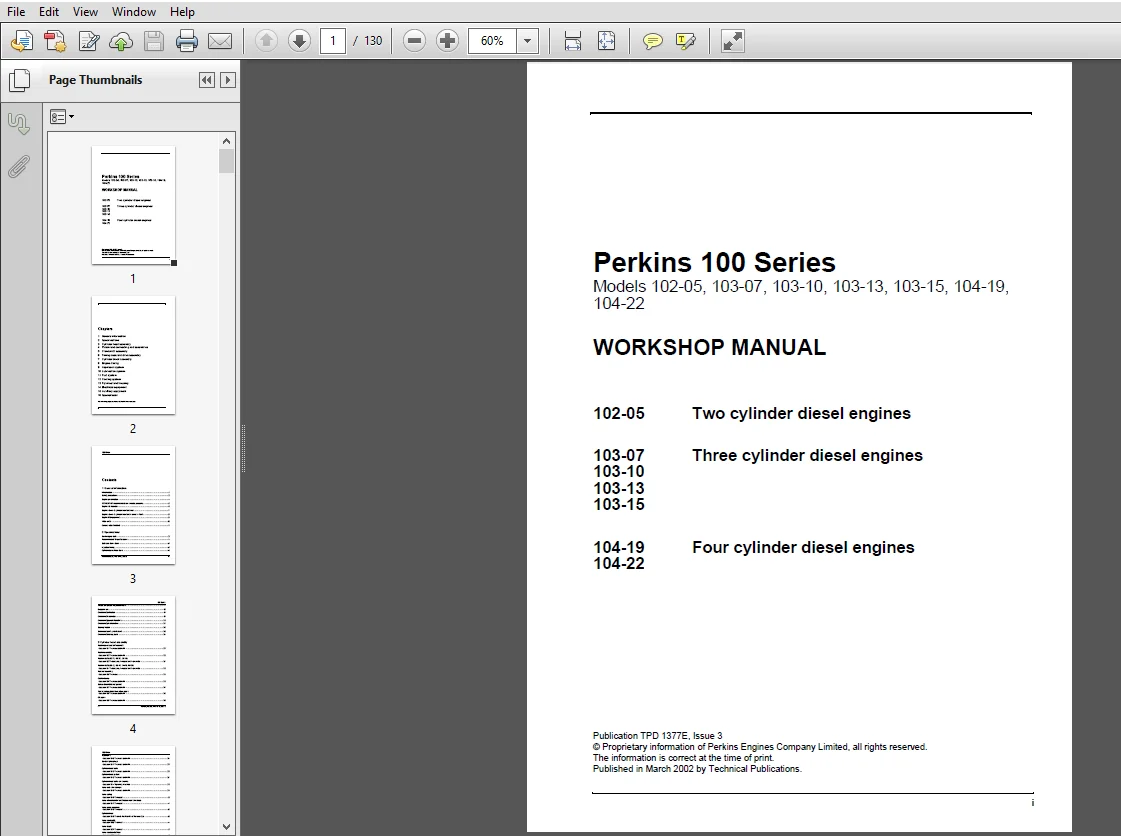

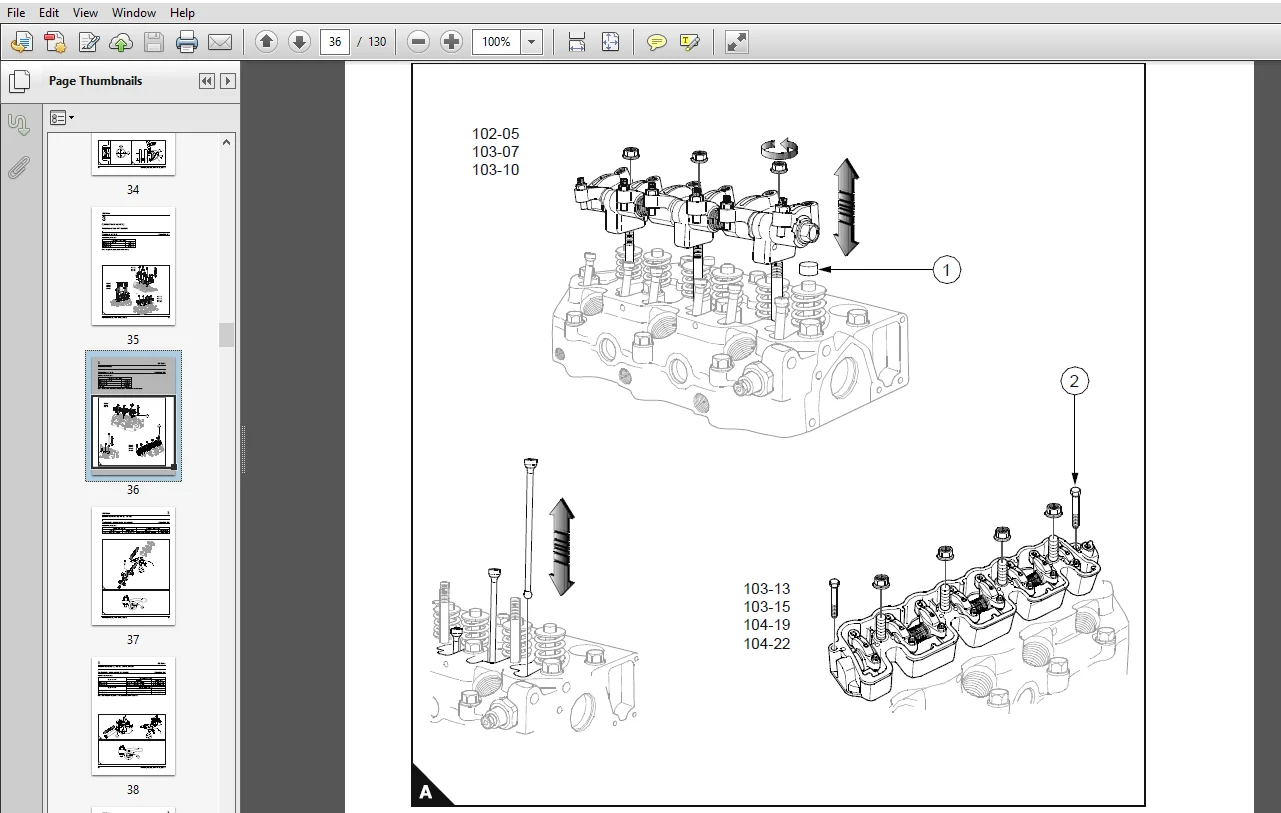

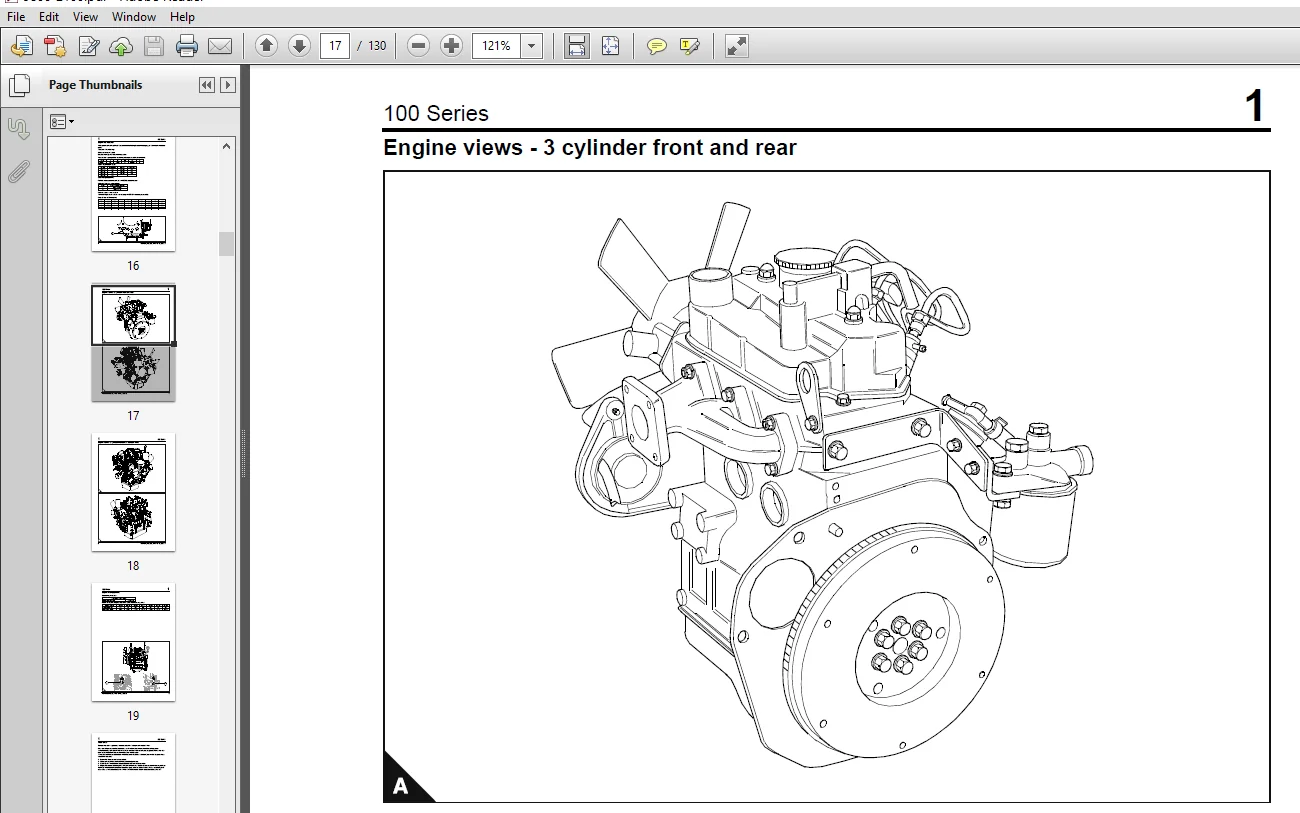

Image Preview:
Video Preview:
Please Note:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
