O and K WHEEL LOADER MODEL 3000-TB061 PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
O and K WHEEL LOADER MODEL 3000-TB061 PARTS MANUAL – PDF DOWNLOAD
Format: PDF
Language: English
VIDEO PREVIEW OF THE MANUAL:
DESCRIPTION:
O and K WHEEL LOADER MODEL 3000-TB061 PARTS MANUAL – PDF DOWNLOAD
Manual Part No. 2022702
INTRODUCTION:
- This manual illustrates and identifies maintenance parts for the Model 3000 loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
- An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
- This manual contains the latest information available at the time of printing. However, at the discretion of Trojan Industries Inc. its contents are subject to change without notice. This reserVation is in keeping with the Company’s policy of constant progressive improvement and refinement of all our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.
Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:
- MACHINE MODEL NUMBER
- MACHINE SERIAL NUMBER
- PART NUMBER OF THE DESIRED PART
- QUANTITY OF ITEMS WANTED
- NAME AND ADDRESS TO WHICH PART SHOULD BE SENT
USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.
TABLE OF CONTENTS:
O and K WHEEL LOADER MODEL 3000-TB061 PARTS MANUAL – PDF DOWNLOAD
GENERAL INSTRUCTIONS
Adjustments
Battery
Capacities Pressures Electrical System
Filters and Bmlllers
Instrument Panel
Lubrication Charts
Lubrication Instructions
Operating Instructions
Preparation for Operation
Safety Precautions
Starr-Up Procedure
Tires V
PARTS LISTING
A
ficcelerator Pedal and Linkage (GM)
ccelerator Pedal and Linkage (CD)
Air Cleaner (CD)
Air Cleaner (GM)
Air Compressor Piping
Air Emergency System
Automatic Bucket Leveler
Automatic Hoist Cut-Out
Axle Assembly, Front
Axle Assembly, Rear
B
Ball Slip Assembly
Battery and Wiring
Brake Controls and Lines
Brake, Front Axle
Brake, Parking
Brake Rear Axle
Bucket Assembly
Bucket Cylinder
Bucket Cylinder Hydraulic System
Bucket Indicator
Bucket Indicator (Drott) ,
Bucket Leveler, Automatic
C
Cab
Clutch Group Forward, Reverse, 2nd and 3
Clutch Group Low
Clutch Cut-Out Switch
Clutch CutOut System
Compressor Piping, Air
Control Valve Assembly Main Hydraulic
( 2 Spool) ,,
Control Valve Assembly, MaianycIraulic
(3 Spool) t’ ,
Control Valve Assembly, Transmission
Converter Assembly Torque
Cylinder, Bucket
Cylinder, Clam
Cylinder, Lift
Cylinder, Steering
D
Decals
Demand Valve
Differential Group, Front Axle
Difierential Group, Rear Axle
Directional Levers
Dual Brake Valve
E
Engine and Related Parts (GM)
Engine and Related Parts (CD)
Engine Controls (GM) V
Engine Controls (CD) V
Ether Starting Kit ,
Exhaust System V
F
Filter Element Assembly Hydraulic Oil
Filter Assembly Steering Hydraulic Oil
Filter Assembly Transmission Oil
Floorboards
Frame Main
Front Axle Brake Group 142, H3
Fuel Tank and Lines (GM)
Fuel Tank and Lines (CD)
G
Gauges Instrument Panel
Grille V V
H
Head Lights V V
Heater Assembly
Hood
Hydraulic Bucket Piping (Drott)
Hydraulic Control Valve levers Main
Hydraulic Control Valve Main (2 Spool)
Hydraulic Control Valve Main (3 Spool)
Hydraulic Piping (3 Spool Valve)
Hydrauic Pump, Main V V
Hydraulic Pump Steering V
Hydraulic System, Bucket Cylinder
Hydraulic System, Main V V V V
Hydraulic System Steering V V 90
Hydraulic System, Transmission
I
Instrument Panel V V
L
Leveling Arm
Lift Arm Linkage V
Lift Cylinder V
M
Main Frame Components
Main Hydraulic System
Main Hydraulic Pump
Motor Mounts (GM)
Motor Mounts (CD)
Muffler
O
Oil Filter Assembly Steering
Oil Filter Assembly Transmission
Oil Filter lilement Assembly l lydraulir
P
Parking Brake lever Assembly
Parking Brake and Linkage
Pillow Block Assembly
Pivot Group VV
Planetary Hub, Front Axle
Planetary Hub, Rear Axle
Power Cluster
Propeller Shafts
Pressure Regulating Valve Assembly
Pressurized System Hydraulic Tank
Pump, Main Hydraulic
Pump, Steering Hydraulic
R
Radiator Assembly
Radiator and Cooling System (GM)
Radiator and Cooling System (CD}
Range Selector Lever
Rear Axle
Rear Axle Brake Group I48 I49
S
Seat
Selector Valve
Sheetmetal
Steering Cylinder
Steering Gear and Linkage
Steering Gear Assembly
Steering Hydraulic Filter
Steering Hydraulic System 90
Steering Pump
Steering Valve Assembly
Switch, Clutch Cut-Out
Swivel Joint Assembly
T
Throttle Linkage
Tires and Wheels
Tools
Torque Converter Assembly
Transmission Assembly
Transmission Case Assembly
Transmission Control Valve Assembly
Transmission Controls ,
Transmission Hydraulic System
Transmission Mounting Parts
V
Valve Controls, Main
Valve Controls (3 Spool Valve)
Valve, Demand
Valve, Dual Brake
Valve, Main Hydraulic Control (2 Spool)
Valve, Main Hydraulic Control (3 Spool)
Valve, Pressure Regulating
Valve, Selector
Valve, Steering
W
Wheels
Wimterization Kit
Wiring

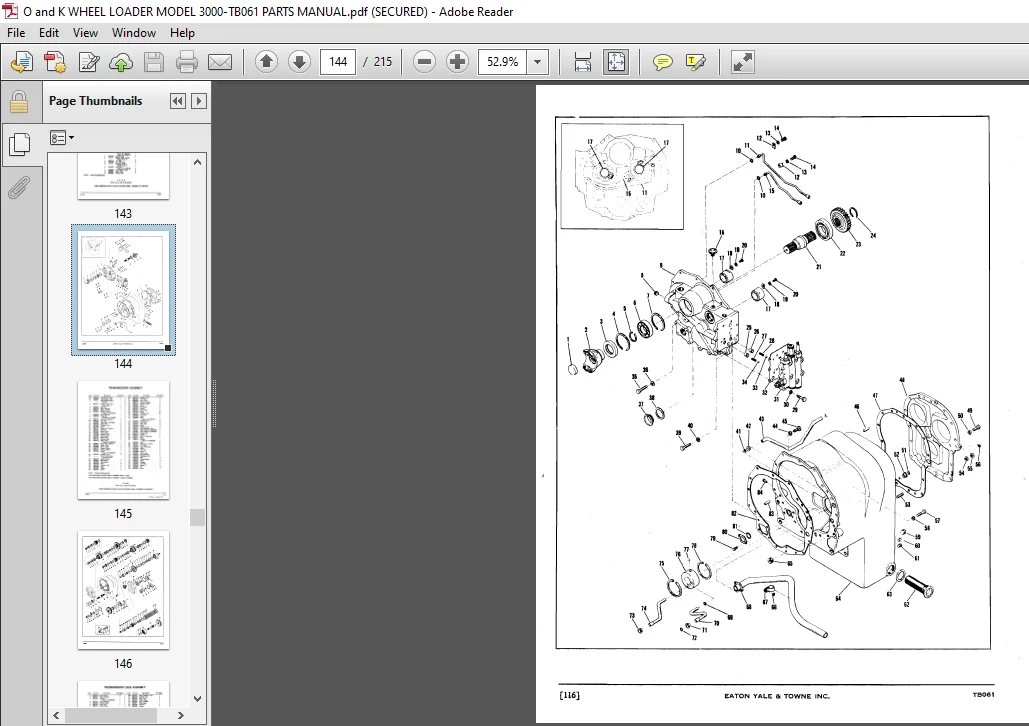

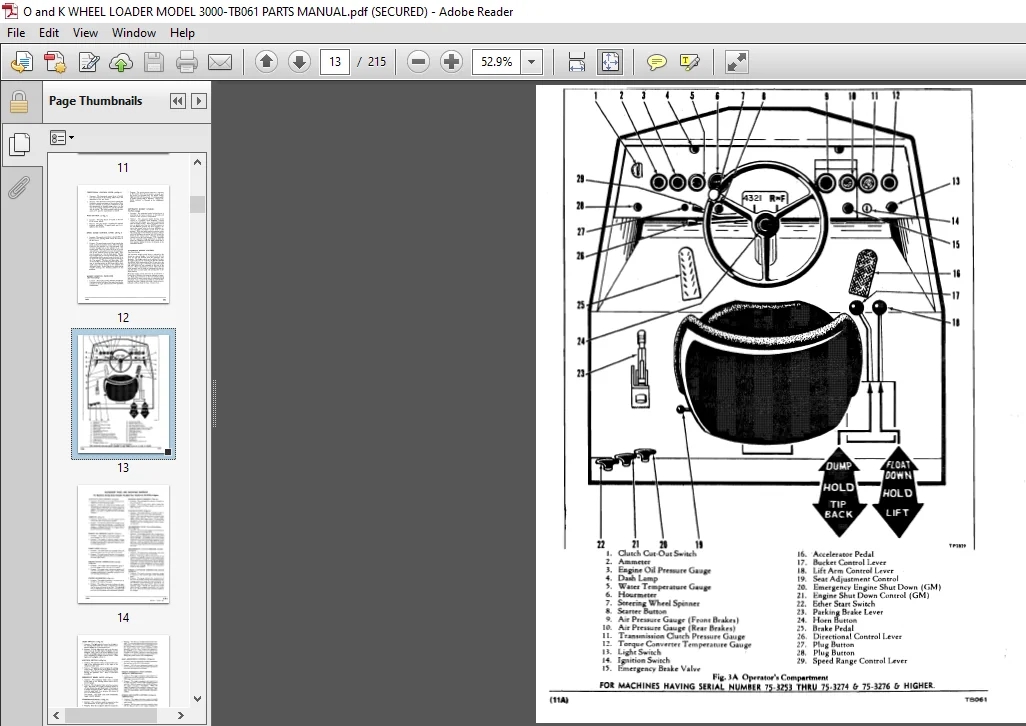

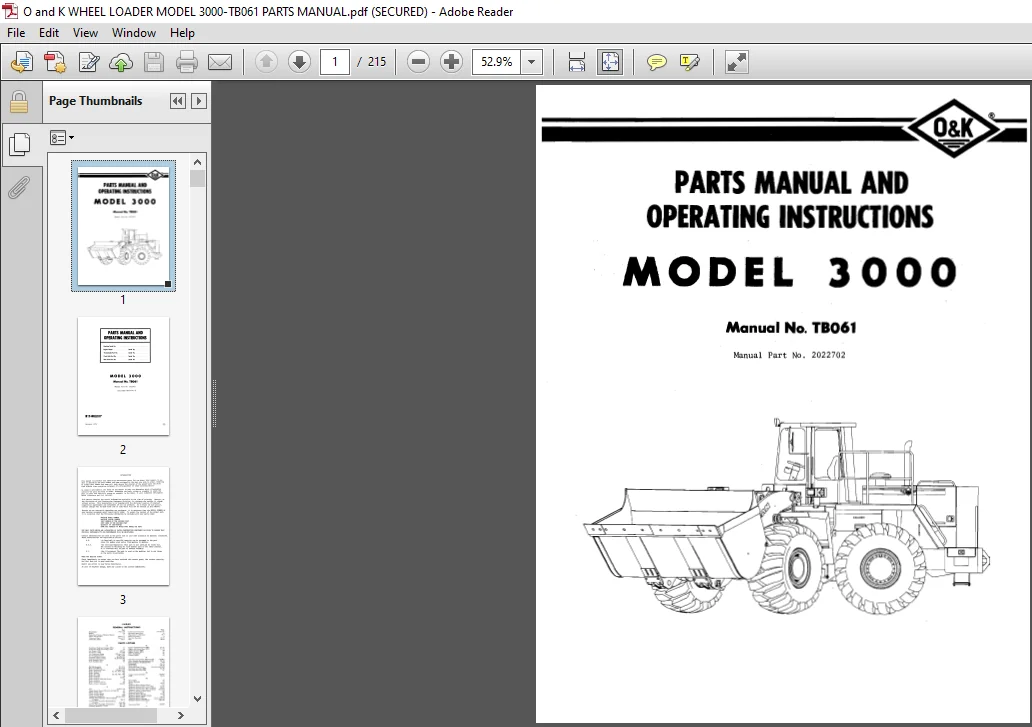

IMAGES PREVIEW OF THE MANUAL:
