O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD


O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD

$21.95 $76.95

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD

Size: 3.82 MB
Pages : 297
Format: PDF
Language: English

VIDEO PREVIEW OF THE MANUAL:

DESCRIPTION:

O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD

INTRODUCTION:

  • This manual illustrates and identifies maintenance parts for the Model 1700Z loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
  • An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
  • This manual contains the latest information available at the time of printing. However, at the discretion of Trojan Industries Inc. its contents are subject to change without notice. This reserVation is in keeping with the Company’s policy of constant progressive improvement and refinement of all our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.

Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:

  • MACHINE MODEL NUMBER
  • MACHINE SERIAL NUMBER
  • PART NUMBER OF THE DESIRED PART
  • QUANTITY OF ITEMS WANTED
  • NAME AND ADDRESS TO WHICH PART SHOULD BE SENT

USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.

TABLE OF CONTENTS:

O and K WHEEL LOADER 1700Z-TB124 PARTS MANUAL – PDF DOWNLOAD

Frame Group
0000 – Front Frame
0100 – Rear Frame
Axles Group
3100 – Front Axle Assembly
3101 – Housing and Planetary Hub Assembly –
3102 – Brakes, Front
3103 – Differential Assembly, Front .
3104 – Differntial Case and Gears
3200 – Rear Axle Assembly
Rear Axle Assembly (N.Y.C.)
3201 – Housing and Planetary Hub Assembly
Housing and Planetary Hub Assembly (N.Y.C.)
3202 – Brakes, Rear
Brakes, Rear (N.Y.C.)
3203 – Oifferntial Assembly, Rear
Differntial Assembly. (N.Y.C.)
3204 – Differntial Case and Gears
Differntial Case and Gears (N.Y.C.)
Axle Mounting Group
1100 – Front & Rear Axles
Engine, Controls & Filters Group See Engine S:
Transmission Torque Converter Group
0000 – Transmission Mounting
OlOO – Transmission Hydraulic System
1000 – Transmission/ Torque Converter Assembly Housing Group
1002 – Torque Converter
1003 – Turbine Shaft, Stator Support and Baffle Group
1004 – Drive Plate Group
1005 – Auxiliary Pump Drive Group
1006 – Charging Pump Group
1007 – Forward Clutch Group
1008 – Reverse and Second Clutch Group
1009 – Low Speed Clutch Group
lDlO — Third Speed Clutch Group
1011 – Reverse Idler Group
1012 – Idler Shaft and Steer Pump Group
1013 — Output Shaft Group
101a – Pump/Filter Group
1015 – Control Valve Assembly
1016 – Modular Valve Assembly
1017 – parking Brake Group
Steering Group
0000 ~ Hydraulic System
0001 – Steer Cylinder Assembly
Drive Train Group
0000 – Propeller Shafts
Transmission Controls Group
0000 – Parking Brake Linkage
0001 – Transmission Controls
Automatic Bucket Leveler
6200 – Thru S/N 3123920
6201 – S/N 3126401 and Higher
Brake System Group
2000 – Brake Controls and Lines
2001 – Brake Valve Installation – One Pedal
2002 – Brake Valve Installation — Two Pedal
2003 – Alcohol Injector
Electrical SystenhGroup
0000 – Battery and Wiring – 24V
Battery and Wiring – 12V
0001 – Lights & Electrical Components
0002 – Battery Box
0003 – Instruments and Switches
0004 – Oil Pressure Guage, 12V Engine
2700 – Ventilator, Roof
3300 – Windshield Wiper, Rear (Dptional)
3400 – Speedometer Installation
3700 – Tachometer
Sheet Metal – Engine Group
0200 – Hood Assembly
Fenders & Mudflaps Group
0000 – Fenders, Front & Rear
Fuel Tank Group
2000 – Fuel Tank Installation ,
Wheels_& Tires Group
0000 – Tires & Wheels ‘
Cab Group
1300 — Floorplates
1600 – Cab Assy./Windshield Wiper & Washer -STD
Cab Assy./Windshield Wiper & Washger Hi Visibility
1601 – Cab Door Assemblies
1602 – Cab Interior
2200 – Seat Assembly
2201 – Seat Mounting
2300 – Heating System
2400 – Defroster System
Tools Group
0000 – Tools
Tank Covers Groop
0100 – Tank Platform (Air Reservoir)
0600 – Headlight Mount Assy.
0600 – Shroud Mounting
1500 – Support Mounting, Light
Hydraulic System Group
0500 – Reservoir, Hydraulic
0501 – Filter, Hydraulic Oil
4000 – Hydraulic System, Main
4001 – Valve Assy., Change Over
4002 – Valve Controls/Linkage
4003 – Main Control Valve
4004 – Pump Assembly
Third Function Hydraulic
3100 – Air/Electrical
Mechanical/ Hydraulic
3200 – Lift Arm Piping
3300 – Valve Controls
Counterweight Group
0100 – Counterweight
Lift Arms Group
0000 – Lift Arm Linkage
0001 — Cylinder, Bucket
0002 – Cylinder, Lift
9000 – Bucket Assy.
9100 – Attachments
Miscellaneous Group,
1200 – Lubrication System
1205 – Safety Walk Installation
1210 – Lift Arm Lock

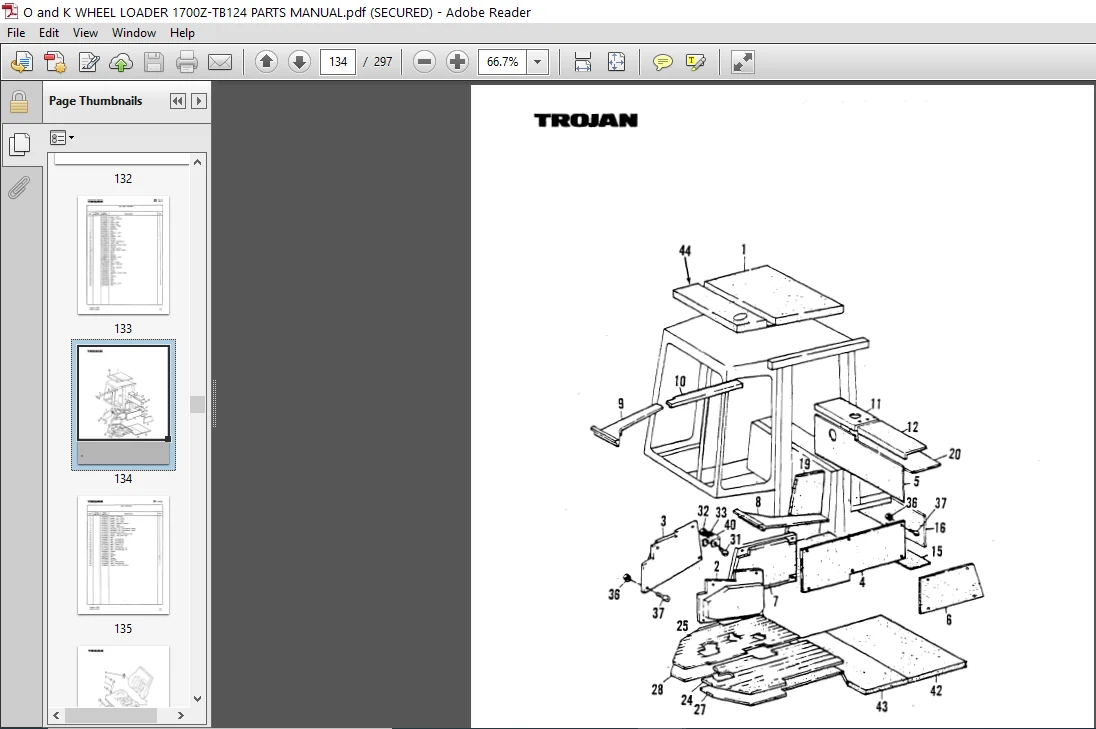

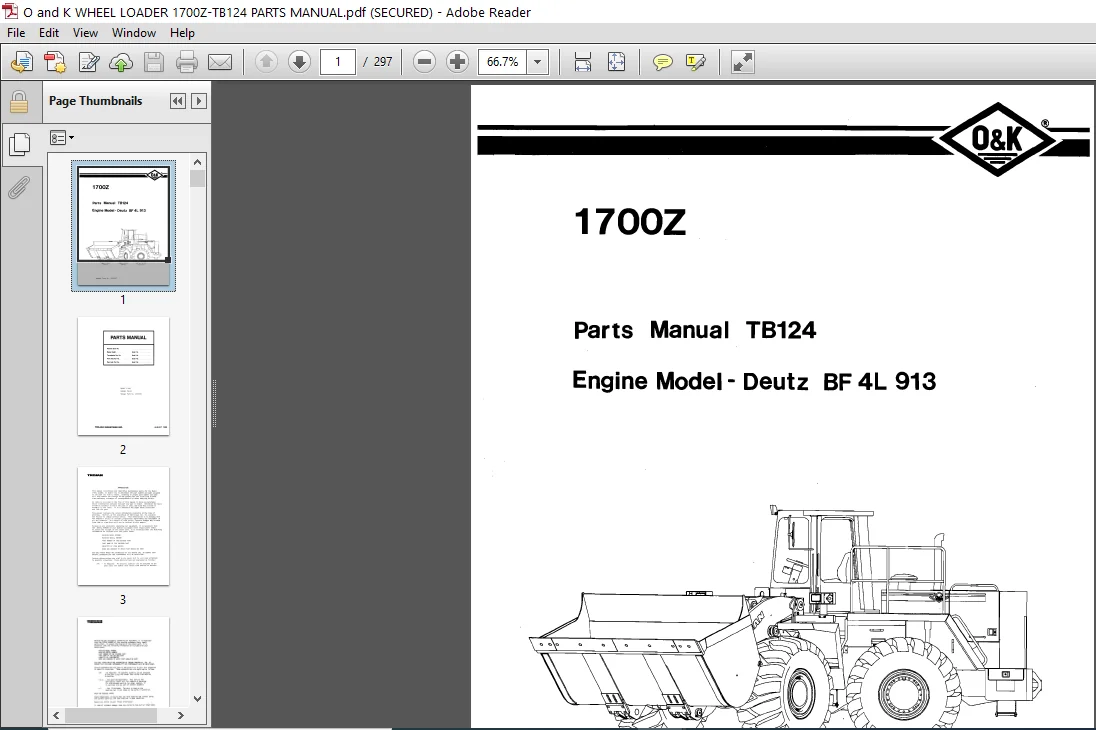

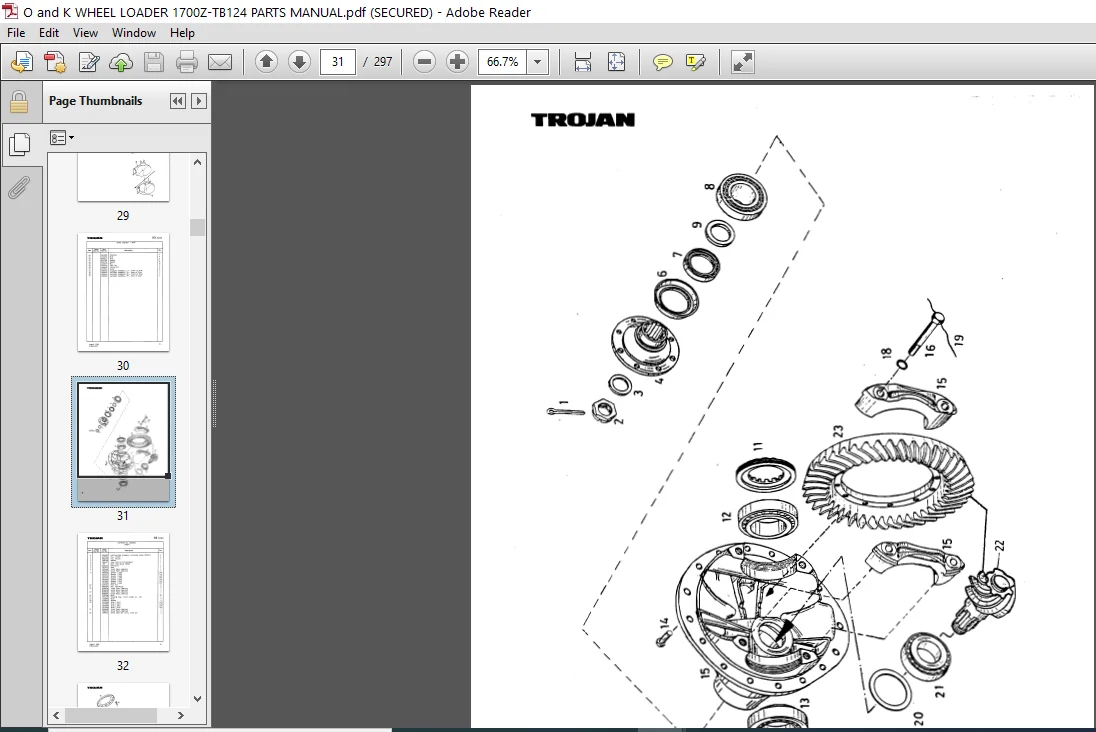

IMAGES PREVIEW OF THE MANUAL:
