Nilfisk Advance Sweeper RS 500 Instructions For Use Manual 33015122 – PDF DOWNLOAD

Description

Nilfisk Advance Sweeper RS 500 Instructions For Use Manual 33015122 – PDF DOWNLOAD

FILE DETAILS:

Nilfisk Advance Sweeper RS 500 Instructions For Use Manual 33015122 – PDF DOWNLOAD

Language : English, Spanish, French & Portuguese
Pages : 138
Downloadable : Yes
File Type : PDF

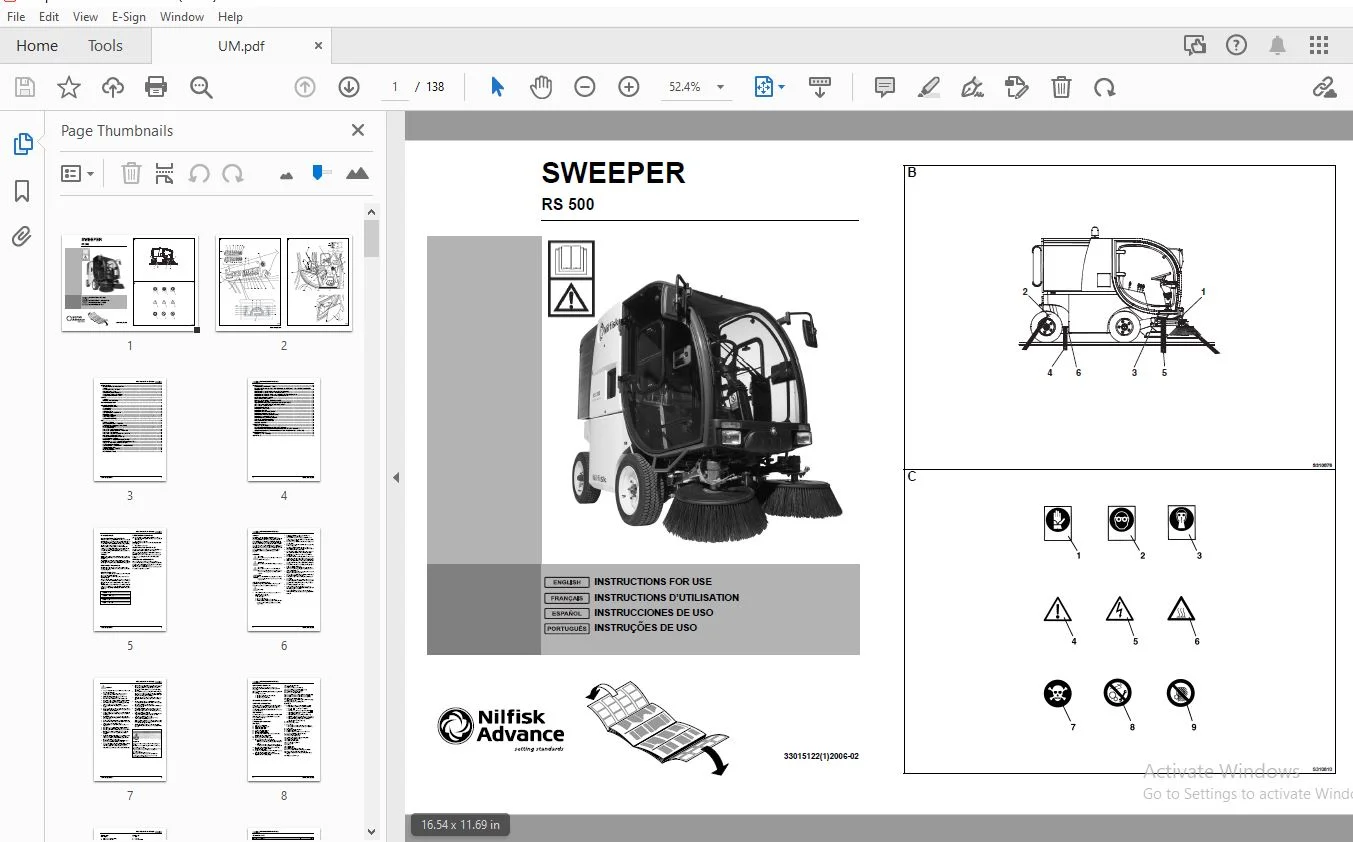

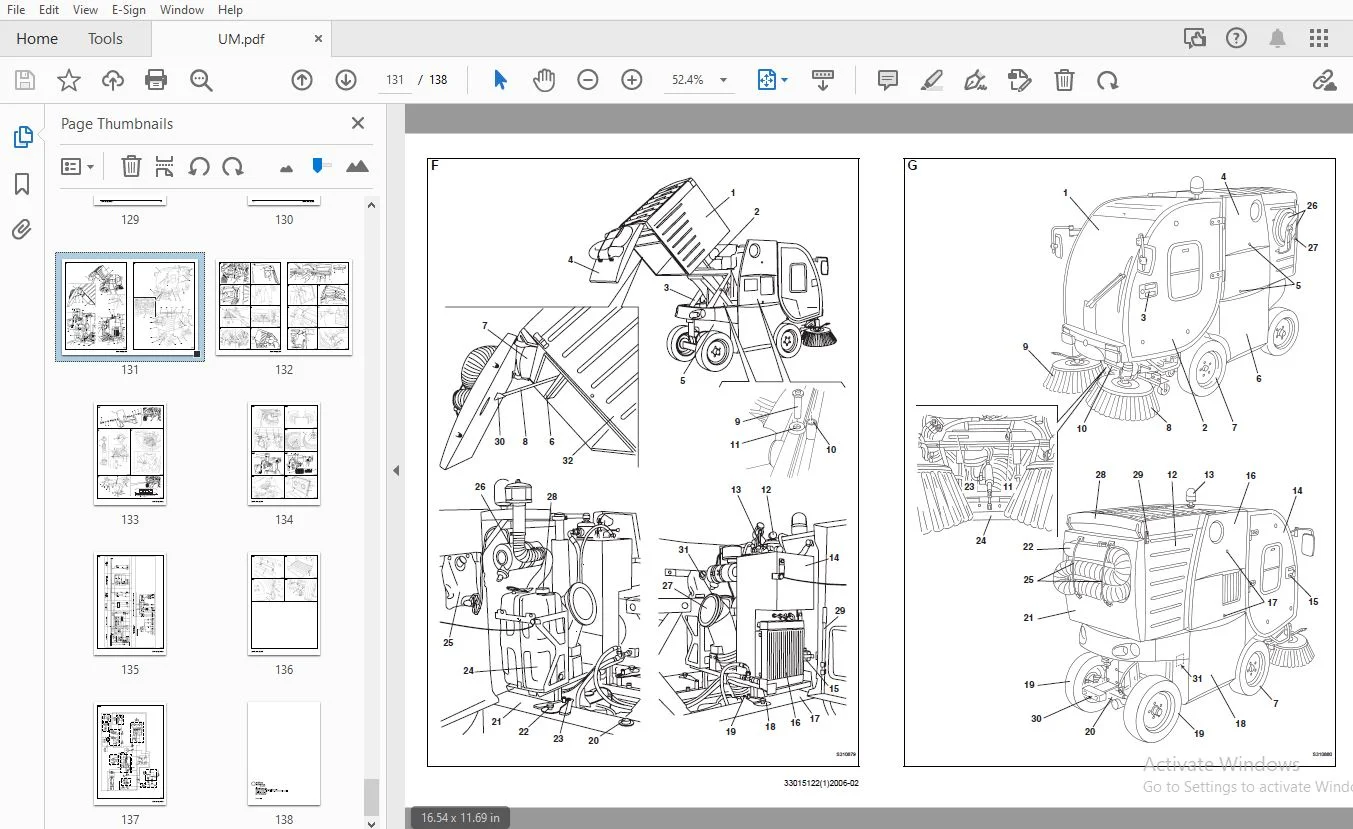

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Nilfisk Advance Sweeper RS 500 Instructions For Use Manual 33015122 – PDF DOWNLOAD

INTRODUCTION 3
MANUAL PURPOSE AND CONTENTS 3
TARGET 3
HOW TO KEEP THIS MANUAL 3
IDENTIFICATION DATA 3
OTHER REFERENCE MANUALS 3
SPARE PARTS AND MAINTENANCE 3
CHANGES AND IMPROVEMENTS 3
SAFETY 4
SYMBOLS 4
GENERAL INSTRUCTIONS 4
UNPACKING/DELIVERY 6
MACHINE DESCRIPTION 6
OPERATION CAPABILITIES 6
CONVENTIONS 6
DESCRIPTION 6
TECHNICAL DATA 8
ENVIRONMENTAL CONDITIONS 9
WIRING DIAGRAM 10
HYDRAULIC DIAGRAM 11
ELECTRICAL FUSES 11
ACCESSORIES/OPTIONS 11
USE 12
BEFORE START-UP 12
DIESEL ENGINE START AND STOP 12
STARTING AND STOPPING THE MACHINE 13
MACHINE OPERATION 14
HOPPER DUMPING 14
USING THE REAR SUCTION PIPE (*) 15
USING THE WINDSCREEN WIPER/WASHER 15
USING THE CAB HEATING 15
USING THE CAB CLIMATE CONTROL SYSTEM (*) 15
LIGHTING SYSTEM OPERATION 15
HAZARD WARNING LIGHT OPERATION 15
HOPPER MANUAL LIFTING 16
LIFTED HOPPER LOCKING PIN INSTALLATION 16
LIFTED HOPPER DOOR SUPPORT ROD INSTALLATION 16
USING THE HIGH-PRESSURE WATER GUN (*) 17
AFTER USING THE MACHINE 17
DUST CONTROL SYSTEM WATER TANK EMPTYING 17
TOWING THE MACHINE 17
TRANSPORTING BY TRAILER 18
MACHINE STORAGE 18
FIRST PERIOD OF USE 18
MAINTENANCE 19
SCHEDULED MAINTENANCE TABLE 19
HOPPER, FILTER AND SUCTION PIPE CLEANING, GASKET CHECK AND SUCTION FAN BEARING
LUBRICATION 20
DUST CONTROL SYSTEM NOZZLE AND FILTER CLEANING 21
DUST CONTROL SYSTEM WATER FILTER CLEANING 21
HYDRAULIC SYSTEM OIL LEVEL AND DRAIN FILTER EFFICIENCY CHECK 22
HYDRAULIC SYSTEM OIL COOLER FIN CLEANING CHECK 22
BATTERY FLUID LEVEL CHECK 22
BRAKE FLUID LEVEL CHECK 23
REVERSE GEAR BUZZER OPERATION CHECK 23
TIRE PRESSURE CHECK 23
SUCTION INLET AND SKIRT HEIGHT AND OPERATION CHECK 23
SIDE BROOM POSITION CHECK AND ADJUSTMENT 24
SIDE BROOM REPLACEMENT 24
PARKING BRAKE CHECK 24
ENGINE OIL LEVEL CHECK 25
ENGINE OIL CHANGE 25
ENGINE OIL FILTER REPLACEMENT 25
ENGINE AIR CLEANER CLEANING 26
ENGINE RADIATOR FIN CLEANING CHECK 26
ENGINE COOLANT LEVEL CHECK 26
ENGINE FUEL FILTER REPLACEMENT 27
CAB AIR FILTER REPLACEMENT 27
WHEEL REMOVAL/INSTALLATION 27
FUSE REPLACEMENT 28
SAFETY FUNCTIONS 28
REVERSE GEAR BUZZER 28
HOPPER LIFTING/LOWERING LEVER SAFETY FLANGE 28
SUCTION INLET AND BROOM LIFTING/LOWERING LEVER SAFETY FLANGE 28
SENSOR FOR ENGINE START-UP INHIBITION WHEN THE DRIVE PEDAL IS PRESSED 28
TROUBLESHOOTING 29
PROBLEMS AND REMEDIES 29
SCRAPPING 32

DESCRIPTION:

Nilfisk Advance Sweeper RS 500 Instructions For Use Manual 33015122 – PDF DOWNLOAD

INTRODUCTION
MANUAL PURPOSE AND CONTENTS
This manual is an integral part of the machine; its purpose is to provide the operator with all necessary information to use the machine properly in a safe and autonomous way. It contains information about technical data, safety, operation, storage, maintenance, spare parts and disposal.
Before carrying out any procedure on the machine, the operators and qualified technicians must read this manual carefully. Contact Nilfisk-Advance in case of doubts concerning the interpretation of the instructions and for any further information.
TARGET
This Instructions for Use Manual is intended for operators and technicians qualified to perform the machine operation and/or maintenance.
The operators must not carry out operations reserved for qualified technicians. Nilfisk-Advance will not be responsible for damages coming from failure to follow these instructions.
