New Holland Tractor TD4040F Service Repair Manual (48064965) – New Holland Tractor TD4040F – PDF Download

Description

New Holland Tractor TD4040F Service Repair Manual (48064965) – New Holland Tractor TD4040F

File Details:

New Holland Tractor TD4040F Service Manual_48064965
Size: 61.3 MB
Format: PDF
Language: English
Number of Pages : 587 pages
Brand: New Holland
Type of document: Service Manual
Model: TD4040F
Part No: 48064965

NEW HOLLAND TRACTOR TD4040F SERVICE REPAIR MANUAL (48064965) – NEW HOLLAND TRACTOR TD4040F – PDF DOWNLOAD:

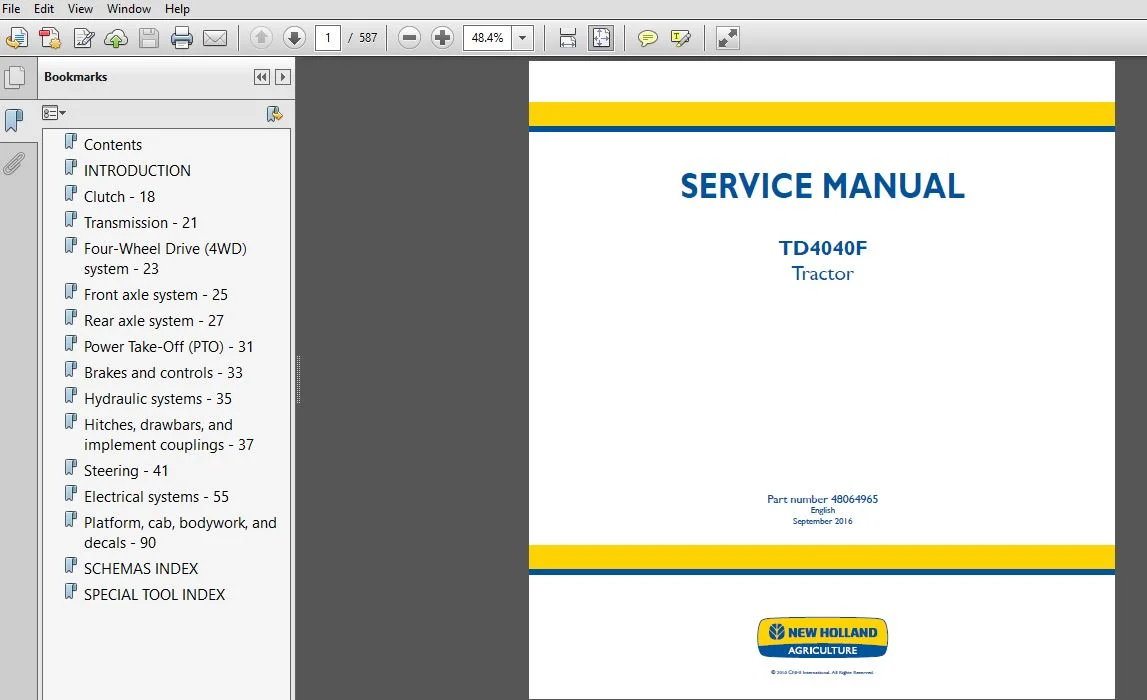

Image Preview:

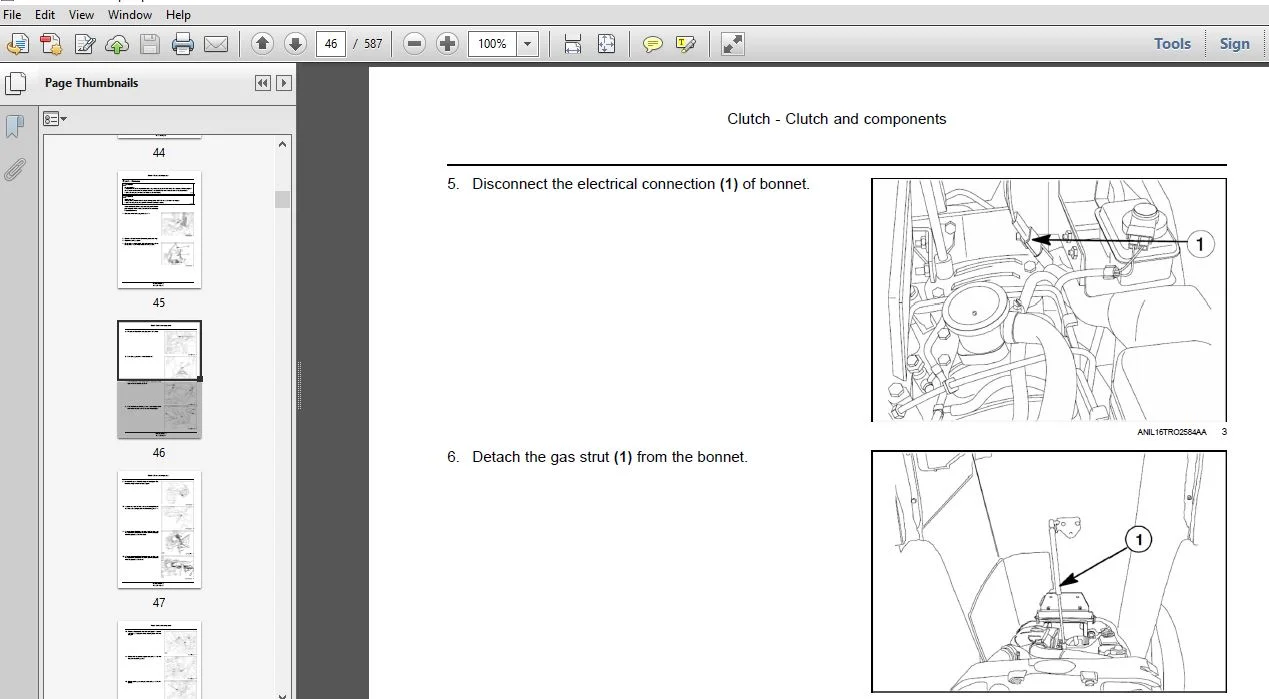

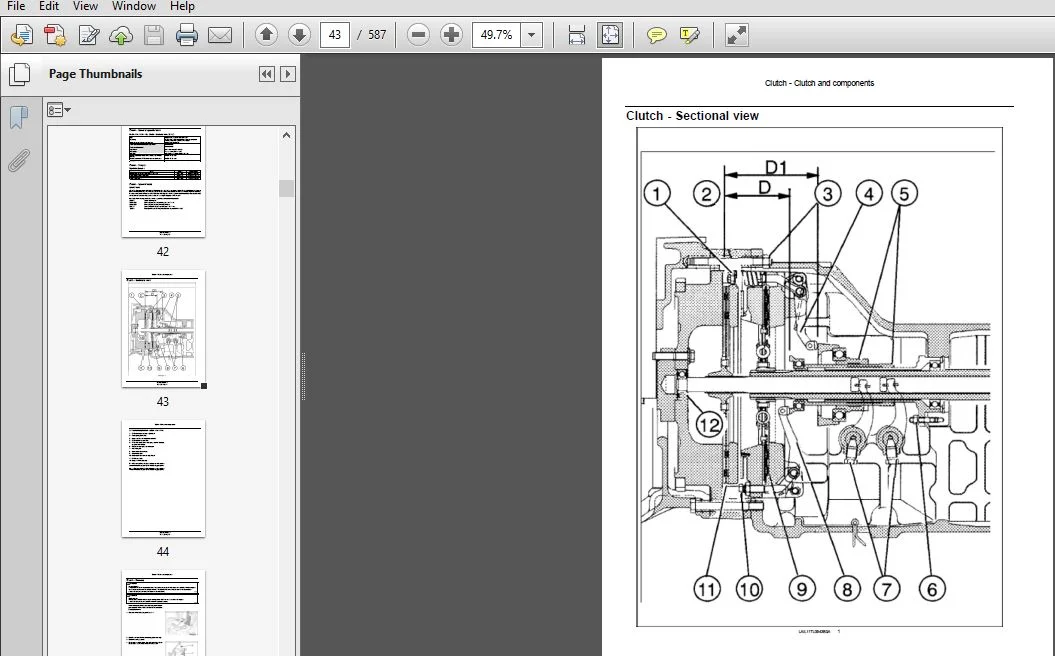

Sample Page From the Manual:

New Holland Tractor TD4040F Service Repair Manual (48064965) – New Holland Tractor TD4040F

• Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get caught on moving parts. Use approved safety clothing such as anti-slipping footwear, gloves, safety goggles, helmets, etc.
• Wear safety glasses with side guards when cleaning parts using compressed air.
• Damaged or frayed wires and chains are unreliable. Do not use them for lifting or towing.
• Wear suitable protection such as approved eye protection, helmets, special clothing, gloves and footwear whenever welding. All persons standing in the vicinity of the welding process should wear approved eye protection. NEVER LOOK AT THE WELDING ARC IF YOUR EYES ARE NOT SUITABLY PROTECTED.
• Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are qualified operators assisting in the operation to be carried out.
• Never operate the machine or use attachments from a place other than sitting at the operator’s seat or at the side of the machine when operating the fender switches.
• Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations should be carried out with the greatest care and attention.
• Disconnect the batteries and label all controls to warn that the tractor is being serviced. Block the machine and all equipment which should be raised.
• Never check or fill fuel tanks or batteries, nor use starting liquid if you are smoking or near open flames as such fluids are flammable.
• The fuel filling gun should always remain in contact with the filler neck. Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build-up.

Table Of Contents:

New Holland Tractor TD4040F Service Repair Manual (48064965) – New Holland Tractor TD4040F

INTRODUCTION
Clutch 18
[18 110] Clutch and components 18 1
Transmission 21
[21 114] Mechanical transmission 21 1
[21 160] Creeper 21 2
[21 162] Reverser 21 3
[21 182] Differential 21 4
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
[23 304] Four-Wheel Drive (4WD) gearbox 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 310] Final drives 25 4
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
Brakes and controls 33
[33 220] Trailer brake hydraulic control 33 1
[33 202] Hydraulic service brakes 33 2
Hydraulic systems 35
[35 204] Remote control valves 35 1
[35 114] Three-point hitch control valve 35 2
[35 322] Regulated/Low pressure system 35 3
Hitches, drawbars, and implement couplings 37
[37 110] Rear three-point hitch 37 1
Steering 41
[41 206] Pump 41 1
[41 216] Cylinders 41 2
[41 200] Hydraulic control components 41 3
Electrical systems 55
[55 301] Alternator 55 1
[55 201] Engine starting system 55 2
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 3
[55 523] Cab hitch controls 55 4
[55 408] Warning indicators, alarms, and instruments 55 5
[55 302] Battery 55 6
[55 100] Harnesses and connectors 55 7
Platform, cab, bodywork, and decals 90
[90 154] Cab doors and hatches 90 1
[90 151] Cab interior 90 2

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
