New Holland H8060, H8080 Windrower Service Repair Manual (84211407) – NH H8060, H8080
File Details:
New Holland H8060, H8080 Windrower Service Manual_ 84211407
Size: 116 MB
Format: PDF
Language: English
Number of Pages: 2000 pages
Brand: New Holland
Type of document: Service Manual
Model: H8040 Windrower
Part No: H8060, H8080
Video Preview:

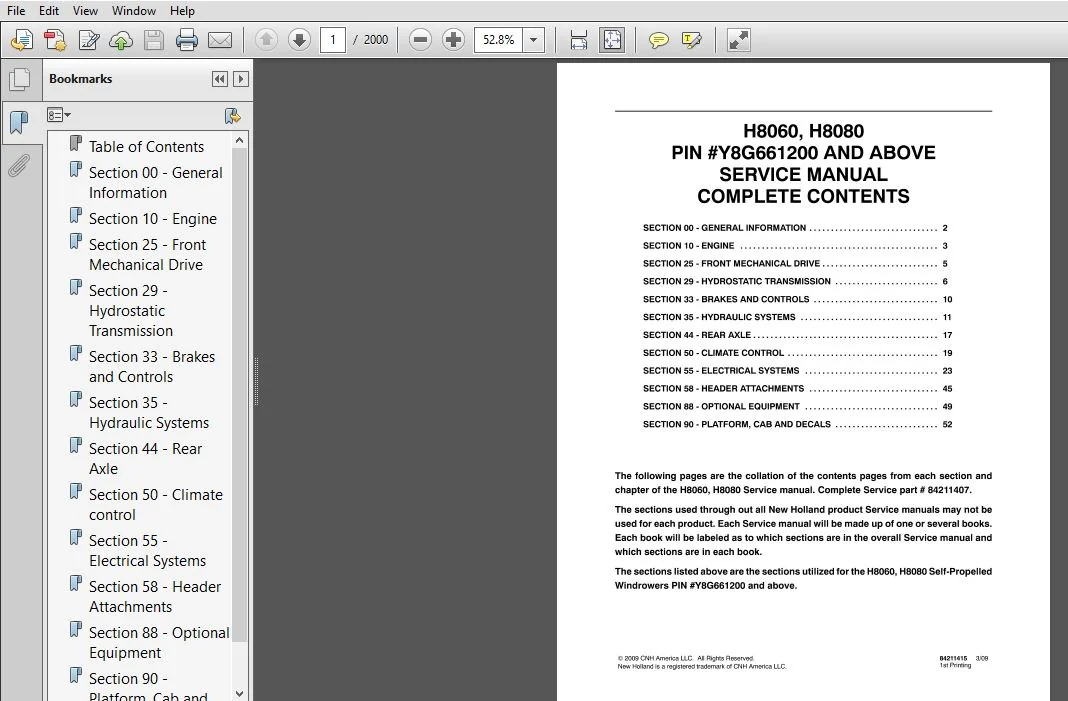

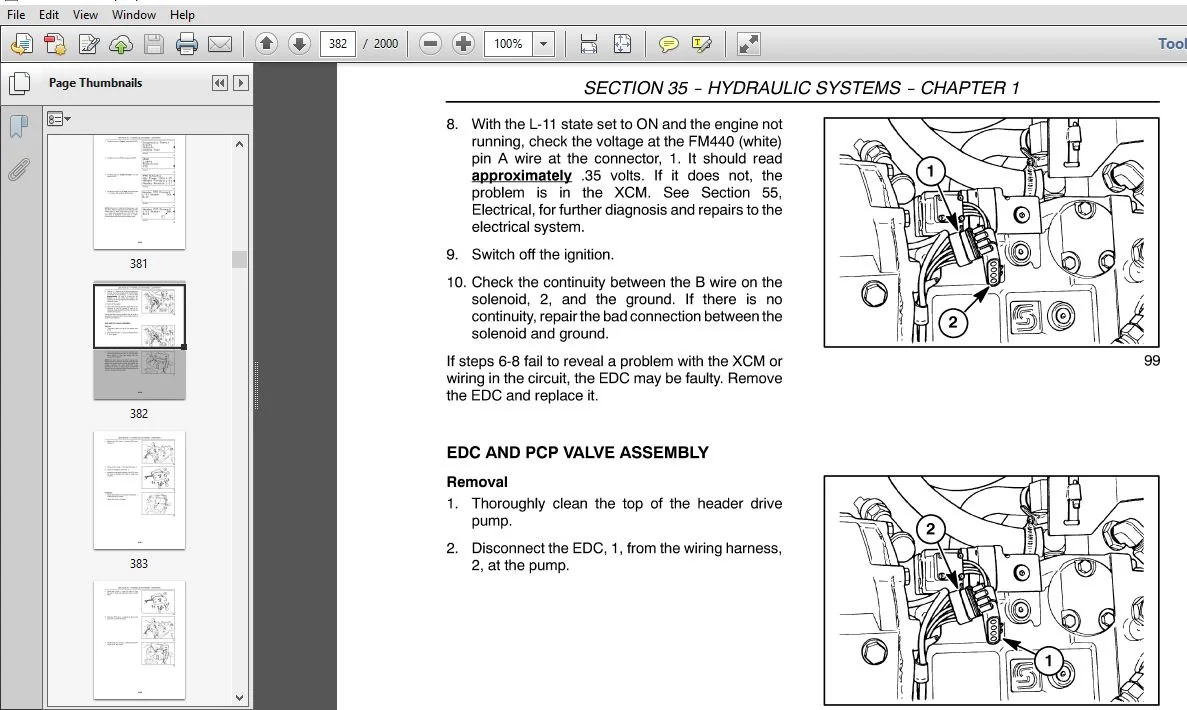

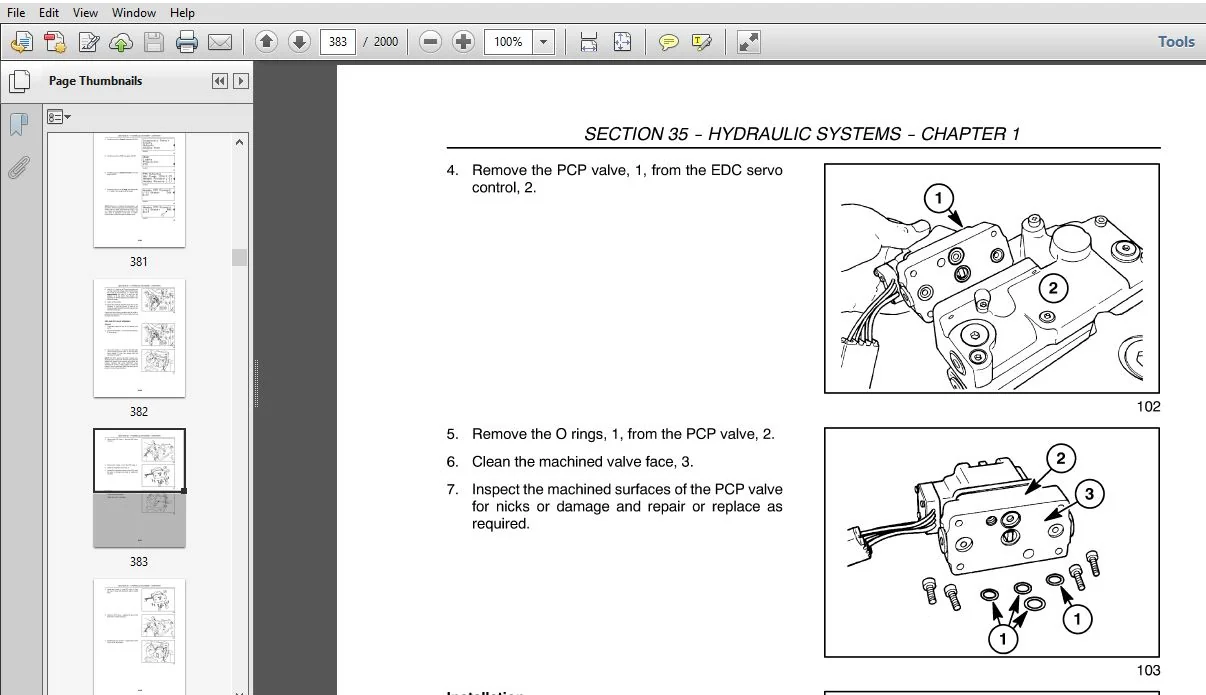

Image Preview:
Description:
New Holland H8060, H8080 Windrower Service Repair Manual (84211407) – NH H8060, H8080
- The models H8060 and H8080 Windrowers have been designed to harvest a variety of crops. In addition. a variety of header widths are available for the windrowers.
- To determine the right from the left. stand behind the unit and look in the direction of travel.
- This service manual provides the technical information to properly service and maintain the H8060 and HBO8O windrowers. Use it in conjunction with operators manual whlch ls supplied with the windrower. Keep both manuals available for ready reference.
- The H8060 and the H8080 are similar machines, with the major difference being engine horsep0wer. This manual details the easiest and least time consuming removal. disassembly and reassembly procedures. Modifying any of these procedures is not recommended. New Holland wlndrowers are designed with emphasis on operator safety and protection. However, careless and negligent operation can still result in serious injury to persons or damage to property. Be sure to read and follow all safety instructions in the manual.
Table Of Contents:
New Holland H8060, H8080 Windrower Service Repair Manual (84211407) – NH H8060, H8080
SECTION 00 – GENERAL INFORMATION
SECTION 10 — ENGINE
SECTION 25 – FRONT MECHANICAL DRIVE
SECTION 29 – HYDROSTATIC TRANSMISSION
SECTION 33 – BRAKES AND CONTROLS
SECTION 35 – HYDRAULIC SYSTEMS
SECTION 44 – REARAXLE
SECTION 50 – CLIMATE CONTROL
SECTION 55 – ELECTRICAL SYSTEMS
SECTION 58 – READER ATTACHMENTS
SECTION 88 – OPTIONAL EQUIPMENT
SECTION 90 – PLATFORM, CAB AND DECALS
Please Note:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
