NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040 – PDF DOWNLOAD

Description

NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040

File Details:

• NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040
• Size: 28.7 MB
• Format: PDF
• Language: English
• Number of Page: 1500 Pages
• Brand: New Holland
• Type of document: Service Manual
• Model:NEW HOLLAND H8040

NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040 – PDF DOWNLOAD:

Image Preview:

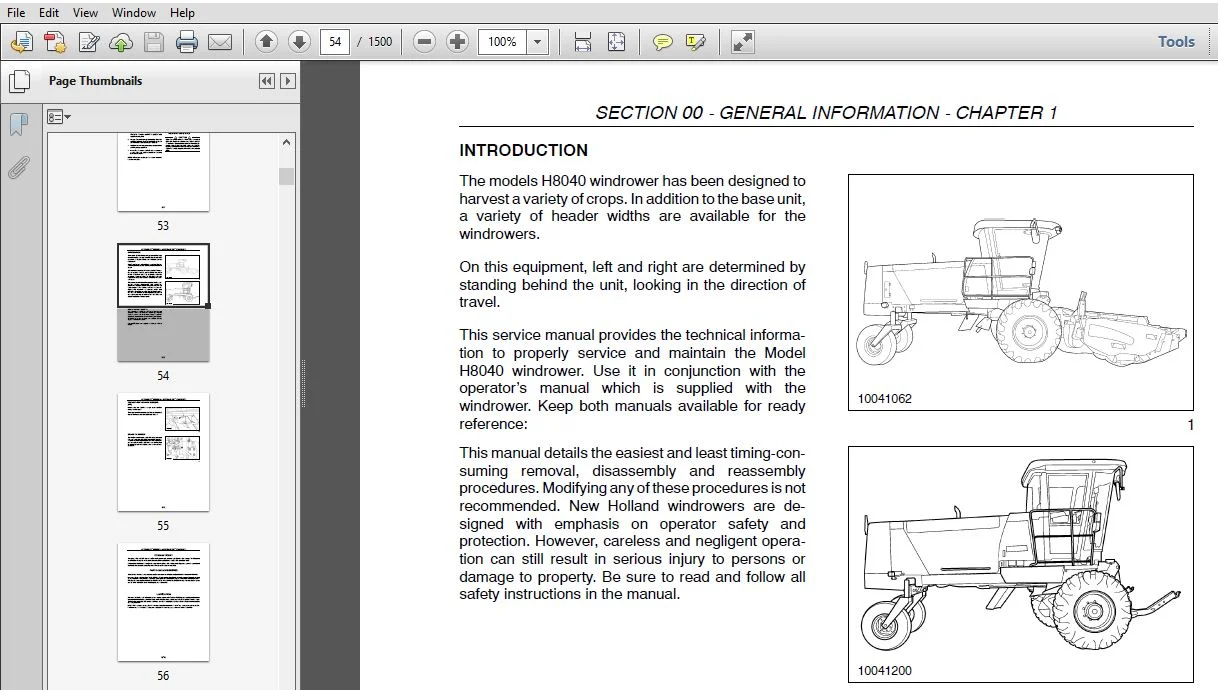

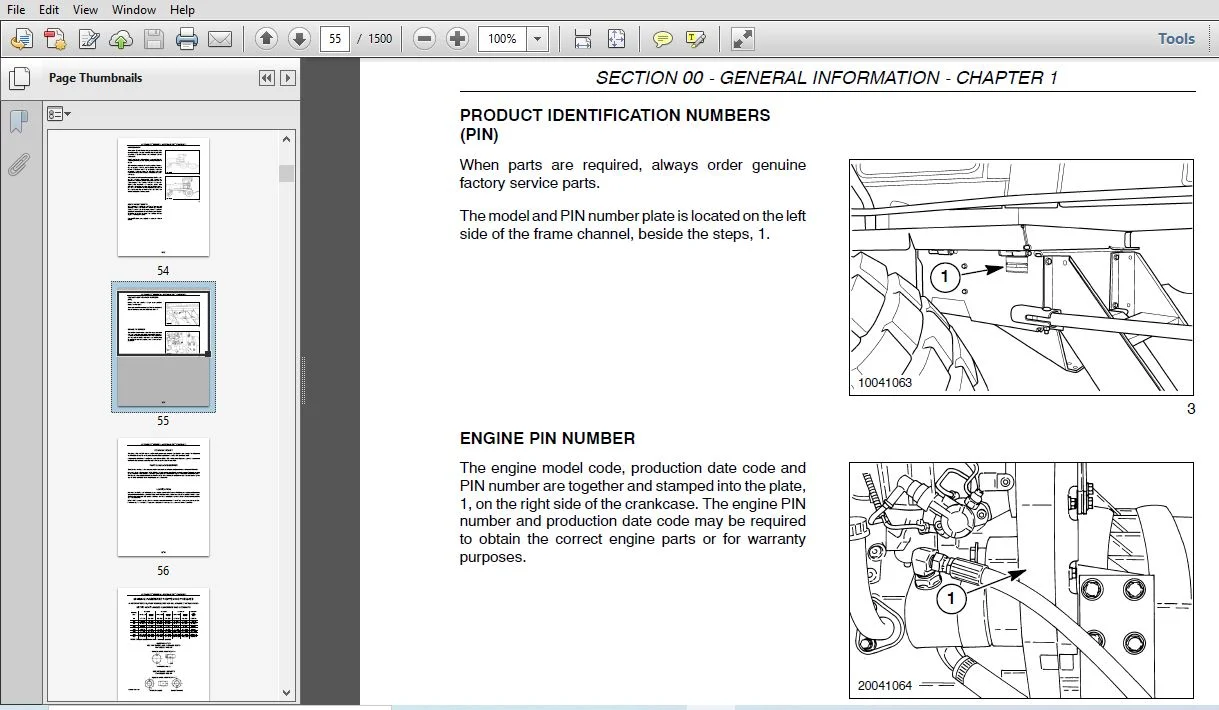

Sample Page from The Manual:

NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040

1. To stop, return the MFH lever to neutral, engage the parking brake, center the steering wheel to the locked position, and stop the engine before leaving the seat.
2. When descending steep grades on the road and when in the field, always place the switch into the field range position.
3. When going down a steep grade, pull theMFH lever back toward neutral to slow ground speed.
4. With the parking brake engaged, the steering wheel centered, and the hydrostatic MFH lever in the neutral slot, the neutral lock will engage pulling the lever to the right. The parking brake must be engaged before the engine will start.
5. The neutral lock should always be engaged when the windrower is stopped.
6. The steering wheel must be centered to keep thewindrower fromturning evenwith theMFH  lever in neutral. When moving forward, the windrower turns the direction the steering wheel is turned. When moving in reverse, the windrower turns opposite the direction the wheel is turned. In reverse, hold the steering wheel at the back of the rim and move your hand in the direction you want to go.

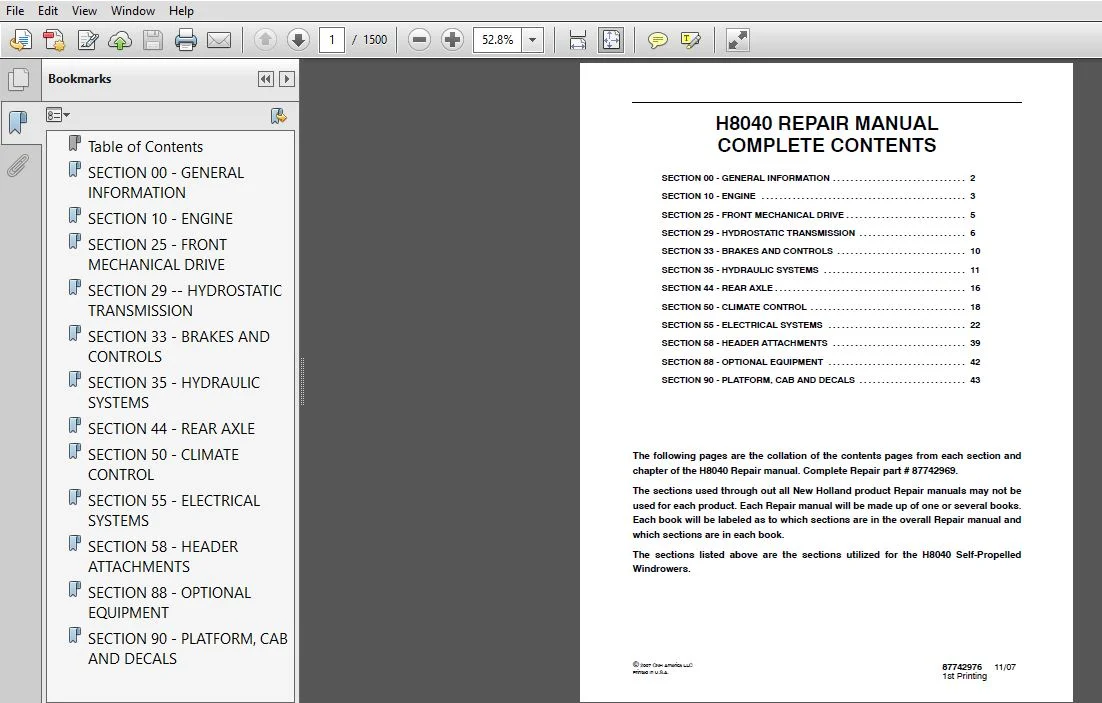

Table Of Contents:

NEW HOLLAND H8040 SERVICE REPAIR MANUAL (87742969) NEW HOLLAND H8040

SECTION 00 – GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 25 – FRONT MECHANICAL DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SECTION 29 – HYDROSTATIC TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . 6
SECTION 33 – BRAKES AND CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SECTION 35 – HYDRAULIC SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SECTION 44 – REAR AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SECTION 50 – CLIMATE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SECTION 55 – ELECTRICAL SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SECTION 58 – HEADER ATTACHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
SECTION 88 – OPTIONAL EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SECTION 90 – PLATFORM, CAB AND DECALS . . . . . . . . . . . . . . . . . . . . . . . . 43

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
