New Holland Bale Wagons 1000-1049 Service Repair Manual (40931400) – PDF Download


New Holland Bale Wagons 1000-1049 Service Repair Manual

Models : 1000, 1005, 1010, 1012, 1030, 1032, 1033, 1034, 1035,1044, 1045, 1046, 1047, 1048, 1049

Part Number : (40931400)

$29.00 $92.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

New Holland Bale Wagons 1000-1049 Service Repair Manual (40931400)

FILE DETAILS:

New Holland Bale Wagons 1000-1049 Service Repair Manual (40931400)

  • Format: PDF
  • Language: English
  • Number of Pages: 112 pages
  • Brand: New Holland
  • Type of document: Service Manual
  • Model: 1000, 1005, 1010, 1012, 1030, 1032, 1033, 1034, 1035,1044, 1045, 1046, 1047, 1048, 1049
  • Part No: 40931400

VIDEO PREVIEW:

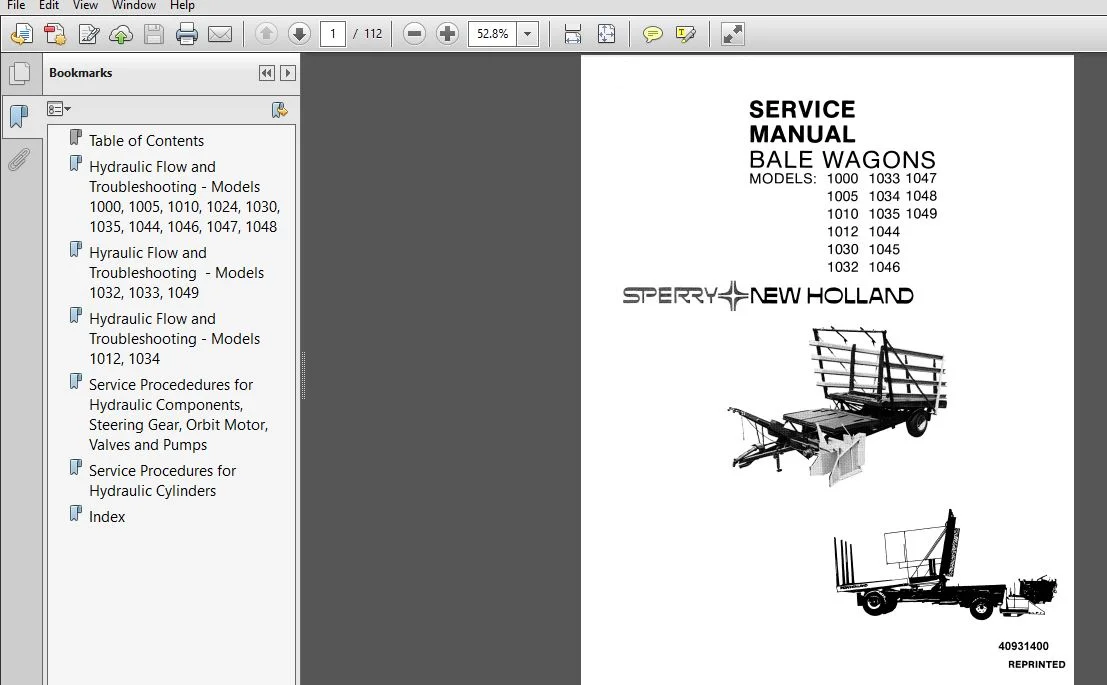

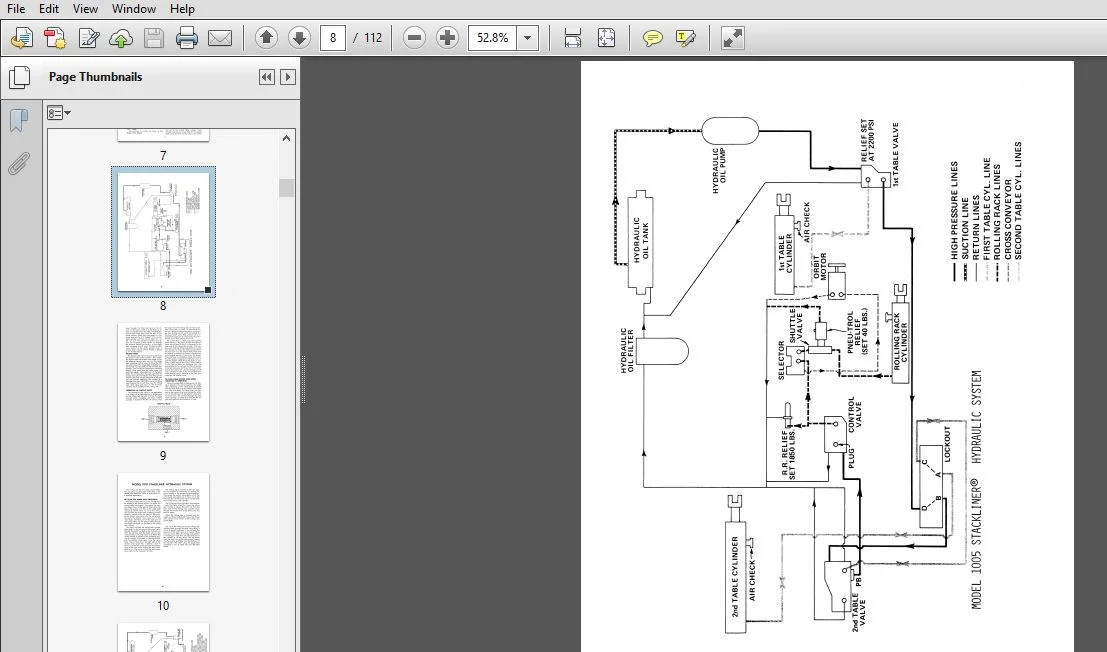

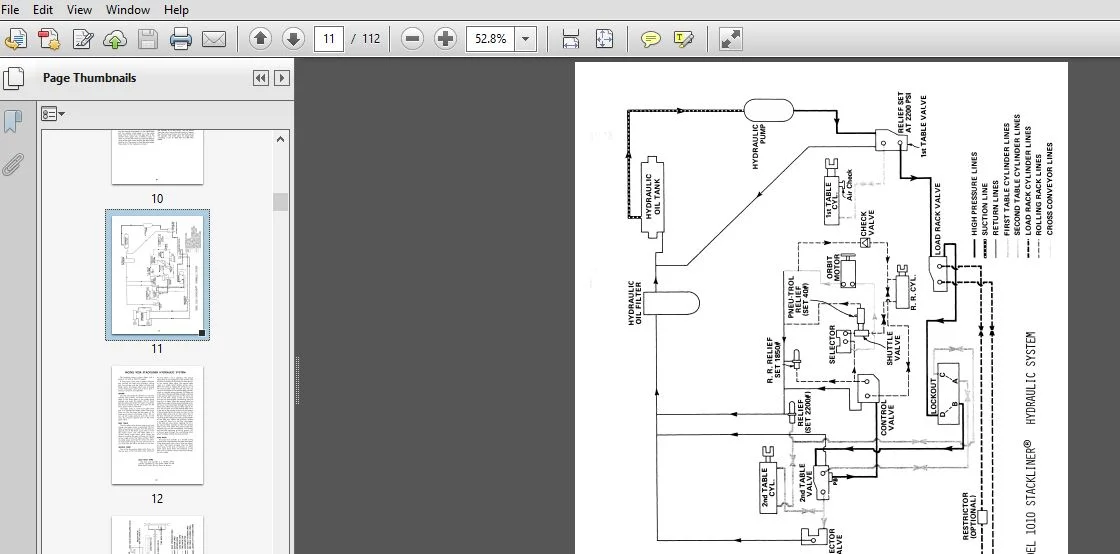

SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

New Holland Bale Wagons 1000-1049 Service Repair Manual (40931400)

  • PUMPS It is common to think of a hydraulic pump as a sort of compressor but this is not so. At low pressures oil is virtually incompressible and, even though it may be or can be measurably compressed at high pressures, you should not think of the pump as a compressor.
  • The purpose of the pump is not to compress but to move oil under pressure. We use gear type pumps on the automatic bale wagon. This is the simplest type of pump. The gears are encased in a housing in which there is an inlet and outlet port.
  • Oil flows or is drawn into the housing through the inlet port, filling the space between the gear teeth with oil.
  • As the gears revolve the gear teeth mesh together forcing the oil out through the outlet port which is in line with the point where the gear teeth come together.
  • Close fit of the gear teeth within the housing is required to provide a seal between the inlet and outlet sides minimizing internal leakage.
  • The simplest type of cylinder is a single act- ing or one way cylinder which applies force in only one direction. Fluid directed into the hous- ing displaces the rod forcing it out. Since there is no provision for retracting the rod hydraulic- ally, the retracting force is usually gravity.
  • A double acting cylinder permits application of hydraulic pressure on either side of the piston to control lineal motion in either of two opposite directions. Because of their simplified construction little can go wrong with the cylin- der in itself. The most common problems are external or internal leaks.

TABLE OF CONTENTS:

New Holland Bale Wagons 1000-1049 Service Repair Manual (40931400)

Table of Contents …………………………………………………………………………….. 2
Hydraulic Flow and Troubleshooting – Models 1000, 1005, 1010, 1024, 1030, 1035, 1044, 1046, 1047, 1048 …. 3
Hyraulic Flow and Troubleshooting – Models 1032, 1033, 1049……………………………………….. 41
Hydraulic Flow and Troubleshooting – Models 1012, 1034 ……………………………………………. 54
Service Procededures for Hydraulic Components, Steering Gear, Orbit Motor, Valves and Pumps …………… 66
Service Procedures for Hydraulic Cylinders ……………………………………………………….100
Index ………………………………………………………………………………………..109



PLEASE NOTE:

  • This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
  • The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
  • Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
