Massey Ferguson 2140 2150 2150 Packer Cutter 2160 2170 2170XD 2190 rectangular Baler Service Manual – PDF DOWNLOAD
DESCRIPTION:
Massey Ferguson 2140 2150 2150 Packer Cutter 2160 2170 2170XD 2190 rectangular Baler Service Manual – PDF DOWNLOAD
Massey Ferguson ®
2140 / 2150 / 2150 Packer Cutter/ 2160 / 2170 / 2170XD / 2190
Includes CE Models
Large Rectangular Baler
SERVICE MANUAL
4283062M6
INTRODUCTION:
This service manual has been prepared with the latest service information available at the time of publication. Read the service manual carefully before doing any service on the baler. This manual is one of the most important tools available to the service technician. Right-hand and left-hand, as used in this manual, is determined by facing the direction the machine will travel when in use. The photos, illustrations, and data used in this manual were current at the time of printing, but due to possible production changes, the machine can vary slightly. The Manufacturer reserves the right to redesign and change the machine as necessary without notification.
TO THE DEALERS: This manual was developed to provide the best possible information, technical support and service to the service technician. Review the Table of Contents and basic layout to become familiar with locations of pertinent information such as maintenance table, specifications and etc.
UNITS OF MEASUREMENT: Measurements are given in metric units followed by the equivalent in US units. Hardware sizes are given in millimeters for metric hardware and inches for US hardware.
TABLE OF CONTENTS: A Table of Contents is in the front of this manual. The Table of Contents shows the divisions. The individual divisions also have a Table of Contents.
PAGE NUMBERS : All page numbers are made of two numbers separated by a dash, such as 01-25. The number before the dash is the division number. The number following the dash is the page number in that division. Page numbers will be at the lower right or left-hand side of each page.
TABLE OF CONTENTS:
Massey Ferguson 2140 2150 2150 Packer Cutter 2160 2170 2170XD 2190 rectangular Baler Service Manual – PDF DOWNLOAD
GENERAL INFORMATION 01
ELECTRICAL SYSTEM 02
HYDRAULIC SYSTEM 03
POWERTRAIN 04
MAINFRAME 05
PICKUP AND CUTTER 06
FEEDER AND PLUNGER 07
KNOTTER 08
SPECIFICATIONS 09
OPTIONAL EQUIPMENT 10
VIDEO PREVIEW OF THE MANUAL:

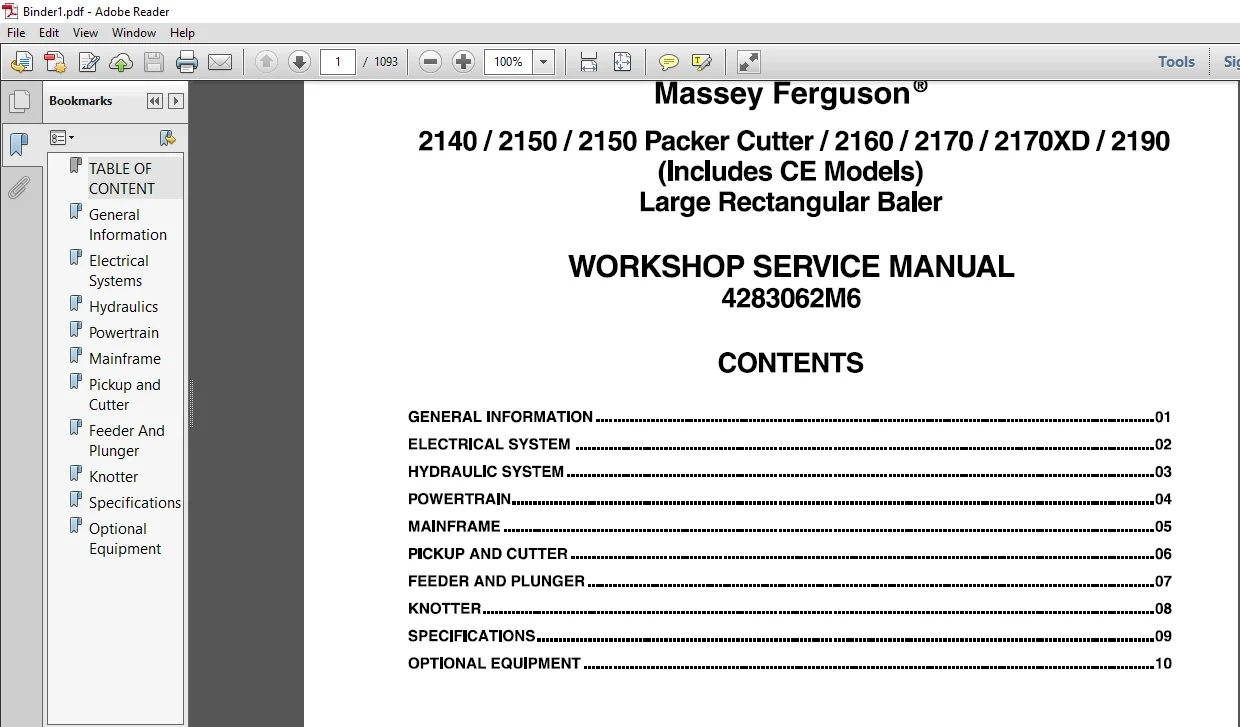

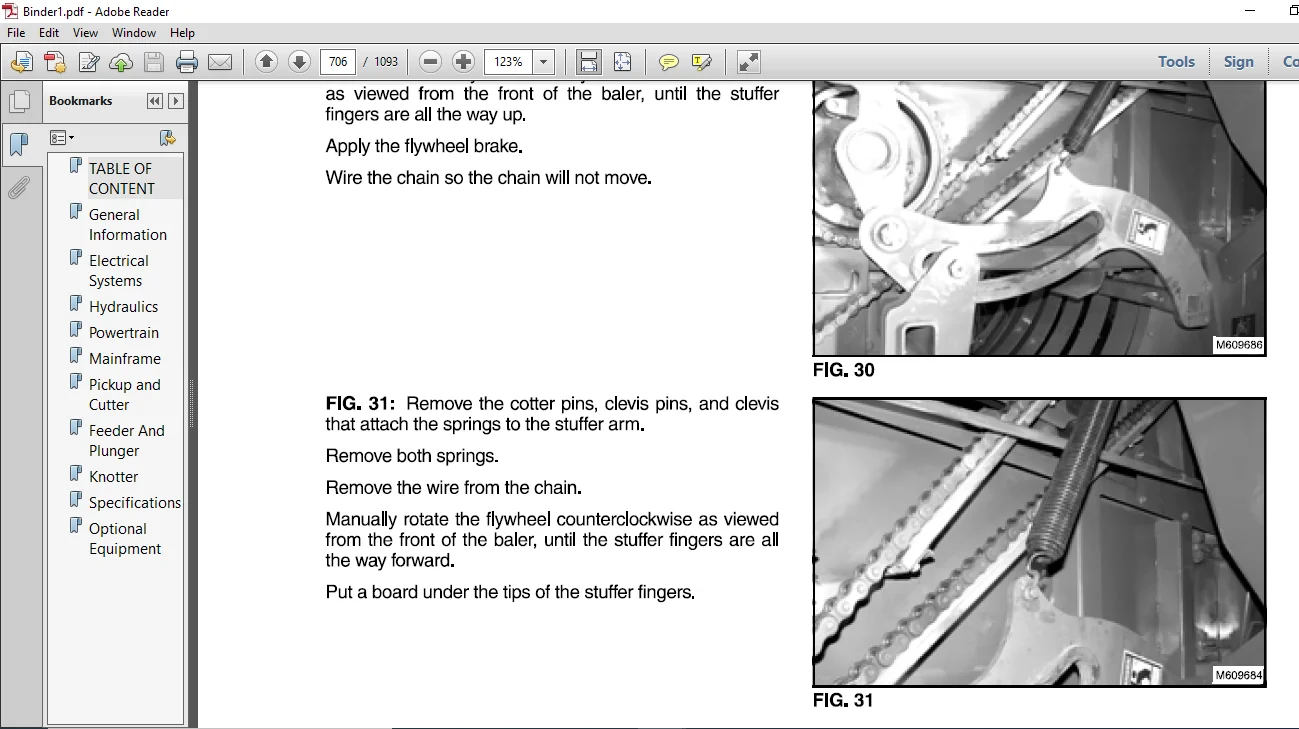

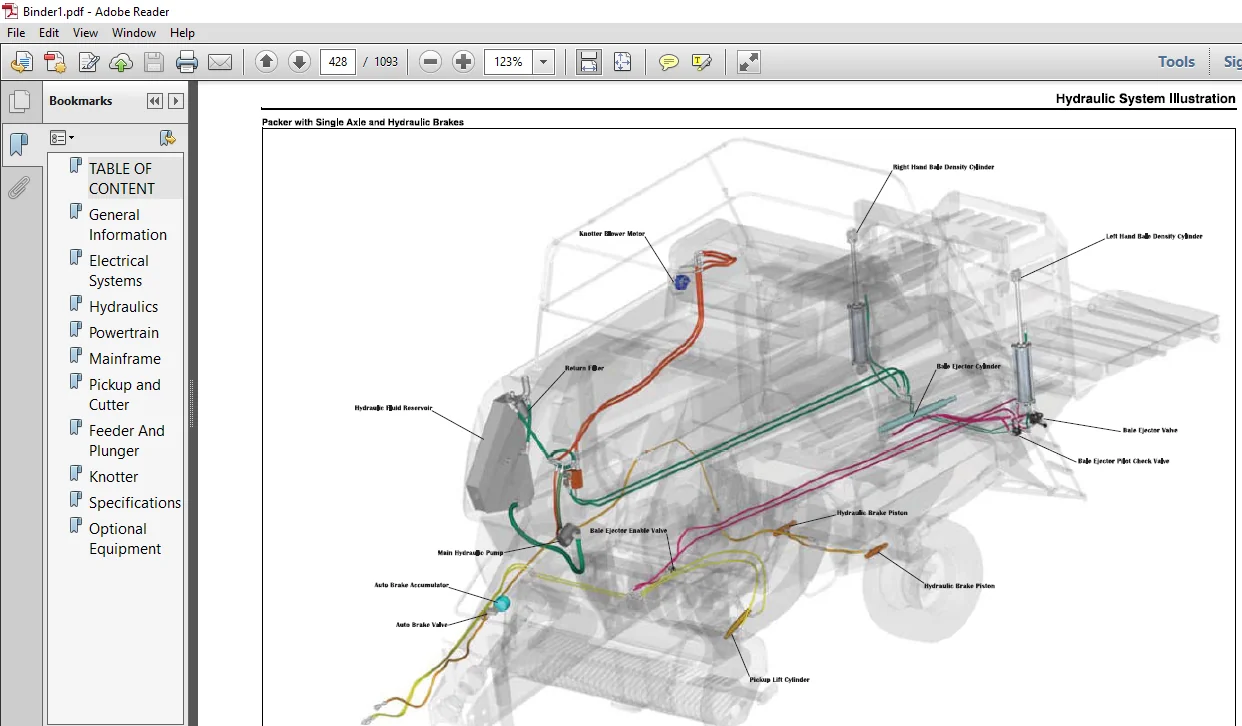

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
