Malaguti Madison 400 Service Manual – PDF DOWNLOAD
FILE DETAILS:
Malaguti Madison 400 Service Manual – PDF DOWNLOAD
Language : English, French, Spanish, German
Pages : 389
Downloadable : Yes
File Type : PDF

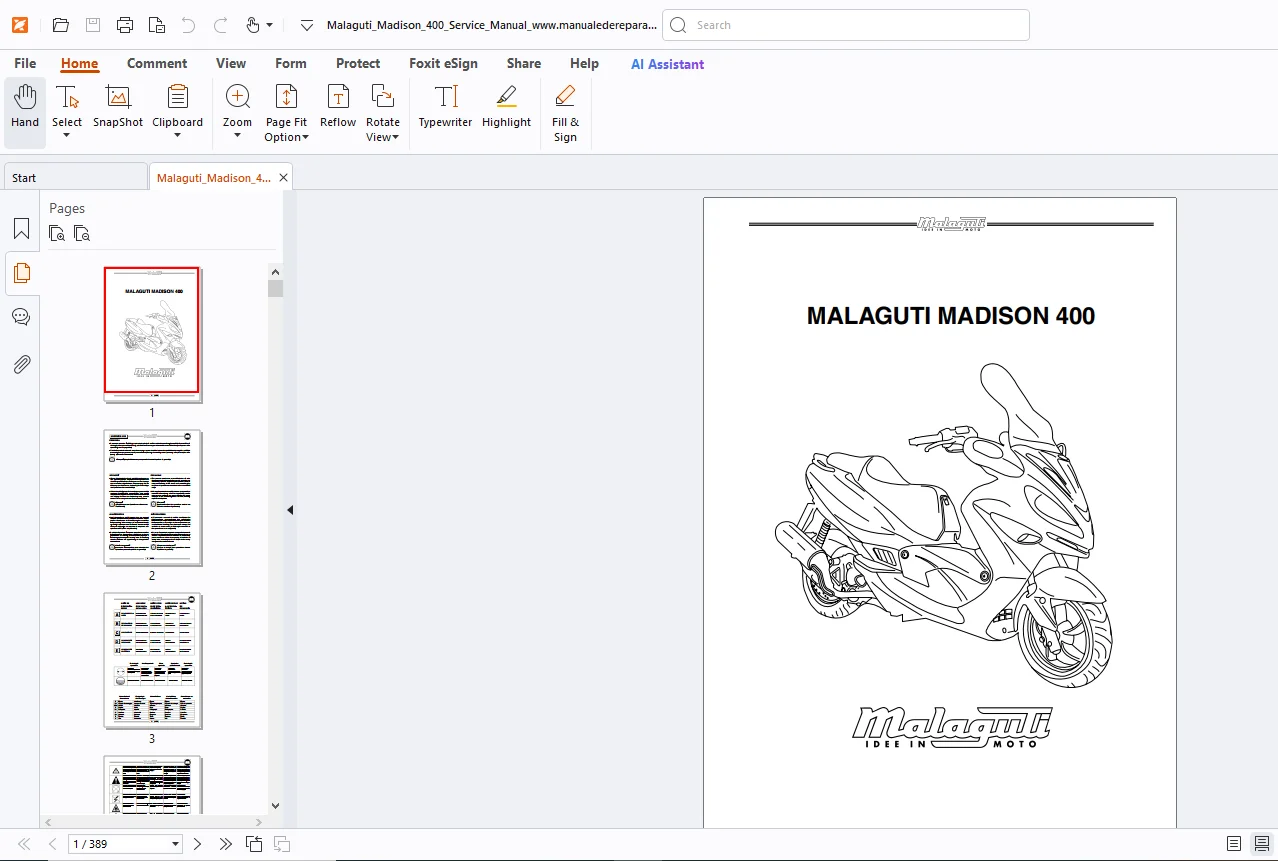

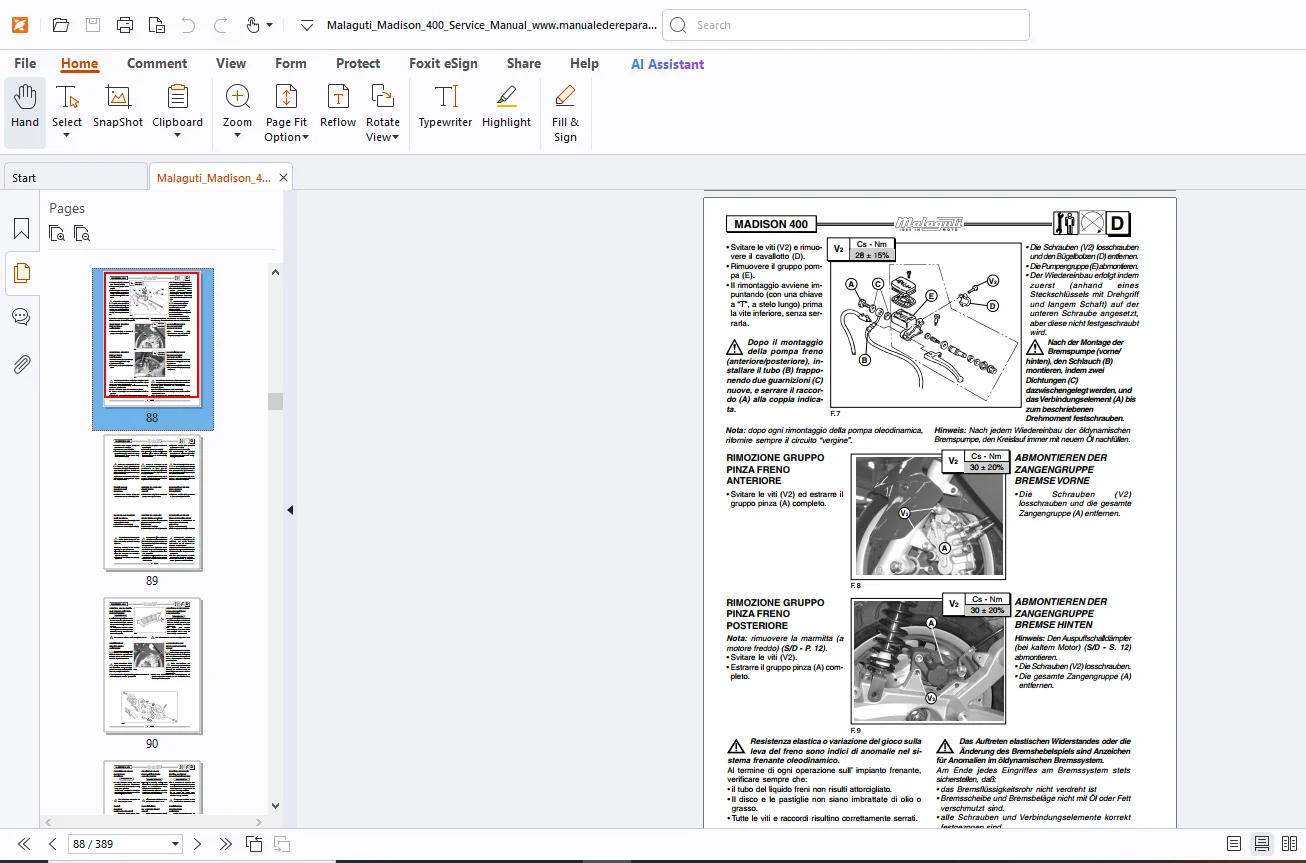

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Malaguti Madison 400 Service Manual – PDF DOWNLOAD
Table of Contents
- Technical Data
- Unpacking
- “Aesthetic” Control
- Identification Data
- Main Components
- Controls
- Switch-Key Start
- Steering Lock
- Side Stand
- Dashboard
- Digital Dashboard
- Starting Failure
- Fluid Systems
- Tubeless Tyres
- Fuel Tank
- Coolant Tank
- Motor Oil
- Transmission Oil
- Brakes Oil
- Brakes Oil Topping Up
- Lubricants
- Tuning and Adjustments
- Idle Tuning
- Shock Absorber Tuning
- Steering Adjustment
- Handlebar Inclination Adjustment
- Saddle Adjustment
- Body Components
- Fairings
- Windscreen
- Side Mirrors Assembly
- Side Mirrors Removal
- Plate Assembly
- Handlebar
- Handlebar Cover Removal
- Other Components
- Shield Removal
- Drainer Removal
- Dashboard Removal
- Brake Levers Control
- Handlebar Controls Removal
- Body Removal
- Front Fender Removal
- Leg Guard Removal
- Kickstand Removal
- Footboard Removal
- Helmet Compartment Removal
- Saddle Removal
- Rear Fairing Removal
- Engine Case Removal
- Rear Fender Removal
- Tail Removal
- Fairings
- Wheels and Brakes
- Front Wheel Removal
- Rear Wheel Removal
- Brake Distributor Removal
- Brakes Pumps Removal
- Exhaust Pipe Removal
- Front Brake Caliper Removal
- Rear Brake Caliper Removal
- Wear-Check of Front/Rear Brake Pads
- Front Caliper Unit Replacement
- Rear Caliper Unit Replacement
- Silencer Removal
- Fork and Suspension
- Fork Leg Removal
- Fork Oil Replacement
- Fork Removal
- Key Components
- Key-Switch Removal
- Acoustic Alarm Removal
- Fuel Tank Removal
- Float Removal
- Radiator Removal
- Engine and Related Maintenance
- Air Cleaner Maintenance
- Engine Removal
- Frame and Structural Check
- Dimensional Frame Check
- Lighting and Electrical
- The Two Headlights
- Lightbulb Replacement
- Parking Light
- Beam Adjustment
- Taillight Replacement
- Direction Indicators
- Dashboard Internals
- Bulb Replacement
- Voltage Regulator
- Spark Coil Replacement
- The Two Headlights
- Electrical Maintenance
- Pre-Delivery Intervention on Battery
- Fuses
- Location of Electrical Components
- Left-Sided Harness
- Right-Sided Harness
- Wiring Diagrams
- Wiring Diagram
- Electric Cable Colors Legend
DESCRIPTION:
Malaguti Madison 400 Service Manual – PDF DOWNLOAD
INTRODUCTION:
• The present publication describes all necessary steps for the troubleshooting concerning the electric system (of the models indicated on the front page) and of the possible service operations, which are necessary for their solution. It supplies the trade technicians (authorized customer service centres) with the necessary information for operating in compliance with the modern concepts of “good practice” and “work safety”.
• Further information can be derived from the “Cycle” workshop manual – from the Engine workshop manual – from the Spare Part catalogue.
• All described operations foresee the necessary skill and experience by the technicians.
• The steps for the removal of body parts and of electric and mechanical components, to allow the access to wiring or electric components to service, can be taken from the Cycle Workshop Manual.
• We recommend to follow with care the information given in this publication.
• For any further information you may need, refer to the Customer service department or to the Malaguti Technical Departmen
