Malaguti Madison 125/150 Service Manual – PDF DOWNLOAD
FILE DETAILS:
Malaguti Madison 125/150 Service Manual – PDF DOWNLOAD
Language : English, French, Spanish, German
Pages : 302
Downloadable : Yes
File Type : PDF

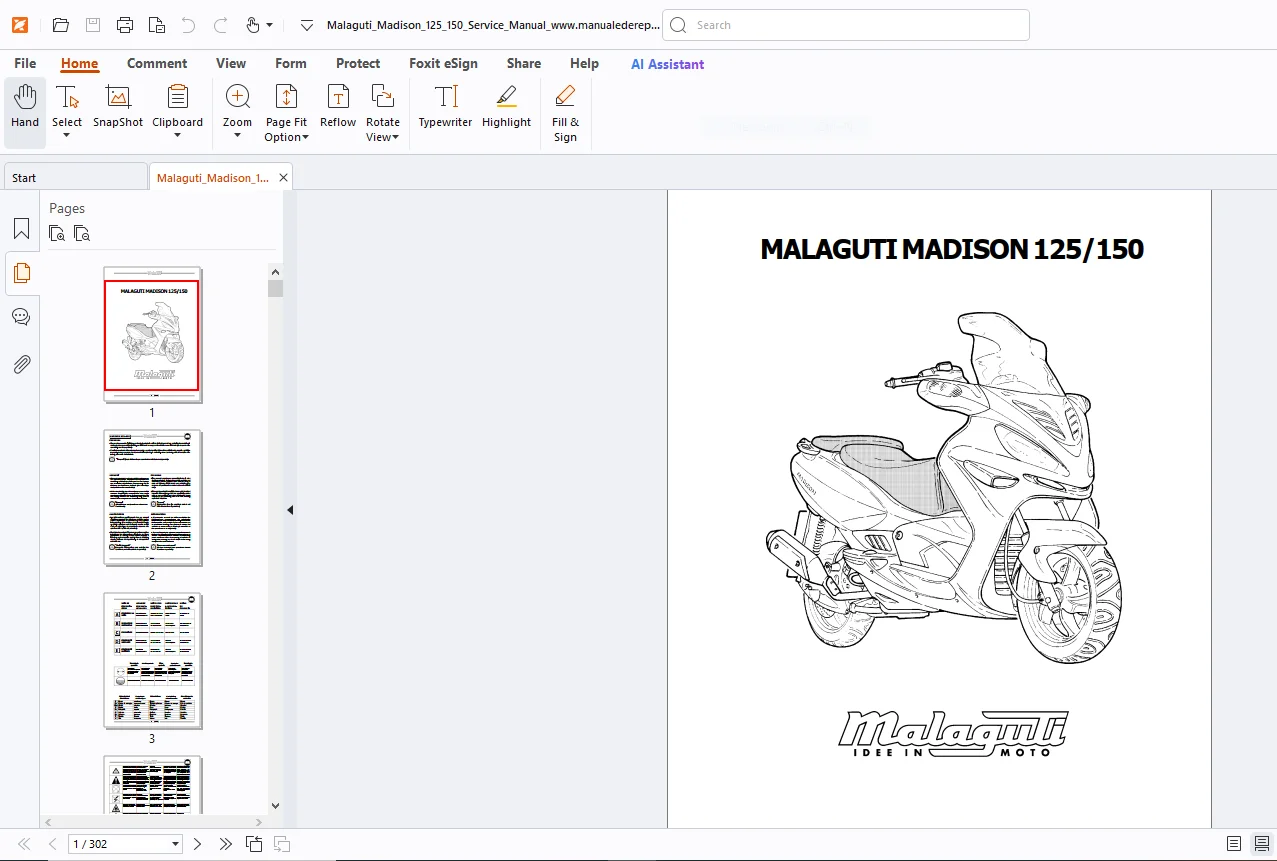

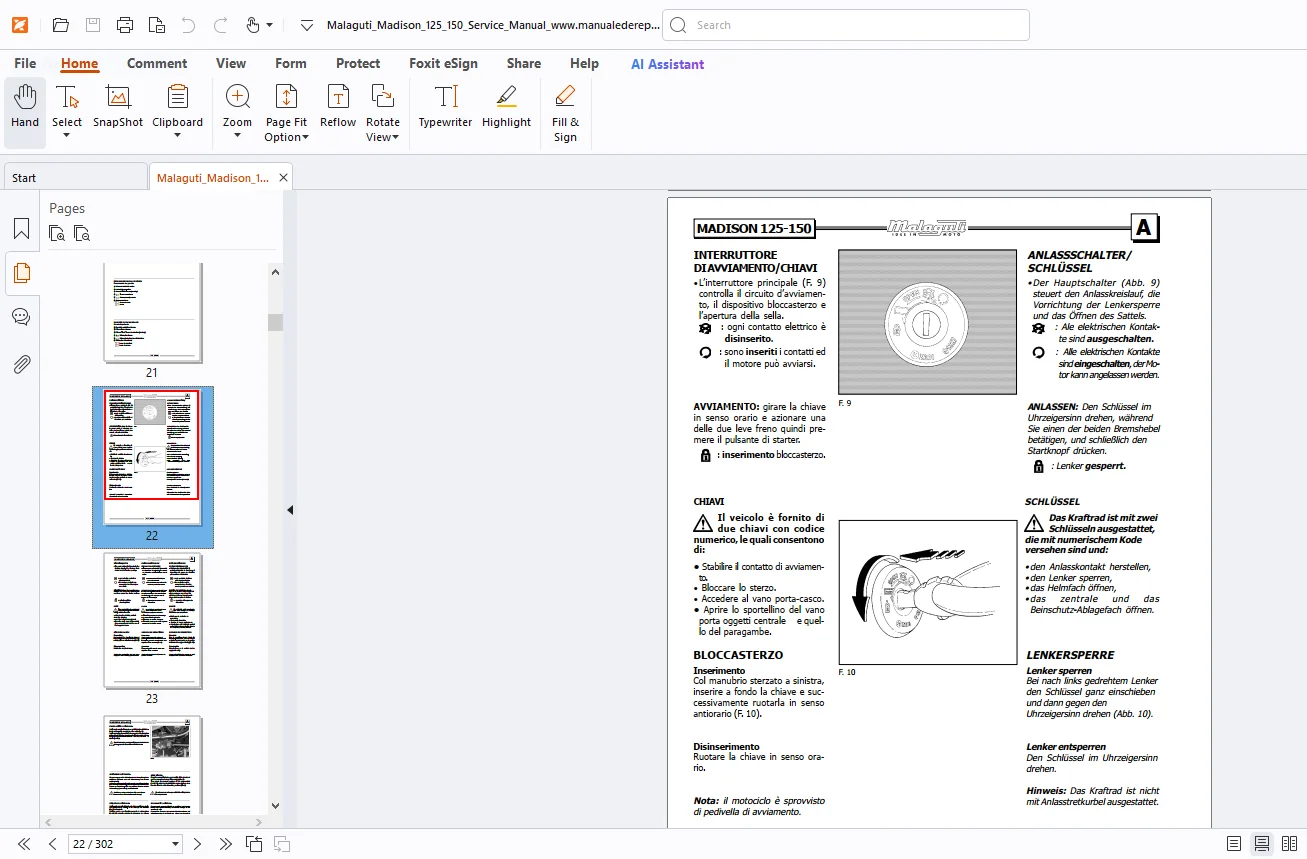

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Malaguti Madison 125/150 Service Manual – PDF DOWNLOAD
Table of Contents
- Technical Data
- Unpacking
- “Aesthetic” Control
- Identification Data
- Main Components
- Controls
- Switch-Key Start
- Steering Lock
- Side Stand
- Dashboard
- Electric Starter
- Starting Failure
- Fluid Systems
- Tubeless Tyres
- Fuel Tank
- Coolant Tank
- Motor Oil
- Transmission Oil
- Brakes Oil
- Brakes Oil Topping Up
- Lubricants
- Tuning and Adjustments
- Idle Tuning
- Shock Absorber Tuning
- Steering Adjustment
- Handlebar Inclination Adjustment
- Saddle Adjustment
- Body
- Fairings
- Windscreen
- Side Mirrors Assembly
- Side Mirrors Removal
- Plate Assembly
- Handlebar Cover
- Handlebar Cover Removal
- Shield Removal
- Drainer Removal
- Dashboard Removal
- Fairings
- Brakes and Control Systems
- Brake Levers Control
- Handlebar Controls Removal
- Front Fender Removal
- Leg-Guard Removal
- Kickstand Removal
- Footboard Removal
- Helmet Compartment Removal
- Saddle Removal
- Rear Fairing Removal
- Engine Case Removal
- Rear Fender Removal
- Tail Removal
- Mud Flap Removal
- Wheels and Suspension
- Front Wheel Removal
- Rear Wheel Removal
- Rear Wheel Re-Assembly
- Brake System Maintenance
- Brake Pumps Removal
- Front Brake Caliper Removal
- Rear Brake Caliper Removal
- Wear Check of Front/Rear Brake Pads
- Front Caliper Unit Replacement
- Rear Caliper Unit Replacement
- Engine and Fork Assembly
- Exhaust Pipe Removal
- Fork Leg Assembly Removal
- Fork Oil Replacement
- Fork Removal
- Electrical Components
- Key-Switch Removal
- Acoustic Alarm Removal
- Fuel Tank Removal
- Float Removal
- Radiator Removal
- Engine Removal
- Frame and Structural Check
- Dimensional Frame Check
- Lighting and Electrical Systems
- The Two Headlights
- Light Bulbs Replacement
- Parking Light
- Beam Adjustment
- Taillight Replacement
- Direction Indicators
- Dashboard Internals
- Bulb Replacement
- Regulator Replacement
- Spark Coil Replacement
- Battery and Electrical Maintenance
- Pre-Delivery Intervention on Battery
- Fuses
- Location of Electrical Components
- Left-Sided Harness
- Right-Sided Harness
- Wiring Diagrams
- Wiring Diagram
- Electric Cable Colors Legend
DESCRIPTION:
Malaguti Madison 125/150 Service Manual – PDF DOWNLOAD
INTRODUCTION:
•All checks, maintenance, repairs or replacements of spare parts in the vehicles manufactured by Malaguti are to be performed by skilled and expert technical personnel with specific experience in state-of-the-art technology and full knowledge of the quickest and most rational procedures, technical characteristics, setting values and tightening torques, information as to which may only be properly and exhaustively provided by the manufacturer.
•The present set of SERVICE MANUALS concerning four-stroke engines provides mechanics operating on Malaguti vehicles, whether working out of authorised service centres or self-employed, the essential information for operating in accordance with the latest Good Working Practices and Work Safety regulations.
•The present publications provide all necessary information for routine procedures on all the MALAGUTI motor vehicles equipped with four-stroke engines currently in production at the date of issue. The information provided deals with the main components and systems of the motor vehicle, with just a few notes on some parts relating to the engine. Some basic technical information has been intentionally omitted as it is considered to be common knowledge.
•Additional information is available in the ENGINE SERVICE MANUAL (see Minarelli and Franco Morini Service Manuals) and in the SPARE PARTS CATALOGUES of each model.
•It is important that before referring to the specific motor-bike manual, the information given in this general section be carefully read as it provides all the essential hints and guidelines for best consulting the various topics and main technical subjects.
G.B 21/03/25
