Liebherr PR 714 Crawler Tractors Series 4 Service Manual – PDF DOWNLOAD
FILE DETAILS:
Liebherr PR 714 Crawler Tractors Series 4 Service Manual – PDF DOWNLOAD
Language : English
Pages : 130
Downloadable : Yes
File Type : PDF
Size: 6.37 MB
DESCRIPTION:
Liebherr PR 714 Crawler Tractors Series 4 Service Manual – PDF DOWNLOAD
1.1. Destined use:
With normal dozing attachment, the machine is only designed for loosening, moving and dumping soil, rocks,
broken stones or other materials.
- Any other use above and beyond this, such as breaking rocks or demolition of buildings, driving piles,
transporting personnel etc. is not considered to be destined use. The manufacturer / supplier is not liable for
damage resulting from this action. The risk must be assumed solely by the user. - Machines operated in special applications are subject to special conditions and must be equipped o.a. with the
specified safety devices. - Part of destined specific use is also the observation of the operating instructions and the adherence of the
inspection and maintenance conditions.
2. Signs on the machine
death. The content and location is described in the Operating instructions (use them for detailed information).
3. General safety guidelines
Please familiarize yourself with the operating instructions before starting the machine.
– Make sure that you have and have read and understood any additional instructions for the special
equipment of your machine
- Only explicitly authorized personnel may operate, maintain or repair the machine.
– Observe the permissible minimum age requirements as set forth by law. - Use only trained or instructed personnel; clearly determine the responsibility of the personnel for operation, set
up, maintenance and repairs. - Determine the machine operator responsibility (also in regards to traffic regulations) and allow him to refuse
unsafe instructions from third persons. - Do not allow any person either still to be trained or already in training to operate or work on the machine unless
under the constant supervision and guidance of an experienced instructor or operator. - Check and observe any person working or operating the machine at least periodically if they observe safety
instructions and guidelines given in the “Operating instructions”. - ¢ Always wear proper work clothing when operating or working on the machine.
– Avoid wearing rings, watches, ties, scarves, open jackets or loose clothing, etc. They could get caught or
get pulled into the machinery, causing serious injury.
– For certain work, the following is required: Safety glasses, safety shoes, hard hat, work gloves, reflective
vests, ear protection. - Consult the supervisor at the job site for special safety instructions and regulations.
- s When entering or exiting, never use the safety lever or the control levers or joysticks as handholds. This could
trigger inadvertent movement of the machine and cause serious accidents. - Never jump off the machine. When climbing on or off the machine, use the intended steps, ladders, catwalks
and handles. Use both hands for support and face the machine. - Keep steps, ladders and handrails free of oil, grease, mud, snow and ice. These precautions will minimize the
danger of slipping, stumbling or falling. - Familiarize yourself with the emergency exit through the right cab door.If no other instructions are given, proceed as follows for maintenance and repairs:
Procedure:
– Bring all control levers to neutral position.
– Bring all control levers to neutral position.
Before working on the hydraulic circuit, with the engine turned off and with the ignition key in contact position,
move all servo controls (joysticks and pedals) in both directions to relieve the servo pressure and the
remaining pressures in the working circuits. Then release the internal tank pressure.
Safety guidelines
- Before leaving the operator’s seat, always move the safety lever up.
- Secure all loose parts on the machine.
- Never operate a machine without a complete walk around inspection. Check if all warning signs are on the
machine and if they are all legible. - Observe all signs with danger and safety notes.
- For special applications, this machine must be equipped with specific safety devices. In this case, use the
machine only if they are installed and functioning. - Never make any changes, additions or modifications on the machine, which could affect the safety, without
obtaining explicit approval from the manufacturer / supplier. This also applies to the installation and adjustment
of safety devices and safety valves as well as to any welding on load carrying parts.

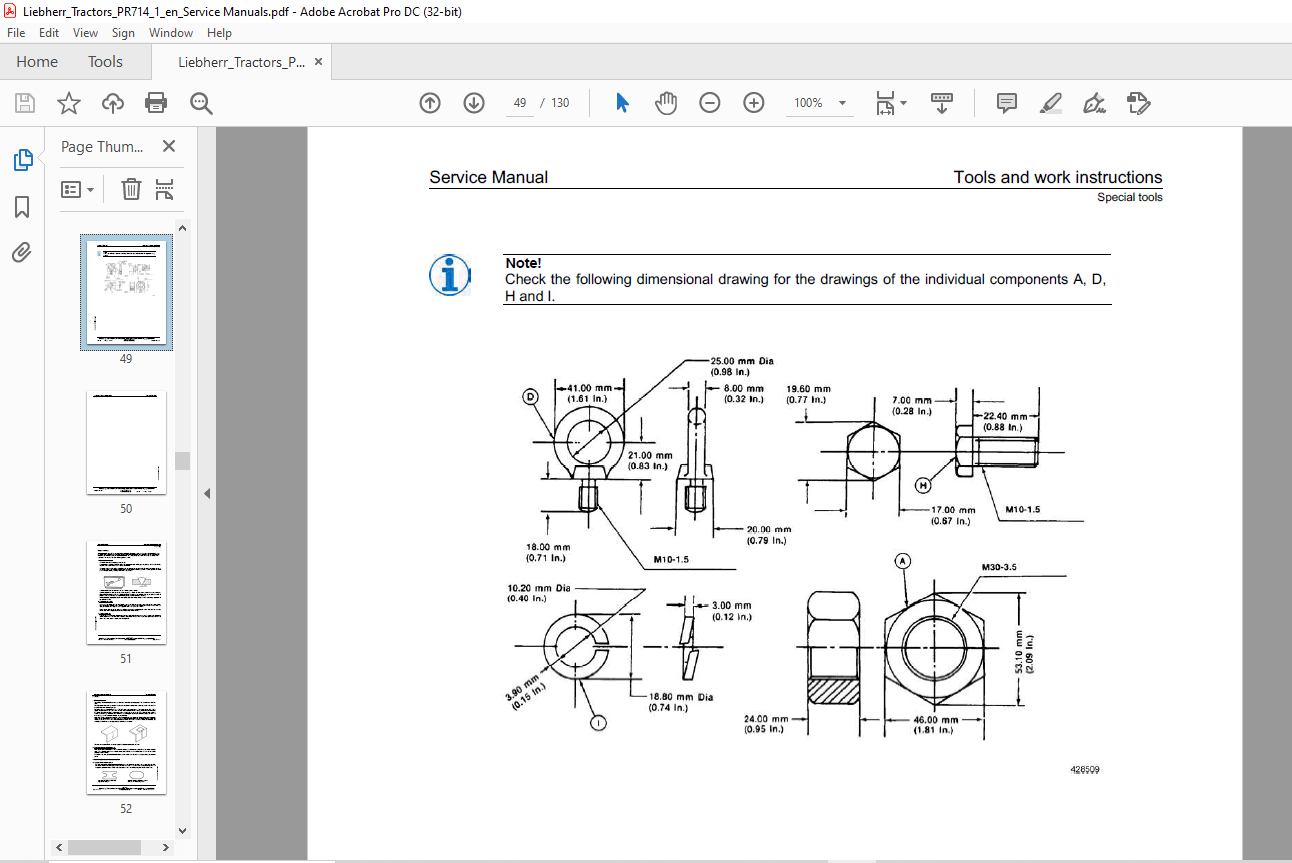

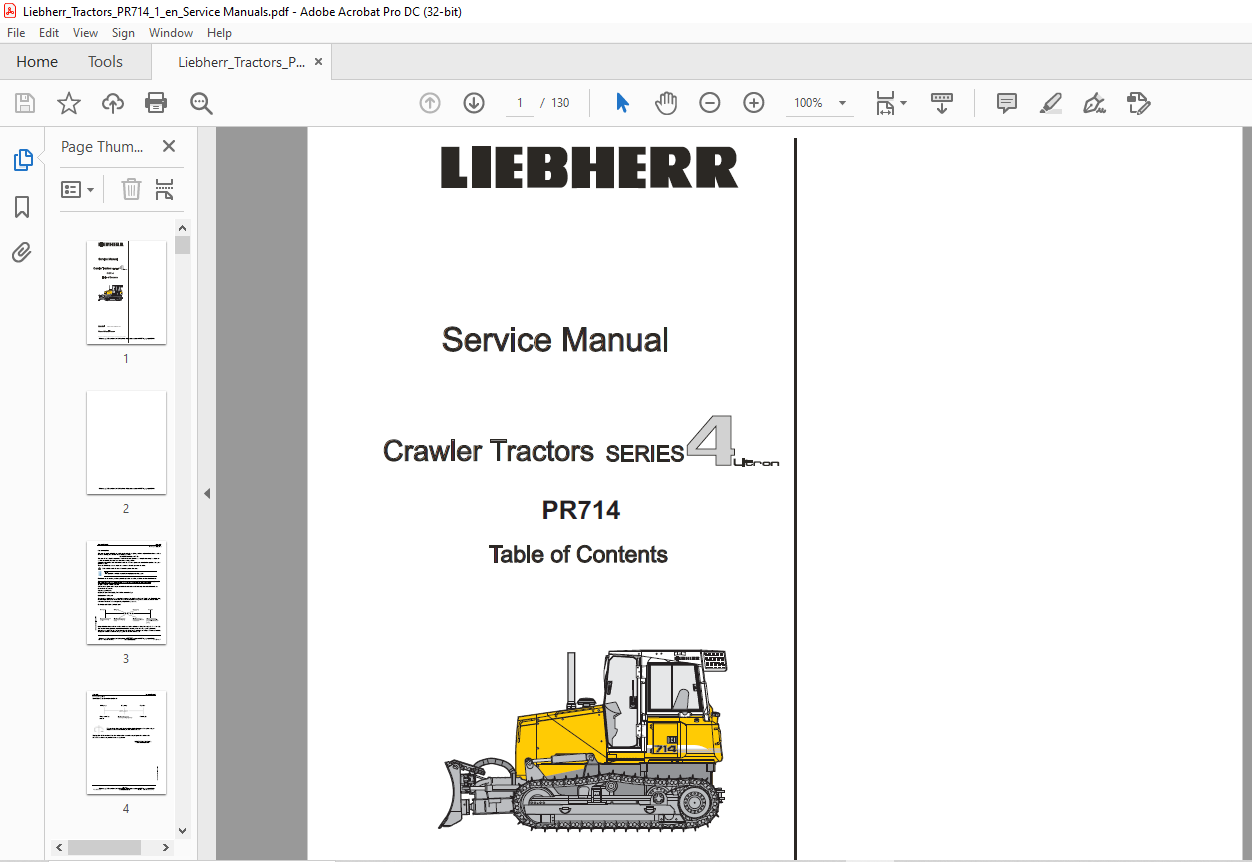

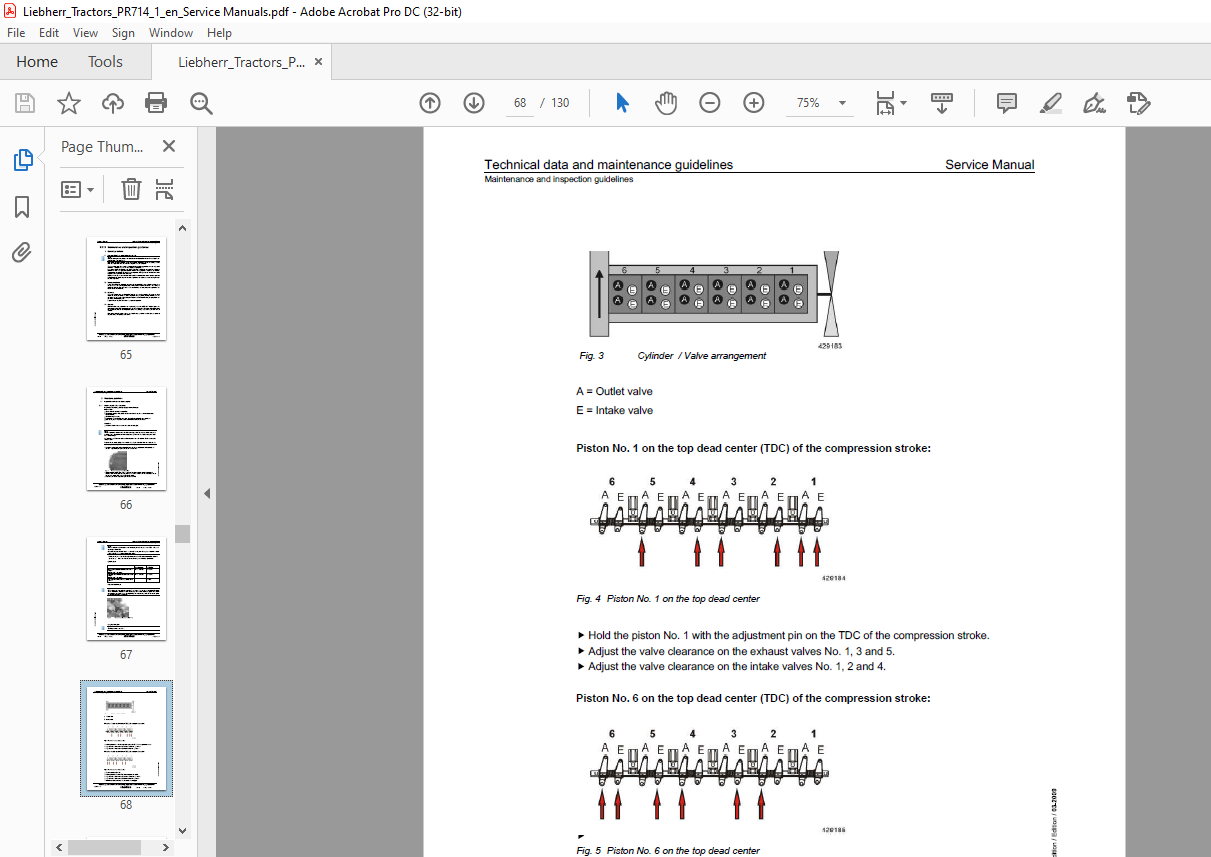

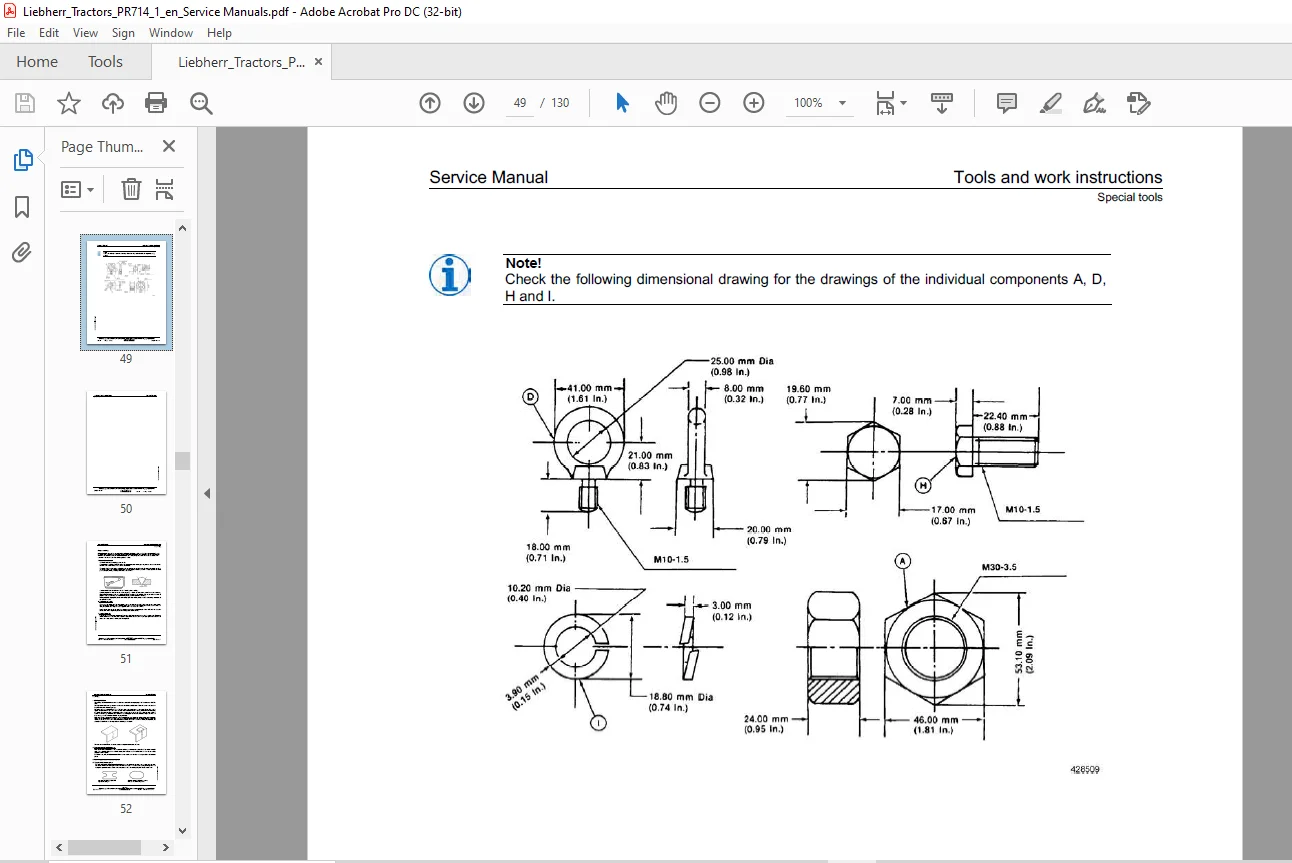

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
