Liebherr L 538 1493 Wheel Loader Service Manual – PDF DOWNLOAD
FILE DETAILS:
Liebherr L 538 1493 Wheel Loader Service Manual – PDF DOWNLOAD
Language : English
Pages : 644
Downloadable : Yes
File Type : PDF
Size: 140 MB
DESCRIPTION:
Liebherr L 538 1493 Wheel Loader Service Manual – PDF DOWNLOAD
- This service manual is designed for trained specialist staff of the Liebherr organisation and their dealers.
- This service manual contains specialist knowledge for repairing Liebherr construc- tion machines. Basic specialist knowledge on electronics, hydraulics, mechanics and engine technology is not contained in this service manual. Therefore special- ized training and qualifications are necessary. Liebherr recommends participating in the Liebherr training program for construction machines.
In this service manual you will find information on:
- You will find information on controls and operation in the operator’s manual. Information on spare parts are in the spare parts catalogue. Please observe the local accident prevention laws.
- You can find information on repairs of machine parts in the service documentation under “Wheel loader – repair instructions”.
Safety instructions
General safety instructions
1. Familiarise yourself with the operator’s manual before starting up the
machine.
Make sure that you are in possession of additional instructions for any special
equipment installed on your machine, and that you have read and understood
them.
2. Only expressly authorised personnel may operate, service or repair the
machine.
Observe the legal minimum ages.
3. Only trained or instructed personnel may operate the machine. Clearly assign
responsibility for operation, rigging, maintenance and repair work.
4. The operator of the machine must ensure that no persons are in the operating
area of the machine on the basis of a risk assessment conducted in respect of
the operating site.
5. Clearly establish the driver’s responsibilities (also with respect to traffic regulations)
and authorise him to refuse to carry out unsafe instructions from third
parties.
6. Personnel undergoing training and instruction, or who are not yet fully qualified,
may only be allowed to work on the machine under constant supervision
by an experienced person.
7. Now and again, check that your personnel are working safely and are aware of
possible dangers in observance of the operator’s manual.
8. Wear safe working clothes when working on the machine.
Do not wear rings, wristwatches, ties, scarves, unbuttoned jackets, loose
clothing or similar garments, as they can become caught in the machinery and
cause injury.
Certain tasks require: safety glasses, safety boots, hard hats, protective
gloves, reflective vests, ear protection etc.
9. Ask the site manager about any special safety regulations in force on the
construction site.
10. Do not hold onto the steering column, the control panel or the control levers
when getting on or off the machine.
You might inadvertently trigger movements which could lead to accidents.
11. Never jump down from the machine. Use the steps, ladders and platforms
provided for getting on and off.
12. Keep all handles, steps, rails, gangways, platforms and ladders free from oil,
grease, mud snow and ice. This reduces the risk of slipping, tripping up or
falling.
13. Familiarise yourself with the emergency exit through the right cab door and/or
the rear window.
14. Unless there are other instructions, perform maintenance and repair work as
follows:
Procedure:
• Park the machine on firm, level ground and lower the working attachment
to the ground.
• Move all control levers to neutral.
• Turn off the diesel engine and take out the ignition key.
15. Before all work on the hydraulic system, depressurise the hydraulic circuits
and the hydraulic tank as described in the operator’s manual.
16. Lock the working hydraulics to prevent accidental actuation before leaving the
operator’s seat.

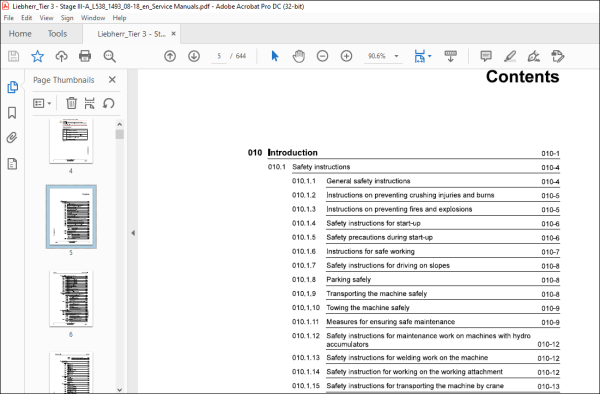

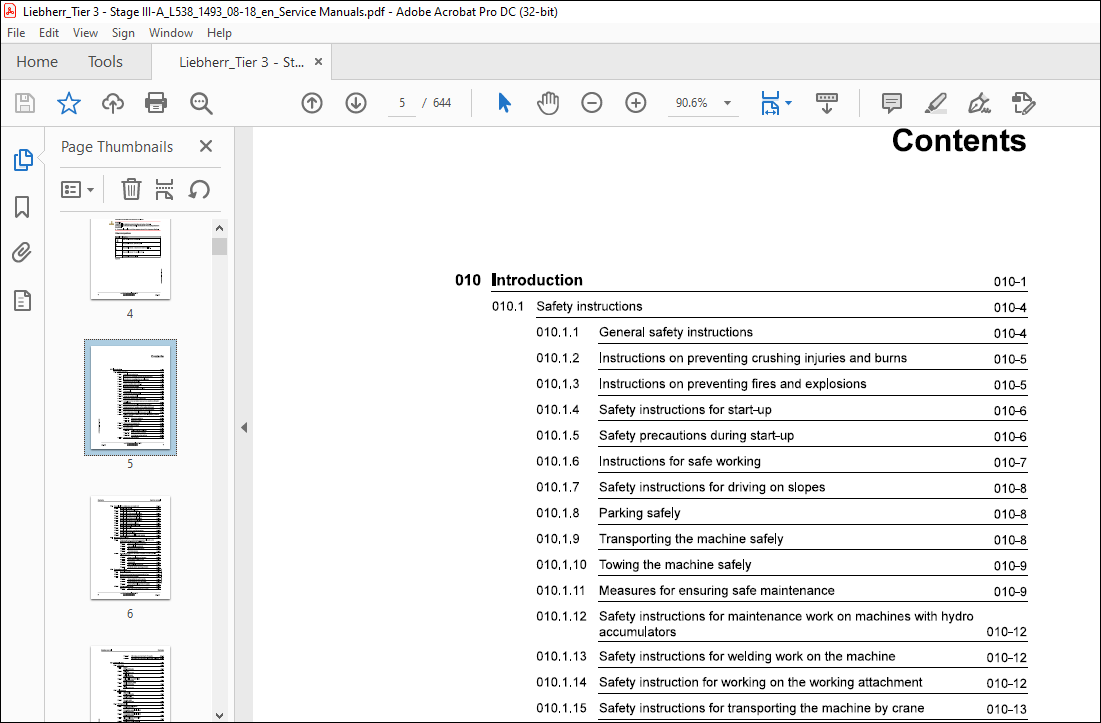

TABLE OF CONTENTS:
Liebherr L 538 1493 Wheel Loader Service Manual – PDF DOWNLOAD
010.1 Safety instructions 010-4
0101.1 General safety instructions 010-4
010.1.2 Instructions on preventing crushing injuries and burns 010-5
010.1.3 Instructions on preventing fires and explosions 010-5
010.14 Safety instructions for start-up 010-6
0101.5 Safety precautions during start-up 010-6
010.1.6 Instructions for safe working 010-7
010.1.7 Safety instructions for driving on slopes 010-8
0101.8 Parking safely 010-8
010.1.9 Transporting the machine safely 010-8
010.1.10 Towing the machine safely 010-9
010.1.11 Measures for ensuring safe maintenance 010-9
010.1.12 Safety instructions for maintenance work on machines with hydro
accumulators 010-12
010.1.13 Safety instructions for welding work on the machine 010-12
010.1.14 Safety instruction for working on the working attachment 010-12
010.1.15 Safety instructions for transporting the machine by crane 010-13
010.1.16 Safe maintenance of hydraulic hoses and hose lines 010-13
010.1.17 Roll over protective structure (ROPS) and falling object protection
structure (FOPS) 010-14
010.1.17.1 Preventing accidents 010-14
010.1.17.2 Preventing injuries 010-14
010.1.18 Attachments and accessories 010-14
010.1.19 Protection against vibrations 010-15
010.1.20 See and be seen 010-15
010.1.20.1 Field of view and visual aids 010-15
010.1.20.2 Measures during operation. 010-16
010.1.20.3 Modifications to the machine 010-16
010.1.21 Danger area of the machine 010-16
010.2.1 Special tools, general 010-18
010.2.2 Special tools for the diesel engine 010-18
010.2.3 Special tools for Z kinematics lift cylinder 010-19
010.2.4 Special tools for Z kinematics tilt cylinder 010-20
010.25 Special tools for P kinematics lift cylinder 010-20
010.2.6 Special tools for P kinematics tilt cylinder 010-20
010.2.7 Special tools for steering cylinders 010-20
010.2.8 Special tools for the electrical system 010-21
010.2.9 Special tools for axles 010-21
010.2.10 Special tools for the air conditioning system 010-22
010.2.11 Special tools for cab glazing 010-22
010.2.12 Special tools for the central lubrication system 010-22
Standards and regulations 010-24
010.3.1 Prestressing forces and tightening torques for bolts with metric
010.3.1.1 Range of application and purpose 010-24
010.3.1.2 Other applicable documents 010-24
010.3.1.3 Modifications and descriptions 010-25
010.3.1.4 Tightening torques 010-25

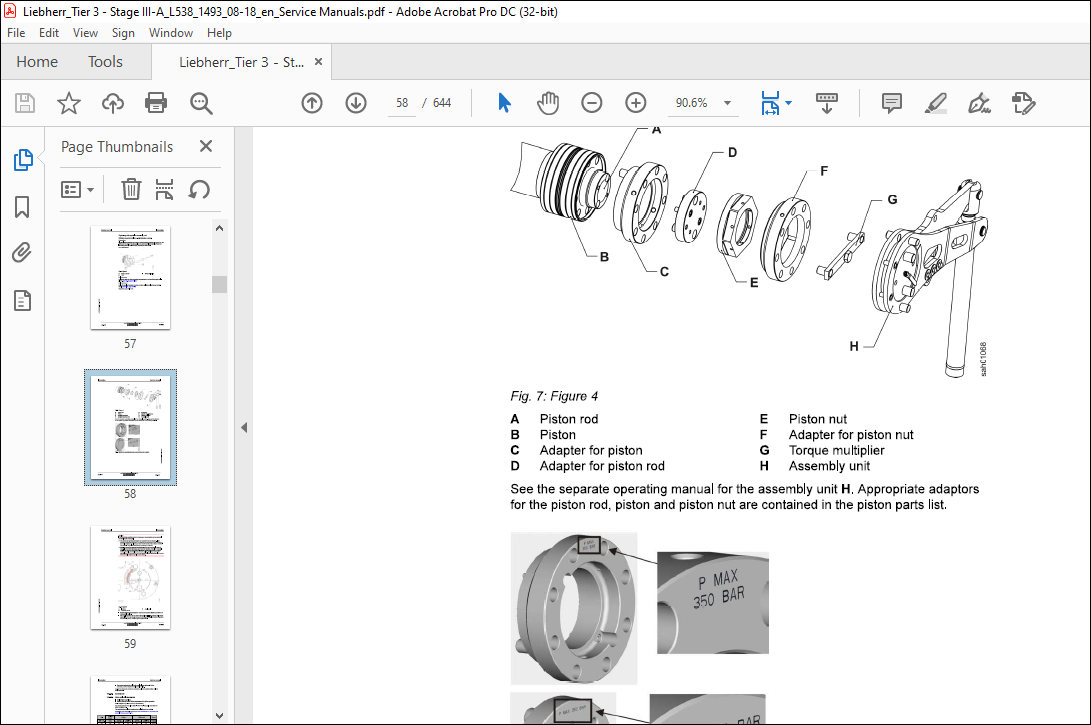

010.3.2 Assembly instructions for the piston and piston nut of the hydraulic
cylinder (WN 4121) 010-31
010.3.2.1 Range of application and purpose 010-31
010.3.2.2 Requirements and description 010-31
010.3.2.3 Amendments 010-36
010.3.2.4 Other applicable documents 010-36
010.3.2.5 Maximum adapter operating pressure 010-41
Preservation guidelines 010-42
010.4.1 General information 010-42
010.4.2 Machine out of service for an unknown period of time 010-42
010.4.3 Putting the machine out of service 010-43
010.4.3.1 Out of service for up to 2 months 010-43
010.4.3.2 Out of service for up to 12 months 010-44
010.4.3.3 Out of service for longer than 12 months 010-45
010.4.4 Putting back into service 010-45
0104.41 After being out of service for 2 months 010-45
020.1 Drive group 020-4
020.1.1 Engine
L538-1493/31405-; 020-4
0201.2 Fuel tank
L538-1493/31405-; 020-5
020.1.3 Fuel level sensor
L538-1493/31405-; 020-5
020.1.4 Fuel pre-filter (separator filter)
L538-1493/31405-; 020-6
020.1.5 Air filter vacuum switch
L538-1493/31405-; 020-6
0201.6 Clutch
L538-1493/31405-; 020-6
020.2 Cooling system 020-7
020.2.1 Water cooler
L538-1493/31405-; 020-7
0202.2 Fan gear pump
L538-1493/31405-; 020-7
020.2.3 Fan gear motor
L538-1493/31405-; 020-7
020.3 Working hydraulics 020-8
020.3.1 Working hydraulics pump
1L538-1493/31405-; 020-8
020.3.2 Z kinematics control valve block
L538-1493/31405-; 020-8
020.3.3 P kinematics control valve block
L538-1493/31405-; 020-8
020.3.4 Pilot control hydro accumulator
L538-1493/31405-; 020-9
020.3.5 Stabilisation module (optional)
L538-1493/31405-; 020-9
020.3.6 Ride control hydro accumulator (optional)
L538-1493/31405-; 020-9
020.3.7 Z kinematics lift cylinder
L538-1493/31405-; 020-9
020.3.8 Z kinematics tilt cylinder
L538-1493/31405-; 020-10
020.3.9 P kinematics lift cylinder
L538-1493/31405-; 020-10
Travel hydraulics 020-12
020.4.1 Travel pump
020.4.2 Travel motor 1
020.4.3 Travel motor 2
Hydraulic components 020-14
020.5.1 Filter unit
020.5.2 Breather filter
Steering system 020-15
020.6.1 Servostat
020.6.2 Steering cylinder
020.6.3 Emergency steering pump
020.6.4 Emergency steering pressure switch B3
020.6.5 Emergency steering check pressure switch B3a
Brake system 020-17
020.7.1 Service brake hydro accumulator
020.7.2 Brake light pressure switch B12
020.7.3 Accumulator charge pressure switch B19
020.7.4 Disc brake
020.7.5 Parking brake hydro accumulator
Electrical system 020-19
020.8.1 Central control unit (UEC3)
020.8.2 Battery
Gearbox 020-21
0209.2 Output speed sensor B1 and travel motor 2 speed sensor B2
L538-1493/31405-; 020-21
020.10 Axles and drive shafts 020-22
020.10.1 Front axle
L538-1493/31405-; 020-22
020.10.2 Rear axle
L538-1493/31405-; 020-22
020.10.3 Cardan shaft
L538-1493/31405-; 020-23
020.11 Steel parts of the basic machine 020-24
020.11.1 Ballast weight
L538-1493/31405-; 020-24
020.12 Operator’s cab, heating and air conditioning 020-25
020.12.1 Dryer
L538-1493/31405-; 020-25
020.12.2 Pressure switches
L538-1493/31405-; 020-25
020.12.3 Anti-icing temperature sensor
L538-1493/31405-; 020-25
020.13 Lubrication system 020-27
020.13.1 Central lubrication pump EP1
L538-1493/31405-; 020-27
030 Maintenance 030-1
030.1 Maintenance and inspection schedule 030-9
030.2 Filling quantities and lubrication chart 030-14
030.2.1 Recommended lubricants
1L538-1493/31405-; 030-14
030.2.2 Recommended operating fluids
L538-1493/31405-; 030-15
030.3 Lubricants and fuels 030-16
030.3.1 General information on changing lubricants and fuels 030-16
030.3.2 Converting hydraulic system from mineral oils to biodegradable
hydraulic fluids 030-16
0303.3 Diesel fuels
L538-1493/31405-; 030-17
030.3.3.1 Specification 030-17
030.3.3.2 High sulphur content in the diesel fuel 030-17
030.3.3.3 Diesel fuel at low temperatures (winter operation) 030-17
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
L538-1403 LIEBHERR 9
Contents Service manual
030.3.4 Lubricating oils for diesel engines
L538-1493/31405-; 030-18
030.3.4.1 Lubricating oil quality 030-18
030.3.4.2 Lubricating oil viscosity 030-18
030.3.4.3 Lubricating oil change intervals 030-19
030.3.5 Refrigerant
L 538-1493; 030-20
030.3.6 Coolant
1 538-1493/31405-; 030-20
030.3.6.1 Requirements for the water used 030-20
030.3.6.2 Antifreeze and corrosion inhibitor 030-20
030.3.6.3 Minimum quality requirement 030-20
030.3.7 Hydraulic oil
1 538-1493/31405-; 030-21
030.3.7.1 Liebherr hydraulic oil 030-21
030.3.7.2 Using engine oil as hydraulic oil 030-21
030.3.7.3 Warming up 030-22
030.3.7.4 Biodegradable hydraulic oils 030-22
030.3.7.5 Changing the oil, analysing the oil, changing filters 030-23
030.3.8 Lubricating oils for transmissions
L538-1493/31405-; 030-24
030.3.9 Lubricating oils for axles
1 538-1493/31405-; 030-25
030.3.10 Lubrication grease and other lubricants
L538-1493/31405-; 030-26
030.3.10.1 Minimum quality requirements 030-26
030.3.10.2 Liebherr lubrication grease 030-26
030.4 Maintenance tasks 030-28
030.4.1 Safety precautions
L538-1493/31405-; 030-28
030.4.2 Preparatory tasks for maintenance 030-28
030.4.2.1 Maintenance positions
1 538-1493/31405-; 030-29
030.4.2.2 Opening the service accesses
1538-1493/31405-; 030-30
0304.2.3 Turning off the battery main switch
L538-1493/31405-; 030-32
030.4.3 Overall machine 030-32
0304.31 Checking the machine for external damage
1538-1493/31405-; 030-32
machine
1 538-1493/31405-; 030-32
030.4.3.3 Cleaning the machine
L538-1493/31405-; 030-33
030.4.3.4 Checking the machine for leaks
L538-1493/31405-; 030-34
030.4.3.5 Making sure the bolted connections are tight
L538-1493/31405-; 030-35
030.4.3.6 Corrosion protection system for use with salt and arti-
ficial fertilisers (optional): Carrying out corrosion
protection
L538-1493/31405-; 030-35
030.4.3.7 Oil analyses
L538-1493/31405-; 030-35
030.44 Drive group 030-41
030.4.4.1 Checking the engine oil level
L538-1493/31405-; 030-41
030.4.4.2 Changing the engine oil
L538-1493/31405-; 030-42
030.4.4.3 Changing the engine oil filter
1 538-1493/31405-; 030-43
030.4.4.4 Checking the V-ribbed belt on the engine
L538-1493/31405-; 030-44
030.4.4.5 Changing V-ribbed belt of diesel engine
L538-1493/31405-; 030-45
030.4.4.6 Checking the engine valve clearance
L538-1493/31405-; 030-47
030.4.4.7 Checking the bleeder filter of the crankcase
L538-1493/31405-; 030-49
030.4.4.8 Checking the engine heating flange
L538-1493/31405-; 030-50
030.4.4.9 Draining off condensate and sediment from the fuel
tank
L538-1493/31405-; 030-51
030.4.4.10 Draining off condensate from the Separ fuel pre-filter
1 538-1493/31405-; 030-52
030.4.4.11 Draining off condensate from the fuel pre-filter
L538-1493/31405-; 030-53
030.4.4.12 Changing the Separ fuel pre-filter insert
L538-1493/31405-; 030-54
030.4.4.13 Changing the fuel pre-filter
L538-1493/31405-; 030-56
030.4.4.14 Changing the fuel fine filter
1 538-1493/31405-; 030-57
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1538-1493 LIEBHERR 1
Contents Service manual
030.4.4.15 Bleeding the fuel system
L538-1493/31405-; 030-58
030.4.4.16 Cleaning the air filter service cover and dust
discharge valve
1.538-1493/31405-; 030-59
030.4.4.17 Checking the air suction system for leaks and tight
fitting
1L.538-1493/31405-; 030-61
030.4.4.18 Cleaning or changing the main filter element
L538-1493/31405-; 030-62
030.4.4.19 Changing the air filter safety element
1.538-1493/31405-; 030-65
030.4.4.20 Checking the exhaust system for leaks and tight
fitting
L538-1493/31405-; 030-66
030.4.5 Cooling system 030-67
030.4.5.1 Checking the coolant level
1.538-1493/31405-; 030-67
030.4.5.2 Checking the coolant antifreeze and corrosion inhib-
itor concentration
L538-1493/31405-; 030-68
030.4.5.3 Cleaning the cooling system
1.538-1493/31405-; 030-72
030.4.5.4 Changing the coolant
1L538-1493/31405-; 030-73
030.46 Working hydraulics 030-75
030.4.6.1 Lubricating the solenoids, universal joints and
tappets on the pilot control unit
1.538-1493/31405-; 030-75
030.4.7 Hydraulic components 030-76
030.4.7.1 Checking the oil level in the hydraulic tank
L538-1493/31405-; 030-76
030.4.7.2 Checking and cleaning the magnetic rod on the
hydraulic tank
1.538-1493/31405-35974; 030-77
030.4.7.3 Checking and cleaning the magnetic rod on the
hydraulic tank
1.538-1493/35975-; 030-78
0304.7.4 Draining off condensate and sediment from the
hydraulic tank
L538-1493/31405-; 030-79
030.4.7.5 Hydraulic tank – changing the return-suction filter
1.538-1493/31405-35974; 030-80
0304.76 Changing the hydraulic tank return suction filter
L538-1493/35975-; 030-81
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
12 LIEBHERR 536-149
LBH/11827693/04/211-20180814_111345/en
030.4.7.7 Changing the hydraulic tank breather filter
L538-1493/31405-; 030-82
030.4.7.8 Changing the oil in the hydraulic system in accord-
0304.8 Steering system 030-84
030.4.8.1 Testing the steering
L538-1493/31405-; 030-84
030.4.8.2 Lubricating the bearing points on the steering cylin-
ders
L538-1493/31405-; 030-85
0304.9 Brake system 030-86
030.4.9.1 Testing the service brake and parking brake
L538-1493/31405-; 030-86
030.4.9.2 Checking the service brake discs for wear
L538-1493/31405-; 030-87
030.4.9.3 Checking the gap and wear on the parking brake
linings
L538-1493/31405-; 030-89
030.4.10 Electrical system 030-92
030.4.10.1 Checking the lights
1L538-1493/31405-; 030-92
030.4.10.2 Checking the batteries, fluid level and terminals
L538-1493/31405-; 030-93
030.4.10.3 Changing the travel direction rocker switch and cap
(optional) on the control lever
L538-1493/31405-; 030-96
030.4.11 Gearbox 030-98
030.4.11.1 Checking the transmission oil level
L538-1493/31405-; 030-98
030.4.11.2 Changing the transmission oil
L538-1493/31405-; 030-98
030.4.12 Axles and drive shafts 030-99
030.4.12.1 Checking the axle oil levels
L538-1493/31405-; 030-99
030.4.12.2 Changing the axle oil
L538-1493/31405-; 030-100
030.4.12.3 Checking the tightening torque of the front axle
fastening bolts
L538-1493/31405-; 030-102
030.4.124 Checking the cardan shafts
L538-1493/31405-; 030-103
030.4.12.5 Checking the tyre pressure
L538-1493/31405-; 030-103
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1538-1493 LIEBHERR 13
Contents Service manual
030.4.12.6 Checking the wheel tightness (once after 50, 100 and
250 h)
L538-1493/31405-; 030-104
030.4.13 Steel parts of the basic machine 030-105
030.4.13.1 Lubricating the articulation bearing and the rear axle
oscillating bearing
L538-1493/31405-; 030-105
030.4.13.2 Covering – lubricating locks and hinges
L538-1493/31405-; 030-105
030.4.14 Working attachment 030-106
030.4.14.1 Lubricating the lift arms and attachment
1538-1493/31405-; 030-106
030.4.14.2 Checking the lift arm bearing bushings
L538-1493/31405-; 030-107
030.4.14.3 Checking the lift arm bucket stops (Z kinematics)
1538-1493/31405-; 030-108
030.4.144 Lubricating and testing the quick-change device
L538-1493/31405-; 030-109
030.4.15 Operator’s cab, heating and air conditioning 030-110
030.4.15.1 Cleaning the fresh and recirculated air filters
L538-1493/31405-; 030-110
030.4.15.2 Changing the fresh and recirculated air filters
1538-1493/31405-; 030-112
030.4.15.3 Checking the condition and function of the safety belt
L538-1493/31405-; 030-113
030.4.15.4 Checking and topping up the windscreen washer
reservoir
L538-1493/31405-; 030-113
030.4.15.5 Checking the seals on the driver’s cab
1538-1493/31405-; 030-114
0304.156 Checking the indicator bead in the air conditioning
dryer-collector unit
L538-1493/31405-; 030-114
030.4.15.7 Testing the air conditioning unit
L538-1493/31405-; 030-115
030.4.16 Lubrication system 030-116
030.4.16.1 Checking the lubrication system grease reservoir
level
L538-1493/31405-; 030-116
030.4.16.2 Checking the pipes, hoses and lubrication points of
the lubrication system
L538-1493/31405-; 030-116
030.4.16.3 Checking whether metered quantities are adequate
at the bearing points (grease collars) of the lubrica-
tion system
0305.1 Saving pages from the adjustment checklist 030-122
030.6 Testing and adjustment tasks 030-123
0306.1 Safety precautions
L538-1493/31405-; 030-123
030.6.2 Overall machine 030-124
030.6.2.1 Preparatory tasks for testing and adjustment
L538-1493/31405-; 030-124
030.6.2.2 Bringing the machine up to operating temperature
L538-1493/31405-; 030-125
0306.3 Drive group 030-126
030.6.3.1 Inch/brake pedal calibration
L538-1493/31405-; 030-126
030.6.3.2 Checking the engine speed
L538-1493/31405-; 030-126
030.6.3.3 Reading the diesel engine service files
L538-1493; 030-127
0306.4 Cooling system 030-129
030.6.4.1 Fan gear motor proportional pressure relief valve
L538-1493/31405-; 030-129
0306.5 Working hydraulics 030-132
030.6.5.1 Working hydraulics pump flow regulator (standby
pressure)
L538-1493/31405-; 030-132
030.6.5.2 Z kinematics control valve block secondary pressure
relief valves
L538-1493/31405-; 030-133
030.6.5.3 Working hydraulics LS pressure cut-off
L538-1493/31405-; 030-135
030.6.5.4 P kinematics control valve block secondary pressure
relief valves
L538-1493/31405-; 030-136
030.6.5.5 Stabilisation module (optional), cut-off function
L538-1493/31405-; 030-138
030.6.5.6 Ride control hydro accumulator (optional), nitrogen
filling
L538-1493/31405-; 030-138
030.6.5.7 Testing the control valve block for leakage
L538-1493/31405-; 030-141
0306.6 Hydraulic components 030-145
030.6.6.1 Checking the hydraulic lines for damage
L538-1493; 030-145
0306.7 Travel hydraulics 030-150
Contents Service manual
030.6.7.1 Travel pump replenishing pressure relief valve
L538-1493/31405-; 030-150
0306.7.2 Travel pump high pressure relief valves
1.538-1493/31405-; 030-151
030.6.7.3 Travel pump pressure cut-off
L538-1493/31405-; 030-154
030.6.7.4 Travel pump block curve calibration
1 538-1493/31405-; 030-155
030.6.7.5 Travel motor 1 start of regulation
L538-1493/31405-; 030-157
030.6.7.6 Travel motor 2 automatic calibration
1.538-1493/31405-; 030-159
030.6.7.7 Engine output
L538-1493/31405-; 030-160
030.6.8 Steering system 030-161
030.6.8.1 Steering system LS pressure cut-off
1.538-1493/31405-; 030-161
030.6.9 Brake system 030-162
030.6.9.1 Compact brake valve, hydro accumulator charging
function
L538-1493/31405-; 030-162
030.6.9.2 Service brake pressure
1.538-1493/31405-; 030-163
030.6.9.3 Service brake hydro accumulator capacity
L538-1493/31405-; 030-164
030.6.9.4 Accumulator charge pressure switch shift pressure
1 538-1493/31405-; 030-166
030.6.10 Electrical system 030-167
030.6.10.1 Repairing the Tuple Chain on the central control unit
(UEC3)
L538-1493/31405-; 030-167
030.6.10.2 Resetting central control unit (UEC3)
1 538-1493/31405-; 030-172
030.6.11 Gearbox 030-177
030.6.11.1 Transmission hydro accumulator nitrogen filling
1.538-1493/31405-; 030-177
040 Drive group 040-1
040.1 Engine 040-2
040.1.1 Diesel engine overview
1538-1493/31405-; 040-2
040.1.2 Crankshaft speed sensor
L538-1493/31405-; 040-6
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
16 LIEBHERR L538-1493
LBH/11827693/04/211-20180814_111345/en
040.1.3 Fuel temperature sensor
L538-1493/31405-; 040-7
040.14 Charge air temperature sensor
L538-1493/31405-; 040-7
0401.5 Fuel system 040-8
040.1.5.1 Overview of the fuel system
L538-1493/31405-; 040-8
040.1.5.2 Fuel pre-filter
1 538-1493/31405-; 040-15
040.1.5.3 Separ fuel pre-filter
L538-1493/31405-; 040-16
040.1.5.4 Fuel fine filter
L538-1493/31405-; 040-17
040.16 Air filter system 040-17
040.1.6.1 Overview of the air filter unit
L538-1493/31405-; 040-18
040.1.6.2 Air filter
L538-1493/31405-; 040-19
040.2 Clutch
L538-1493/31405-; 040-20
050 Cooling system 050-1
050.1 Overview of the cooling system
1L.538-1493/31405-; 050-2
050.2 Cooling system hydraulics 050-4
050.2.1 Overview of the hydraulics cooling system
L538-1493/31405-; 050-4
050.2.2 Fan gear pump
L538-1493/31405-; 050-6
050.2.3 Fan gear motor
L538-1493/31405-; 050-7
050.3 Cooling system electronics 050-11
050.3.1 Electronic control system — general overview
L538-1493/31405-; 050-11
050.3.2 Coolant temperature sensor
L538-1493/31405-; 050-12
050.3.3 Hydraulic oil temperature sensor
L538-1493/31405-; 050-13
050.34 Charge air temperature sensor
L538-1493/31405-; 050-15
050.4 Cooler 050-17
0504.1 Water cooler
050.4.3 Intercooler
1 538-1493/31405-; 050-20
050.5 Reversible fan drive 050-21
050.5.1 Reversible fan drive
L538-1493/31405-; 050-21
Working hydraulics 060-1
060.1 Overview of z kinematics working hydraulics
L538-1493/31405-; 060-3
060.2 Overview of working hydraulics for p kinematics
L538-1493/31405-; 060-8
060.3 Working hydraulics pump
L538-1493/31405-; 060-13
060.4 Control valve block for Z-bar kinematics
L538-1493/31405-; 060-17
060.5 Control valve block for P kinematics
L538-1493/31405-; 060-23
060.6 Pilot control 060-28
060.6.1 Overview of the pilot control unit
1 538-1493/31405; 060-28
060.6.2 Pilot control unit
1 538-1493/31405-; 060-29
060.6.3 Working hydraulics lockout solenoid valve
L538-1493/31405-; 060-34
060.6.4 Pilot control hydro accumulator
1 538-1493/31405-; 060-35
060.7 Ride control 060-36
060.7.1 Ride control overview
L538-1493/31405-; 060-36
060.7.2 Stabilisation module
1 538-1493/31405-; 060-37
060.7.3 Ride control hydro accumulator
L538-1493/31405-; 060-42
060.8 Hydraulic cylinders of the working hydraulics 060-43
060.8.1 Hydraulic cylinders for Z kinematics 060-43
060.8.1.1 Z kinematics lift cylinder
L538-1493/31405-; 060-43
060.8.1.2 Z kinematics tilt cylinder
1538-1493/31405-; 060-45
060.8.2 Hydraulic cylinders for P kinematics 060-46
060.8.2.2 P kinematics tilt cylinder
L538-1493/31405-; 060-48
070 Travel hydraulics 070-1
070.1 Travel hydraulics overview
1538-1493/31405-36291; 070-2
070.2 Travel hydraulics overview
1L.538-1493/36292-; 070-7
070.3 Travel pump
1.538-1493/31405-36291; 070-12
070.4 Travel pump
L538-1493/36292-; 070-26
070.5 Travel motors 070-41
0705.1 Overview of the travel motors
L538-1493/31405-; 070-41
070.5.2 Travel motor 1
L538-1493/31405-; 070-43
070.5.3 Travel motor 2
L538-1493/31405-; 070-50
080 Hydraulic components 080-1
080.1 Hydraulic tank 080-2
080.1.1 Overview of the hydraulic tank
L538-1493/31405-; 080-2
080.1.2 Filter unit
L538-1493/31405-; 080-4
080.1.3 Breather filter
L538-1493/31405-; 080-9
090 Steering system 090-1
090.1 Steering system overview
L538-1493/31405-35802; 090-2
090.2 Steering system overview
1.538-1493/35803-; 090-6
090.3 Servostat
L538-1493/31405-; 090-10
090.4 Steering cylinder 090-14
0904.1 Steering cylinder overview
L538-1493/31405-35802; 090-14
0904.2 Steering cylinder overview
L538-1493/35803-; 090-16
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1538-1493 LIEBHERR 19
Contents
090.5 Emergency steering 090-19
090.5.1 Emergency steering overview
L538-1493/31405-; 090-19
090.5.2 Emergency steering pump
L538-1493/31405-; 090-20
090.5.3 Emergency steering electronics 090-22
090.5.3.1 Overview of the electronic control system
L538-1493/31405-; 090-22
090.5.3.2 Emergency steering pressure switch
1.538-1493/31405-; 090-23
090.5.3.3 Emergency steering check pressure switch
L538-1493/31405-; 090-24
090.5.4 Valve block
1538-1493/31405-; 090-25
100 Brake system 100-1
100.1 Overview of the brake system
L538-1493/31405-; 100-2
100.2 Service brake and parking brake 100-4
100.2.1 Brake system gear pump
L538-1493/31405-; 100-4
100.2.2 Compact brake valve
1538-1493/31405; 100-5
100.3 Service brake 100-12
100.3.1 Overview of the service brake
1538-1493/31405-; 100-12
100.3.2 Service brake hydro accumulator
L538-1493/31405-; 100-15
100.3.3 Brake light pressure switch
L538-1493/31405-; 100-16
100.3.4 Accumulator charge pressure switch
1 538-1493/31405-; 100-17
100.4 Parking brake 100-18
100.4.1 Overview of the parking brake
1538-1493/31405-; 100-18
100.4.2 Disc brake
L538-1493/31405-; 100-21
100.4.3 Parking brake hydro accumulator
1538-1493/31405-; 100-22
110.1 Overview of the electrical system
1538-1493/31405-; 110-2
110.2 Lighting
1.538-1493/31405-; 110-7
110.3 Circuit diagrams
L538-1493/31405-; 110-9
110.4 Electronic control unit 110-11
110.4.1 Overview of the electronic control system
L538-1493/31405-; 110-11
110.4.2 Central control unit (UEC3)
L538-1493/31405-; 110-13
110.5 Electrical components of the driver’s cab 110-18
110.5.1 Fuse and relay board
L538-1493/31405-; 110-18
110.6 Electrical components in the rear section 110-22
110.6.1 Battery installation
L538-1493/31405-; 110-22
120 Gearbox 120-1
120.1 Overview of the transmission
1L.538-1493/31405-; 120-2
120.2 Mechanical transmission
L538-1493/31405-; 120-3
120.3 Transmission hydraulics 120-9
120.3.1 Overview of the hydraulic control system
L538-1493/31405-; 120-9
120.4 Transmission electronics 120-13
120.4.1 Overview of the electronic control system
L538-1493/31405-; 120-13
120.4.2 Output speed sensor and travel motor 2 speed sensor
1 538-1493/31405-; 120-14
120.4.3 Coupling pressure switch
1L538-1493/331437-; 120-15
130 Axles and drive shafts 130-1
130.1 Axles 130-2
130.1.1 Front axle
L538-1493/31405-; 130-2
130.1.2 Rear axle
L538-1493/31405-; 130-7
130.2 Cardan shafts 130-
140 Steel parts of the basic machine 140-1
140.1 Vehicle frame 140-2
140.1.1 Articulation bearing
L538-1493/31405-; 140-2
140.1.2 Articulation lock
L538-1493/31405~; 140-3
150 Working attachment 150-1
150.1 Lift arms for Z kinematics 150-2
1560.1.1 Z kinematics lift arms
L538-1493/31405-; 150-2
160.1.2 Pin bearing 150-2
150.1.2.1 Z kinematics standard pin bearing
L538-1493/31405-; 150-3
160.2 Lift arms for P kinematics 150-4
150.2.1 P kinematics lift arm
1 538-1493/31405-; 150-4
150.3 Quick coupler 150-5
160.3.1 Z kinematics quick coupler
L538-1493/31405~; 150-5
150.3.2 P kinematics quick coupler
1 538-1493/31405-; 150-8
160 Operator’s cab, heating and air conditioning 160-1
160.1 Overview of the cab, heating and air conditioning unit
L538-1493/31405-; 160-3
160.2 Display and control elements 160-5
160.2.1 Electrical components in the control panel 160-5
160.2.1.1 Overview of electrical components in the control
panel
L538-1493/31405-; 160-5
160.2.1.2 Control unit for main functions
L538-1493/31405~; 160-5
160.2.1.3 Starter switch
1538-1493/31405-; 160-8
160.2.2 Display
1 538-1493/31405-; 160-9
160.2.3 Control lever
L538-1493/31405-; 160-10
160.3.1 Overview of the heating, ventilation and air conditioning system
L538-1493/31405-; 160-13
160.3.2 Heating and air conditioning unit 160-16
160.3.2.1 Heater/blower unit
L538-1493/31405-; 160-16
160.3.2.2 Blower
L538-1493/31405-; 160-19
160.4 Air conditioning 160-20
160.4.1 Air conditioning (optional)
L538-1493/31405-; 160-20
160.4.2 Condenser
L538-1493/31405-; 160-23
160.4.3 Dryer
L538-1493/31405-; 160-23
160.4.4 Air conditioning pressure switch
L538-1493/31405-; 160-25
160.4.5 Evaporator
L538-1493/31405-; 160-27
200 Diagnosis 200-1
200.1 Malfunctions 200-2
200.1.1 Warning symbols 200-2
200.1.2 Service code indicator in the display 200-2
200.2 Troubleshooting 200-5
200.2.1 Replacing fuses 200-5
200.2.1.1 Fuses in the battery compartment 200-5
200.2.1.2 Plug-in fuses on the relay and fuse board 200-6
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
S.V
