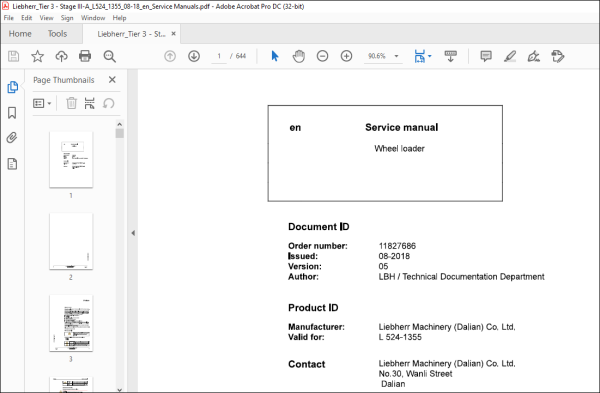

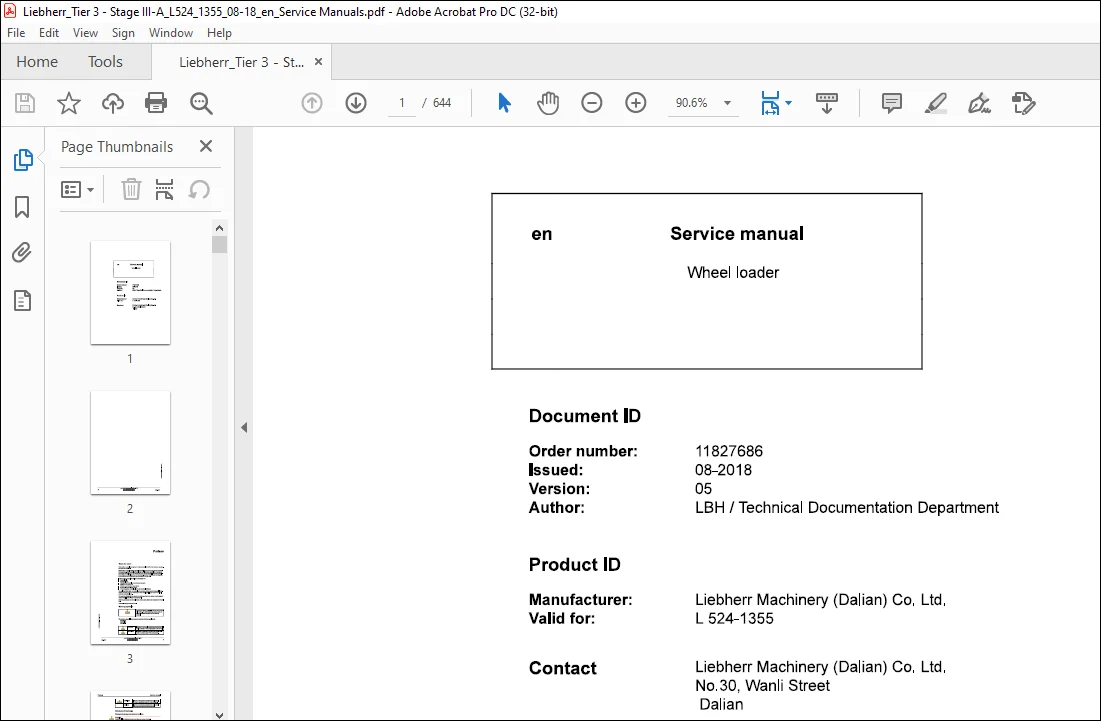

Liebherr L 524 1355 Wheel Loader Service Manual – PDF DOWNLOAD
FILE DETAILS:
Liebherr L 524 1355 Wheel Loader Service Manual – PDF DOWNLOAD
Language : English
Pages : 644
Downloadable : Yes
File Type : PDF
Size: 140 MB
DESCRIPTION:
Liebherr L 524 1355 Wheel Loader Service Manual – PDF DOWNLOAD
- This service manual is designed for trained specialist staff of the Liebherr organisation and their dealers.
- This service manual contains specialist knowledge for repairing Liebherr construc- tion machines. Basic specialist knowledge on electronics, hydraulics, mechanics and engine technology is not contained in this service manual. Therefore special- ized training and qualifications are necessary. Liebherr recommends participating in the Liebherr training program for construction machines.
In this service manual you will find information on:
- You will find information on controls and operation in the operator’s manual. Information on spare parts are in the spare parts catalogue. Please observe the local accident prevention laws.
- You can find information on repairs of machine parts in the service documentation under “Wheel loader – repair instructions”.
Safety instructions
General safety instructions
1. Familiarise yourself with the operator’s manual before starting up the
machine.
Make sure that you are in possession of additional instructions for any special
equipment installed on your machine, and that you have read and understood
them.
2. Only expressly authorised personnel may operate, service or repair the
machine.
Observe the legal minimum ages.
3. Only trained or instructed personnel may operate the machine. Clearly assign
responsibility for operation, rigging, maintenance and repair work.
4. The operator of the machine must ensure that no persons are in the operating
area of the machine on the basis of a risk assessment conducted in respect of
the operating site.
5. Clearly establish the driver’s responsibilities (also with respect to traffic regulations)
and authorise him to refuse to carry out unsafe instructions from third
parties.
6. Personnel undergoing training and instruction, or who are not yet fully qualified,
may only be allowed to work on the machine under constant supervision
by an experienced person.
7. Now and again, check that your personnel are working safely and are aware of
possible dangers in observance of the operator’s manual.
8. Wear safe working clothes when working on the machine.
Do not wear rings, wristwatches, ties, scarves, unbuttoned jackets, loose
clothing or similar garments, as they can become caught in the machinery and
cause injury.
Certain tasks require: safety glasses, safety boots, hard hats, protective
gloves, reflective vests, ear protection etc.
9. Ask the site manager about any special safety regulations in force on the
construction site.
10. Do not hold onto the steering column, the control panel or the control levers
when getting on or off the machine.
You might inadvertently trigger movements which could lead to accidents.
11. Never jump down from the machine. Use the steps, ladders and platforms
provided for getting on and off.
12. Keep all handles, steps, rails, gangways, platforms and ladders free from oil,
grease, mud snow and ice. This reduces the risk of slipping, tripping up or
falling.
13. Familiarise yourself with the emergency exit through the right cab door and/or
the rear window.
14. Unless there are other instructions, perform maintenance and repair work as
follows:
Procedure:
• Park the machine on firm, level ground and lower the working attachment
to the ground.
• Move all control levers to neutral.
• Turn off the diesel engine and take out the ignition key.
15. Before all work on the hydraulic system, depressurise the hydraulic circuits
and the hydraulic tank as described in the operator’s manual.
16. Lock the working hydraulics to prevent accidental actuation before leaving the
operator’s seat.

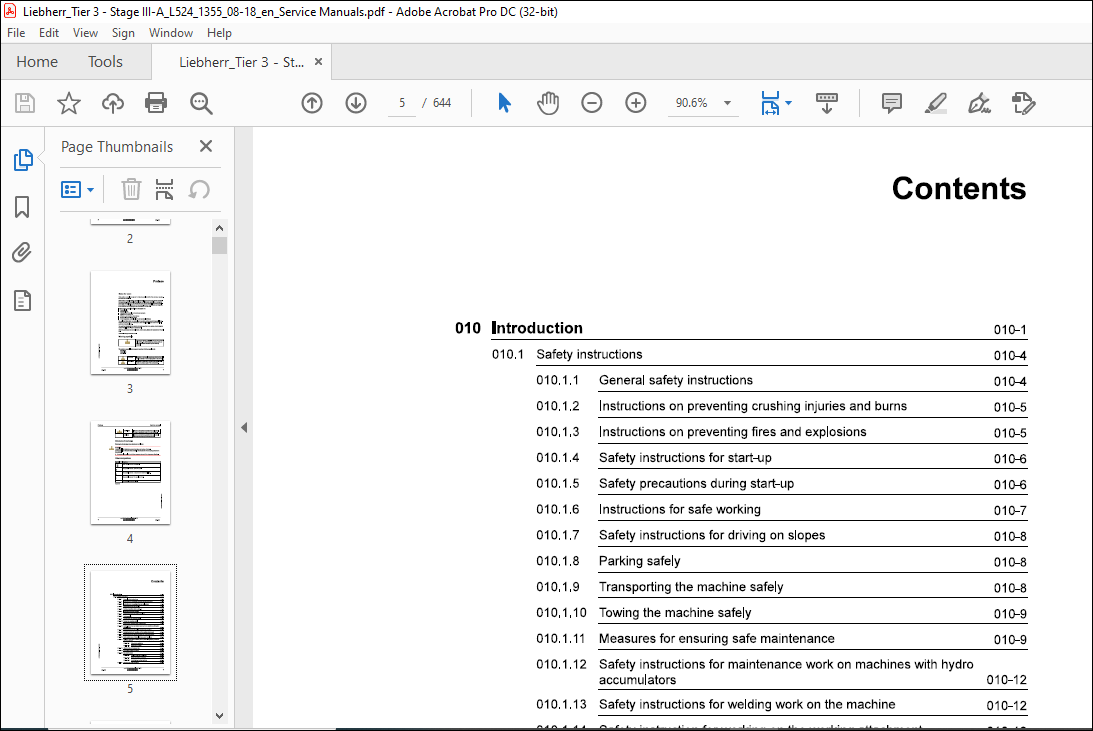

TABLE OF CONTENTS:
Liebherr L 524 1355 Wheel Loader Service Manual – PDF DOWNLOAD
010.1 Safety instructions 010-4
0101.1 General safety instructions 010-4
010.1.2 Instructions on preventing crushing injuries and burns 010-5
010.1.3 Instructions on preventing fires and explosions 010-5
010.14 Safety instructions for start-up 010-6
0101.5 Safety precautions during start-up 010-6
010.1.6 Instructions for safe working 010-7
010.1.7 Safety instructions for driving on slopes 010-8
0101.8 Parking safely 010-8
010.1.9 Transporting the machine safely 010-8
010.1.10 Towing the machine safely 010-9
010.1.11 Measures for ensuring safe maintenance 010-9
010.1.12 Safety instructions for maintenance work on machines with hydro
accumulators 010-12
010.1.13 Safety instructions for welding work on the machine 010-12
010.1.14 Safety instruction for working on the working attachment 010-12
010.1.15 Safety instructions for transporting the machine by crane 010-13
010.1.16 Safe maintenance of hydraulic hoses and hose lines 010-13
010.1.17 Roll over protective structure (ROPS) and falling object protection
structure (FOPS) 010-14
010.1.17.1 Preventing accidents 010-14
010.1.17.2 Preventing injuries 010-14
010.1.18 Attachments and accessories 010-14
010.1.19 Protection against vibrations 010-15
010.1.20 See and be seen 010-15
010.1.20.1 Field of view and visual aids 010-15
010.1.20.2 Measures during operation. 010-16
010.1.20.3 Modifications to the machine 010-16
010.1.21 Danger area of the machine 010-16
010.2 Special tools for maintenance and repair work 010-18
010.2.1 Special tools, general 010-18
010.2.2 Special tools for the diesel engine 010-18
010.2.3 Special tools for Z kinematics lift cylinder 010-19
010.2.4 Special tools for Z kinematics tilt cylinder 010-19
010.25 Special tools for P kinematics lift cylinder 010-20
010.2.6 Special tools for P kinematics tilt cylinder 010-20
010.2.7 Special tools for steering cylinders 010-20
010.2.8 Special tools for the electrical system 010-20
010.2.9 Special tools for axles 010-21
010.2.10 Special tools for the air conditioning system 010-21
010.2.11 Special tools for cab glazing 010-22
010.2.12 Special tools for the central lubrication system 010-22
Standards and regulations 010-24
010.3.1 Prestressing forces and tightening torques for bolts with metric
010.3.1.1 Range of application and purpose 010-24
010.3.1.2 Other applicable documents 010-24
010.3.1.3 Modifications and descriptions 010-25
010.3.1.4 Tightening torques 010-25
010.3.2 Assembly instructions for the piston and piston nut of the hydraulic
cylinder (WN 4121) 010-31
010.3.2.1 Range of application and purpose 010-31
010.3.2.2 Requirements and description 010-31
010.3.2.3 Amendments 010-36
010.3.2.4 Other applicable documents 010-36
010.3.2.5 Maximum adapter operating pressure 010-41
Preservation guidelines 010-42
010.4.1 General information 010-42
010.4.2 Machine out of service for an unknown period of time 010-42
010.4.3 Putting the machine out of service 010-43
010.4.3.1 Out of service for up to 2 months 010-43
010.4.3.2 Out of service for up to 12 months 010-44
010.4.3.3 Out of service for longer than 12 months 010-45
010.4.4 Putting back into service 010-45
0104.41 After being out of service for 2 months 010-45
020.1 Drive group 020-4
020.1.1 Engine
L524-1355/26612-; 020-4
0201.2 Fuel tank
L524-1355/26612-; 020-5
020.1.3 Fuel level sensor
L524-1355/26212-; 020-5
020.1.4 Fuel pre-filter (separator filter)
L524-1355/26612-; 020-6
020.1.5 Air filter vacuum switch
L524-1355/26612-; 020-6
0201.6 Clutch
L524-1355/26212-; 020-6
020.2 Cooling system 020-7
020.2.1 Water cooler
L524-1355/26212-; 020-7
0202.2 Fan gear pump
1L524-1355/26212-; 020-7
020.2.3 Fan gear motor
L524-1355/26212-; 020-7
020.3 Working hydraulics 020-8
020.3.1 Working hydraulics pump
1L524-1355/26212-; 020-8
020.3.2 Z kinematics control valve block
L524-1355/26212-; 020-8
020.3.3 P kinematics control valve block
L524-1355/26212-; 020-8
020.3.4 Pilot control hydro accumulator
L524-1355/26212-; 020-9
020.3.5 Stabilisation module (optional)
L524-1355/26212-; 020-9
020.3.6 Ride control hydro accumulator (optional)
L524-1355/26212-; 020-9
020.3.7 Z kinematics lift cylinder
L524-1355/26212-; 020-9
020.3.8 Z kinematics tilt cylinder
L524-1355/26212-; 020-10
020.3.9 P kinematics lift cylinder
L524-1355/26212-; 020-10
Travel hydraulics 020-12
020.4.1 Travel pump
020.4.2 Travel motor 1
020.4.3 Travel motor 2
Hydraulic components 020-14
020.5.1 Filter unit
020.5.2 Breather filter
Steering system 020-15
020.6.1 Servostat
020.6.2 Steering cylinder
020.6.3 Emergency steering pump
020.6.4 Emergency steering pressure switch B3
020.6.5 Emergency steering check pressure switch B3a
Brake system 020-17
020.7.1 Service brake hydro accumulator
020.7.2 Brake light pressure switch B12
020.7.3 Accumulator charge pressure switch B19
020.7.4 Disc brake
020.7.5 Parking brake hydro accumulator
Electrical system 020-19
020.8.1 Central control unit (UEC3)
020.8.2 Battery
020.8.3 Voltage transformer
020.9.1 Transmission
1L524-1355/26212-; 020-21
020.9.2 Output speed sensor B1 and travel motor 2 speed sensor B2
L524-1355/26212-; 020-21
020.10 Axles and drive shafts 020-22
020.10.1 Front axle
1L524-1355/26212-; 020-22
020.10.2 Rear axle
L524-1355/26212-; 020-22
020.10.3 Cardan shaft
L524-1355/26212-; 020-22
020.11 Steel parts of the basic machine 020-24
020.11.1 Ballast weight
L524-1355/26612-; 020-24
020.12 Operator’s cab, heating and air conditioning 020-25
020.12.1 Dryer
L524-1355/26212-; 020-25
020.12.2 Pressure switches
L524-1355/26212-; 020-25
020.12.3 Anti-icing temperature sensor
L524-1355/26212-; 020-25
020.13 Lubrication system 020-27
020.13.1 Central lubrication pump EP1
L524-1355/26612-; 020-27
Maintenance 030-1
030.1 Maintenance and inspection schedule 030-9
030.2 Filling quantities and lubrication chart 030-14
0302.1 Recommended lubricants
1L524-1355/26612-; 030-14
030.2.2 Recommended operating fluids
L524-1355/26612-; 030-15
030.3 Lubricants and fuels 030-16
030.3.1 General information on changing lubricants and fuels 030-16
030.3.2 Converting hydraulic system from mineral oils to biodegradable
hydraulic fluids 030-16
0303.3 Diesel fuels
L524-1355/26612-; 030-17
030.3.3.1 Specification 030-17
030.3.3.2 High sulphur content in the diesel fuel 030-17
Contents Service manual
030.3.3.3 Diesel fuel at low temperatures (winter operation) 030-17
030.3.4 Lubricating oils for diesel engines
1524-1355/26612-; 030-18
030.3.4.1 Lubricating oil quality 030-18
030.3.4.2 Lubricating oil viscosity 030-18
030.3.4.3 Lubricating oil change intervals 030-19
030.3.5 Refrigerant
1524-1355; 030-20
030.3.86 Coolant
L524-1355/26212-; 030-20
030.3.6.1 Requirements for the water used 030-20
030.3.6.2 Antifreeze and corrosion inhibitor 030-20
030.3.6.3 Minimum quality requirement 030-20
030.3.7 Hydraulic oil
L524-1355/26212-; 030-21
030.3.7.1 Liebherr hydraulic oil 030-21
030.3.7.2 Using engine oil as hydraulic oil 030-21
030.3.7.3 Warming up 030-22
030.3.7.4 Biodegradable hydraulic oils 030-22
030.3.7.5 Changing the oil, analysing the oil, changing filters 030-23
030.3.8 Lubricating oils for transmissions
1524-1355/26612-; 030-24
030.3.9 Lubricating oils for axles
L524-1355/26612-; 030-25
030.3.10 Lubrication grease and other lubricants
L524-1355/26212-; 030-26
030.3.10.1 Minimum quality requirements 030-26
030.3.10.2 Liebherr lubrication grease 030-26
030.4 Maintenance tasks 030-28
030.4.1 Safety precautions
L524-1355/26212-; 030-28
030.4.2 Preparatory tasks for maintenance 030-28
030.4.2.1 Maintenance positions
L524-1355/26612-; 030-29
030.4.2.2 Opening the service accesses
1.524-1355/26612-; 030-30
0304.23 Turning off the battery main switch
L524-1355/26612-; 030-32
030.4.3 Overall machine 030-32
L524-1355/26212-; 030-32
030.4.3.2 Removing loose parts, dirt, ice and snow from the
machine
L524-1355/26212-; 030-32
030.4.3.3 Cleaning the machine
L524-1355/26212-; 030-33
030.4.3.4 Checking the machine for leaks
1524-1355/26212-; 030-34
030.4.3.5 Making sure the bolted connections are tight
1524-1355/26212-; 030-35
030.4.3.6 Corrosion protection system for use with salt and arti-
ficial fertilisers (optional): Carrying out corrosion
protection
L524-1355/26612-; 030-35
030.4.3.7 Qil analyses
1524-1355/26212-; 030-35
0304.4 Drive group 030-41
030.4.4.1 Checking the engine oil level
L524-1355/26612-; 030-41
030.44.2 Changing the engine oil
1524-1355/26612-; 030-42
030.4.4.3 Changing the engine oil filter
L524-1355/26612-; 030-43
030.4.4.4 Checking the V-ribbed belt on the engine
L524-1355/26612-; 030-44
030.4.4.5 Changing V-ribbed belt of diesel engine
L524-1355/26612-; 030-45
030.44.6 Checking the engine valve clearance
L524-1355/26612-; 030-47
030.4.4.7 Checking the bleeder filter of the crankcase
L524-1355/26612-; 030-49
030.4.4.8 Checking the engine heating flange
L524-1355/26612-; 030-50
030.4.4.9 Draining off condensate and sediment from the fuel
tank
1524-1355/26212-; 030-51
030.4.4.10 Draining off condensate from the Separ fuel pre-filter
L524-1355/26612-; 030-52
030.4.4.11 Draining off condensate from the fuel pre-filter
L524-1355/26612-; 030-53
030.4.4.12 Changing the Separ fuel pre-filter insert
L524-1355/26612-; 030-54
030.4.4.13 Changing the fuel pre-filter
1 524-1355/26612-; 030-56
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1524-1355 LIEBHERR 1
Contents Service manual
030.4.4.14 Changing the fuel fine filter
L524-1355/26612-; 030-57
030.4.4.15 Bleeding the fuel system
1.524-1355/26612-; 030-58
030.4.4.16 Cleaning the air filter service cover and dust
discharge valve
L524-1355/26612-; 030-59
030.4.4.17 Checking the air suction system for leaks and tight
fitting
L524-1355/26612-; 030-61
030.4.4.18 Cleaning or changing the main filter element
1.524-1355/26612-; 030-62
030.4.4.19 Changing the air filter safety element
L524-1355/26612-; 030-65
030.4.4.20 Checking the exhaust system for leaks and tight
fitting
1.524-1355/26612-; 030-66
030.4.5 Cooling system 030-67
030.4.5.1 Checking the coolant level
L524-1355/26212-; 030-67
030.4.5.2 Checking the coolant antifreeze and corrosion inhib-
itor concentration
1.524-1355/26212-; 030-68
030.4.5.3 Cleaning the cooling system
1.524-1355/26212-; 030-72
0304.5.4 Changing the coolant
1.524-1355/26212-; 030-73
030.4.6 Working hydraulics 030-75
030.4.6.1 Lubricating the solenoids, universal joints and
tappets on the pilot control unit
1.524-1355/26212-; 030-75
030.4.7 Hydraulic components 030-76
030.4.7.1 Checking the oil level in the hydraulic tank
1.524-1355/26212-; 030-76
030.4.7.2 Checking and cleaning the magnetic rod on the
hydraulic tank
1.524-1355/26212-35974; 030-77
0304.73 Checking and cleaning the magnetic rod on the
hydraulic tank
L524-1355/35975-; 030-78
030.4.7.4 Draining off condensate and sediment from the
hydraulic tank
1.524-1355/26212-; 030-79
030.4.7.5 Hydraulic tank – changing the return-suction filter
1L524-1355/26212-35974; 030-80
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
12 LIEBHERR Ls2a-1355
LBH/11827686/05/211-20180814_111503/en
L524-1355/35975-; 030-81
030.4.7.7 Changing the hydraulic tank breather filter
1524-1355/26121-; 030-82
030.4.7.8 Changing the oil in the hydraulic system in accord-
ance with oil quality and oil analysis
L524-1355/26212-; 030-82
0304.8 Steering system 030-84
030.4.8.1 Testing the steering
1524-1355/26212-; 030-84
030.4.8.2 Lubricating the bearing points on the steering cylin-
ders
L524-1355/26212-; 030-85
030.4.9 Brake system 030-86
030.4.9.1 Testing the service brake and parking brake
1524-1355/26212-; 030-86
030.4.9.2 Checking the service brake discs for wear
L524-1355/26212-; 030-87
030.4.9.3 Checking the gap and wear on the parking brake
linings
L524-1355/26212-; 030-89
0304.10 Electrical system 030-92
030.4.10.1 Checking the lights
L524-1355/26612-; 030-92
030.4.10.2 Checking the batteries, fluid level and terminals
L524-1355/26612-; 030-93
030.4.10.3 Changing the travel direction rocker switch and cap
(optional) on the control lever
1524-1355/26212-; 030-96
030.4.11 Gearbox 030-98
030.4.11.1 Checking the transmission oil level
L524-1355/26212-; 030-98
030.4.11.2 Changing the transmission oil
L524-1355/26212-; 030-98
030.4.12 Axles and drive shafts 030-99
030.4.12.1 Checking the axle oil levels
L524-1355/26212-; 030-99
030.4.12.2 Changing the axle oil
L524-1355/26212-; 030-100
030.4.12.3 Checking the tightening torque of the front axle
fastening bolts
L524-1355/26212-; 030-102
030.4.124 Checking the cardan shafts
L524-1355/26212-; 030-103
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1524-1355 LIEBHERR 13
Contents Service manual
030.4.12.5 Checking the tyre pressure
L524-1355/26212-; 030-103
0304.126 Checking the wheel tightness (once after 50, 100 and
250 h)
1.524-1355/26212-; 030-104
030.4.13 Steel parts of the basic machine 030-105
030.4.13.1 Lubricating the articulation bearing and the rear axle
oscillating bearing
1.524-1355/26612-; 030-105
030.4.13.2 Covering – lubricating locks and hinges
1.524-1355/26212-; 030-105
030.4.14 Working attachment 030-106
030.4.14.1 Lubricating the lift arms and attachment
L524-1355/26212-; 030-106
030.4.14.2 Checking the lift arm bearing bushings
1.524-1355/26212-; 030-107
030.4.14.3 Checking the lift arm bucket stops (Z kinematics)
L524-1355/26212-; 030-108
030.4.14.4 Lubricating and testing the quick-change device
1.524-1355/26212-; 030-109
030.4.15 Operator’s cab, heating and air conditioning 030-110
030.4.15.1 Cleaning the fresh and recirculated air filters
1.524-1355/26612-; 030-110
0304.15.2 Changing the fresh and recirculated air filters
L524-1355/26612-; 030-112
030.4.15.3 Checking the condition and function of the safety belt
L524-1355/26212-; 030-113
0304.154 Checking and topping up the windscreen washer
reservoir
1.524-1355/26612-; 030-113
0304.15.55 Checking the seals on the driver’s cab
L524-1355/26212-; 030-114
030.4.156 Checking the indicator bead in the air conditioning
dryer-collector unit
L524-1355/26612-; 030-114
030.4.15.7 Testing the air conditioning unit
1.524-1355/26612-; 030-115
030.4.16 Lubrication system 030-116
030.4.16.1 Checking the lubrication system grease reservoir
level
L524-1355/26612-; 030-116
0304.16.2 Checking the pipes, hoses and lubrication points of
the lubrication system
1.524-1355/26612-; 030-116
0305.1 Saving pages from the adjustment checklist 030-122
030.6 Testing and adjustment tasks 030-123
030.6.1 Safety precautions
L524-1355/26212-; 030-123
0306.2 Overall machine 030-124
030.6.2.1 Preparatory tasks for testing and adjustment
1524-1355/26212-; 030-124
030.6.2.2 Bringing the machine up to operating temperature
L524-1355/26212-; 030-125
0306.3 Drive group 030-126
030.6.3.1 Inch/brake pedal calibration
L524-1355/26212-; 030-126
030.6.3.2 Checking the engine speed
L524-1355/26212-; 030-126
030.6.3.3 Reading the diesel engine service files
1524-1355; 030-127
030.6.4 Cooling system 030-129
030.6.4.1 Fan gear motor proportional pressure relief valve
1524-1355/26212-; 030-129
0306.5 Working hydraulics 030-132
030.6.5.1 Working hydraulics pump flow regulator (standby
pressure)
L524-1355/26212-; 030-132
030.6.5.2 Z kinematics control valve block secondary pressure
relief valves
L524-1355/26212-; 030-133
030.6.5.3 Working hydraulics LS pressure cut-off
1524-1355/26212-; 030-135
030.6.5.4 P kinematics control valve block secondary pressure
relief valves
L524-1355/26212-; 030-136
030.6.5.5 Stabilisation module (optional), cut-off function
1524-1355/26212-; 030-138
030.6.5.6 Ride control hydro accumulator (optional), nitrogen
filling
1524-1355/26212-; 030-139
030.6.5.7 Testing the control valve block for leakage
Contents
030.6.6.1 Checking the hydraulic lines for damage
1524-1355; 030-145
030.6.7 Travel hydraulics 030-150
030.6.7.1 Travel pump replenishing pressure relief valve
L524-1355/26212-; 030-150
030.6.7.2 Travel pump high pressure relief valves
1524-1355/26212-; 030-151
030.6.7.3 Travel pump pressure cut-off
L524-1355/26212-; 030-154
030.6.7.4 Travel pump block curve calibration
1524-1355/26212-; 030-155
030.6.7.5 Travel motor 1 start of regulation
L524-1355/26212-; 030-157
030.6.7.6 Travel motor 2 automatic calibration
1524-1355/26212-; 030-159
030.6.7.7 Engine output
L524-1355/26212-; 030-160
030.6.8 Steering system 030-161
030.6.8.1 Steering system LS pressure cut-off
1524-1355/26212-; 030-161
030.6.9 Brake system 030-162
030.6.9.1 Compact brake valve, hydro accumulator charging
function
L524-1355/26212-; 030-162
030.6.9.2 Service brake pressure
1524-1355/26212-; 030-163
030.6.9.3 Service brake hydro accumulator capacity
L524-1355/26212-; 030-164
030.6.9.4 Accumulator charge pressure switch shift pressure
1524-1355/26212-; 030-166
030.6.10 Electrical system 030-167
030.6.10.1 Repairing the Tuple Chain on the central control unit
(UEC3)
L524-1355/26212-; 030-167
030.6.10.2 Resetting central control unit (UEC3)
1524-1355/26212-; 030-172
030.6.11 Gearbox 030-177
030.6.11.1 Transmission hydro accumulator nitrogen filling
1524-1355/26212-; 030-177
040 Drive group 040-1
040.1 Engine 040-2
040.1.1 Diesel engine overview
L524-1355/26212-; 040-2
040.1.2 Crankshaft speed sensor
L524-1355/26212-; 040-6
040.1.3 Fuel temperature sensor
L524-1355/26212-; 040-7
040.14 Charge air temperature sensor
L524-1355/26212-; 040-7
040.1.5 Fuel system 040-8
040.1.5.1 Overview of the fuel system
L524-1355/26212-; 040-8
040.1.5.2 Fuel pre-filter
L524-1355/26212-; 040-15
040.1.5.3 Separ fuel pre-filter
L524-1355/26212-; 040-16
040.1.5.4 Fuel fine filter
1524-1355/26212-; 040-17
040.1.6 Air filter system 040-17
040.1.6.1 Overview of the air filter unit
L524-1355/26212-; 040-18
040.1.6.2 Air filter
L524-1355/26212-; 040-19
040.2 Clutch
1.524-1355/26212-; 040-20
050 Cooling system 050-1
050.1 Overview of the cooling system
1.524-1355/26212-; 050-2
050.2 Cooling system hydraulics 050-4
050.2.1 Overview of the hydraulics cooling system
L524-1355/26212-; 050-4
050.2.2 Fan gear pump
L524-1355/26212-; 050-6
050.2.3 Fan gear motor
L524-1355/26212-; 050-7
050.3 Cooling system electronics 050-11
050.3.1 Electronic control system — general overview
L524-1355/26212-; 050-11
050.3.2 Coolant temperature sensor
L524-1355/26212-; 050-12
050.3.3 Hydraulic oil temperature sensor
L524-1355/26212-; 050-13
050.3.4 Charge air temperature sensor
L524-1355/26212-; 050-15
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1524-1355 LIEBHERR 17
Contents Service manual
050.4.1 Water cooler
1524-1355/26212-; 050-17
050.4.2 Hydraulic oil cooler
L524-1355/26212-; 050-18
050.4.3 Intercooler
L524-1355/26212-; 050-20
050.5 Reversible fan drive 050-21
050.5.1 Reversible fan drive
L524-1355/26212-; 050-21
060 Working hydraulics 060-1
0680.1 Overview of z kinematics working hydraulics
L524-1355/26212-; 060-3
060.2 Overview of working hydraulics for p kinematics
L524-1355/26212-; 060-8
060.3 Working hydraulics pump
L524-1355/26212-; 060-13
060.4 Control valve block for Z-bar kinematics
1L524-1355/26212-; 060-17
080.5 Control valve block for P kinematics
L524-1355/26212-; 060-23
060.6 Pilot control 060-28
060.6.1 Overview of the pilot control unit
L524-1355/26212-; 060-28
060.6.2 Pilot control unit
L524-1355/26212-; 060-29
060.6.3 Working hydraulics lockout solenoid valve
1524-1355/26212-; 060-34
060.6.4 Pilot control hydro accumulator
L524-1355/26212-; 060-35
060.7 Ride control 060-36
060.7.1 Ride control overview
1L524-1355/26212-; 060-36
060.7.2 Stabilisation module
1524-1355/26212-; 060-37
060.7.3 Ride control hydro accumulator
L524-1355/26212-; 060-42
060.8 Hydraulic cylinders of the working hydraulics 060-43
060.8.1 Hydraulic cylinders for Z kinematics 060-43
060.8.1.1 Z kinematics lift cylinder
1524-1355/26212-; 060-43
Service manual Contents
0608.2 Hydraulic cylinders for P kinematics 060-46
060.8.2.1 P kinematics lift cylinder
L524-1355/26212-; 060-47
060.8.2.2 P kinematics tilt cylinder
L524-1355/26212-; 060-48
070 Travel hydraulics 070-1
070.1 Travel hydraulics overview
1524-1355/26212-36291; 070-2
070.2 Travel hydraulics overview
L524-1355/36292-; 070-7
070.3 Travel pump
1524-1355/26212-36291; 070-12
070.4 Travel pump
1524-1355/36292-; 070-26
070.5 Travel motors 070-41
070.5.1 Overview of the travel motors
1L524-1355/26212-; 070-41
0705.2 Travel motor 1
L524-1355/26212-; 070-43
070.5.3 Travel motor 2
1L524-1355/26212-; 070-50
080 Hydraulic components 080-1
080.1 Hydraulic tank 080-2
080.1.1 Overview of the hydraulic tank
L524-1355/26212-; 080-2
080.1.2 Filter unit
L524-1355/26212-; 080-4
080.1.3 Breather filter
5 L524-1355/26212-; 080-9
8
: 090 Steering system 090-1
8
8 090.1 Steering system overview
§ L524-1355/26212-35802; 090-2
g 090.2 Steering system overview
g L524-1355/35803~; 090-6
& 090.3 Servostat
1524-1355/26212-; 090-10
090.4 Steering cylinder 090-14
Contents
090.4.2 Steering cylinder overview
1524-1355/35803-; 090-16
090.4.3 Steering damper hydro accumulator
L524-1355/35803-; 090-18
090.5 Emergency steering 090-19
090.5.1 Emergency steering overview
1 524-1355/26212-; 090-19
090.5.2 Emergency steering pump
1524-1355/26212-; 090-20
090.5.3 Emergency steering electronics 090-22
090.5.3.1 Overview of the electronic control system
L524-1355/26212-; 090-22
090.5.3.2 Emergency steering pressure switch
1.524-1355/26212-; 090-23
090.5.3.3 Emergency steering check pressure switch
L524-1355/26212-; 090-24
090.5.4 Valve block
L524-1355/26212-; 090-25
100 Brake system 100-1
100.1 Overview of the brake system
L524-1355/26212-; 100-2
100.2 Service brake and parking brake 100-4
100.2.1 Brake system gear pump
L524-1355/26212-; 100-4
100.2.2 Compact brake valve
1524-1355/26212; 100-5
100.3 Service brake 100-12
100.3.1 Overview of the service brake
L524-1355/26212-; 100-12
100.3.2 Service brake hydro accumulator
1524-1355/26212-; 100-15
100.3.3 Brake light pressure switch
1524-1355/26212-; 100-16
100.3.4 Accumulator charge pressure switch
L524-1355/26212-; 100-17
100.4 Parking brake 100-18
100.4.1 Overview of the parking brake
1524-1355/26212-; 100-18
100.4.2 Disc brake
L524-1355/26212-; 100-21
LBH/11827686/05/211-20180814_111503/en
110 Electrical system 110-1
110.1 Overview of the electrical system
L524-1355/26212-; 110-2
110.2 Lighting
1L524-1355/26212-; 110-7
110.3 Circuit diagrams
1524-1355/26612-; 110-9
110.4 Electronic control unit 110-11
110.4.1 Overview of the electronic control system
L524-1355/26212-; 110-11
110.4.2 Central control unit (UEC3)
L524-1355/26212-; 110-13
110.5 Electrical components of the driver’s cab 110-18
110.5.1 Fuse and relay board
L524-1355/26212-; 110-18
110.6 Electrical components in the rear section 110-22
110.6.1 Battery installation
L524-1355/26212-; 110-22
120 Gearbox 120-1
120.1 Overview of the transmission
1L524-1355/26212-; 120-2
120.2 Mechanical transmission
1524-1355/26212-; 120-3
120.3 Transmission hydraulics 120-9
120.3.1 Overview of the hydraulic control system
L524-1355/26212-; 120-9
120.4 Transmission electronics 120-13
120.4.1 Overview of the electronic control system
L524-1355/26212-; 120-13
120.4.2 Output speed sensor and travel motor 2 speed sensor
L524-1355/26212-; 120-14
120.4.3 Coupling pressure switch
L524-1355/26212-; 120-16
130 Axles and drive shafts 130-1
130.1 Axles 130-2
130.1.1 Front axle
L524-1355/26212-; 130-2
copyright ® Liebherr Machinery (Dalian) Co. Ltd. 2018
1524-1355 LIEBHERR 2
Contents
L524-1355/26212~; 130-7
130.2 Cardan shafts 130-8
130.2.1 Cardan shaft
L524-1355/26212~; 130-8
140 Steel parts of the basic machine 140-1
140.1 Vehicle frame 140-2
140.1.1 Articulation bearing
L524-1355/26212~; 140-2
140.1.2 Articulation lock
1524-1355/26212-; 140-3
150 Working attachment 150-1
150.1 Lift arms for Z kinematics 150-2
1560.1.1 Z kinematics lift arms
L524-1355/26212~; 150-2
150.1.2 Pin bearing 150-2
160.1.2.1 Z kinematics standard pin bearing
1524-1355/26212-; 150-3
1560.2 Lift arms for P kinematics 150-4
1560.2.1 P kinematics lift arm
L524-1355/26212~; 150-4
150.3 Quick coupler 150-5
1560.3.1 Z kinematics quick coupler
1524-1355/26212-; 150-5
1560.3.2 P kinematics quick coupler
L524-1355/26212-; 150-8
160 Operator’s cab, heating and air conditioning 160-1
160.1 Overview of the cab, heating and air conditioning unit
1L524-1355/26212-; 160-3
160.2 Display and control elements 160-5
160.2.1 Electrical components in the control panel 160-5
160.2.1.1 Overview of electrical components in the control
panel
L524-1355/26212~; 160-5
160.2.1.2 Control unit for main functions
1524-1355/26212-; 160-5
160.2.1.3 Starter switch
L524-1355/26212~; 160-8
LBH/11827686/05/211-20180814_111503/en
L524-1355/26212-; 160-9
160.2.3 Control lever
L524-1355/26212-; 160-10
160.3 Heating, ventilation, air conditioning 160-13
160.3.1 Overview of the heating, ventilation and air conditioning system
L524-1355/26212-; 160-13
160.3.2 Heating and air conditioning unit 160-16
160.3.2.1 Heater/blower unit
L524-1355/26212-; 160-16
160.3.2.2 Blower
L524-1355/26212-; 160-19
160.4 Air conditioning 160-20
160.4.1 Air conditioning (optional)
L524-1355/26212-; 160-20
1604.2 Condenser
L524-1355/26212-; 160-23
160.4.3 Dryer
L524-1355/26212-; 160-23
160.4.4 Air conditioning pressure switch
L524-1355/26212-; 160-25
160.4.5 Evaporator
L524-1355/26212-; 160-27
200 Diagnosis 200-1
200.1 Malfunctions 200-2
200.1.1 Warning symbols 200-2
200.1.2 Service code indicator in the display 200-2
200.2 Troubleshooting 200-5
200.21 Replacing fuses 200-5
200.2.1.1 Fuses in the battery compartment 200-5
200.2.1.2 Plug-in fuses on the relay and fuse board 200-6

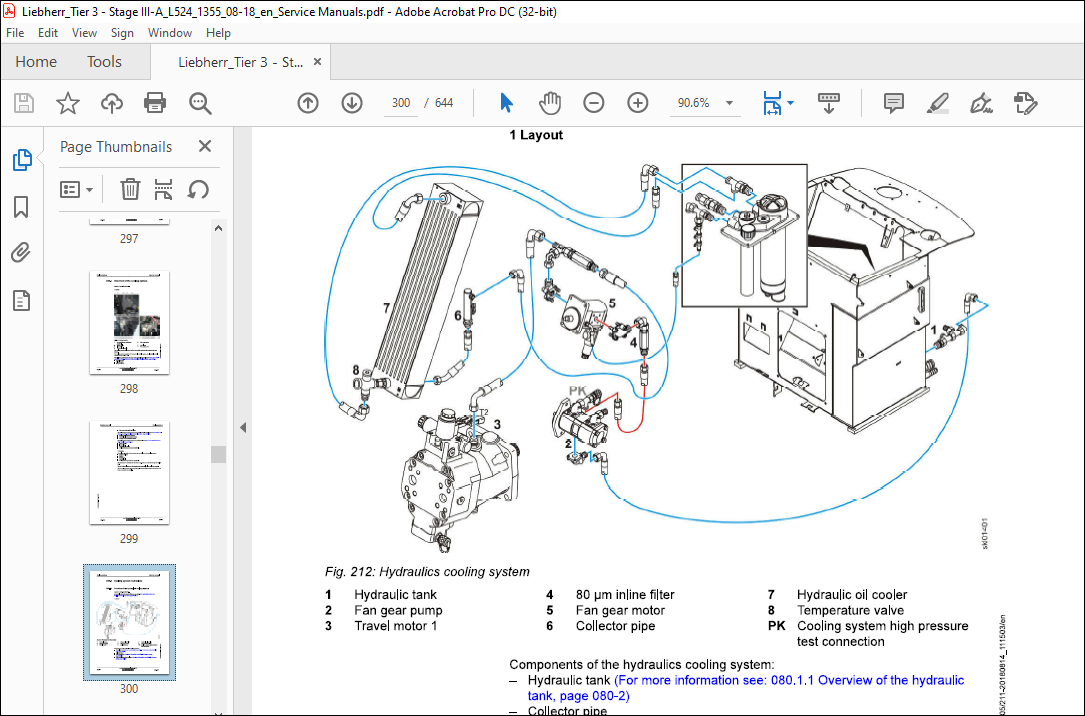

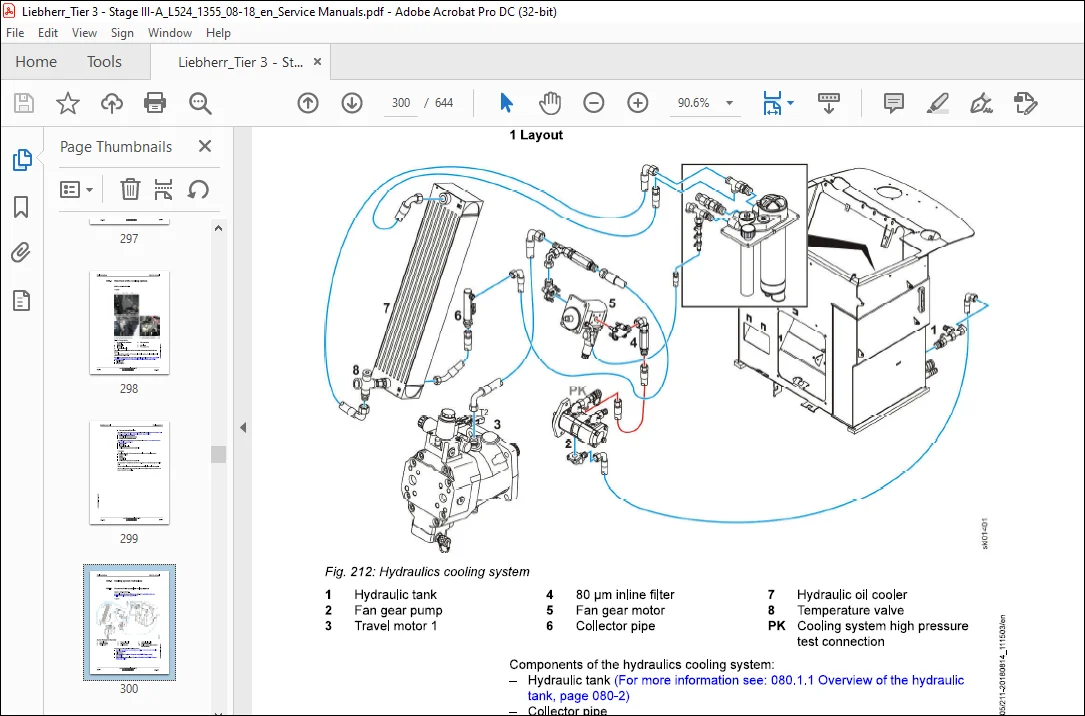

VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
S.V
