Laverda EU Harvesting AL QUATTRO TECHNO AL QUATTRO EVO Combines Workshop Service Manual – PDF DOWNLOAD
FILE DETAILS:
Laverda EU Harvesting AL QUATTRO TECHNO AL QUATTRO EVO Combines Workshop Service Manual – PDF DOWNLOAD
Language : English
Pages : 766
Downloadable : Yes
File Type : PDF
Size: 112 MB
TABLE OF CONTENTS:
Laverda EU Harvesting AL QUATTRO TECHNO AL QUATTRO EVO Combines Workshop Service Manual – PDF DOWNLOAD
Cover 1
1 Preface 3
2 General Information – 00 9
3 Engine – 10 57
4 Drive transmission – 14 163
5 Transmission – 21 177
6 Front drive axle – 25 213
7 Hydrostatic transmission – 29 249
8 Brakes – 33 317
9 Hydraulic system – 35 341
10 Steering – 41 393
11 Axles and wheels – 44 403
12 Cab air conditioning system – 50 413
13 Electrical system – 55 427
14 Attachments Headers – 58 619
15 Product feeding – 60 653
16 Threshing – 66 669
17 Separation – 72 703
18 Straw chopper – 73 711
19 Cleaning – 74 723
20 Tank – 80 743
21 Conversion 757
DESCRIPTION:
Laverda EU Harvesting AL QUATTRO TECHNO AL QUATTRO EVO Combines Workshop Service Manual – PDF DOWNLOAD
General instructions:
Important caution:
All repair and maintenance works described in this manual must be carried out only by the AGCO Service
Network, strictly complying with the instructions given and using, whenever required, the special tools.
Anybody who carries out the above operations without scrupulously complying with the instructions shall
be held personally liable for any damage caused as a result of their actions.
Adjustment shims:
During any adjustment, select the adjustment shims by measuring them individually with a micrometer and
then adding up the values obtained: Do not rely on the incorrect measurement of the total shim pack or on
the nominal value given for each ring.
Rotary shaft seals:
For correct rotating shaft seal installation, proceed as follows:
• before fitting the seals, soak them for at least half an hour in the same oil they will be sealing;
• thoroughly clean the shaft and make sure that the shaft working surface is not damaged;
• move the the sealing lip towards the fluid; in the case of a hydrodynamic sealing lip the grooves must
face in such a way that, considering the shaft rotation direction, the fluid is taken back towards the inner
part of the seal;
• smear a thin layer of lubricant on the sealing lip (oil rather than grease) and fill the gap between the
sealing lip and the dust lip with grease on twin lip seals;
• fit the seal in the relevant housing by pressing it or using a drift with a flat contact surface; do not beat it
with a hammer or a mallet;
• during driving, make sure the seal is perpendicular to its housing and, when driving is finished, make
sure it touches the shoulder;
• to prevent the sealing lip from getting damaged by the shaft, lay down suitable protection when fitting
both parts
O-rings:
Lubricate O-rings before fitting them in their seats to prevent them from rolling over and twisting during
fitting, thus jeopardizing their sealing action.
Sealants:
Before laying the sealant on the mating surfaces, prepare them as follows:
• remove any scales with a wire brush;
• thoroughly degrease the surfaces with one of the following cleaning agents: trichloroethylene, oil or a
solution of water and soda.

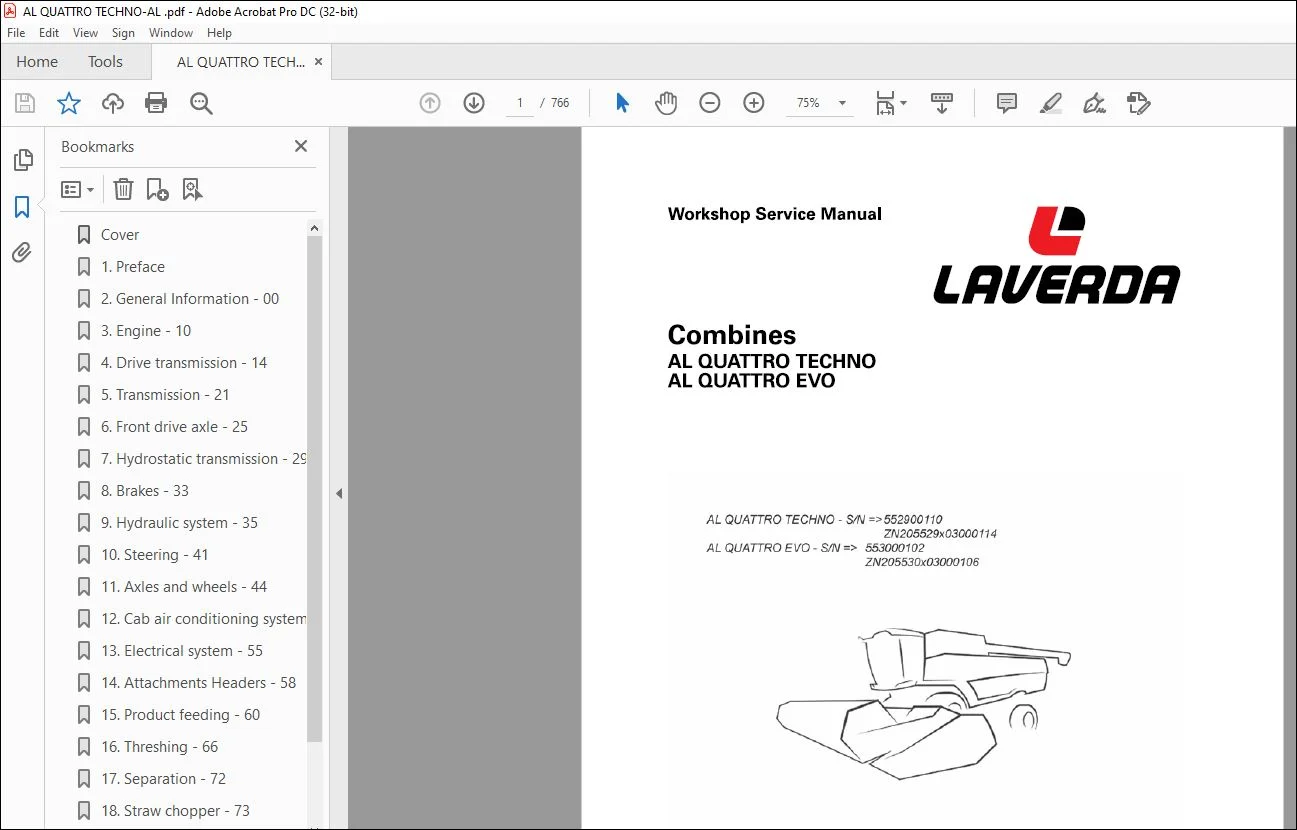

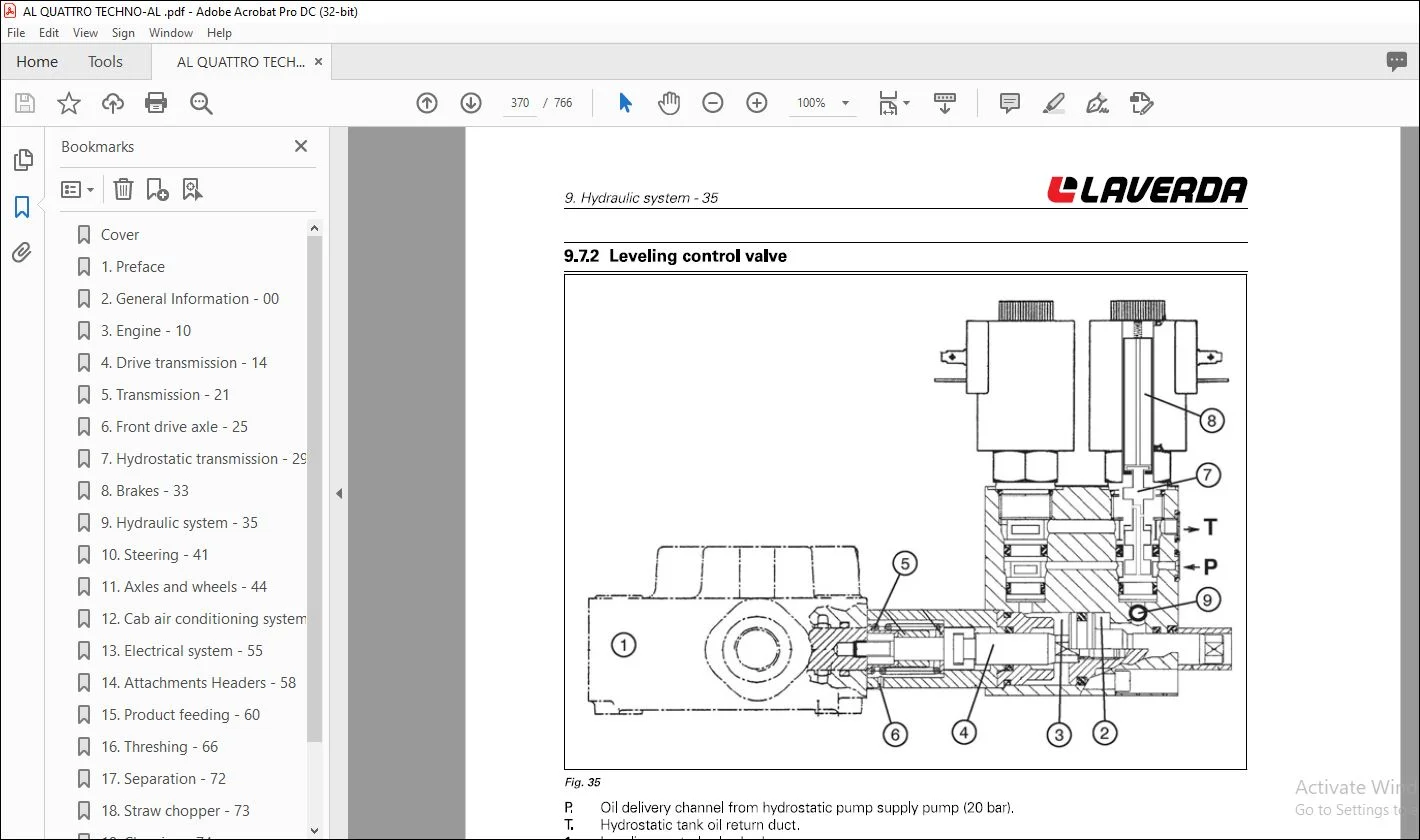

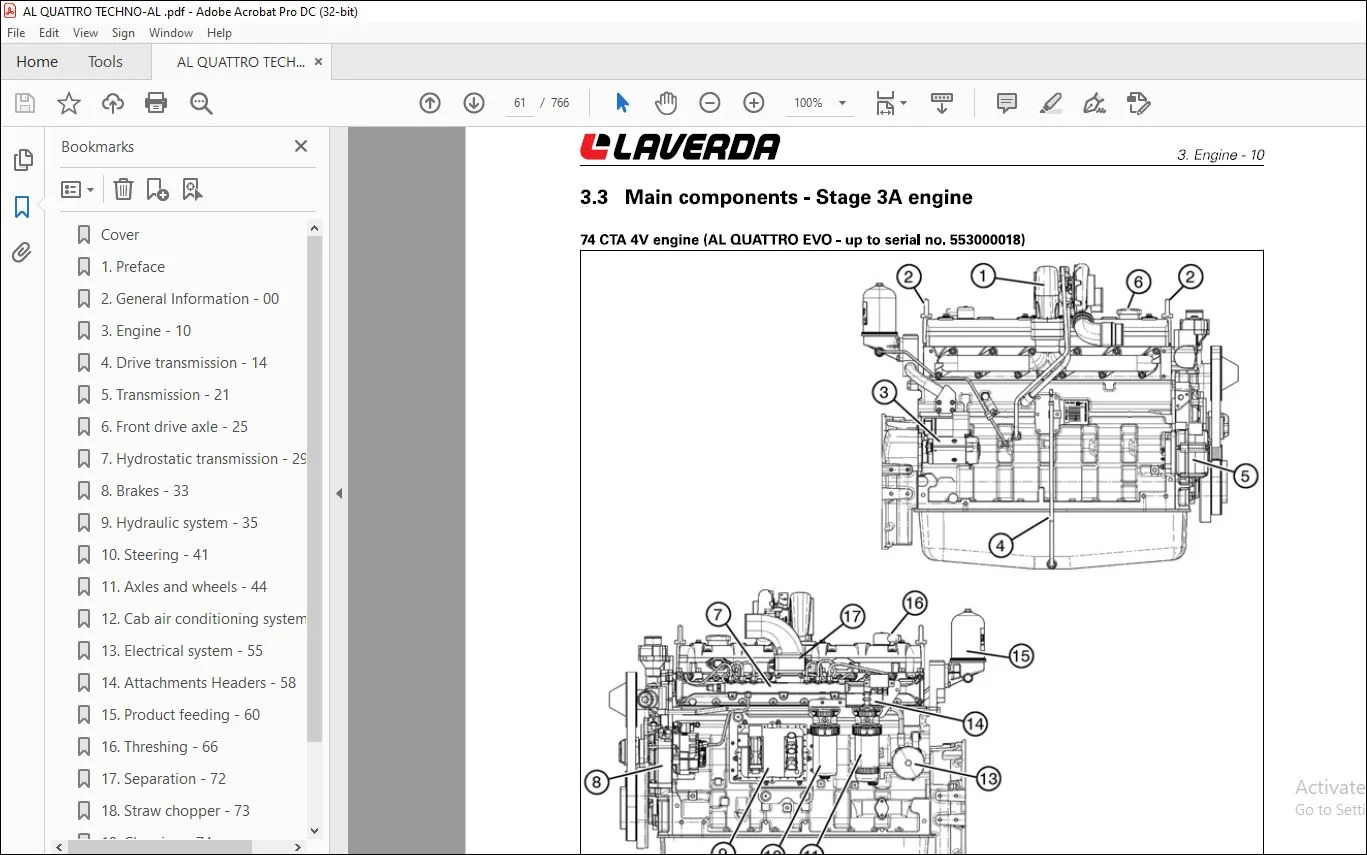

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
