Land Rover Freelander 2002MY Electrical Circuit Diagrams Manual – PDF DOWNLOAD
HOW TO USE THE CIRCUIT DIAGRAMS:
- All of the information in this folder is intended for use with the Electrical
Reference Library booklet. - The circuit diagrams are presented with Power and Earth distribution
first, followed by individual circuits for each electrical system on the
car.
- The Power Distribution diagram shows the connections from the battery to the engine and passenger compartment fuseboxes. It also shows the internal circuitry of the fuseboxes.
- The fuse box details are followed by independent functionally specific circuits and then a Splices and centre taps section outlining the way in which internal harness splices and centre taps distribute power in the harnesses. This information should be used during diagnosis of electrical faults to check for symptoms in associated circuits and narrow down the search area.
Earth Distribution:
The ground distribution section comprises a number of Headers and Splices tables. These are used in a similar manner to those in Power Distribution; to narrow the search area by checking for fault symptoms in associated circuits.
Splices and centre taps:
- Header and splice tables present the joint(s) and wiring up to the first component. Splices are identified by a number with an alphabetical prefix and the wire colour.
- The splice information shown on individual system circuits is not complete. Always refer to the splices circuit for complete information on each splice.

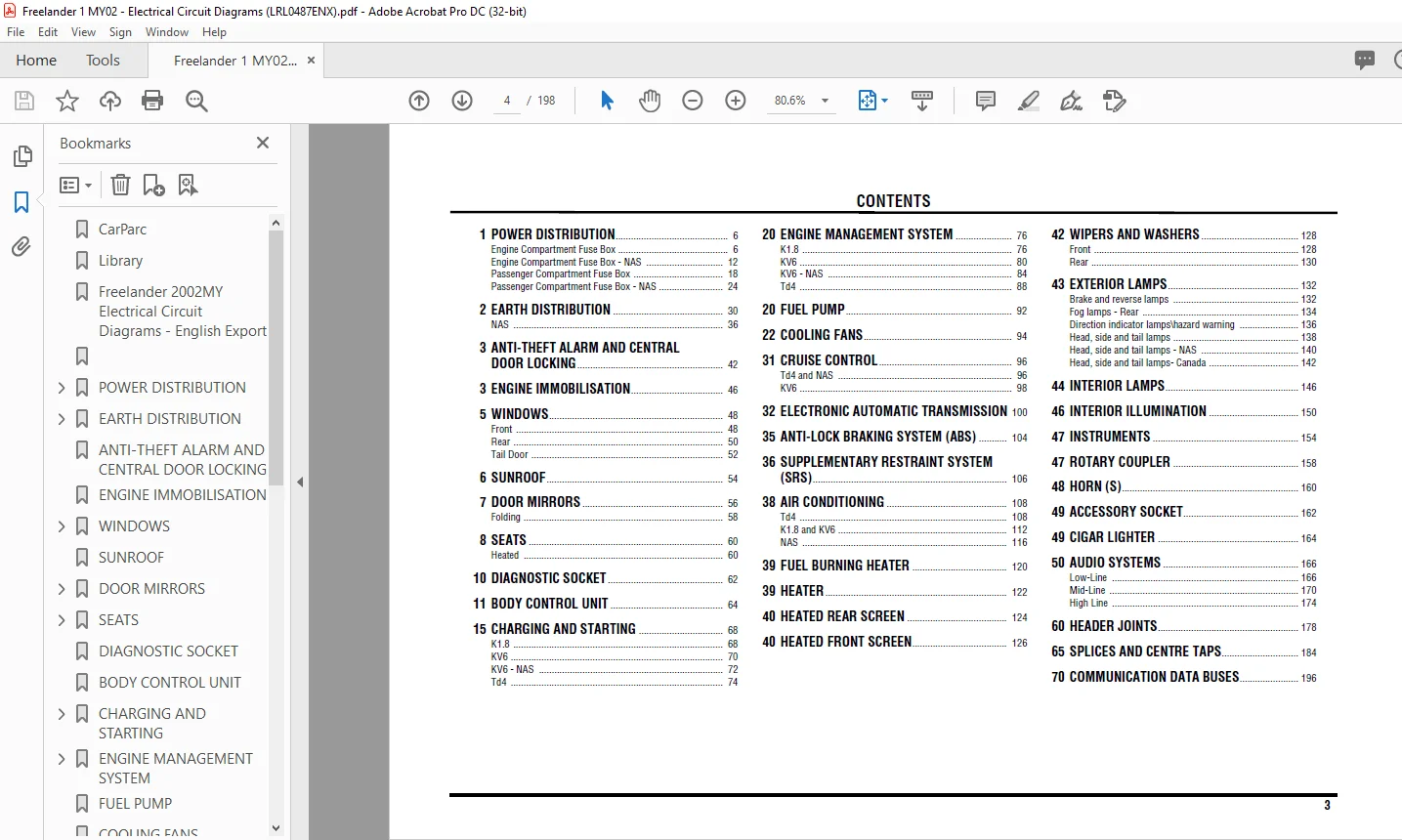

TABLE OF CONTENTS:
Land Rover Freelander 2002MY Electrical Circuit Diagrams Manual – PDF DOWNLOAD
POWER DISTRIBUTION 6
Engine Compartment Fuse Box 6
Engine Compartment Fuse Box – NAS 12
Passenger Compartment Fuse Box 18
Passenger Compartment Fuse Box – NAS 24
2 EARTH DISTRIBUTION 30
NAS 36
3 ANTI-THEFT ALARM AND CENTRAL
DOOR LOCKING 42
3 ENGINE IMMOBILISATION 46
5 WINDOWS 48
Front 48
Rear 50
Tail Door 52
6 SUNROOF 54
7 DOOR MIRRORS 56
Folding 58

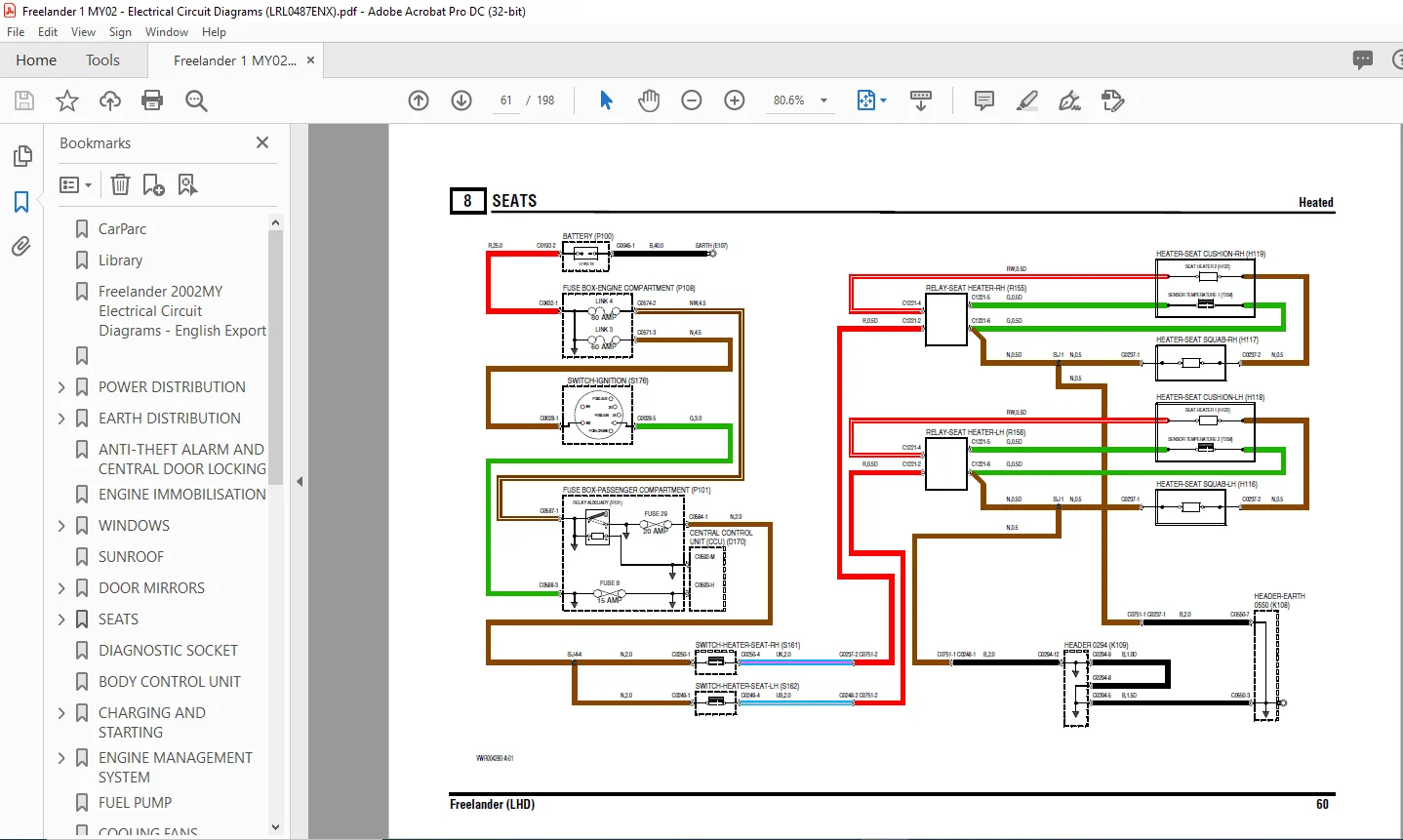

8 SEATS 60
Heated 60
10 DIAGNOSTIC SOCKET 62
11 BODY CONTROL UNIT 64
15 CHARGING AND STARTING 68
K1 8 68
KV6 70
KV6 – NAS 72
Td4 74
20 ENGINE MANAGEMENT SYSTEM 76
K1 8 76
KV6 80
KV6 – NAS 84
Td4 88
20 FUEL PUMP 92
22 COOLING FANS 94
31 CRUISE CONTROL 96
Td4 and NAS 96
KV6 98
32 ELECTRONIC AUTOMATIC TRANSMISSION 100
35 ANTI-LOCK BRAKING SYSTEM (ABS) 104
36 SUPPLEMENTARY RESTRAINT SYSTEM
(SRS) 106
38 AIR CONDITIONING 108
Td4 108
K1 8 and KV6 112
NAS 116
39 FUEL BURNING HEATER 120
39 HEATER 122
40 HEATED REAR SCREEN 124
40 HEATED FRONT SCREEN 126
42 WIPERS AND WASHERS 128
Front 128
Rear 130
43 EXTERIOR LAMPS 132
Brake and reverse lamps 132
Fog lamps – Rear 134
Direction indicator lamps\hazard warning 136
Head, side and tail lamps 138
Head, side and tail lamps – NAS 140
Head, side and tail lamps- Canada 142
44 INTERIOR LAMPS 146
46 INTERIOR ILLUMINATION 150
47 INSTRUMENTS 154
47 ROTARY COUPLER 158
48 HORN (S) 160
49 ACCESSORY SOCKET 162
49 CIGAR LIGHTER 164
50 AUDIO SYSTEMS 166
Low-Line 166
Mid-Line 170
High Line 174
60 HEADER JOINTS 178
65 SPLICES AND CENTRE TAPS 184
70 COMMUNICATION DATA BUSES 196
