KRAMER Wheel loader 850 Spare Parts List Manual SN346060001 – PDF DOWNLOAD
FILE DETAILS:
KRAMER Wheel loader 850 Spare Parts List Manual SN346060001 – PDF DOWNLOAD
Language : English
Pages : 303
Downloadable : Yes
File Type : PDF
DESCRIPTION:
KRAMER Wheel loader 850 Spare Parts List Manual SN346060001 – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
- The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
- In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
- Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
- Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
- In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
- Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

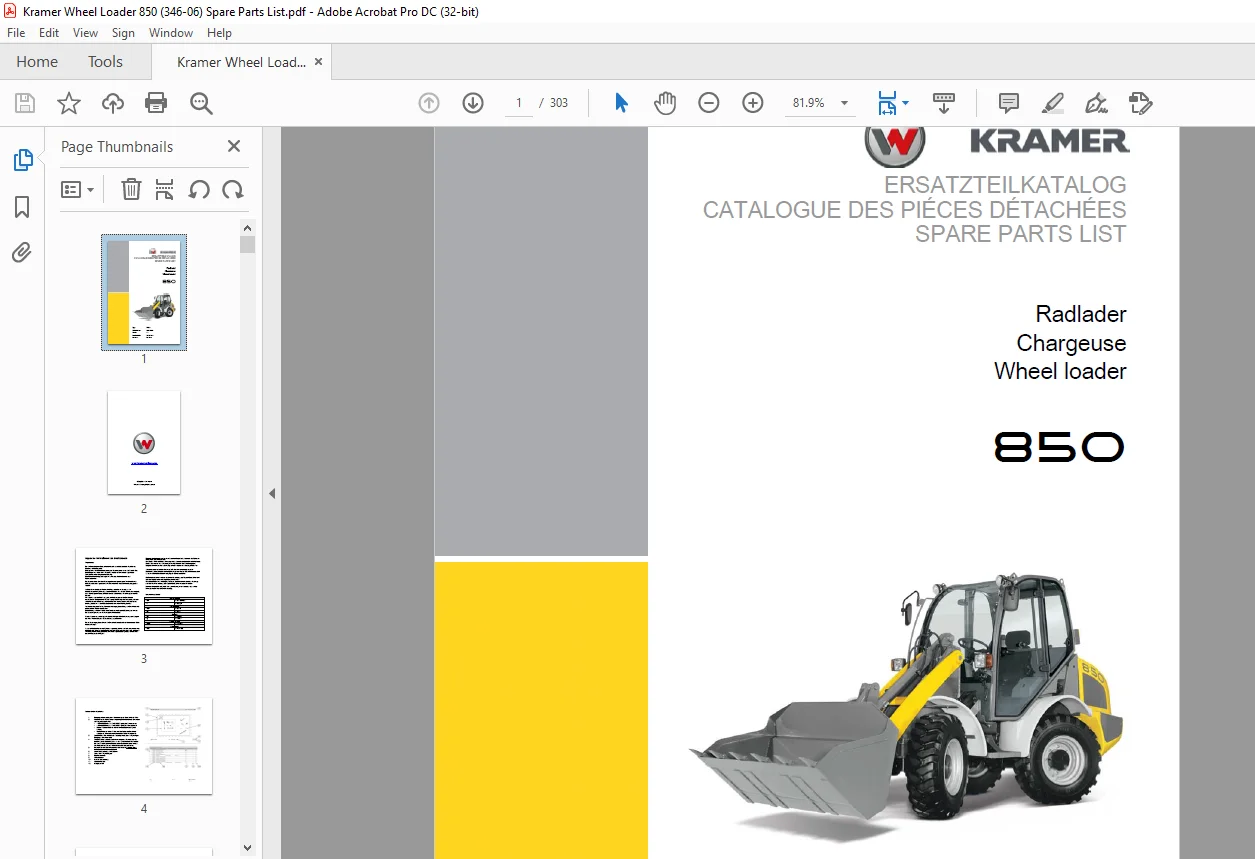

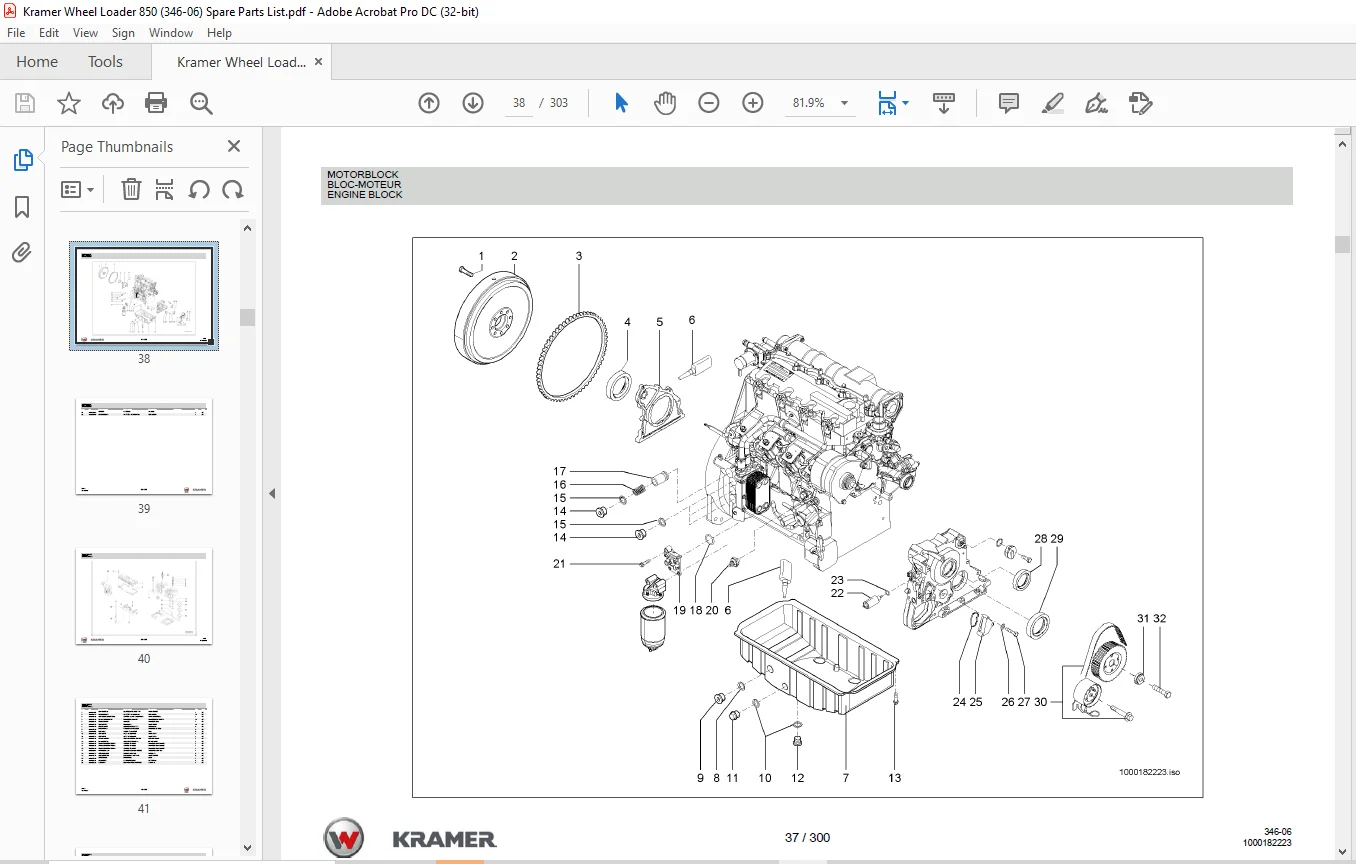

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KRAMER Wheel loader 850 Spare Parts List Manual SN346060001 – PDF DOWNLOAD

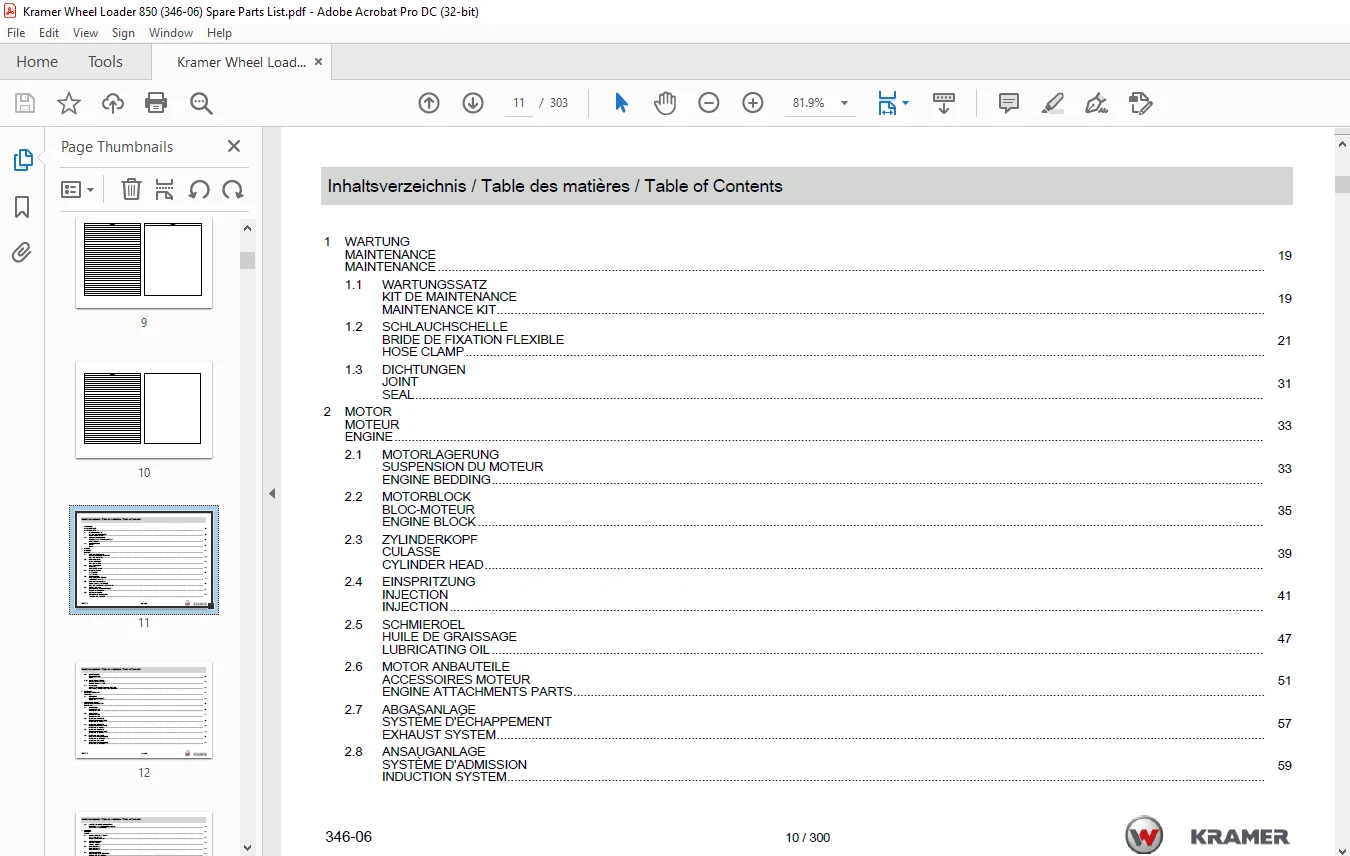

Inhaltsverzeichnis / Table des matières / Table of Contents.... 11 WARTUNG........................................................ 20 WARTUNGSSATZ............................................... 20 SCHLAUCHSCHELLE............................................ 22 DICHTUNGEN................................................. 32 MOTOR.......................................................... 34 MOTORLAGERUNG.............................................. 34 MOTORBLOCK................................................. 36 ZYLINDERKOPF............................................... 40 EINSPRITZUNG............................................... 42 SCHMIEROEL................................................. 48 MOTOR ANBAUTEILE........................................... 52 ABGASANLAGE................................................ 58 ANSAUGANLAGE............................................... 60 KRAFTSTOFF................................................. 62 GASREGULIERUNG............................................. 64 HANDGAS.................................................... 66 KÜHLUNG........................................................ 68 KÜHLUNG.................................................... 68 ANTRIEBSEINHEIT................................................ 72 KREISLAUF.................................................. 72 KREISLAUF.................................................. 78 HYDRAULIKPUMPE............................................. 82 HYDRAULIKPUMPE............................................. 86 HYDRAULIKPUMPE............................................. 88 HYDRAULIKMOTOR............................................. 92 HYDRAULIKMOTOR............................................. 94 LANGSAMFAHREINRICHTUNG..................................... 96 ACHSEN......................................................... 98 ACHSEN-BEFESTIGUNG......................................... 98 VORDERACHSE................................................100 DIFFERENTIAL...............................................104 LENKZYLINDER...............................................108 HINTERACHSE................................................110 DIFFERENTIAL...............................................114 GETRIEBE...................................................118 GETRIEBE...................................................122 BREMSANLAGE....................................................126 BETRIEBSBREMSE.............................................126 BREMSPEDAL.................................................130 FESTSTELLBREMSE............................................132 LENKUNG........................................................134 LENKUNG....................................................134 ARBEITSHYDRAULIK...............................................138 KREISLAUF..................................................138 KREISLAUF..................................................142 3. STEUERKREIS.............................................144 ÖLBEHÄLTER.................................................146 STEUERGERÄT................................................148 3. STEUERKREIS ELEKTR. BETÄTIGUNG..........................152 3. STEUERKREIS ELEKTR. BETÄTIGUNG..........................156 3. STEUERKREIS ELEKTR. BETÄTIGUNG..........................160 3. STEUERKREIS ELEKTR. BETÄTIGUNG..........................162 HUBZYLINDER................................................164 KIPPZYLINDER...............................................166 LASTSTABILISATOR...........................................168 LASTSTABILISATOR...........................................170 RÜCKLAUFLEITUNG............................................172 ELEKTRIK.......................................................174 ARMATURENBRETT.............................................174 ARMATURENBRETT.............................................178 FAHRZEUGBELEUCHTUNG........................................182 BATTERIE-BATTERIEKABEL.....................................188 VORWÄRMUNG.................................................190 HAUPTKABELBAUM.............................................192 KABINENKABELBAUM...........................................194 KABELBAUM GENERATOR.......................................198 KABELBAUM SCHNELLWECHSELPLATTE.............................200 KENNZEICHENBELEUCHTUNG.....................................202 TELEMATIC..................................................204 STECKDOSE..................................................206 KETTEN/RÄDER...................................................208 BEREIFUNG..................................................208 FAHRWERK / RAHMEN..............................................210 RAHMEN.....................................................210 VERKLEIDUNG....................................................212 VERKLEIDUNG................................................212 MOTORHAUBE.................................................216 LADEANLAGE/ARMSYSTEM...........................................218 LADEANLAGE.................................................218 SCHNELLWECHSELPLATTE.......................................220 LASTHAKEN..................................................222 KABINE/FAHRERSITZ..............................................224 KABINE.....................................................224 KABINE OFFEN...............................................226 KABINE EINZELTEILE.........................................228 KABINENTÜR.................................................232 VERKLEIDUNG................................................236 SCHUTZGITTER...............................................240 FAHRERSITZ-BEFESTIGUNG.....................................242 FAHRERSITZ OBERTEIL........................................244 SITZUNTERTEIL..............................................246 FAHRERSITZ COMFORT........................................250 SITZUNTERTEIL LUFTGEFEDERT.................................252 FAHRERSITZ LUFTGEFEDERT....................................254 SITZUNTERTEIL LUFTGEFEDERT.................................256 HEIZUNG/KLIMAANLAGE............................................258 HEIZUNG....................................................258 KLIMAANLAGE................................................260 AUFKLEBER, WERKZEUG............................................266 DOKUMENTE..................................................266 HINWEISSCHILDER............................................268 AUFKLEBER..................................................270 HINWEISSCHILD..............................................272 WERKZEUG...................................................274 ANBAUGERÄTE....................................................276 LADESCHAUFEL...............................................276 LADESCHAUFEL...............................................278 GREIFERSCHAUFEL............................................280 HYDRAULIK-GREIFERSCHAUFEL..................................282 SEITENSCHWENKSCHAUFEL......................................284 SEITENSCHWENKSCHAUFEL......................................286 STAPELEINRICHTUNG..........................................288 STAPELEINRICHTUNG..........................................290 STAPELEINRICHTUNG..........................................292 STAPELEINRICHTUNG..........................................294 ARBEITSPLATTFORM...........................................296 ANBAUTEILE ARBEITSPLATTFORM................................298
