KRAMER Wheel loader 8075 8075L Spare Parts List Manual SN351040001 – PDF DOWNLOAD

Description

KRAMER Wheel loader 8075 8075L Spare Parts List Manual SN351040001 – PDF DOWNLOAD

FILE DETAILS:

KRAMER Wheel loader 8075 8075L Spare Parts List Manual SN351040001 – PDF DOWNLOAD

Language : English
Pages : 371
Downloadable : Yes
File Type : PDF

DESCRIPTION:

KRAMER Wheel loader 8075 8075L Spare Parts List Manual SN351040001 – PDF DOWNLOAD

General information about spare parts manual
General

• When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
• The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
• In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
• Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
• This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
• In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
• Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
• The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
• Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

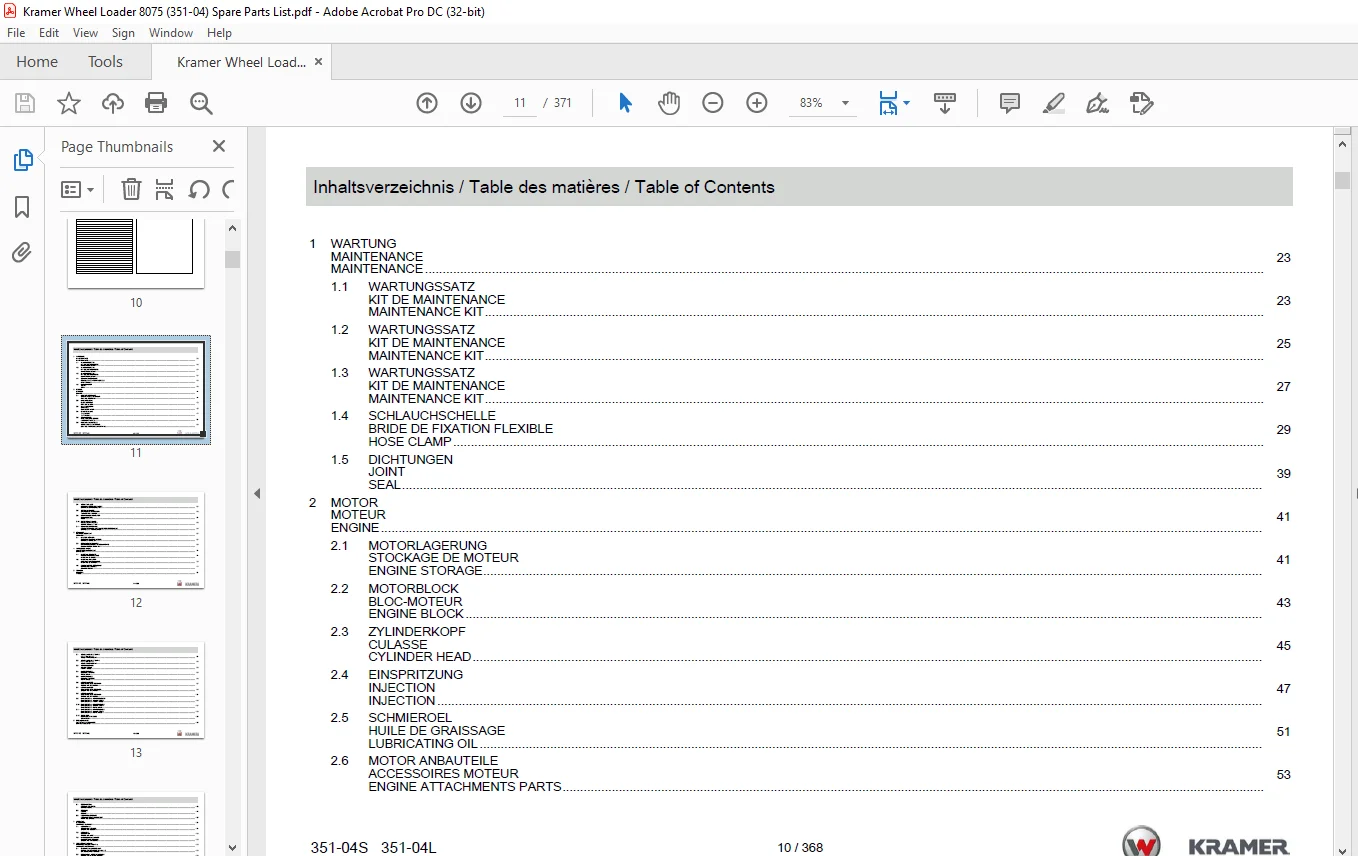

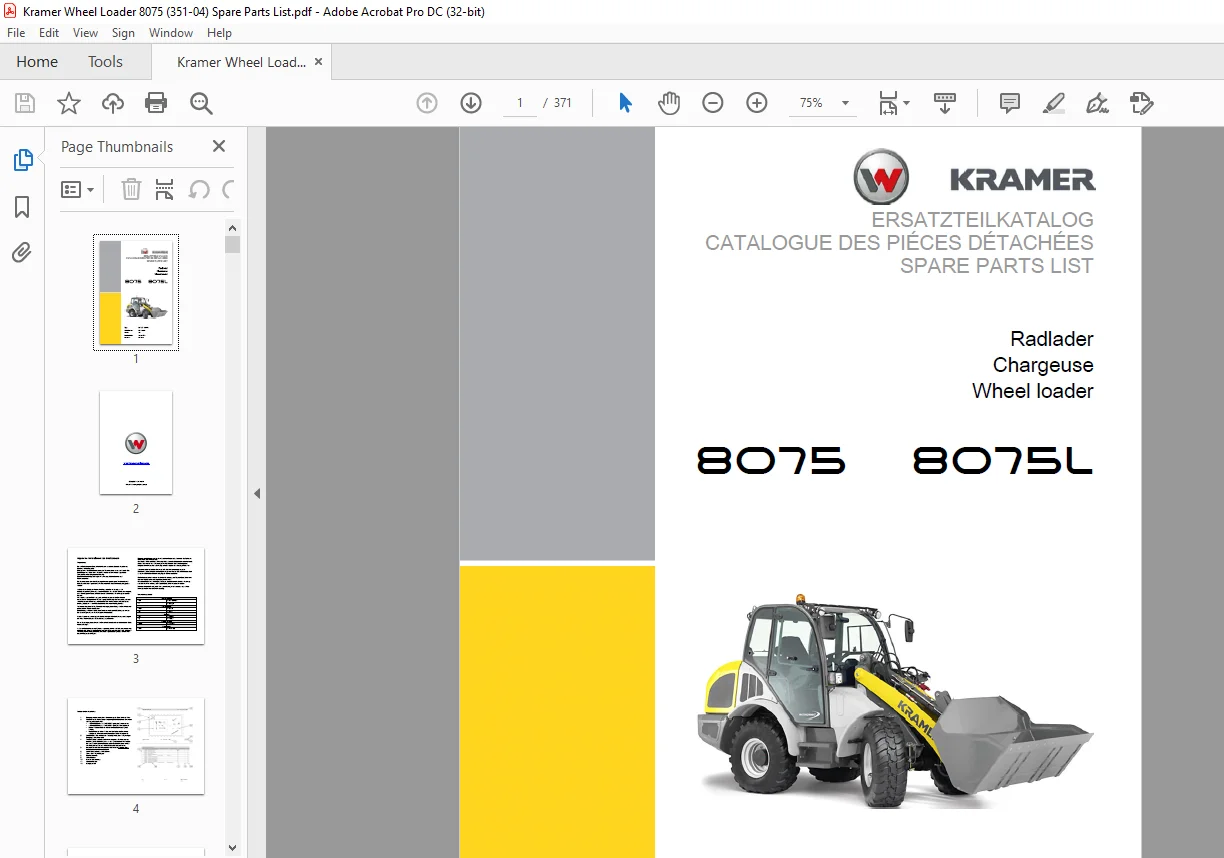

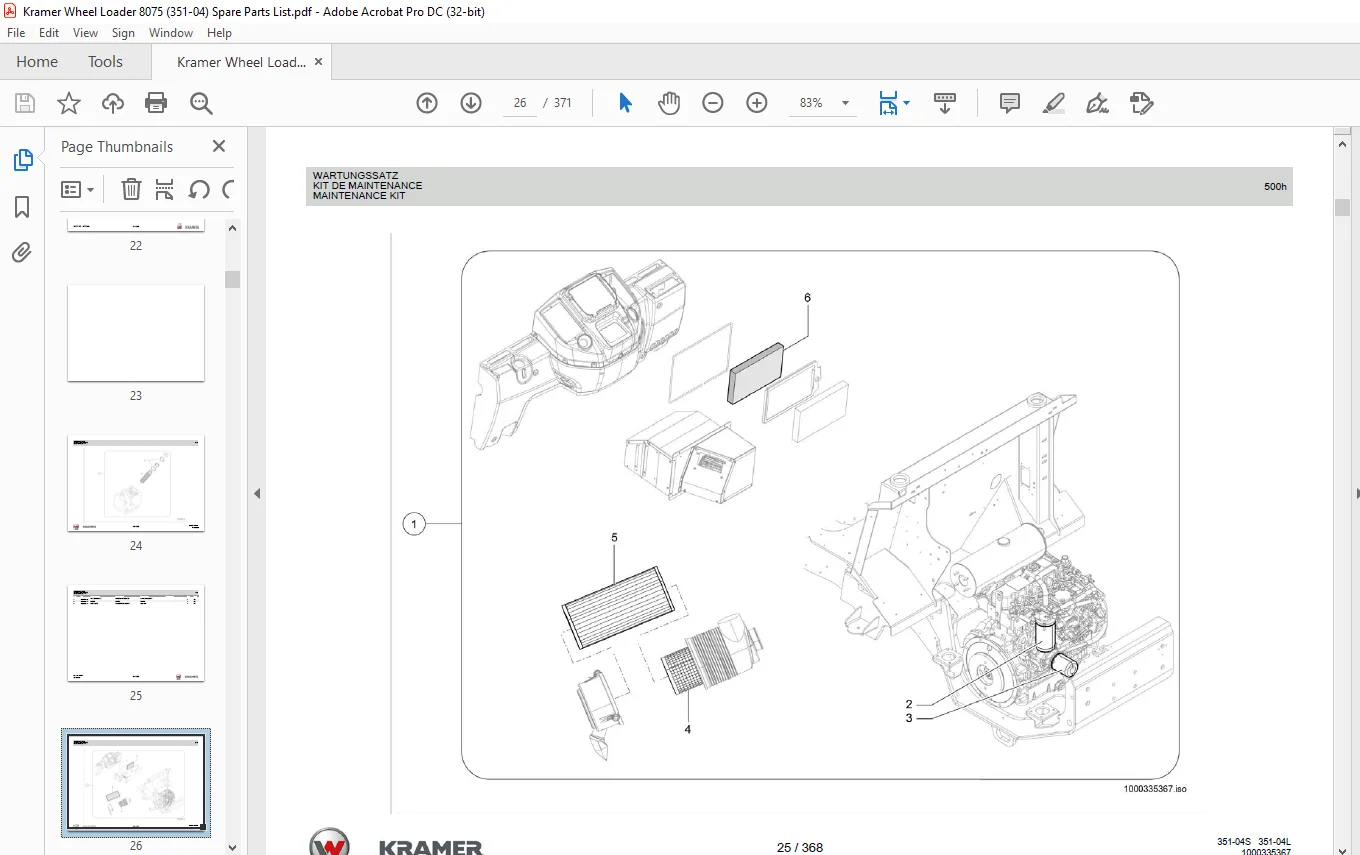

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KRAMER Wheel loader 8075 8075L Spare Parts List Manual SN351040001 – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matières / Table of Contents.... 11
WARTUNG........................................................ 24
	WARTUNGSSATZ............................................... 24
	WARTUNGSSATZ............................................... 26
	WARTUNGSSATZ............................................... 28
	SCHLAUCHSCHELLE............................................ 30
	DICHTUNGEN................................................. 40
MOTOR.......................................................... 42
	MOTORLAGERUNG.............................................. 42
	MOTORBLOCK................................................. 44
	ZYLINDERKOPF............................................... 46
	EINSPRITZUNG............................................... 48
	SCHMIEROEL................................................. 52
	MOTOR ANBAUTEILE........................................... 54
	ABGASANLAGE................................................ 58
	ANSAUGANLAGE............................................... 60
	KRAFTSTOFFBEHÄLTER......................................... 62
	GASREGULIERUNG............................................. 64
	KEILRIEMENSCHUTZ........................................... 66
KÜHLUNG........................................................ 68
	HALTER KÜHLER.............................................. 68
	KREISLAUF-KÜHLUNG.......................................... 70
ANTRIEBSEINHEIT................................................ 72
	HYDRAULIKPUMPE............................................. 72
	HYDRAULIKMOTOR............................................. 76
	FAHRANTRIEB KREISLAUF...................................... 78
ACHSEN......................................................... 82
	ACHSEN-BEFESTIGUNG......................................... 82
	ACHSEN-BEFESTIGUNG......................................... 84
	VORDERACHSE................................................ 86
	HINTERACHSE................................................ 90
	HINTERACHSE................................................ 94
	LENKZYLINDER............................................... 98
	LENKZYLINDER...............................................100
	LENKZYLINDER...............................................102
	DIFFERENTIAL VORDERACHSE...................................104
	DIFFERENTIAL HINTERACHSE...................................108
	DIFFERENTIAL HINTERACHSE...................................110
	GETRIEBE...................................................114
BREMSANLAGE....................................................116
	BREMSPEDAL.................................................116
	BREMSE.....................................................118
	FESTSTELLBREMSE............................................120
LENKUNG........................................................122
	LENKSÄULE..................................................122
	LENKUNG....................................................124
	HUNDEGANGLENKUNG...........................................126
ARBEITSHYDRAULIK...............................................130
	ÖLBEHÄLTER-KREISLAUF.......................................130
	KREISLAUF  VORSTEUERUNG....................................134
	KREISLAUF  VORSTEUERUNG....................................138
	HYDRAULIK-LADEANLAGE.......................................142
	ÖLBEHÄLTER.................................................146
	STEUERHEBELTRÄGER..........................................148
	VORSTEUERGERÄT.............................................150
	VORSTEUERGERÄT.............................................152
	STEUERGERÄT................................................154
	STEUERGERÄT................................................156
	STEUERGERÄT................................................158
	HUBZYLINDER................................................160
	HUBZYLINDER RBS............................................162
	HUBZYLINDER................................................164
	HUBZYLINDER RBS............................................166
	KIPPZYLINDER...............................................168
	LASTSTABILISATOR...........................................170
	LASTSTABILISATOR...........................................172
	4.STEUERKREIS-KREISLAUF....................................174
	ROHRBRUCHSICHERUNG.........................................176
	SCHAUFELRÜCKFÜHRAUTOMATIK..................................178
	RÜCKLAUFLEITUNG............................................182
	KIPPZYLINDERSPERRE.........................................184
	KREISLAUF DRUCKENTLASTUNG..................................186
	NEBENSTROMFILTER...........................................188
ELEKTRIK.......................................................190
	ARMATURENBRETT.............................................190
	PLATINE....................................................194
	PLATINE....................................................196
	RELAIS HALTERUNG...........................................198
	ELEKTRIK-KOMPONENTEN.......................................200
	FAHRZEUGBELEUCHTUNG........................................202
	VORWÄRMUNG.................................................206
	RAHMENKABELBAUM............................................208
	KABINENKABELBAUM...........................................212
	MOTORKABELBAUM.............................................220
	KABELBAUM LICHTMASCHINE....................................224
	KABELBAUM..................................................226
	KABELBAUM..................................................228
	KABELBAUM..................................................230
	KABELBAUM..................................................232
	ZUSATZSCHEINWERFER.........................................234
	RADIO......................................................236
	STVZO  SONDERSCHAUFELN.....................................238
	POTENTIOMETER..............................................240
	BATTERIE-BATTERIEKABEL.....................................242
	KENNZEICHENBELEUCHTUNG.....................................244
	KENNZEICHENBELEUCHTUNG.....................................246
	KENNZEICHENBELEUCHTUNG.....................................248
KETTEN/RÄDER...................................................250
	BEREIFUNG..................................................250
FAHRWERK / RAHMEN..............................................254
	RAHMEN.....................................................254
VERKLEIDUNG....................................................256
	VERKLEIDUNG................................................256
	MOTORHAUBE.................................................260
LADEANLAGE/ARMSYSTEM...........................................262
	LADEANLAGE.................................................262
	LADEANLAGE.................................................266
	SCHNELLWECHSELPLATTE.......................................270
	SCHNELLWECHSELPLATTE.......................................272
	LASTHAKEN..................................................276
KABINE/FAHRERSITZ..............................................278
	KABINE.....................................................278
	KABINENTÜRE LINKS..........................................284
	KABINENTÜRE RECHTS.........................................288
	VERKLEIDUNG................................................292
	SCHUTZGITTER...............................................296
	FAHRERSITZ-BEFESTIGUNG.....................................298
	FAHRERSITZ OBERTEIL........................................300
	SITZUNTERTEIL..............................................302
	FAHRERSITZ LUFTGEFEDERT....................................306
	SITZUNTERTEIL LUFTGEFEDERT.................................308
	SITZHEIZUNG................................................310
HEIZUNG/KLIMAANLAGE............................................312
	HEIZUNG....................................................312
AUFKLEBER, WERKZEUG............................................316
	DOKUMENTE..................................................316
	DOKUMENTE..................................................318
	WERKZEUG...................................................320
	HINWEISSCHILD..............................................322
	HINWEISSCHILDER............................................324
	AUFKLEBER..................................................326
	AUFKLEBER..................................................328
	ZENTRALSCHMIERANLAGE.......................................330
	ZENTRALSCHMIERANLAGE.......................................332
ANBAUGERÄTE....................................................334
	ZAHNSCHUTZ.................................................334
	STAPELEINRICHTUNG..........................................336
	STAPELEINRICHTUNG..........................................338
	STAPELEINRICHTUNG..........................................340
	STAPELEINRICHTUNG..........................................342
	STAPELEINRICHTUNG..........................................344
	LADESCHAUFEL...............................................346
	LADESCHAUFEL...............................................348
	LADESCHAUFEL...............................................350
	GREIFERSCHAUFEL............................................352
	GREIFERSCHAUFEL............................................354
	SPERRGUTSCHAUFEL...........................................356
	ARBEITSPLATTFORM...........................................360
	SALTZSTREUER...............................................362
	ANHÄNGEKUPPLUNG............................................366
	ANHÄNGEKUPPLUNG............................................368
