KRAMER Wheel loader 750T Spare Parts List Manual SN346120001 – PDF DOWNLOAD

Description

KRAMER Wheel loader 750T Spare Parts List Manual SN346120001 – PDF DOWNLOAD

FILE DETAILS:

KRAMER Wheel loader 750T Spare Parts List Manual SN346120001 – PDF DOWNLOAD

Language : English
Pages : 325
Downloadable : Yes
File Type : PDF

DESCRIPTION:

KRAMER Wheel loader 750T Spare Parts List Manual SN346120001 – PDF DOWNLOAD

General information about spare parts manual
General

• When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
• The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
• In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
• Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
• This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
• In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
• Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
• The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
• Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

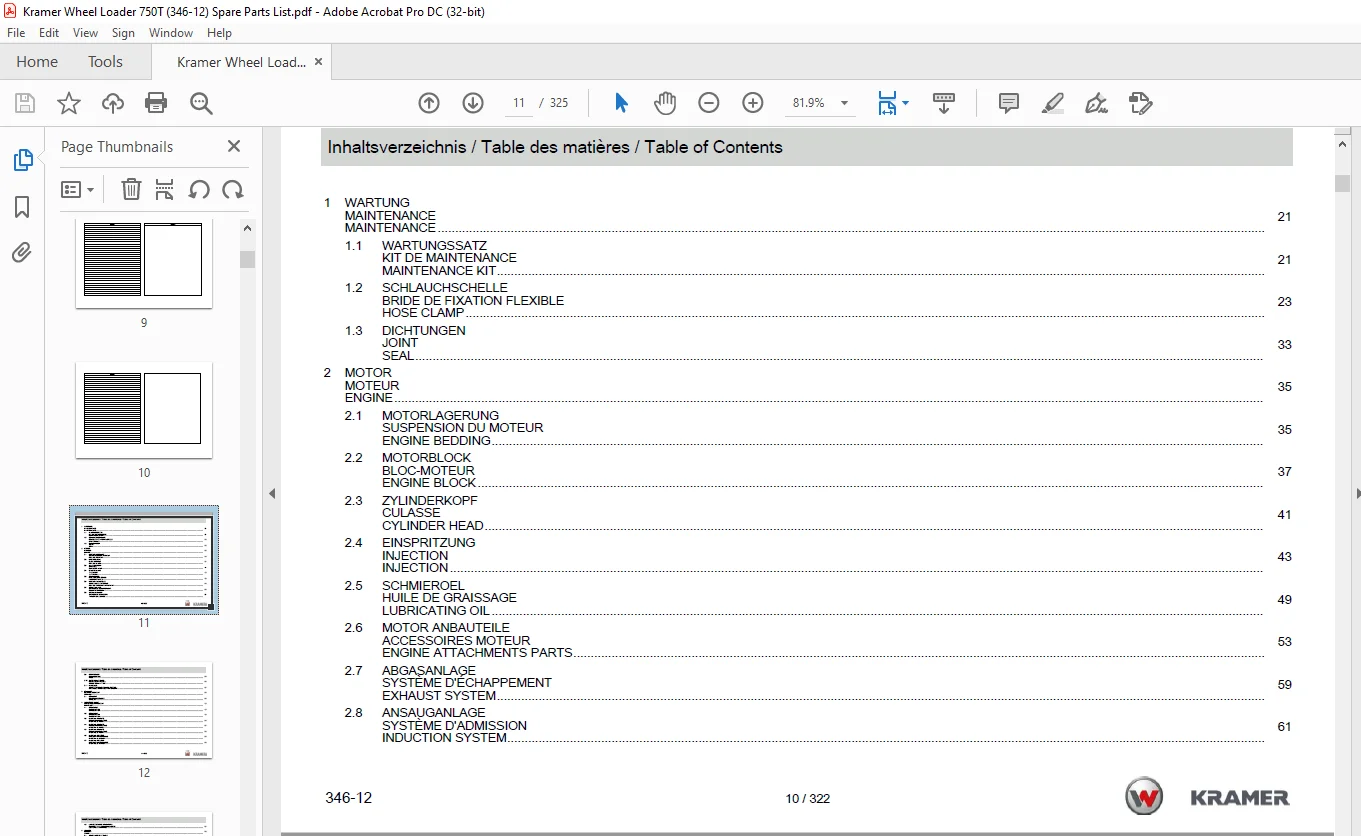

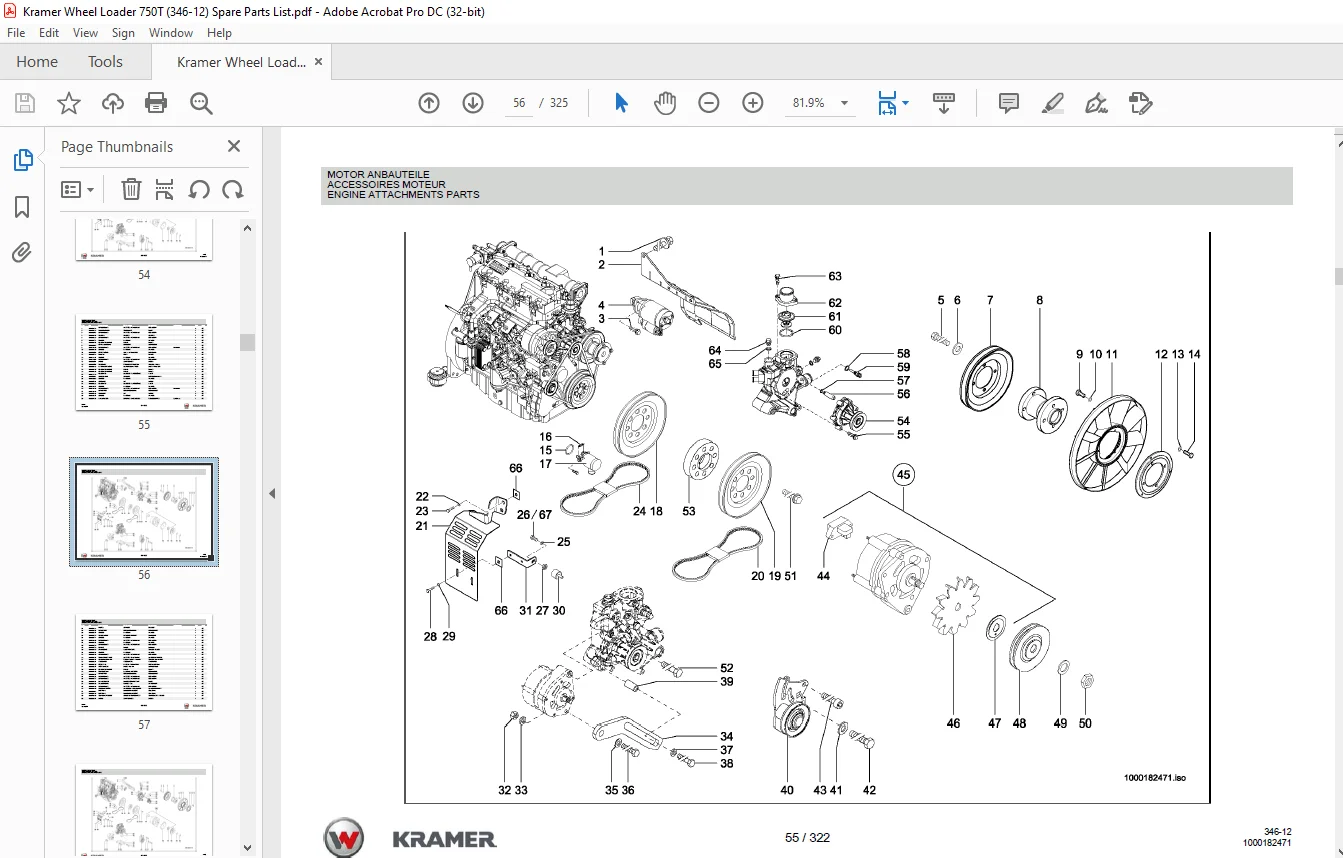

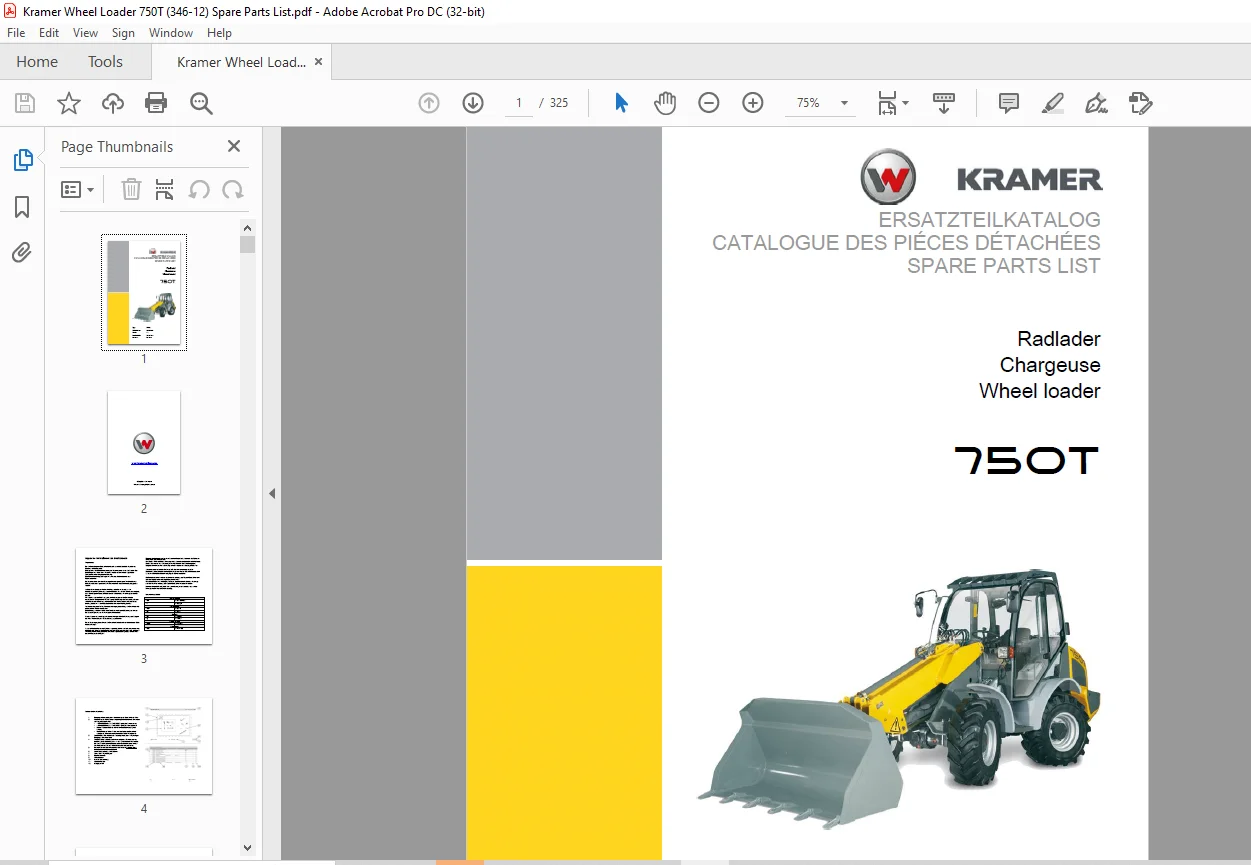

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KRAMER Wheel loader 750T Spare Parts List Manual SN346120001 – PDF DOWNLOAD

Inhaltsverzeichnis / Table des matières / Table of Contents.... 11
WARTUNG........................................................ 22
	WARTUNGSSATZ............................................... 22
	SCHLAUCHSCHELLE............................................ 24
	DICHTUNGEN................................................. 34
MOTOR.......................................................... 36
	MOTORLAGERUNG.............................................. 36
	MOTORBLOCK................................................. 38
	ZYLINDERKOPF............................................... 42
	EINSPRITZUNG............................................... 44
	SCHMIEROEL................................................. 50
	MOTOR ANBAUTEILE........................................... 54
	ABGASANLAGE................................................ 60
	ANSAUGANLAGE............................................... 62
	KRAFTSTOFF................................................. 64
	GASREGULIERUNG............................................. 66
	HANDGAS.................................................... 68
KÜHLUNG........................................................ 70
	KÜHLUNG.................................................... 70
ANTRIEBSEINHEIT................................................ 74
	KREISLAUF.................................................. 74
	KREISLAUF.................................................. 80
	HYDRAULIKPUMPE............................................. 84
	HYDRAULIKPUMPE............................................. 88
	HYDRAULIKPUMPE............................................. 90
	HYDRAULIKMOTOR............................................. 94
	HYDRAULIKMOTOR............................................. 96
	LANGSAMFAHREINRICHTUNG..................................... 98
ACHSEN.........................................................100
	ACHSEN-BEFESTIGUNG.........................................100
	VORDERACHSE................................................102
	DIFFERENTIAL...............................................106
	LENKZYLINDER...............................................110
	HINTERACHSE................................................112
	DIFFERENTIAL...............................................116
	GETRIEBE...................................................120
	GETRIEBE...................................................124
BREMSANLAGE....................................................128
	BETRIEBSBREMSE.............................................128
	BREMSPEDAL.................................................132
	FESTSTELLBREMSE............................................134
LENKUNG........................................................136
	LENKUNG....................................................136
ARBEITSHYDRAULIK...............................................140
	ÖLBEHÄLTER.................................................140
	KREISLAUF..................................................142
	KREISLAUF..................................................148
	STEUERGERÄT................................................152
	STEUERGERÄT................................................156
	HUBZYLINDER................................................158
	AUSGLEICHSZYLINDER.........................................160
	KIPPZYLINDER...............................................162
	AUSSCHUBZYLINDER...........................................164
	LASTSTABILISATOR...........................................166
	LASTSTABILISATOR...........................................168
	ZENTRALSCHMIERANLAGE.......................................170
	ZENTRALSCHMIERANLAGE.......................................172
ELEKTRIK.......................................................174
	ARMATURENBRETT.............................................174
	ARMATURENBRETT.............................................178
	FAHRZEUGBELEUCHTUNG........................................182
	BATTERIE-BATTERIEKABEL.....................................188
	KRAFTSTOFFVORWÄRMUNG.......................................190
	HAUPTKABELBAUM.............................................192
	KABINENKABELBAUM...........................................196
	KABELBAUM..................................................200
	KENNZEICHENBELEUCHTUNG.....................................202
	ELEKTR. ANBAUSATZ..........................................204
	RADIO......................................................206
	TELEMATIC..................................................208
	STECKDOSE..................................................210
KETTEN/RÄDER...................................................212
	BEREIFUNG..................................................212
FAHRWERK / RAHMEN..............................................214
	RAHMEN.....................................................214
VERKLEIDUNG....................................................216
	VERKLEIDUNG................................................216
	MOTORHAUBE.................................................220
LADEANLAGE/ARMSYSTEM...........................................222
	TELESKOP LAGERUNG..........................................222
	TELESKOP VORNE.............................................228
	TELESKOPARM................................................230
	SCHNELLWECHSELPLATTE.......................................234
KABINE/FAHRERSITZ..............................................236
	KABINE.....................................................236
	KABINE OFFEN...............................................238
	KABINE EINZELTEILE.........................................240
	KABINENTÜR.................................................244
	VERKLEIDUNG................................................248
	SCHUTZGITTER...............................................252
	FAHRERSITZ-BEFESTIGUNG.....................................254
	FAHRERSITZ OBERTEIL........................................256
	SITZUNTERTEIL..............................................258
	FAHRERSITZ  COMFORT........................................262
	SITZUNTERTEIL LUFTGEFEDERT.................................264
	FAHRERSITZ LUFTGEFEDERT....................................266
	SITZUNTERTEIL LUFTGEFEDERT.................................268
HEIZUNG/KLIMAANLAGE............................................270
	HEIZUNG....................................................270
	KLIMAANLAGE................................................272
AUFKLEBER, WERKZEUG............................................278
	DOKUMENTE..................................................278
	HINWEISSCHILDER............................................280
	AUFKLEBER..................................................282
	HINWEISSCHILD..............................................284
	WERKZEUG...................................................286
ANBAUGERÄTE....................................................288
	SCHAUFEL...................................................288
	GREIFERSCHAUFEL............................................292
	GREIFERSCHAUFEL............................................296
	HYDRAULIK-GREIFERSCHAUFEL..................................300
	SPERRGUTSCHAUFEL...........................................302
	STAPELEINRICHTUNG..........................................306
	STAPELEINRICHTUNG..........................................308
	STAPELEINRICHTUNG..........................................310
	HUBZYLINDER................................................312
	ARBEITSPLATTFORM...........................................316
	SALTZSTREUER...............................................318
	ANHÄNGEKUPPLUNG............................................322
