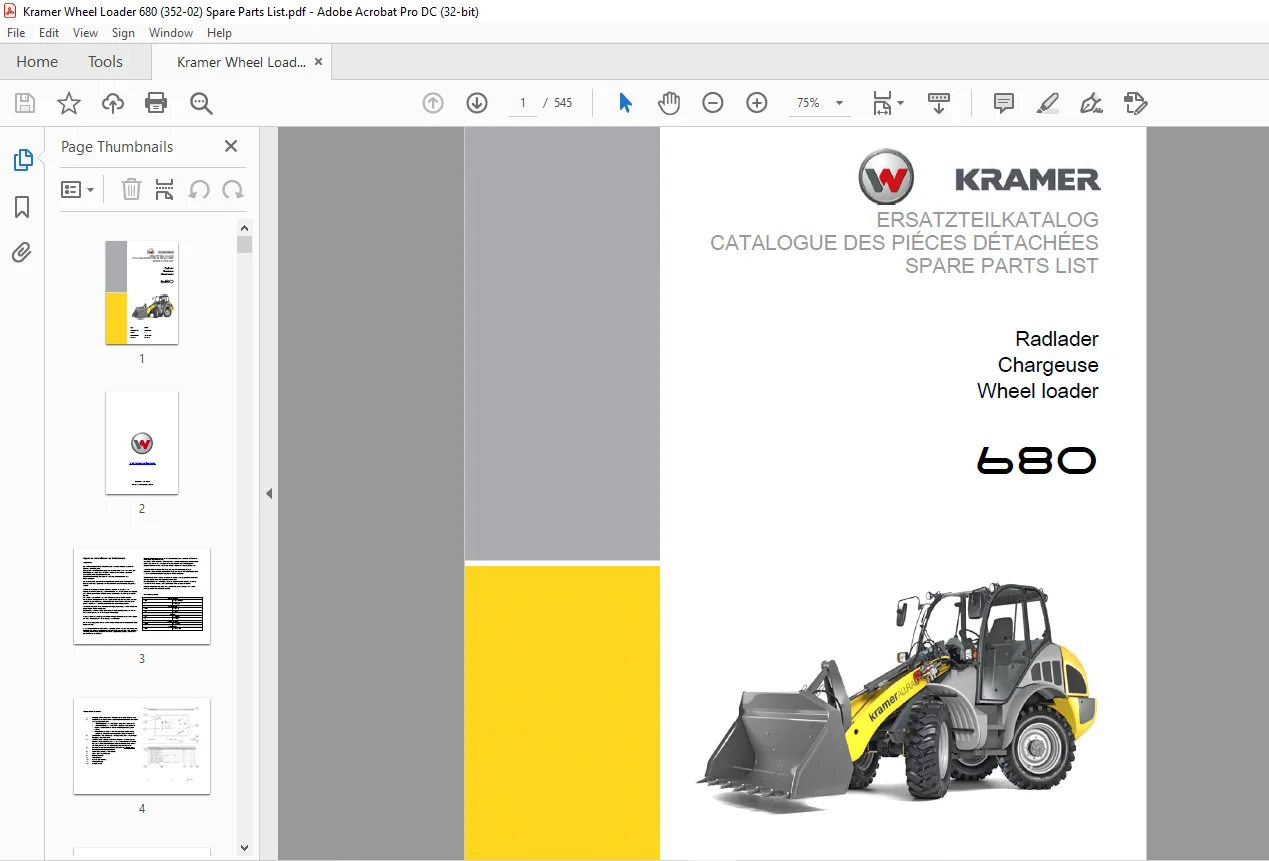

KRAMER Wheel loader 680 Spare Parts List Manual SN352010001 – PDF DOWNLOAD
FILE DETAILS:
KRAMER Wheel loader 680 Spare Parts List Manual SN352010001 – PDF DOWNLOAD
Language : English
Pages :545
Downloadable : Yes
File Type : PDF
DESCRIPTION:
KRAMER Wheel loader 680 Spare Parts List Manual SN352010001 – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
- The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
- In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
- Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
- Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
- In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
- Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

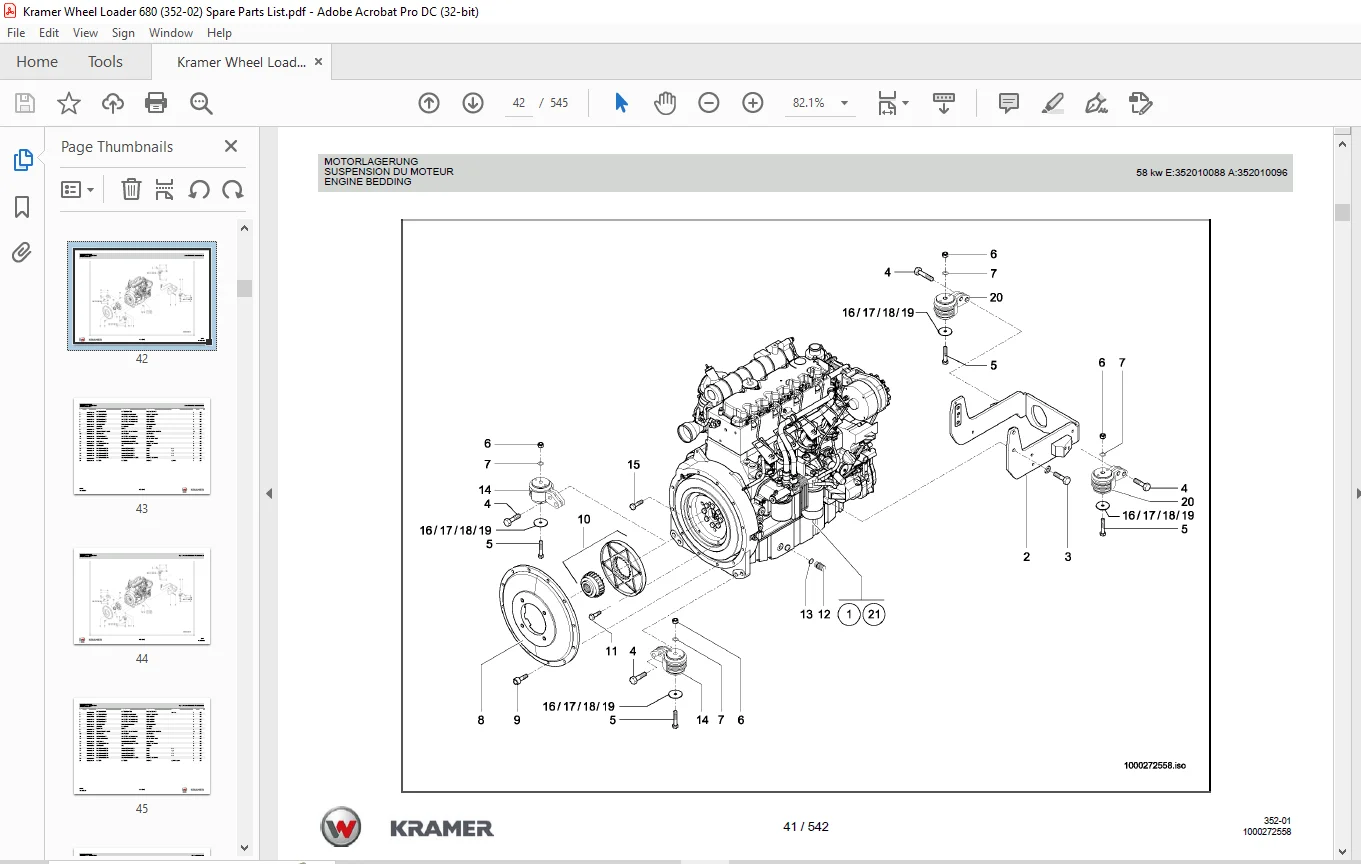

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KRAMER Wheel loader 680 Spare Parts List Manual SN352010001 – PDF DOWNLOAD

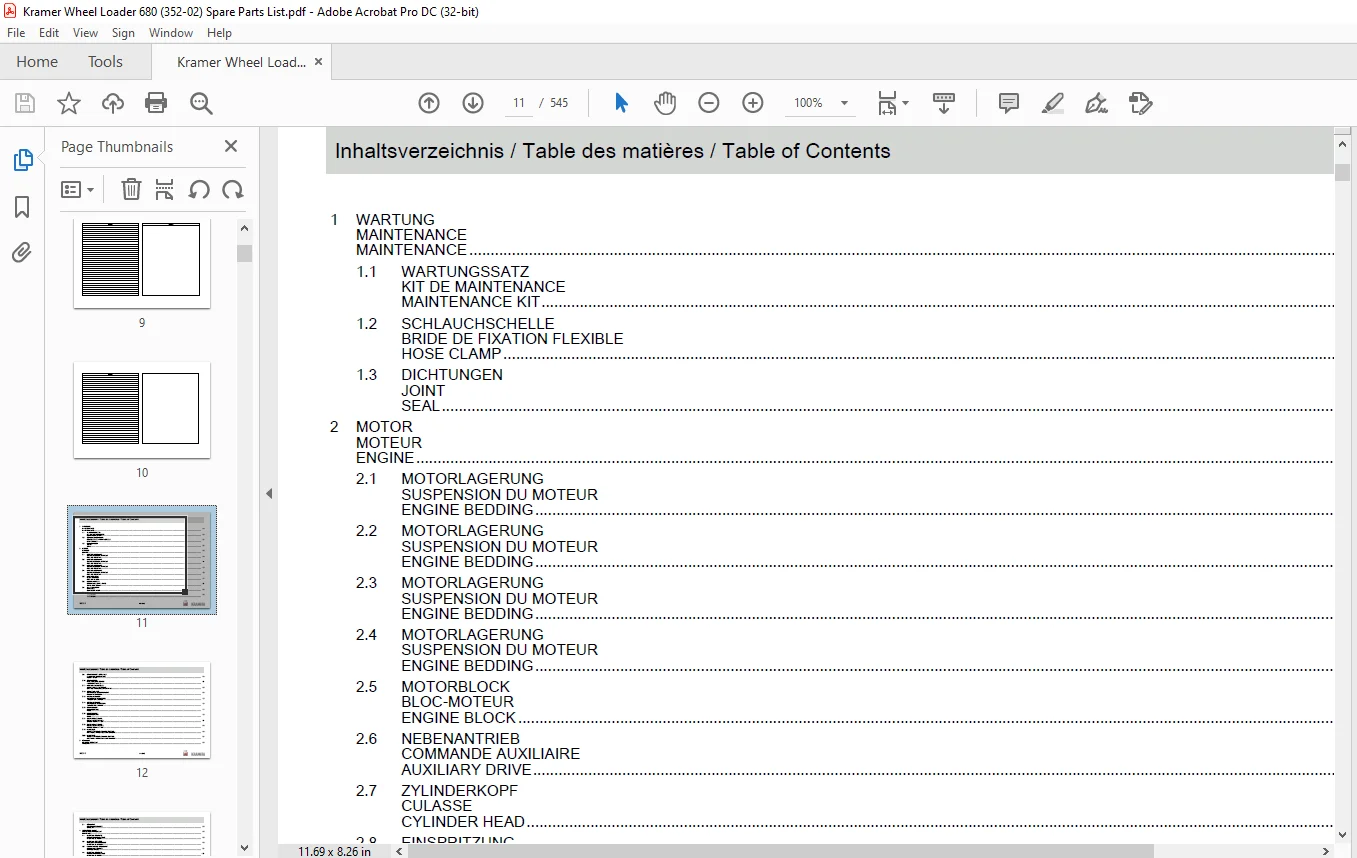

Inhaltsverzeichnis / Table des matières / Table of Contents.... 11 WARTUNG........................................................ 26 WARTUNGSSATZ............................................... 26 SCHLAUCHSCHELLE............................................ 28 DICHTUNGEN................................................. 38 MOTOR.......................................................... 40 MOTORLAGERUNG.............................................. 40 MOTORLAGERUNG.............................................. 42 MOTORLAGERUNG.............................................. 44 MOTORLAGERUNG.............................................. 46 MOTORBLOCK................................................. 48 NEBENANTRIEB............................................... 52 ZYLINDERKOPF............................................... 54 EINSPRITZUNG............................................... 56 KRAFTSTOFFVORFILTER........................................ 60 SCHMIEROEL................................................. 62 MOTOR ANBAUTEILE........................................... 66 ABGASANLAGE................................................ 70 ANSAUGANLAGE............................................... 74 ANSAUGANLAGE............................................... 76 KRAFTSTOFF................................................. 78 KRAFTSTOFF................................................. 80 GASREGULIERUNG............................................. 82 GASREGULIERUNG............................................. 84 HANDGAS.................................................... 86 HANDGAS.................................................... 88 KÜHLUNG........................................................ 90 KÜHLUNG.................................................... 90 ANTRIEBSEINHEIT................................................ 94 HYDRAULIKPUMPE............................................. 94 HYDRAULIKMOTOR............................................. 96 FAHRANTRIEB KREISLAUF...................................... 98 HYDRAULIKPUMPE.............................................102 SCHNELLGANGGETRIEBE........................................106 SCHNELLGANGGETRIEBE........................................110 STEUERDECKEL...............................................114 STEUERDECKEL...............................................118 STEUERDECKEL...............................................122 KREISLAUF SCHNELLGANG......................................126 KREISLAUF SCHNELLGANG......................................130 ACHSEN.........................................................134 ACHSEN-BEFESTIGUNG.........................................134 ACHSEN-BEFESTIGUNG.........................................136 VORDERACHSE................................................140 VORDERACHSE................................................144 VORDERACHSE................................................148 VORDERACHSE................................................152 DIFFERENTIAL...............................................156 DIFFERENTIAL...............................................162 LENKZYLINDER...............................................168 LENKZYLINDER...............................................170 HINTERACHSE................................................172 HINTERACHSE................................................176 HINTERACHSE................................................180 HINTERACHSE................................................184 DIFFERENTIAL...............................................188 DIFFERENTIAL...............................................192 GETRIEBE...................................................198 DIFFERENTIALSPERRE.........................................202 BREMSANLAGE....................................................204 BETRIEBSBREMSE.............................................204 BREMSPEDAL.................................................208 FESTSTELLBREMSE............................................210 FESTSTELLBREMSE............................................212 DRUCKLUFTBREMSANLAGE.......................................214 LENKUNG........................................................220 LENKUNG....................................................220 LENKUNG....................................................224 LENKUNG....................................................228 LENKUNG....................................................234 HUNDEGANGLENKUNG...........................................240 HUNDEGANGLENKUNG...........................................246 ARBEITSHYDRAULIK...............................................252 ÖLBEHÄLTER-KREISLAUF.......................................252 KREISLAUF..................................................256 HYDRAULIK-LADEANLAGE.......................................260 HYDRAULIK-LADEANLAGE.......................................262 ÖLBEHÄLTER.................................................266 STEUERHEBELTRÄGER..........................................268 VORSTEUERGERÄT.............................................270 VORSTEUERGERÄT.............................................272 STEUERGERÄT................................................274 STEUERGERÄT................................................276 STEUERGERÄT................................................278 HUBZYLINDER................................................280 KIPPZYLINDER...............................................282 LASTSTABILISATOR...........................................284 ZUSATZSTEUERKREIS 115 LITER................................286 4.STEUERKREIS-KREISLAUF....................................292 ROHRBRUCHSICHERUNG.........................................296 SCHAUFELRÜCKFÜHRAUTOMATIK..................................298 KREISLAUF KIPPER+ZUSATZSTEUERKREIS.........................302 KREISLAUF KIPPER...........................................304 RÜCKLAUFLEITUNG............................................308 KIPPZYLINDERSPERRE.........................................310 KIPPZYLINDERSPERRE.........................................312 TRANSPORTSICHERUNG.........................................314 NEBENSTROMFILTER...........................................316 ELEKTRIK.......................................................318 ARMATURENBRETT.............................................318 PLATINE....................................................324 RELAIS HALTERUNG...........................................326 FAHRZEUGBELEUCHTUNG........................................328 BATTERIE-BATTERIEKABEL.....................................334 BATTERIE-BATTERIEKABEL.....................................336 VORWÄRMUNG.................................................338 KRAFTSTOFFVORWÄRMUNG.......................................340 HAUPTKABELBAUM.............................................342 HAUPTKABELBAUM.............................................346 HAUPTKABELBAUM.............................................350 HAUPTKABELBAUM.............................................354 KABELBAUM ARMLEHNE.........................................358 KABINENKABELBAUM...........................................360 KABINENKABELBAUM...........................................364 KABINENKABELBAUM...........................................368 KABINENKABELBAUM...........................................372 KABELBAUM..................................................376 KABELBAUM LICHTMASCHINE....................................378 KABELBAUM..................................................380 ELEKTRIK-KUGELMANN.........................................382 STVZO SONDERSCHAUFELN.....................................384 ELEKTRISCHER AUSSENSPIEGEL.................................386 HECKSCHEIBENHEIZUNG........................................388 LANGSAMFAHREINRICHTUNG.....................................390 ZUSATZSCHEINWERFER.........................................392 RADIO......................................................394 KÜHLBOX....................................................396 KENNZEICHENBELEUCHTUNG.....................................398 TELEMATIC..................................................400 KETTEN/RÄDER...................................................402 BEREIFUNG..................................................402 FAHRWERK / RAHMEN..............................................408 RAHMEN.....................................................408 VERKLEIDUNG....................................................412 VERKLEIDUNG................................................412 MOTORHAUBE.................................................416 LADEANLAGE/ARMSYSTEM...........................................418 LADEANLAGE.................................................418 SCHNELLWECHSELPLATTE.......................................420 SCHNELLWECHSELPLATTE.......................................422 LASTHAKEN..................................................424 KABINE/FAHRERSITZ..............................................426 KABINE.....................................................426 KABINE.....................................................432 KABINENTÜRE LINKS..........................................438 KABINENTÜRE RECHTS.........................................442 VERKLEIDUNG................................................446 SCHUTZGITTER...............................................448 FAHRERSITZ-BEFESTIGUNG.....................................450 SITZUNTERTEIL..............................................452 FAHRERSITZ OBERTEIL........................................456 FAHRERSITZ LUFTGEFEDERT....................................458 SITZUNTERTEIL LUFTGEFEDERT.................................460 FAHRERSITZ LUFTGEFEDERT....................................464 SITZUNTERTEIL LUFTGEFEDERT.................................466 HEIZUNG/KLIMAANLAGE............................................468 HEIZUNG....................................................468 KLIMAANLAGE................................................472 ZUSATZHEIZUNG..............................................478 AUFKLEBER, WERKZEUG............................................482 AUFKLEBER..................................................482 HINWEISSCHILD..............................................486 DOKUMENTE..................................................488 WERKZEUG...................................................490 EINSATZ IN AGGRESSIVEN MEDIEN..............................492 ZENTRALSCHMIERANLAGE.......................................494 ZENTRALSCHMIERANLAGE.......................................496 ANBAUGERÄTE....................................................498 LADESCHAUFEL...............................................498 SCHAUFEL...................................................500 LADESCHAUFEL...............................................502 GREIFERSCHAUFEL............................................504 GREIFERSCHAUFEL-HYDRAULIK..................................506 GREIFERSCHAUFEL............................................508 GREIFERSCHAUFEL............................................510 ZYLINDER...................................................514 SEITENSCHWENKSCHAUFEL......................................516 SPERRGUTSCHAUFEL...........................................518 STAPELEINRICHTUNG..........................................520 STAPELEINRICHTUNG..........................................522 STAPELEINRICHTUNG..........................................524 STAPELEINRICHTUNG..........................................526 ARBEITSPLATTFORM...........................................528 SALTZSTREUER...............................................530 ANHÄNGEKUPPLUNG............................................534 ANHÄNGEKUPPLUNG............................................536 ANHÄNGEKUPPLUNG............................................538 ANHÄNGEKUPPLUNG............................................542
