KRAMER Wheel loader 5095 5095L Spare Parts List Manual SN353020001 – PDF DOWNLOAD
FILE DETAILS:
KRAMER Wheel loader 5095 5095L Spare Parts List Manual SN353020001 – PDF DOWNLOAD
Language : English
Pages : 383
Downloadable : Yes
File Type : PDF
DESCRIPTION:
KRAMER Wheel loader 5095 5095L Spare Parts List Manual SN353020001 – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
- The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
- In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
- Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
- Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
- In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
- Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

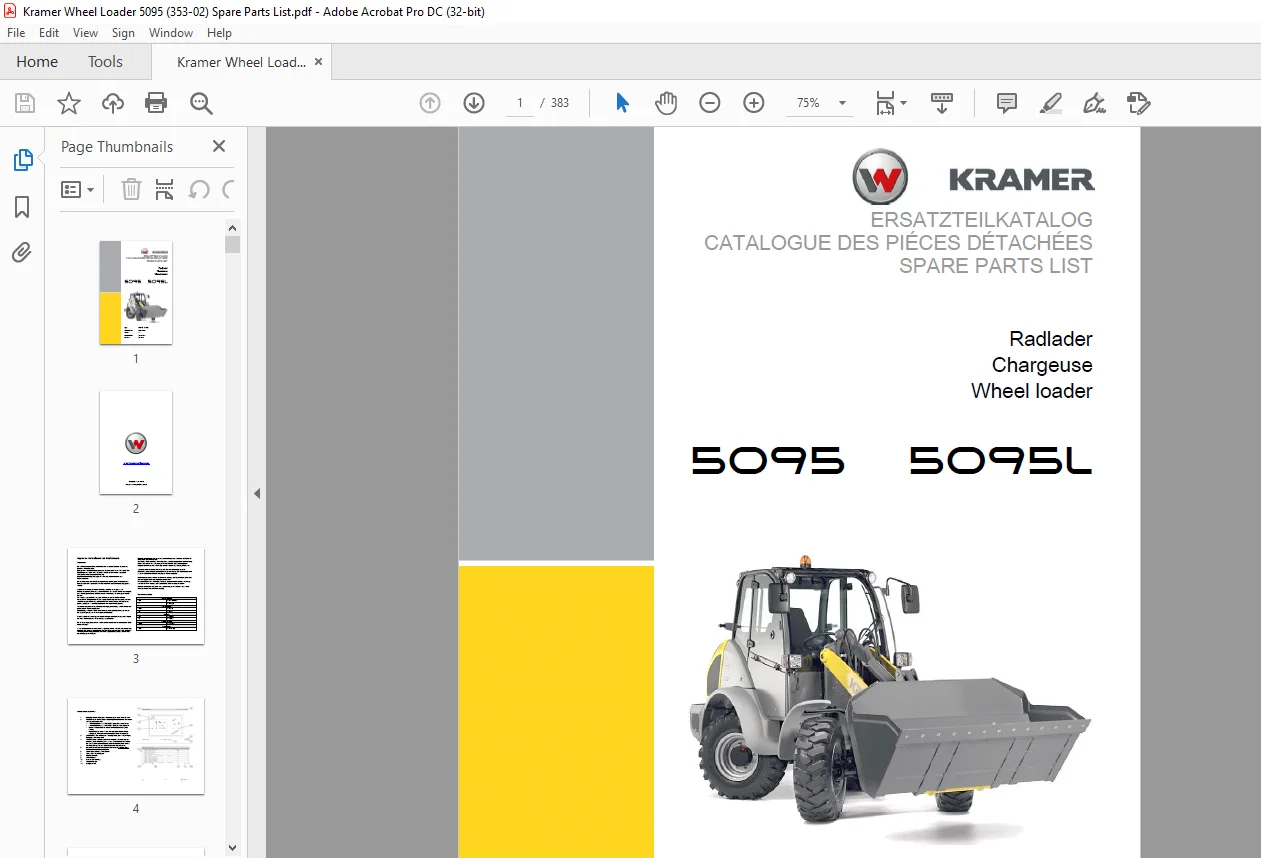

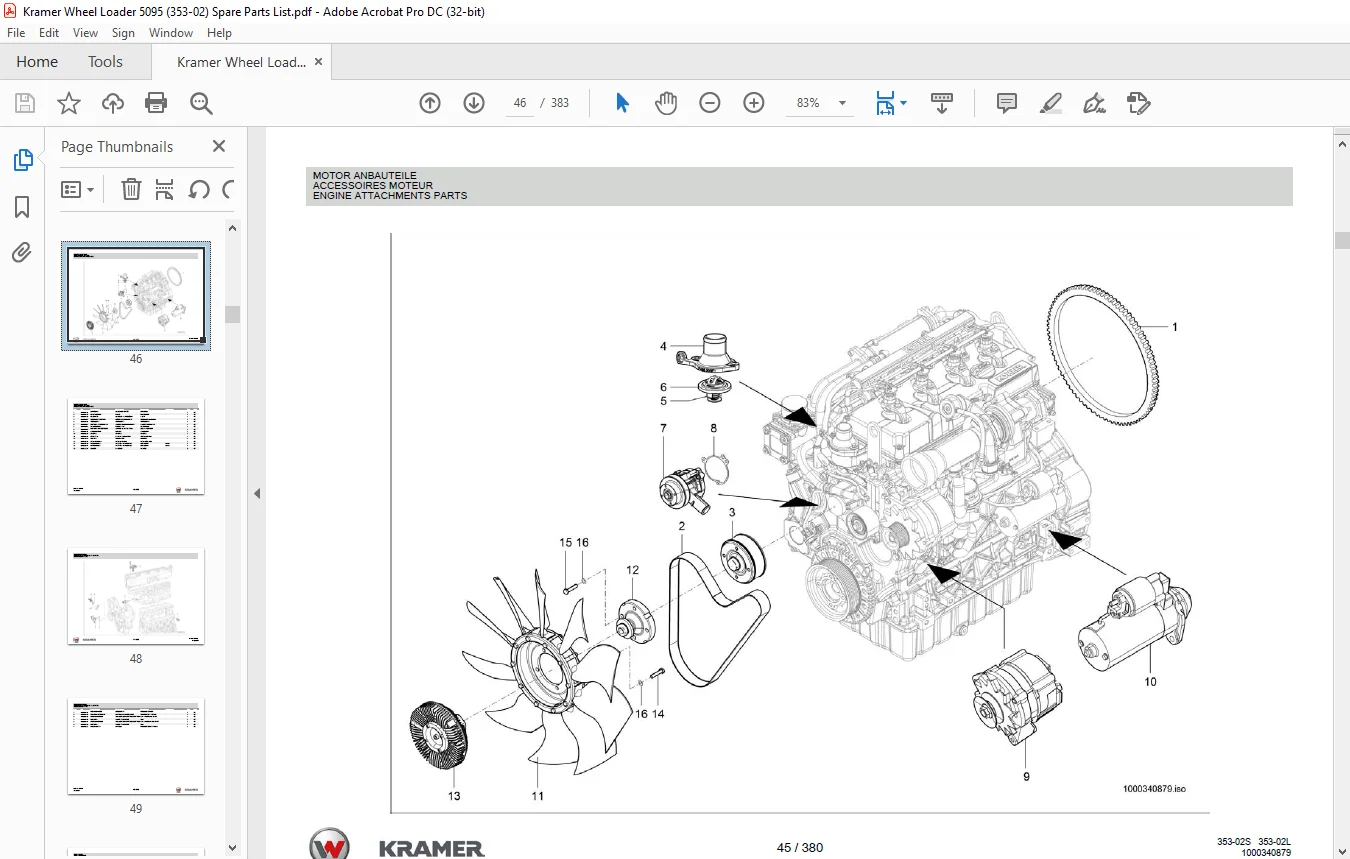

IMAGES PREVIEW OF THE MANUAL:

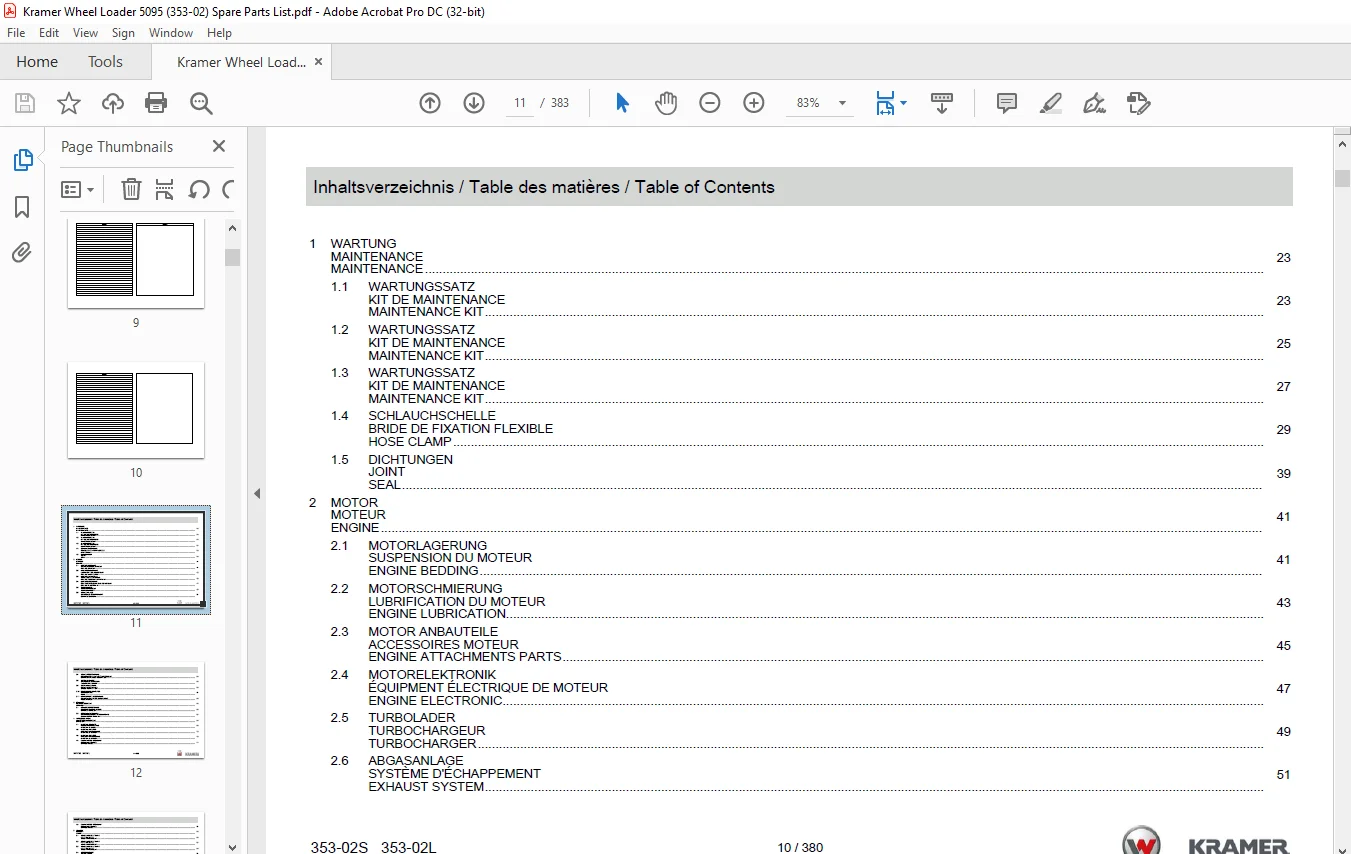

TABLE OF CONTENTS:
KRAMER Wheel loader 5095 5095L Spare Parts List Manual SN353020001 – PDF DOWNLOAD
Inhaltsverzeichnis / Table des matières / Table of Contents.... 11 WARTUNG........................................................ 24 WARTUNGSSATZ............................................... 24 WARTUNGSSATZ............................................... 26 WARTUNGSSATZ............................................... 28 SCHLAUCHSCHELLE............................................ 30 DICHTUNGEN................................................. 40 MOTOR.......................................................... 42 MOTORLAGERUNG.............................................. 42 MOTORSCHMIERUNG............................................ 44 MOTOR ANBAUTEILE........................................... 46 MOTORELEKTRONIK............................................ 48 TURBOLADER................................................. 50 ABGASANLAGE................................................ 52 ABGASRÜCKFÜHRUNG........................................... 54 ANSAUGANLAGE............................................... 56 GASREGULIERUNG............................................. 60 KRAFTSTOFFBEHÄLTER......................................... 62 KRAFTSTOFFVERSORGUNG....................................... 64 KÜHLUNG........................................................ 66 KÜHLERBEFESTIGUNG.......................................... 66 KREISLAUF-KÜHLUNG.......................................... 68 ANTRIEBSEINHEIT................................................ 70 HYDRAULIKPUMPE............................................. 70 HYDRAULIKMOTOR............................................. 74 HYDRAULIKMOTOR............................................. 76 FAHRANTRIEB KREISLAUF...................................... 78 FAHRANTRIEB KREISLAUF...................................... 82 ACHSEN......................................................... 86 ACHSEN-BEFESTIGUNG......................................... 86 ACHSEN-BEFESTIGUNG......................................... 88 ACHSEN-BEFESTIGUNG......................................... 90 VORDERACHSE................................................ 92 HINTERACHSE................................................ 96 HINTERACHSE................................................100 LENKZYLINDER...............................................104 LENKZYLINDER...............................................106 LENKZYLINDER...............................................108 DIFFERENTIAL VORDERACHSE...................................110 DIFFERENTIAL HINTERACHSE...................................114 DIFFERENTIAL HINTERACHSE...................................116 GETRIEBE...................................................120 GETRIEBE...................................................122 BREMSANLAGE....................................................126 BREMSPEDAL.................................................126 BREMSE.....................................................128 FESTSTELLBREMSE............................................130 LENKUNG........................................................132 LENKSÄULE..................................................132 LENKUNG....................................................134 HUNDEGANGLENKUNG...........................................136 ARBEITSHYDRAULIK...............................................140 ÖLBEHÄLTER-KREISLAUF.......................................140 HYDRAULIK-LADEANLAGE.......................................144 HYDRAULIK-LADEANLAGE.......................................148 ÖLBEHÄLTER.................................................152 STEUERHEBEL................................................154 STEUERGERÄT................................................156 STEUERGERÄT................................................160 STEUERGERÄT................................................164 STEUERGERÄT................................................168 HUBZYLINDER................................................172 HUBZYLINDER RBS............................................174 HUBZYLINDER................................................176 KIPPZYLINDER...............................................178 KIPPZYLINDER...............................................180 KIPPZYLINDERSPERRE.........................................182 LASTSTABILISATOR...........................................184 LASTSTABILISATOR...........................................188 ROHRBRUCHSICHERUNG.........................................192 ROHRBRUCHSICHERUNG.........................................194 RÜCKLAUFLEITUNG............................................196 KREISLAUF DRUCKENTLASTUNG..................................198 ELEKTRIK.......................................................200 ARMATURENBRETT.............................................200 PLATINE....................................................202 RELAIS PLATINE HALTERUNG...................................204 ELEKTRIK-KOMPONENTEN.......................................206 FAHRZEUGBELEUCHTUNG........................................208 RAHMENKABELBAUM............................................212 KABELBAUM..................................................216 MOTORKABELBAUM.............................................218 KABINENKABELBAUM...........................................220 KABELBAUM LICHTMASCHINE- ANLASSER..........................226 VORWÄRMUNG.................................................228 BATTERIE-BATTERIEKABEL.....................................230 POTENTIOMETER..............................................232 RADIO......................................................234 KENNZEICHENBELEUCHTUNG.....................................236 KENNZEICHENBELEUCHTUNG.....................................238 KENNZEICHENBELEUCHTUNG.....................................240 KETTEN/RÄDER...................................................242 BEREIFUNG..................................................242 FAHRWERK / RAHMEN..............................................246 RAHMEN.....................................................246 VERKLEIDUNG....................................................250 VERKLEIDUNG................................................250 MOTORHAUBE.................................................254 LADEANLAGE/ARMSYSTEM...........................................256 LADEANLAGE.................................................256 LADEANLAGE.................................................260 SCHNELLWECHSELPLATTE.......................................264 LASTHAKEN..................................................266 KABINE/FAHRERSITZ..............................................268 KABINE.....................................................268 KABINENTÜRE LINKS..........................................274 KABINEN SCHEIBE VO.RE......................................278 KABINEN SCHEIBEN...........................................282 VERKLEIDUNG................................................284 SCHUTZGITTER...............................................286 FAHRERSITZ-BEFESTIGUNG.....................................288 FAHRERSITZ.................................................290 FAHRERSITZ.................................................294 FAHRERSITZ COMFORT........................................298 FAHRERSITZ LUFTGEFEDERT....................................302 HEIZUNG/KLIMAANLAGE............................................306 HEIZUNG....................................................306 KREISLAUF-HEIZUNG..........................................308 KLIMAANLAGE................................................310 KREISLAUF-KLIMAANLAGE......................................312 AUFKLEBER, WERKZEUG............................................316 DOKUMENTE..................................................316 DOKUMENTE..................................................318 HINWEISSCHILD..............................................320 HINWEISSCHILDER............................................322 AUFKLEBER..................................................324 AUFKLEBER..................................................326 WERKZEUG...................................................328 ZENTRALSCHMIERANLAGE.......................................330 ZENTRALSCHMIERANLAGE.......................................332 ANBAUGERÄTE....................................................334 ZAHNSCHUTZ.................................................334 STAPELEINRICHTUNG..........................................336 STAPELEINRICHTUNG..........................................338 STAPELEINRICHTUNG..........................................340 STAPELEINRICHTUNG..........................................342 STAPELEINRICHTUNG..........................................344 STAPELEINRICHTUNG..........................................346 LADESCHAUFEL...............................................348 LADESCHAUFEL...............................................350 LADESCHAUFEL...............................................352 LADESCHAUFEL...............................................354 LADESCHAUFEL...............................................356 LADESCHAUFEL...............................................358 LADESCHAUFEL...............................................360 SEITENSCHWENKSCHAUFEL......................................362 GREIFERSCHAUFEL............................................364 GREIFERSCHAUFEL............................................368 ANHÄNGEKUPPLUNG............................................372 ANHÄNGEKUPPLUNG............................................374 ARBEITSPLATTFORM...........................................376 SALTZSTREUER...............................................378
