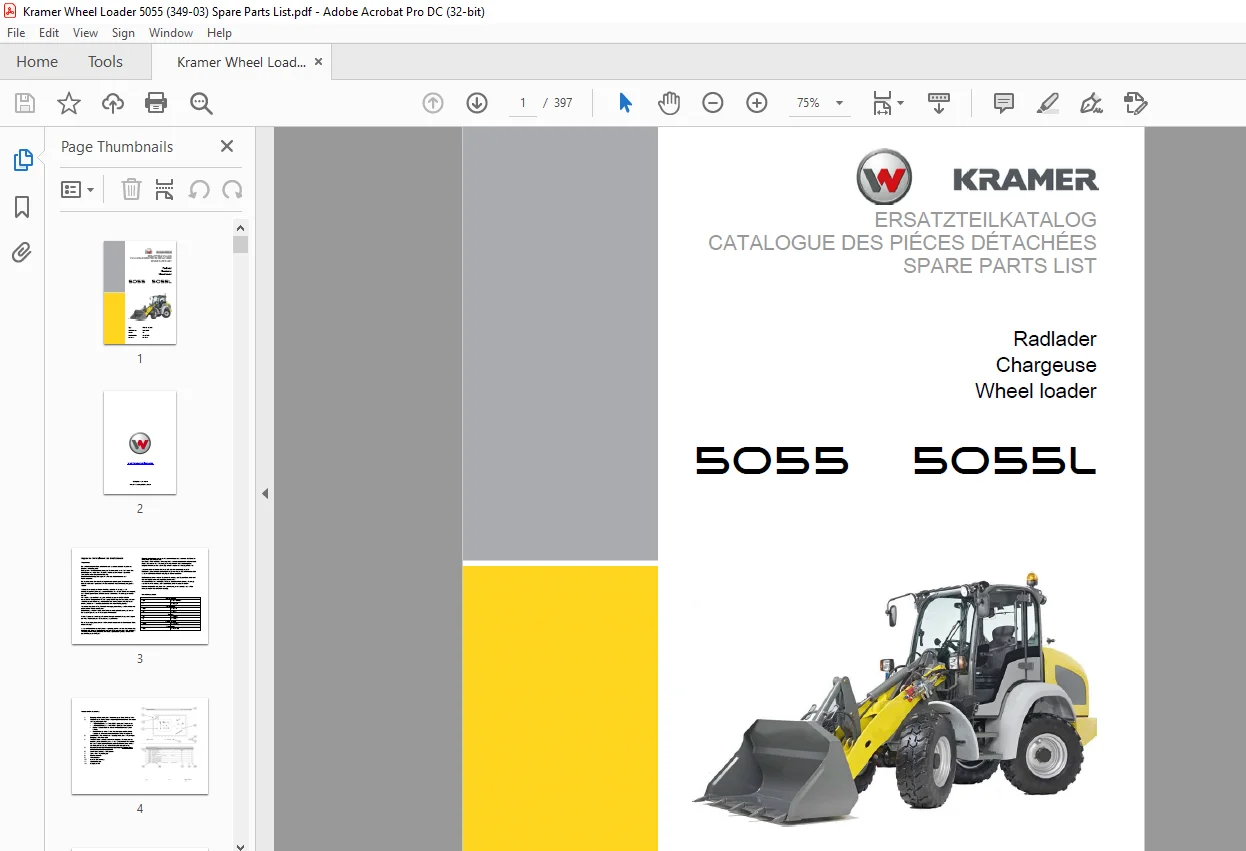

KRAMER Wheel loader 5055 5055L Spare Parts List Manual SN349030001 – PDF DOWNLOAD
FILE DETAILS:
KRAMER Wheel loader 5055 5055L Spare Parts List Manual SN349030001 – PDF DOWNLOAD
Language : English
Pages : 385
Downloadable : Yes
File Type : PDF
DESCRIPTION:
KRAMER Wheel loader 5055 5055L Spare Parts List Manual SN349030001 – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
- The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
- In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
- Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
- Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
- In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
- Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.
IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KRAMER Wheel loader 5055 5055L Spare Parts List Manual SN349030001 – PDF DOWNLOAD

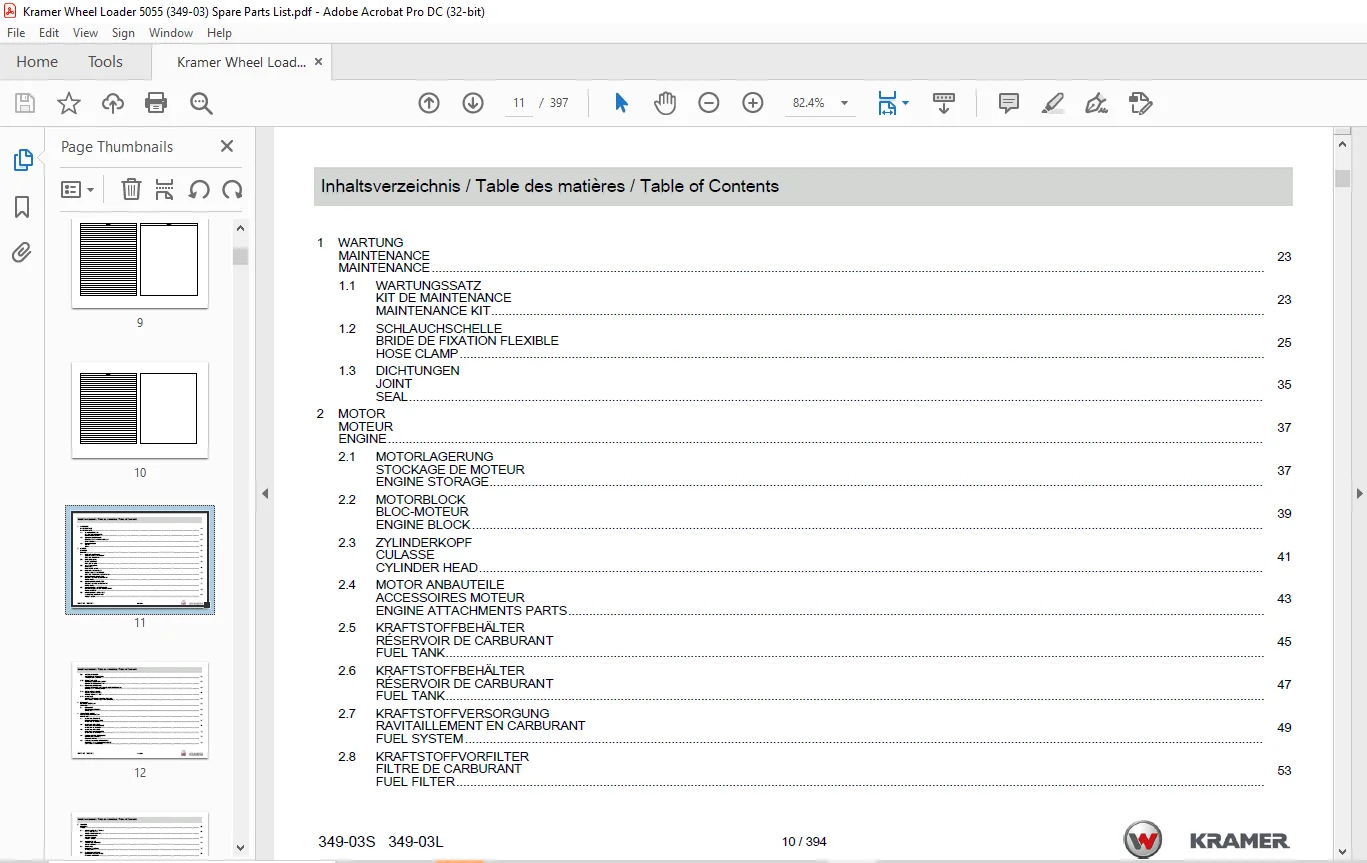

Inhaltsverzeichnis / Table des matières / Table of Contents 11
WARTUNG 24
WARTUNGSSATZ 24
SCHLAUCHSCHELLE 26
DICHTUNGEN 36
MOTOR 38

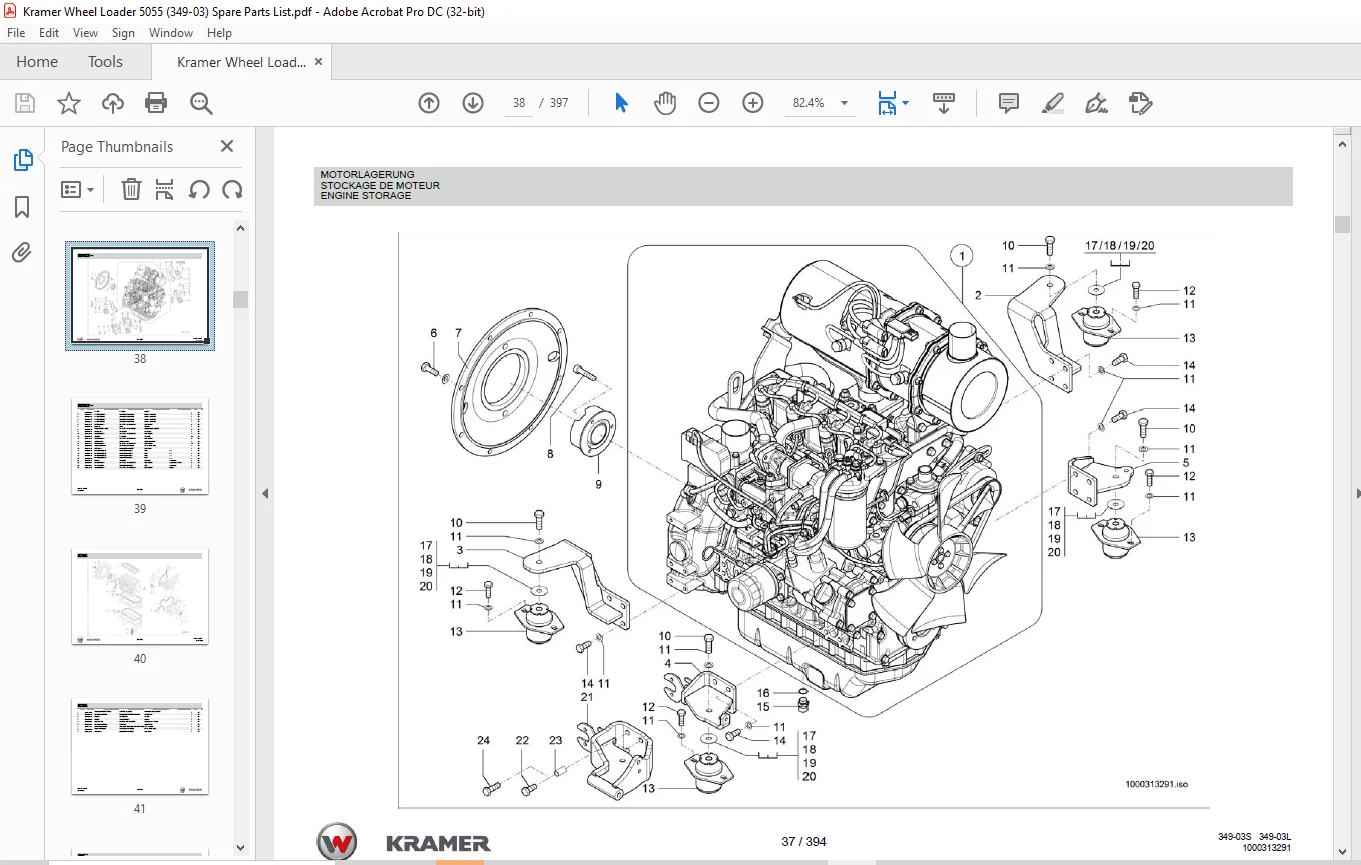

MOTORLAGERUNG 38
MOTORBLOCK 40
ZYLINDERKOPF 42
MOTOR ANBAUTEILE 44
KRAFTSTOFFBEHÄLTER 46
KRAFTSTOFFBEHÄLTER 48
KRAFTSTOFFVERSORGUNG 50
KRAFTSTOFFVORFILTER 54
ANSAUGANLAGE 56
ABGASANLAGE 58
KEILRIEMENSCHUTZ 60
GASREGULIERUNG 62
HANDGAS 64
KÜHLUNG 66
KÜHLUNG 66
ANTRIEBSEINHEIT 68
HYDRAULIKPUMPE 68
HYDRAULIKMOTOR 72
HYDRAULIKMOTOR 74
FAHRANTRIEB KREISLAUF 76
LANGSAMFAHREINRICHTUNG 80
ACHSEN 82
ACHSEN-BEFESTIGUNG 82
VORDERACHSE 84
WINKELTRIEB 86
RADNABE 90
PLANETENTRÄGER 92
HINTERACHSE 94
WINKELTRIEB 96
GETRIEBE 98
DIFFERENTIALSPERRE 100
BREMSANLAGE 104
BETRIEBSBREMSE 104
BREMSPEDAL 108
BREMSPEDAL 112
FESTSTELLBREMSE 116
LENKUNG 118
LENKUNG 118
VORDERRADLENKUNG 124
ARBEITSHYDRAULIK 126
ÖLBEHÄLTER 126
ÖLBEHÄLTER 130
ÖLBEHÄLTER-KREISLAUF 134
KREISLAUF 138
3 STEUERKREIS 140
3 STEUERKREIS 142
3 STEUERKREIS ELEKTR BETÄTIGUNG 144
STEUERGERÄT 146
STEUERGERÄT-EINZELTEILE 148
STEUERGERÄT 150
STEUERGERÄT-EINZELTEILE 152
STEUERGERÄT ELEKTR BETÄTIGUNG 154
STEUERGERÄT-EINZELTEILE 156
STEUERGERAET ELEKTR BETÄTIGUNG 158
STEUERGERÄT-EINZELTEILE 160
HUBZYLINDER 162
HUBZYLINDER 164
KIPPZYLINDER 166
KIPPZYLINDER 168
LASTSTABILISATOR 170
ZUSATZSTEUERKREIS 90 LITER 172
ZUSATZSTEUERKREIS 90 LITER 178
KREISLAUF KIPPER 184
KREISLAUF KIPPER+ZUSATZSTEUERKREIS 188
ROHRBRUCHSICHERUNG 192
RÜCKLAUFLEITUNG 194
KREISLAUF-SCHNELLWECHSELPLATTE 196
KREISLAUF-SCHNELLWECHSELPLATTE 200
ZUSATZSTEUERKREIS 204
LECKÖLLEITUNG 206
TRANSPORTSICHERUNG 208
ELEKTRIK 210
ARMATURENBRETT 210
SICHERUNGEN UND RELAIS 214
FAHRZEUGBELEUCHTUNG 216
BATTERIE-BATTERIEKABEL 220
HAUPTKABELBAUM 222
SICHERUNGSKASTEN, RELAIS 228
KABINENKABELBAUM 230
KABELBAUM LICHTMASCHINE 236
VORWÄRMUNG 238
KRAFTSTOFFVORWÄRMUNG 240
HECKSCHEIBENHEIZUNG 242
KENNZEICHENBELEUCHTUNG 244
KENNZEICHENBELEUCHTUNG 246
KENNZEICHENBELEUCHTUNG 248
ZUSATZSCHEINWERFER 250
RADIO 252
KABELBAUM ZUSATZSTEUERKREIS 254
TELEMATIC 256
KETTEN/RÄDER 258
BEREIFUNG 258
FAHRWERK / RAHMEN 260
RAHMEN 260
RAHMEN 262
VERKLEIDUNG 264
VERKLEIDUNG 264
RADABDECKUNG 266
MOTORHAUBE 268
LADEANLAGE/ARMSYSTEM 270
LADEANLAGE 270
LADEANLAGE 274
LADEANLAGE 278
SCHNELLWECHSELPLATTE 282
SCHNELLWECHSELPLATTE 284
ANBAUPLATTE 286
ANBAUPLATTE KPL 288
KABINE/FAHRERSITZ 290
KABINE 290
KABINE 294
KABINE EINZELTEILE 298
KABINENTÜRE LINKS 300
SEITENSCHEIBE 302
VERKLEIDUNG 304
KABINE OFFEN 308
FAHRERSITZ 312
FAHRERSITZ 316
FAHRERSITZ LUFTGEFEDERT 320
FAHRERSITZ-BEFESTIGUNG 322
HEIZUNG/KLIMAANLAGE 324
HEIZUNG 324
HEIZUNG 326
KLIMAANLAGE 328
KLIMAANLAGE 332
ZUSATZHEIZUNG 336
AUFKLEBER, WERKZEUG 340
AUFKLEBER 340
AUFKLEBER 344
AUFKLEBER 348
TRAGLASTDIAGRAMM 350
HINWEISSCHILD 352
DOKUMENTE 354
WERKZEUG 356
ANBAUGERÄTE 360
LADESCHAUFEL 360
LADESCHAUFEL 362
GREIFERSCHAUFEL 364
STAPELEINRICHTUNG 368
STAPELEINRICHTUNG 370
STAPELEINRICHTUNG 372
ANHÄNGEKUPPLUNG 374
ANHÄNGEKUPPLUNG 376
SALTZSTREUER 378
SALTZSTREUER 380
SEITENSCHWENKSCHAUFEL 382
