KRAMER Teleloader 1245cc35 Spare Parts List Manual SN10003014174 – PDF DOWNLOAD

Description

KRAMER Teleloader 1245cc35 Spare Parts List Manual SN10003014174 – PDF DOWNLOAD

FILE DETAILS:

KRAMER Teleloader 1245cc35 Spare Parts List Manual SN10003014174 – PDF DOWNLOAD

Language : English
Pages : 325
Downloadable : Yes
File Type : PDF

DESCRIPTION:

KRAMER Teleloader 1245cc35 Spare Parts List Manual SN10003014174 – PDF DOWNLOAD

General information about spare parts manual
General

• When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
• The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
• In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
• Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
• Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
• This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
• In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
• Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
• The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
• Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

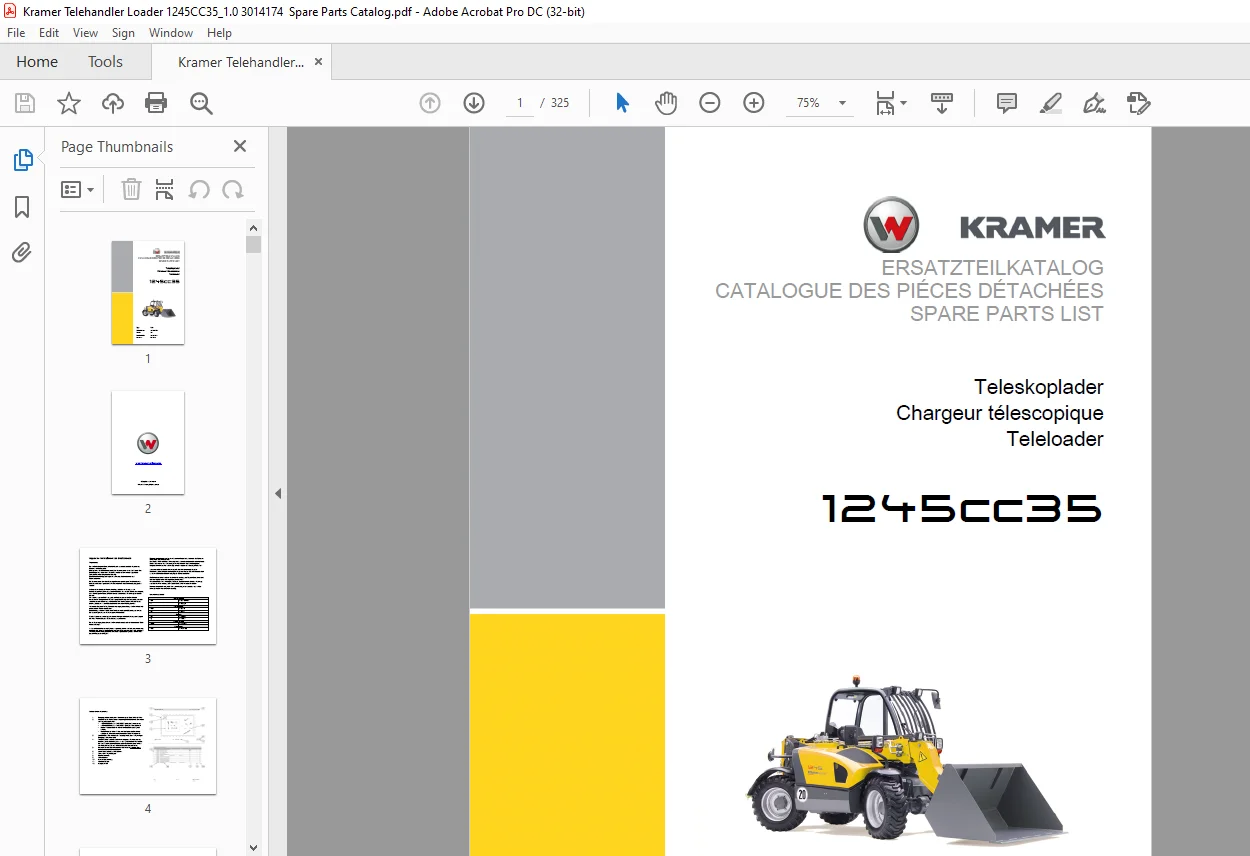

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

KRAMER Teleloader 1245cc35 Spare Parts List Manual SN10003014174 – PDF DOWNLOAD

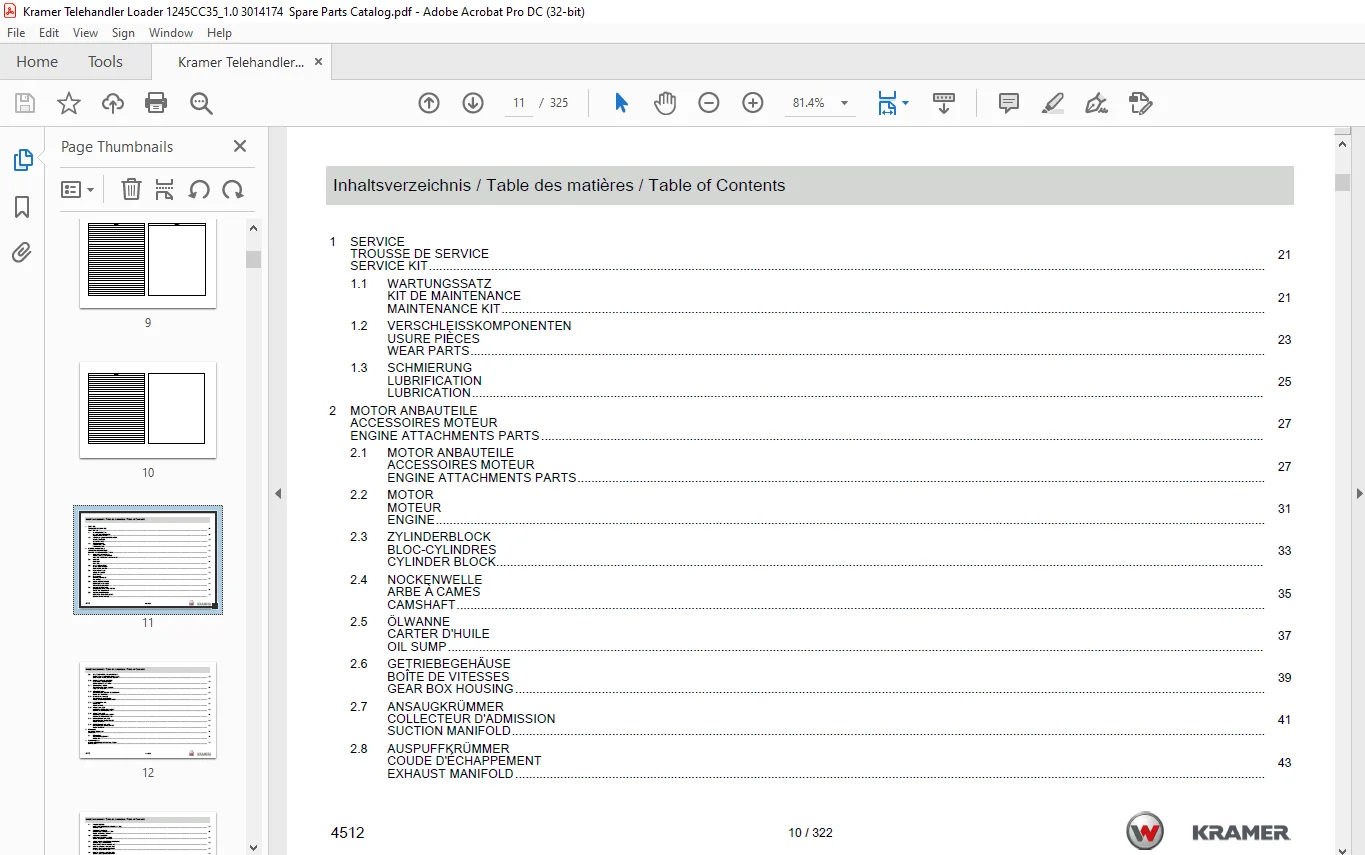

Inhaltsverzeichnis / Table des matières / Table of Contents 11
SERVICE 22
WARTUNGSSATZ 22

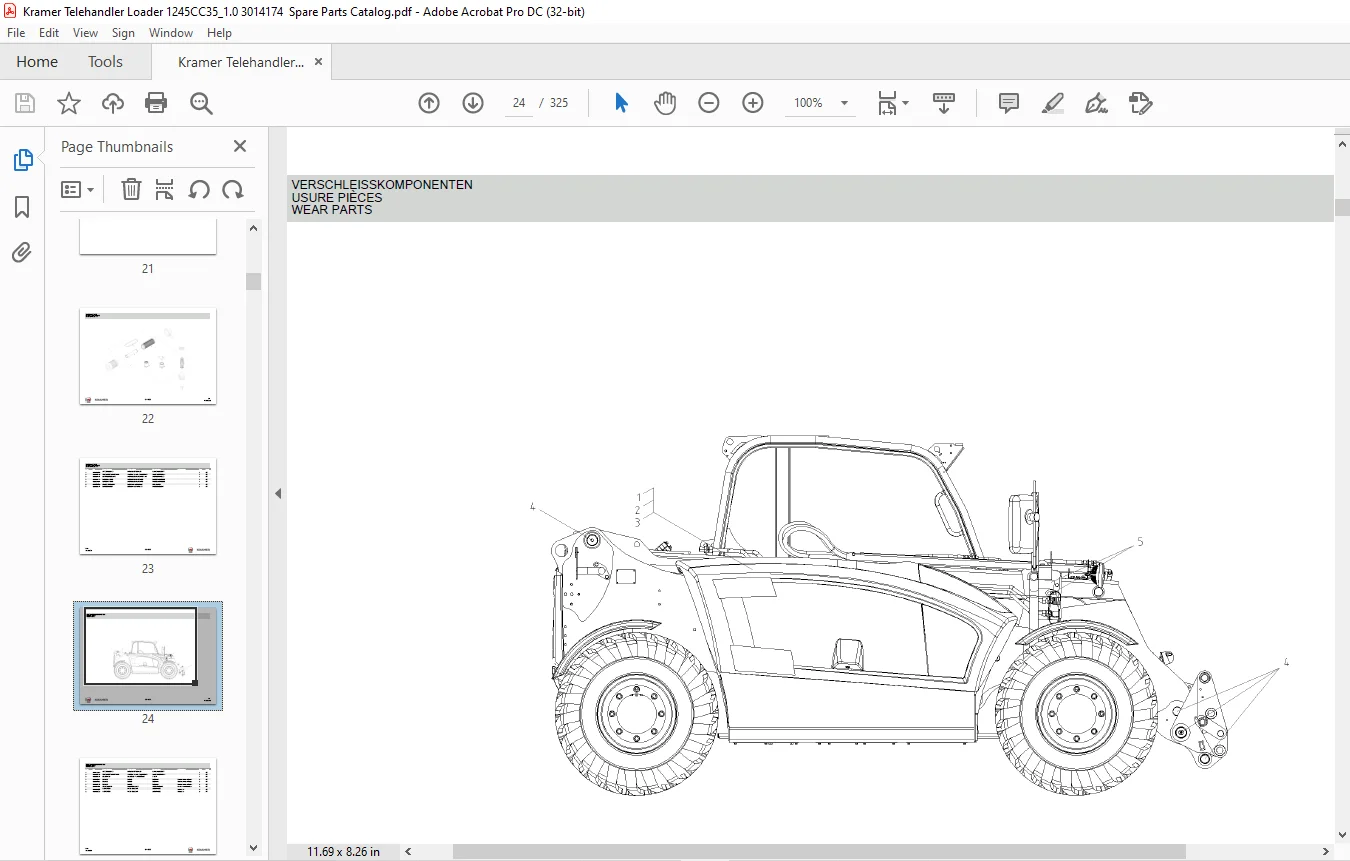

VERSCHLEISSKOMPONENTEN 24
SCHMIERUNG 26
MOTOR ANBAUTEILE 28
MOTOR ANBAUTEILE 28
MOTOR 32
ZYLINDERBLOCK 34
NOCKENWELLE 36
ÖLWANNE 38
GETRIEBEGEHÄUSE 40
ANSAUGKRÜMMER 42
AUSPUFFKRÜMMER 44
ZYLINDERKOPF, VENTILDECKEL 46
KURBELWELLE, KOLBEN 50
SCHMIERSYSTEM 52
KÜHLSYSTEM 54
EINSPRITZANLAGE 56
LICHTMASCHINE 58
ABGASANLAGE 60
ABGASANLAGE 62
KRAFTSTOFFANLAGE 64
KRAFTSTOFFANLAGE 68
KÜHLUNG 72
KÜHLUNG 72
FAHRANTRIEB 76
FAHRANTRIEB 76
VERSTELLPUMPE 82
VERSTELLMOTOR 84
VERBINDUNGSVERSCHRAUBUNG 86
ROHRLEITUNG – RÜCKLAUF 88
ROHRLEITUNG – RÜCKLAUF 90
ACHSEN 92
ACHSEN 92
ACHSROHR 94
ACHSROHR 96
ACHSROHR 98
ANTRIEB 100
VERTEILERGETRIEBE 102
ACHSROHR 104
ACHSROHR 106
ACHSROHR 108
ANTRIEB 110
KREUZGELENK 112
PLANETENLENKTRIEBACHSE 114
PLANETENLENKTRIEBACHSE 116
LENKZYLINDER 118
DIFFERENTIAL 120
DIFFERENTIAL 122
DIFFERENTIAL 124
DIFFERENTIALSPERRE 126
BREMSE 128
BREMSE 128
BREMSE 134
BREMSE 140
LENKUNG 146
LENKUNG 146
LENKUNG 150
LENKSÄULE 154
ARBEITSHYDRAULIK 156
ARBEITSHYDRAULIK 156
ARBEITSHYDRAULIK 162
ARBEITSHYDRAULIK 168
ARBEITSHYDRAULIK 174
STEUERVENTIL 180
STEUERVENTIL 184
ELEKTRISCHE ANLAGE 186
ARMATURENBRETT 186
ELEKTRISCHE ANLAGE 192
ELEKTRISCHE ANLAGE 198
ELEKTRIK HAUPTKABEL 202
KABELBAUM 204
ZUSATZELEKTRIK 206
KABELBAUM BELEUCHTUNG 208
KABELBAUM SCHEINWERFER 210
KABELBAUM KABINE 212
ZUSATZKABELBAUM 214
ZUSATZKABELBAUM 216
ZUSATZKABELBAUM 218
KABELBAUM DREHLEUCHTE 220
BEREIFUNG 222
BEREIFUNG 222
RAHMEN 224
RAHMEN 224
VERKLEIDUNG 230
MOTORHAUBE 230
LADEANLAGE/ARMSYSTEM 232
SCHWINGE 232
SCHNELLWECHSELPLATTE 236
SCHNELLWECHSELPLATTE 238
SCHNELLWECHSELPLATTE 240
SCHNELLWECHSELPLATTE 244
SCHNELLWECHSELPLATTE 246
SCHNELLWECHSELPLATTE 250
KABINE 252
KABINE 252
VERKLEIDUNG 254
KABINENRAHMEN 260
GLÄSER 262
TÜR 264
TÜR 268
SITZ 270
SITZ 272
HEIZUNG 274
HEIZUNG 274
OPTION 276
STEUERVENTIL 276
ZUSATZHYDRAULIK 278
ZUSATZHYDRAULIK 280
SCHNELLVERSCHLUßKUPPLUNG 282
ZUSATZHYDRAULIK 284
VENTIL ZUSATZHYDRAULIK 288
ZUSATZHYDRAULIK 290
HECKHYDRAULIK 292
HECKHYDRAULIK 296
ZUSATZHYDRAULIK 300
ZUSATZHYDRAULIK 302
RANGIERKUPPLUNG 306
ZUBEHÖRTEILE 308
ZUBEHÖRTEILE 310
KROKODILGEBIß 310
ERDSCHAUFEL 312
PALETTENGABEL 314
PALETTENGABEL 316
MASCHINENDOKUMENTATION 318
MASCHINENDOKUMENTATION 318
AUFKLEBER 320
