KRAMER Telehandler 5507 Spare Parts List Manual SN416040001 – PDF DOWNLOAD
FILE DETAILS:
KRAMER Telehandler 5507 Spare Parts List Manual SN416040001 – PDF DOWNLOAD
Language : English
Pages : 525
Downloadable : Yes
File Type : PDF
DESCRIPTION:
KRAMER Telehandler 5507 Spare Parts List Manual SN416040001 – PDF DOWNLOAD
General information about spare parts manual
General
- When ordering spare parts, care must be taken to ensure that all information about the machine is complete. This includes the name of the model, the serial number and the year of construction. In the event of orders for motor or axle parts, the type and serial number of the components are also required. The following details are also necessary: material number and position number.
- The serial number is stamped on the machine chassis. It is also located on the type label. The serial number must be given in full.
- In the course of technical development, we work continuously to improve and optimize our products. For this reason the pictures in the spare parts manual can sometimes deviate from the actual model. We reserve the right to make changes to the spare parts at any time. This applies to the specified quantity of spare parts as well as to the technical model. In order to provide the latest information about the machine, we ask you to contact the appointed dealer.
- Technical information, dimensions, weights and the given quantity of spare parts are not binding. Responsibility for errors or omissions not accepted. The cover features the machine with possible optional equipment. The representation given is not binding for the actual model.
- Wacker Neuson is authorized to publish copyright-protected material, for example that owned by Perkins Engines Company Ltd. The number of spare parts specified in the manual refers only to the quantity installed at this point.
- This spare parts manual shows options that are available for the vehicle direct from the factory. For this reason, options might be shown that are not compatible with your machine. Not all the options shown are available in all countries/regions. Some options can be retrofitted. However, please note that it is not possible to combine all options with each other.
- In some cases, parts are shown that are not available as spare parts. These parts are not itemized in the drawings. The portrayal is for clarification only and does not mean that the part shown can be ordered.
- Any unauthorized modification (e.g. installation of unsuitable spare parts, accessory parts and components) in your Wacker Neuson machine can severely impair operational safety
- The operational safety is only ensured when original spare parts and additional devices that we have approved are used. We do not accept liability for damage incurred due to a technical change or non-use of original spare parts.
- Mentions of “right”, and “left” or “front” and “rear” are made from the position of the driver in a forwards direction.

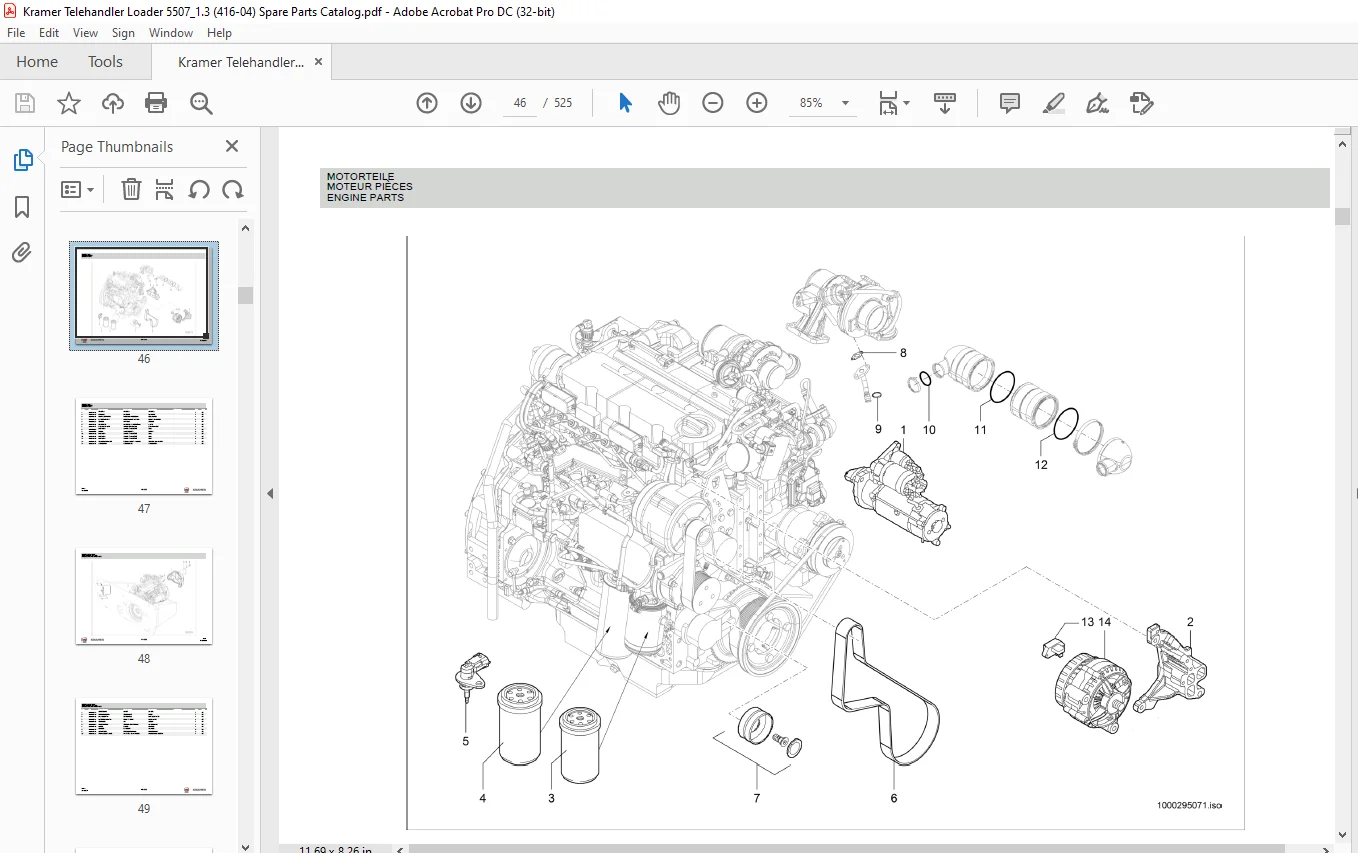

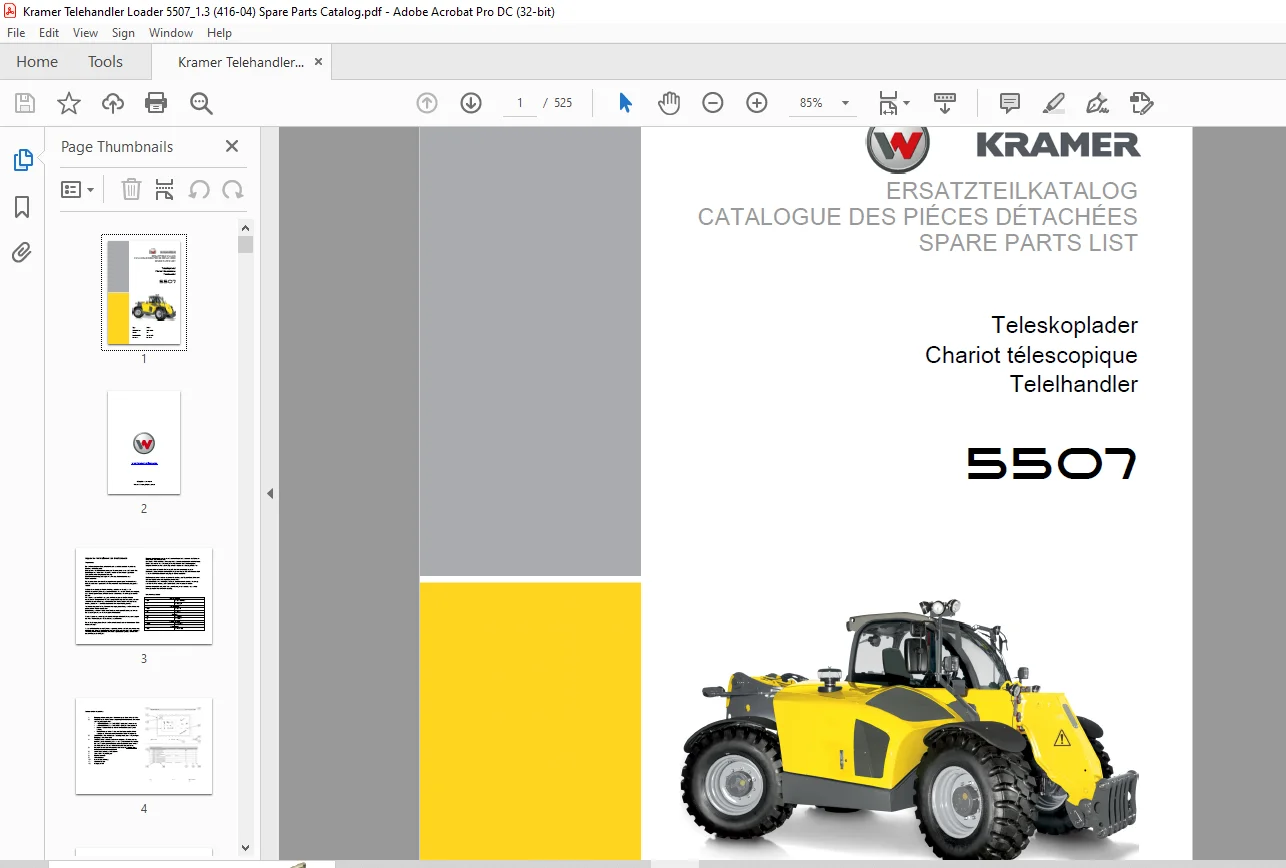

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
KRAMER Telehandler 5507 Spare Parts List Manual SN416040001 – PDF DOWNLOAD

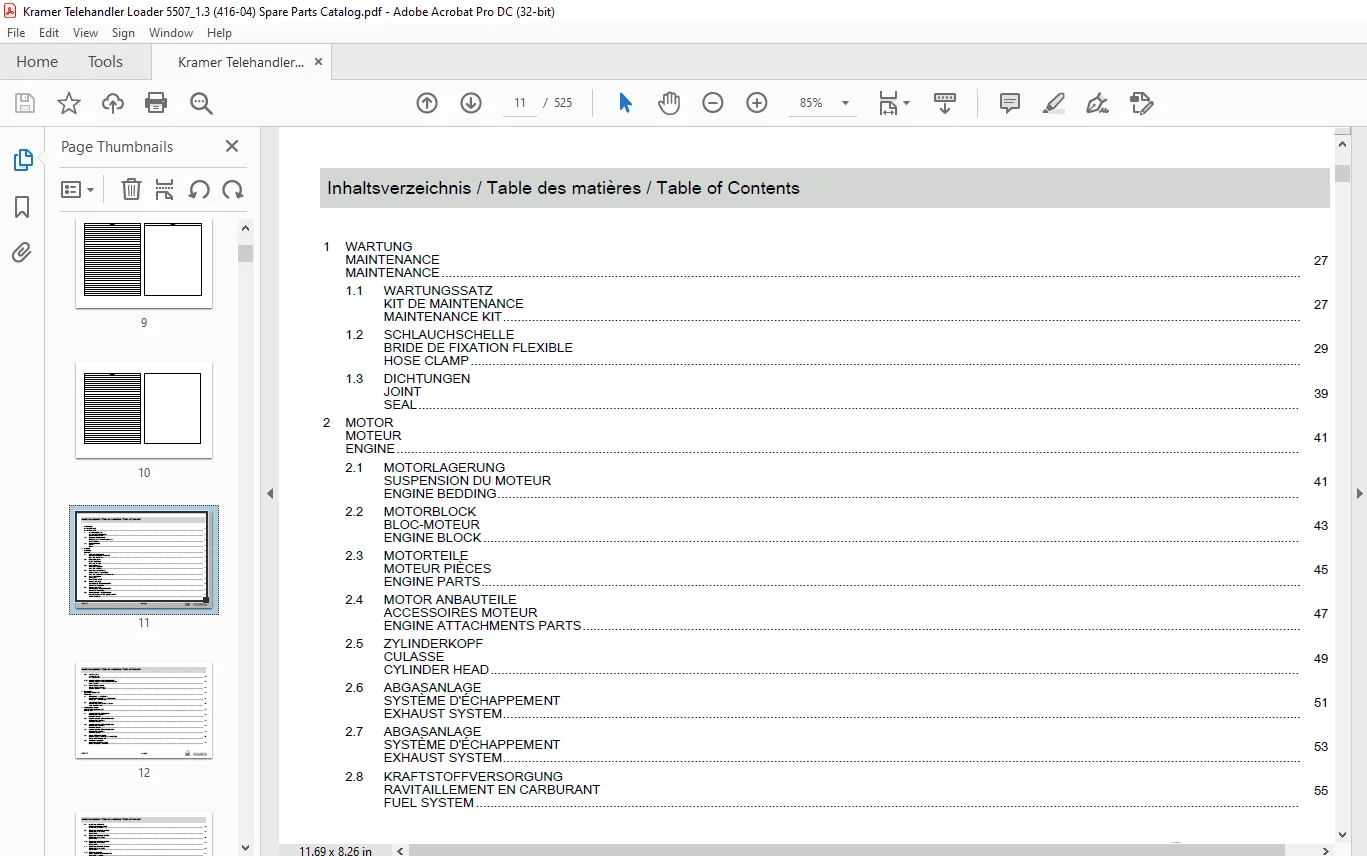

Inhaltsverzeichnis / Table des matières / Table of Contents.... 11 WARTUNG........................................................ 28 WARTUNGSSATZ............................................... 28 SCHLAUCHSCHELLE............................................ 30 DICHTUNGEN................................................. 40 MOTOR.......................................................... 42 MOTORLAGERUNG.............................................. 42 MOTORBLOCK................................................. 44 MOTORTEILE................................................. 46 MOTOR ANBAUTEILE........................................... 48 ZYLINDERKOPF............................................... 50 ABGASANLAGE................................................ 52 ABGASANLAGE................................................ 54 KRAFTSTOFFVERSORGUNG....................................... 56 LUFTFILTER................................................. 60 UNTERDRUCKVORABSCHEIDER.................................... 64 GASREGULIERUNG............................................. 66 KÜHLUNG........................................................ 68 KÜHLUNG + LAGERUNG......................................... 68 LÜFTERANTRIEB.............................................. 72 ANTRIEBSEINHEIT................................................ 76 FAHRANTRIEB KREISLAUF...................................... 76 FAHRANTRIEB KÜHLKREISLAUF.................................. 80 FAHRANTRIEB KÜHLKREISLAUF.................................. 84 FAHRANTRIEB KÜHLKREISLAUF.................................. 88 GETRIEBELAGERUNG........................................... 92 VERSTELLMOTOR.............................................. 94 HYDRAULIKPUMPE............................................. 96 SCHNELLGANGGETRIEBE........................................100 SCHNELLGANGGETRIEBE........................................102 SCHNELLGANGGETRIEBE........................................106 SCHNELLGANGGETRIEBE........................................108 STEUERDECKEL...............................................112 ACHSEN.........................................................116 ACHSEN-BEFESTIGUNG.........................................116 ACHSEN-BEFESTIGUNG.........................................118 GELENKWELLE................................................120 VORDERACHSE................................................122 VORDERACHSE................................................124 WINKELTRIEB................................................126 WINKELTRIEB................................................128 DIFFERENTIAL...............................................130 DIFFERENTIAL...............................................132 BREMSE.....................................................134 BREMSE.....................................................136 HINTERACHSE................................................138 HINTERACHSE................................................140 WINKELTRIEB................................................142 WINKELTRIEB................................................144 DIFFERENTIAL...............................................146 DIFFERENTIAL...............................................148 BREMSE.....................................................150 BREMSE.....................................................152 LENKZYLINDER...............................................154 LENKZYLINDER...............................................156 DOPPELGELENKWELLE..........................................158 DOPPELGELENKWELLE..........................................160 RADNABE....................................................162 RADNABE....................................................164 DIFFERENTIALSPERRE.........................................166 BREMSANLAGE....................................................168 BREMSPEDAL.................................................168 BETRIEBSBREMSE.............................................170 ANHAENGER BREMSE...........................................178 DRUCKLUFTBREMSANLAGE.......................................182 LENKUNG........................................................186 LENKUNG....................................................186 LENKSÄULE..................................................192 KREISLAUF LENKUNG-PUMPE-TANK...............................194 LENKUNG....................................................198 ARBEITSHYDRAULIK...............................................202 ÖLBEHÄLTER.................................................202 STEUERGERÄT BEFESTIGUNG....................................204 STEUERGERÄT................................................206 STEUERGERÄT................................................208 STEUERGERÄT................................................210 STEUERGERÄT................................................212 HUBZYLINDER................................................214 AUSSCHUBZYLINDER...........................................216 KIPPZYLINDER...............................................218 AUSGLEICHSZYLINDER.........................................220 HYDRAULIKPUMPE.............................................222 HYDRAULIKPUMPE.............................................224 KREISLAUF TANK-PUMPE-STEUERGERÄT...........................226 KREISLAUF STEUERGERÄT-TANK.................................228 ARBEITSHYDRAULIK - STEUERGERÄT.............................230 KREISLAUF - ABSCHALTVENTIL.................................232 KREISLAUF-HUBZYLINDER......................................236 KREISLAUF-AUSSCHUBZYLINDER.................................240 KREISLAUF-KIPPZYLINDER.....................................242 KREISLAUF-AUSGLEICHSZYLINDER...............................244 3.STEUERKREIS..............................................246 KREISLAUF LASTSTABILISATOR.................................250 STEUERKREIS VORN...........................................252 ZUSATZSTEUERKREIS HI.......................................254 KREISLAUF KIPPER...........................................256 ZUSATZSTEUERKREIS AUSSEN...................................258 HITCH + KIPPER + ZUSATZSTEUERKREIS.........................264 KREISLAUF DRUCKENTLASTUNG..................................268 SCHMIERLEITUNG.............................................270 ZENTRALSCHMIERANLAGE.......................................272 ZENTRALSCHMIERANLAGE.......................................274 ELEKTRIK.......................................................276 FAHRZEUGBELEUCHTUNG........................................276 FAHRZEUGBELEUCHTUNG........................................280 FAHRZEUGBELEUCHTUNG........................................284 ARMATURENBRETT.............................................288 ARMATURENBRETT.............................................290 ARMATUREN - DACH...........................................292 ANZEIGEINSTRUMENT..........................................294 PLATINE....................................................296 ELEKTRIK-KOMPONENTEN.......................................298 ELEKTRIK-KOMPONENTEN.......................................300 KABINENKABELBAUM...........................................302 KABINENKABELBAUM...........................................306 RAHMENKABELBAUM............................................310 RAHMENKABELBAUM............................................314 MOTORKABELBAUM.............................................318 MOTORKABELBAUM.............................................322 ELEKTRIK TELESKOPARM.......................................326 ELEKTRIK TELESKOPARM.......................................330 BATTERIE-BATTERIEKABEL.....................................332 POTENTIOMETER..............................................336 STECKDOSE..................................................338 MOTOR-ÖLVORWÄRMUNG.........................................340 KABELBAUM ÖLVORWÄRMUNG.....................................342 KABELBAUM SCHNELLWECHSELPLATTE.............................344 KABELBAUM SCHNELLWECHSELPLATTE.............................346 KABELBAUM SCHEIBENHEIZUNG..................................348 KABELBAUM HEIZUNG/KLIMA....................................350 KABELBAUM AUTOMATIKGURT....................................352 KABELBAUM MOTOR-STEUERGERÄT................................354 KABELBAUM SCHAUFELRÜCKFÜHRAUTOMATIK........................356 ELEKTRISCHER AUSSENSPIEGEL.................................358 ELEKTRISCHER AUSSENSPIEGEL.................................360 STEUERHEBEL................................................364 STEUERHEBEL................................................366 BELEUCHTUNG LED............................................368 BELEUCHTUNG HUBARM.........................................370 WEGFAHRSPERRE..............................................372 RADIO......................................................374 TELEMATIC..................................................376 KAMERA HECK................................................378 KAMERA SICHT...............................................380 KETTEN/RÄDER...................................................382 RÄDER......................................................382 FAHRWERK / RAHMEN..............................................386 RAHMEN.....................................................386 RAHMEN.....................................................388 VERKLEIDUNG....................................................390 MOTORHAUBE.................................................390 RADABDECKUNG...............................................392 RADABDECKUNG...............................................394 ABDECKUNG..................................................396 VERKLEIDUNG................................................398 VERKLEIDUNG................................................402 SCHUTZ.....................................................406 SCHUTZ.....................................................408 LADEANLAGE/ARMSYSTEM...........................................410 TELESKOPAUSLEGER...........................................410 LAGERUNG...................................................414 KIPPHEBEL..................................................418 SCHNELLWECHSELPLATTE.......................................420 SCHNELLWECHSELPLATTE.......................................422 SCHNELLWECHSELPLATTE.......................................424 SCHNELLWECHSELPLATTE.......................................428 SCHNELLWECHSELPLATTE.......................................430 SCHNELLWECHSELPLATTE.......................................432 ÜBERLASTBEGRENZUNG.........................................436 SCHAUFELRÜCKFÜHRAUTOMATIK SRA..............................438 KABINE/FAHRERSITZ..............................................440 FAHRERKABINE...............................................440 KABINEN SCHEIBEN...........................................444 HECKSCHEIBE................................................446 KABINENTÜR.................................................448 WISCHERANLAGE..............................................452 RÜCKBLICKSPIEGEL...........................................454 VERKLEIDUNG................................................456 DÄMMATTEN..................................................460 STAUFACH...................................................462 FAHRERSITZ-BEFESTIGUNG.....................................464 FAHRERSITZ.................................................466 FAHRERSITZ.................................................470 HEIZUNG/KLIMAANLAGE............................................474 HEIZUNG....................................................474 KLIMAANLAGE................................................478 AUFKLEBER, WERKZEUG............................................482 AUFKLEBER..................................................482 AUFKLEBER..................................................486 WERKZEUG...................................................490 DOKUMENTE..................................................492 DOKUMENTE..................................................494 ANBAUGERÄTE....................................................496 SCHAUFEL...................................................496 STAPELEINRICHTUNG..........................................498 STAPELEINRICHTUNG..........................................500 STAPELEINRICHTUNG..........................................502 SPIEGEL ANHAENGEKUPPLUNG...................................504 RANGIERKUPPLUNG............................................506 ANHÄNGEKUPPLUNG............................................508 ANHÄNGEKUPPLUNG............................................510 ANHÄNGEKUPPLUNG............................................514 ANHÄNGEKUPPLUNG............................................516 ANHÄNGEKUPPLUNG............................................518 ANHÄNGEKUPPLUNG............................................520
