Konica Minolta bizhub C351 bizhub C450 Parts Manual - PDF DOWNLOAD
Konica Minolta bizhub C351 bizhub C450 Parts Manual - PDF DOWNLOAD - Image 2
Konica Minolta bizhub C351 bizhub C450 Parts Manual - PDF DOWNLOAD - Image 3
Konica Minolta bizhub C351 bizhub C450 Parts Manual - PDF DOWNLOAD - Image 4

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

$26.95

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

Category: Tags: , , Vendor: Tractor Manuals
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

Language : English , Japanese
Pages : 135
Downloadable : Yes
File Type : PDF

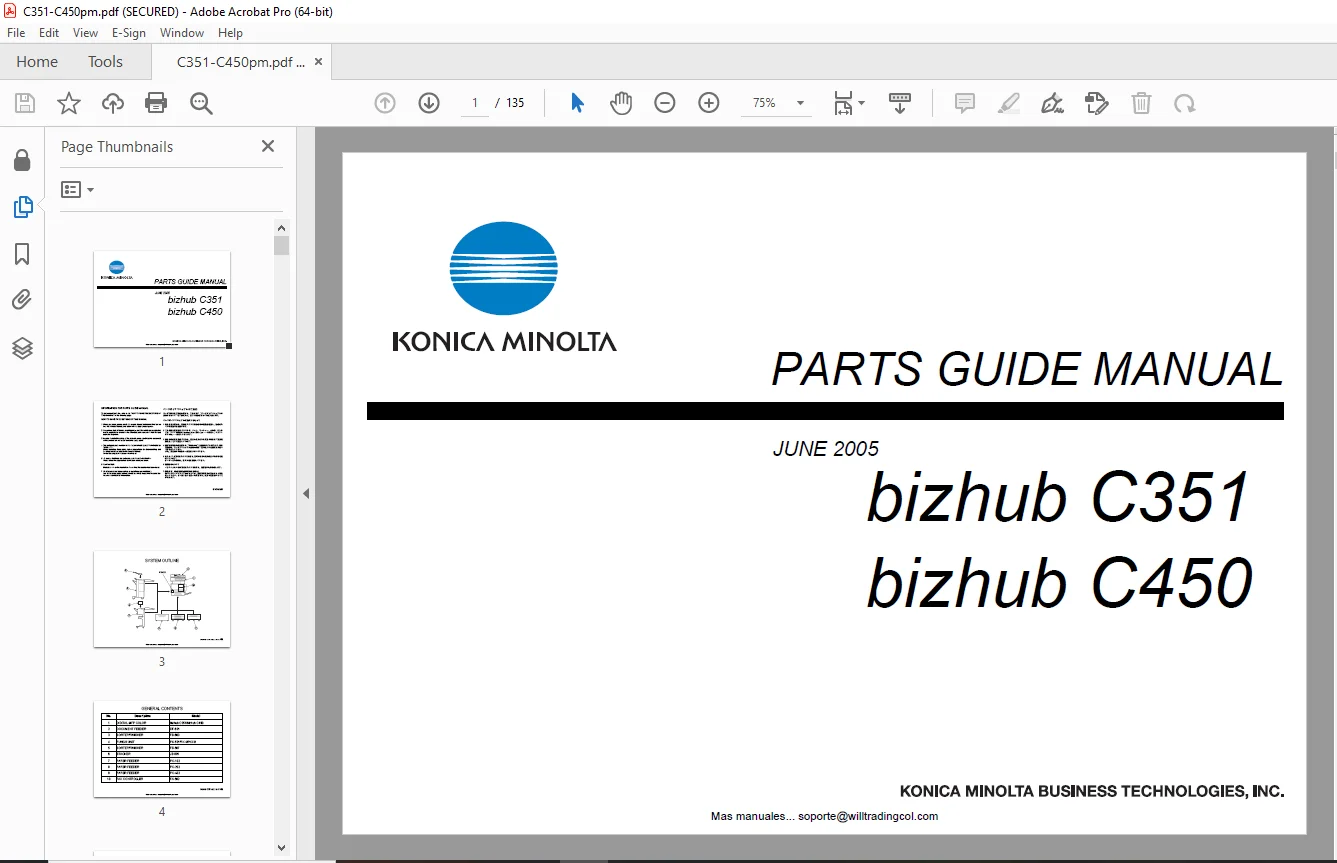

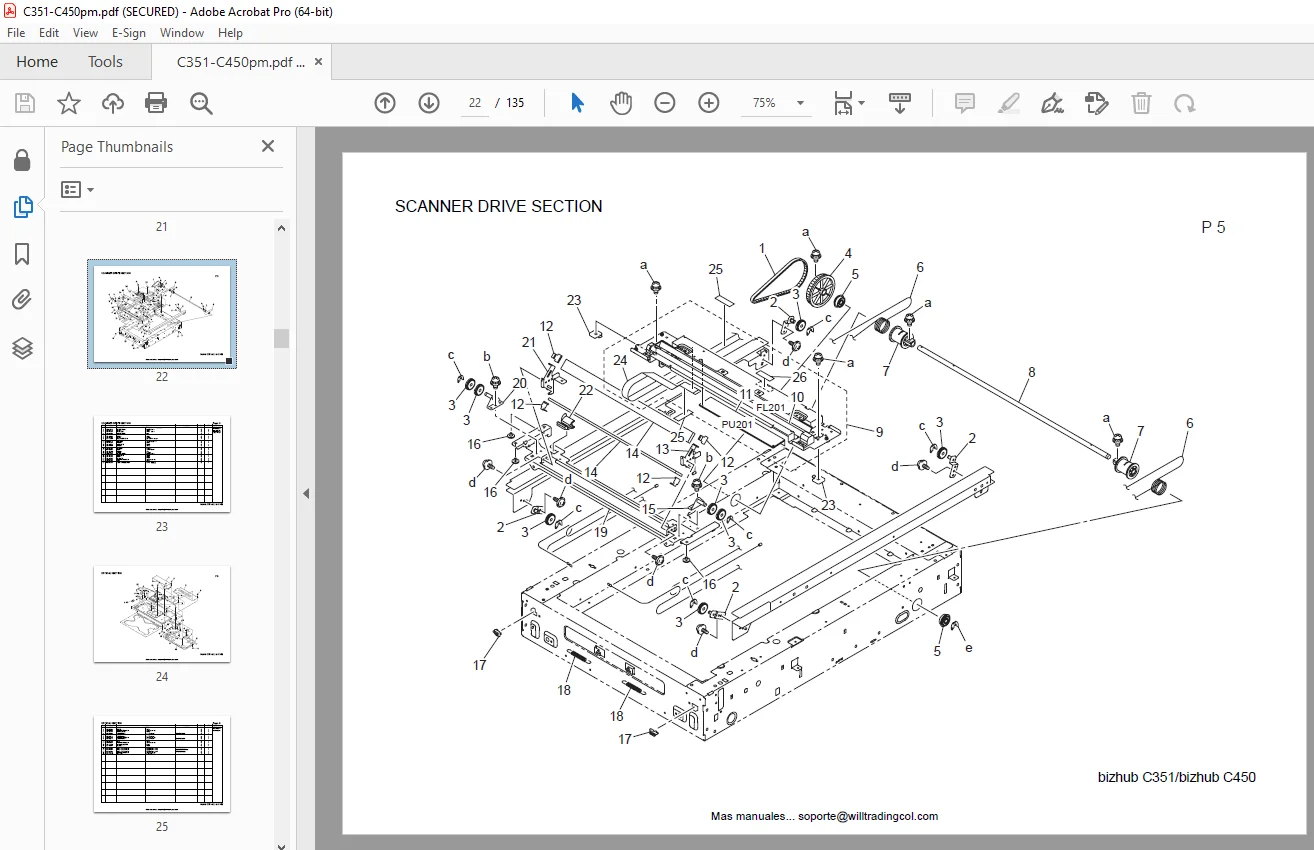

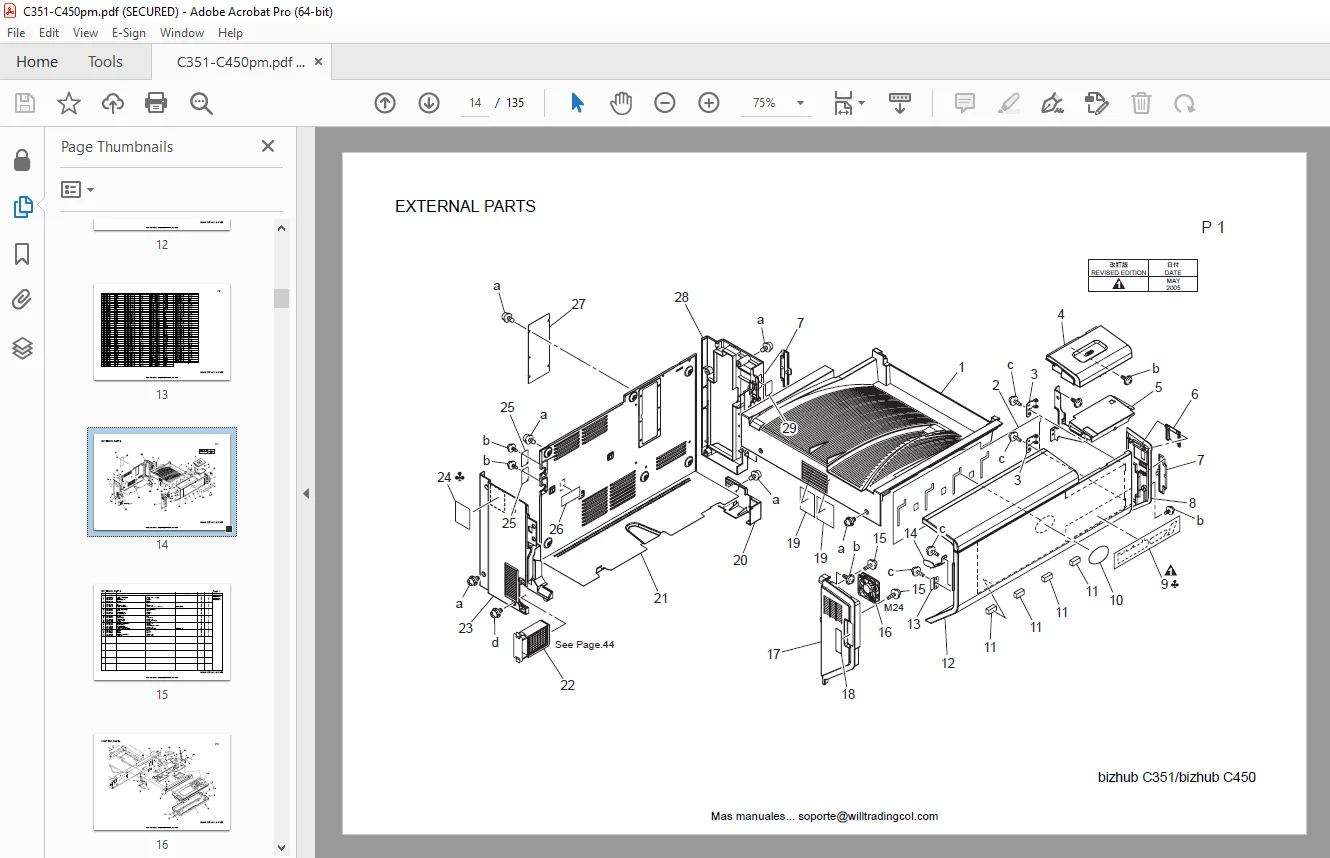

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

COVER1
INFORMATIONFORPARTSGUIDEMANUAL2
SYSTEMOUTLINE3
DIAGRAMSOFMAINPARTSSECTION5
INDEX7
EXTERNALPARTS14
CONTROLPANEL16
IRCOVER18
SCANNERDRIVESECTION20
SCANNERDRIVESECTION22
OPTICALSECTION24
IRFRAME26
MAINFRAME28
POWERUNIT30
LEFTSIDEDOOR32
MAINSWITCHSECTION34
PAPERSELECTSWITCH&LEDLOCK36
HOPPERSECTION38
HOPPERSECTION40
OZONEFANSECTION42
PCDRIVESECTION44
DRIVESECTION46
YMCDRIVESECTION48
FUSINGDRIVESECTION50
FUSINGDRIVESECTION52
DUPLEXUNIT54
DUPLEXUNIT56
MULTIMANUALFEEDSECTION58
MULTIMANUALFEEDSECTION60
MULTIMANUALFEEDSECTION62
PAPERTAKE-UPSECTION64
PAPERTAKE-UPSECTION66
PAPERTAKE-UPSECTION68
CASSETTEFRAME70
CASSETTEDRIVESECTION72
FUSINGSECTION74
PAPERDETECTSECTION76
PAPERDETECTSECTION78
TRANSFERSECTION80
TRANSFERFRAME82
TRANSFERBELTUNIT84
LEDUNIT86
LEDUNIT88
LEDUNIT90
FUSINGCOOLSECTION92
PAPEREXITDRIVESECTION94
PAPERTRANSPORTSECTION96
PAPERTRANSPORTSECTION98
PAPERTRANSPORTSECTION100
PAPERTRANSPORTSECTION102
PAPERTRANSPORTSECTION104
PAPERTRANSPORTSECTION106
ELECTRICALCOMPONENTS108
MULTIPURPOSECASSETTE110
MULTIPURPOSECASSETTE112
UNIVERSALCASSETTE114
UNIVERSALCASSETTE116
WIRING118
WIRING120
WIRING122
WIRING124
WIRING126
WIRINGACCESSORIESANDJIGS128
ACCESSORYPARTS130
MAINTENANCELIST132
DESTINATION134

DESCRIPTION:

Konica Minolta bizhub C351 bizhub C450 Parts Manual – PDF DOWNLOAD

INFORMATION FOR PARTS GUIDE MANUAL :

  • To find correct Parts No., refer to the “HOW TO MAKE THE BEST USE OF THIS MANUAL” in the following page.

HOW TO MAKE THE BEST USE OF THIS MANUAL :

1 When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures.
2 For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and exploded diagrams.
3 In order to maintain safety of the product, some specific parts composed of this product are set up as “essential safety parts”.
4 The assigned parts number for the “essential safety parts” is indicated as “SPOO-****” When replacing these parts, follow precautions for disassembling and installing which are listed in the Service Manual. Do not use any parts that are not set up as
5 means that there are exclusive parts for each destination. Please check the appropriate destination when you order.
6 Revision Mark Marked as ▲ on the illustration shows that the revision has been made.
7 All rights reserved. (any reprints or quotations are prohibited.) Use of this parts guide manual should be strictly supervised to avoid dis- closure of confidential information.

G.B 28/02/25
