Komatsu WA80M-8E0 Wheel Loader Wiring Diagram Manual 42U-06-50000 PDF

Description

Komatsu WA80M-8E0 Wheel Loader Wiring Diagram Manual 42U-06-50000 – PDF DOWNLOAD

FILE DETAILS:

Komatsu WA80M-8E0 Wheel Loader Wiring Diagram Manual 42U-06-50000 – PDF DOWNLOAD

Language : English
Pages : 76
Downloadable : Yes
File Type : PDF

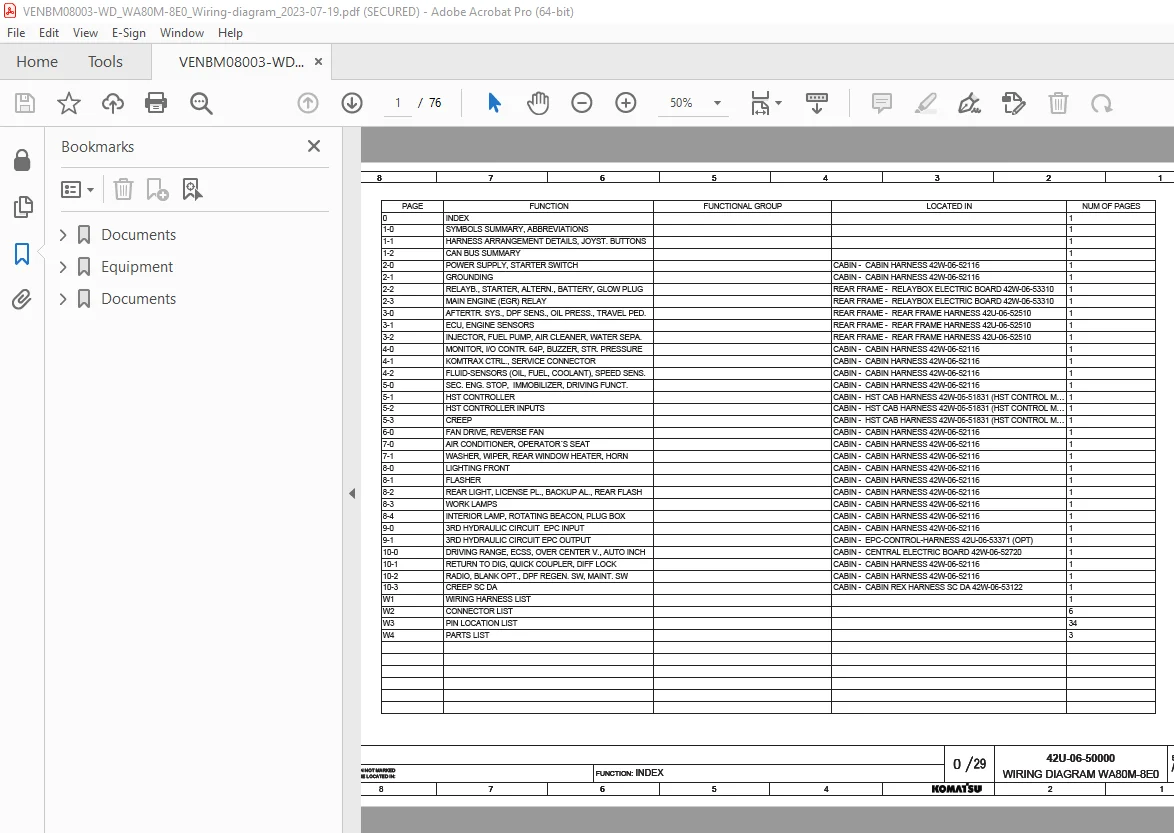

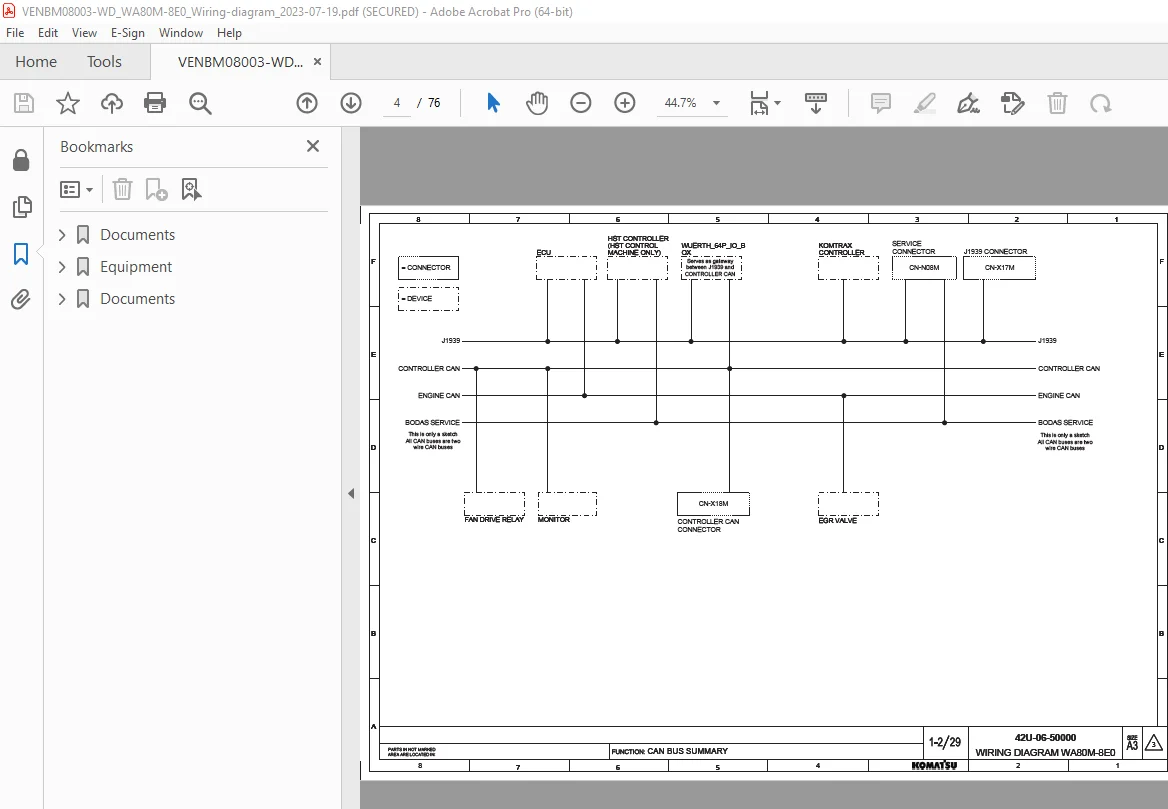

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Komatsu WA80M-8E0 Wheel Loader Wiring Diagram Manual 42U-06-50000 – PDF DOWNLOAD

Documents 0
42U-06-50000 0
Equipment 0
CABIN – 0
CABIN_PARTS 0
ACC PEDAL 42W-43-52210 0
IDLE VALIDATION SWITCH 0
42U-06-50000 3-0 4C 9
THROTTLE POSITION SENSOR 0
42U-06-50000 3-0 4C 9
IMMOBILIZER 42T-06-21232 (OPT) 0
IMMOBILIZER (OPT) 0
EPC LOCK S/W 0
42U-06-50000 9-0 4B 27
FAN REVERSE SWITCH (OPT) 0
42U-06-50000 6-0 3C 19
HAZARD LIGHT SWITCH 0
42U-06-50000 8-1 2E 23
HEATED SEAT (SEATBELT) (OPT) 0
42U-06-50000 7-0 1C 20
INGITION LOCK 0
42U-06-50000 2-0 6B 5
INTERIOR LAMP 0
42U-06-50000 8-4 8C 26
KOMTRAX CONTROLLER 0
42U-06-50000 1-2 7D 4
OPERATOR´S SEAT STD (SEATBELT) 0
42U-06-50000 7-0 3C 20
OPERATOR´S SEAT WATERPROOF (SEATBELT) (OPT) 0
42U-06-50000 7-0 3B 20
PARKING BRAKE SWITCH 0
42U-06-50000 5-0 4B 15
PLUG BOX 12V 0
42U-06-50000 8-4 5C 26
QUICK COUPLER SWITCH 0
42U-06-50000 10-1 5E 30
RADIO (OPT) 0
42U-06-50000 10-2 7E 31
REAR FLASH LIGHT SWITCH (OPT) 0
42U-06-50000 8-2 2E 24
REAR WINDOW (HEATED) 0
42U-06-50000 7-1 2B 21
REAR WINDOW HEATER SWITCH 0
42U-06-50000 7-1 2E 21
RECTIFIER 1 0
42U-06-50000 5-2 6E 17
42U-06-50000 10-3 5D 32
42U-06-50000 10-3 5E 32
42U-06-50000 10-3 6E 32
RECTIFIER 2 0
42U-06-50000 5-1 5B 16
42U-06-50000 5-1 6B 16
42U-06-50000 5-3 6C 18
42U-06-50000 10-3 4C 32
42U-06-50000 10-3 5D 32
42U-06-50000 10-3 6D 32
ROAD LIGHT SWITCH 0
42U-06-50000 8-0 7F 22
ROTATING BEACON (OPT) 0
42U-06-50000 8-4 6C 26
SECONDARY ENGINE STOP SWITCH 0
42U-06-50000 5-0 5B 15
SWITCH OVER CENTER VALVE 0
42U-06-50000 10-0 3E 29
WASHER WIPER REAR SWITCH 0
42U-06-50000 7-1 4E 21
WIPER MOTOR FRONT 0
42U-06-50000 7-1 7B 21
WIPER MOTOR REAR 0
42U-06-50000 7-1 3B 21
WORK LAMP FRONT LEFT (OPT) 0
42U-06-50000 8-3 6C 25
WORK LAMP FRONT LEFT LED (OPT) 0
42U-06-50000 8-3 6B 25
WORK LAMP FRONT RIGHT (OPT) 0
42U-06-50000 8-3 5C 25
WORK LAMP FRONT RIGHT LED (OPT) 0
42U-06-50000 8-3 5B 25
WORK LAMP REAR LEFT (OPT) 0
42U-06-50000 8-3 4C 25
WORK LAMP REAR LEFT LED (OPT) 0
42U-06-50000 8-3 4B 25
WORK LAMP REAR RIGHT (OPT) 0
42U-06-50000 8-3 3C 25
WORK LAMP REAR RIGHT LED (OPT) 0
42U-06-50000 8-3 3B 25
WORKLAMP SWITCH (OPT) 0
42U-06-50000 8-3 6E 25
CENTRAL ELECTRONIC BOARD PARTS 0
AIR CONDITION RELAY (OPT) 0
42U-06-50000 7-0 4E 20
BACKUP ALARM RELAY 0
42U-06-50000 8-2 4F 24
BUZZER 0
42U-06-50000 4-0 6B 12
CEB GROUND 0
42U-06-50000 2-1 8B 6
42U-06-50000 5-0 6D 15
DIFFERENTIAL LOCK RELAY (OPT) 0
42U-06-50000 10-1 3E 30
DRIVING RANGE RELAY 0
42U-06-50000 10-0 8D 29
ECSS RELAY (OPT) 0
42U-06-50000 10-0 6F 29
FAN DRIVE REVERSE RELAY (OPT) 0
42U-06-50000 6-0 2F 19
FLASHER RELAY 0
42U-06-50000 8-1 7D 23
HIGH BEAM RELAY 0
42U-06-50000 8-0 4B 22
INTERVAL RELAY 0
42U-06-50000 7-1 6C 21
KOMTRAX RELAY 0
42U-06-50000 4-1 5E 13
LOW BEAM RELAY 0
42U-06-50000 8-0 5B 22
MONITOR BRIGHTNESS RELAY 0
42U-06-50000 8-0 8B 22
OPTION RELAY 0
42U-06-50000 10-2 4E 31
OVER CENTER VALVE RELAY (OPT) 0
42U-06-50000 10-0 4F 29
PARKING BRAKE FWD RELAY (NON HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-0 3D 15
PARKING BRAKE REV RELAY 0
42U-06-50000 5-0 2D 15
RETURN TO DIG RELAY (OPT) 0
42U-06-50000 10-1 8F 30
TIMER RELAY (NON HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-0 2F 15
WUERTH_64P_IO_BOX 0
A1 0
42U-06-50000 4-0 7F 12
A2 0
42U-06-50000 4-0 7A 12
A3 0
42U-06-50000 4-2 7C 14
A4 0
42U-06-50000 4-2 7D 14
A5 0
42U-06-50000 10-2 3B 31
A6 0
42U-06-50000 4-1 2F 13
A7 0
42U-06-50000 7-0 2E 20
A8 0
42U-06-50000 4-0 7E 12
A9 0
42U-06-50000 6-0 2E 19
A11 0
42U-06-50000 4-0 7E 12
A12 0
42U-06-50000 4-0 7E 12
A15 0
42U-06-50000 4-0 7D 12
A16 0
42U-06-50000 5-0 7C 15
B1 0
42U-06-50000 4-0 7E 12
B2 0
42U-06-50000 4-2 7E 14
B3 0
42U-06-50000 4-1 2F 13
B4 0
42U-06-50000 4-1 2D 13
B5 0
42U-06-50000 4-1 2E 13
B6 0
42U-06-50000 4-1 2D 13
B7 0
42U-06-50000 4-1 2D 13
B8 0
42U-06-50000 4-0 7E 12
B9 0
42U-06-50000 4-0 7C 12
B10 0
42U-06-50000 4-0 7C 12
B11 0
42U-06-50000 4-0 7C 12
B12 0
42U-06-50000 4-0 7C 12
B13 0
42U-06-50000 4-0 7D 12
B14 0
42U-06-50000 4-0 7D 12
B15 0
42U-06-50000 4-0 7D 12
B16 0
42U-06-50000 4-0 7B 12
C1 0
42U-06-50000 4-0 7B 12
C2 0
42U-06-50000 4-0 7A 12
C3 0
42U-06-50000 4-0 7C 12
C4 0
42U-06-50000 4-0 7C 12
C5 0
42U-06-50000 4-2 7B 14
C6 0
42U-06-50000 4-2 7E 14
C7 0
42U-06-50000 8-2 2F 24
C9 0
42U-06-50000 4-0 7C 12
C10 0
42U-06-50000 4-0 7C 12
C11 0
42U-06-50000 4-0 7C 12
C12 0
42U-06-50000 4-0 7C 12
C13 0
42U-06-50000 4-2 7C 14
C14 0
42U-06-50000 8-0 7C 22
C15 0
42U-06-50000 4-0 7C 12
D2 0
42U-06-50000 10-1 4E 30
D3 0
42U-06-50000 8-1 7C 23
D4 0
42U-06-50000 10-0 6C 29
D5 0
42U-06-50000 4-1 2E 13
D6 0
42U-06-50000 8-1 7C 23
D7 0
42U-06-50000 5-0 2E 15
D8 0
42U-06-50000 10-0 6D 29
D9 0
42U-06-50000 8-0 7C 22
D10 0
42U-06-50000 7-1 1C 21
D11 0
42U-06-50000 6-0 1E 19
D12 0
42U-06-50000 5-0 7A 15
D13 0
42U-06-50000 10-1 4E 30
D14 0
42U-06-50000 8-1 7C 23
D15 0
42U-06-50000 5-0 2E 15
D16 0
42U-06-50000 8-0 6C 22
42U-06-50000 1-2 5F 4
REXROTH PARTS 0
BRAKE PRESSURE (INCH) SENSOR (HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-2 4B 17
CREEP SPEED HAND THROTTLE (HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-3 6D 18
42U-06-50000 10-3 6A 32
CREEP SWITCH (HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-3 5C 18
42U-06-50000 10-3 2B 32
HIGH FLOW SWITCH (OPT) 0
42U-06-50000 5-3 2C 18
HST CAB HARNESS GND 0
42U-06-50000 2-1 4B 6
42U-06-50000 10-3 5A 32
HST CONTROLLER (HST CONTROL MACHINE ONLY) 0
A6 0
42U-06-50000 5-1 7D 16
A7 0
42U-06-50000 5-1 7D 16
A10 0
42U-06-50000 5-1 7C 16
A11 0
42U-06-50000 5-1 7D 16
A14 0
42U-06-50000 5-1 7B 16
A22 0
42U-06-50000 5-1 7B 16
A23 0
42U-06-50000 5-1 7B 16
A24 0
42U-06-50000 5-1 7B 16
A34 0
42U-06-50000 5-1 7B 16
A35 0
42U-06-50000 5-3 7D 18
A37 0
42U-06-50000 5-3 7D 18
A38 0
42U-06-50000 5-2 7C 17
A46 0
42U-06-50000 5-2 7C 17
A47 0
42U-06-50000 5-3 7B 18
A53 0
42U-06-50000 5-1 7E 16
A54 0
42U-06-50000 5-1 7D 16
A64 0
42U-06-50000 5-2 7B 17
A66 0
42U-06-50000 5-2 7C 17
A68 0
42U-06-50000 5-2 7C 17
A70 0
42U-06-50000 5-1 7D 16
A77 0
42U-06-50000 5-1 7E 16
A79 0
42U-06-50000 5-1 7D 16
A84 0
42U-06-50000 5-1 7E 16
A85 0
42U-06-50000 5-1 7E 16
A86 0
42U-06-50000 5-1 7D 16
B1 0
42U-06-50000 5-1 7F 16
B2 0
42U-06-50000 5-1 7A 16
B3 0
42U-06-50000 5-1 7F 16
B4 0
42U-06-50000 5-1 7F 16
B5 0
42U-06-50000 5-1 7F 16
B6 0
42U-06-50000 5-1 7F 16
B7 0
42U-06-50000 5-1 7A 16
B15 0
42U-06-50000 5-2 7F 17
B16 0
42U-06-50000 5-2 7F 17
B17 0
42U-06-50000 5-2 7D 17
B19 0
42U-06-50000 5-3 7B 18
B20 0
42U-06-50000 5-1 7A 16
B23 0
42U-06-50000 5-3 7B 18
B25 0
42U-06-50000 5-2 7E 17
B28 0
42U-06-50000 5-1 7F 16
B31 0
42U-06-50000 5-2 7D 17
B32 0
42U-06-50000 5-2 7D 17
B33 0
42U-06-50000 5-1 7B 16
B34 0
42U-06-50000 5-2 7F 17
B36 0
42U-06-50000 5-1 7C 16
B37 0
42U-06-50000 5-3 7B 18
B38 0
42U-06-50000 5-2 7E 17
B39 0
42U-06-50000 5-3 7B 18
B40 0
42U-06-50000 5-1 7E 16
B45 0
42U-06-50000 5-1 7F 16
B46 0
42U-06-50000 5-1 7B 16
B47 0
42U-06-50000 5-2 7F 17
B50 0
42U-06-50000 5-1 7B 16
B52 0
42U-06-50000 5-1 7B 16
B53 0
42U-06-50000 5-1 7C 16
B54 0
42U-06-50000 5-1 7C 16
B55 0
42U-06-50000 5-2 7B 17
B58 0
42U-06-50000 5-1 7F 16
42U-06-50000 1-1 7F 3
42U-06-50000 1-2 6F 4
HST SPEED CONTROLLER 0
1 0
42U-06-50000 10-3 7F 32
2 0
42U-06-50000 10-3 7B 32
3 0
42U-06-50000 10-3 7F 32
4 0
42U-06-50000 10-3 7B 32
5 0
42U-06-50000 10-3 7F 32
6 0
42U-06-50000 10-3 7B 32
8 0
42U-06-50000 10-3 7E 32
10 0
42U-06-50000 10-3 7E 32
15 0
42U-06-50000 10-3 7E 32
16 0
42U-06-50000 10-3 7E 32
19 0
42U-06-50000 10-3 7B 32
21 0
42U-06-50000 10-3 7B 32
22 0
42U-06-50000 10-3 7F 32
24 0
42U-06-50000 10-3 7E 32
41 0
42U-06-50000 10-3 7B 32
53 0
42U-06-50000 10-3 7D 32
63 0
42U-06-50000 10-3 7B 32
66 0
42U-06-50000 10-3 7C 32
67 0
42U-06-50000 10-3 7C 32
68 0
42U-06-50000 10-3 7B 32
71 0
42U-06-50000 10-3 7B 32
73 0
42U-06-50000 10-3 7F 32
74 0
42U-06-50000 10-3 7C 32
75 0
42U-06-50000 10-3 7D 32
76 0
42U-06-50000 10-3 7D 32
77 0
42U-06-50000 10-3 7E 32
78 0
42U-06-50000 10-3 7D 32
88 0
42U-06-50000 10-3 7C 32
89 0
42U-06-50000 10-3 7C 32
90 0
42U-06-50000 10-3 7C 32
42U-06-50000 1-1 7C 3
RESISTOR HST (HST CONTROL MACHINE ONLY) 0
42U-06-50000 5-2 7F 17
20KPH CONNECTOR 42W-06-51190 0
CN-A107M 0
9 0
42U-06-50000 5-3 6E 18
10 0
42U-06-50000 5-3 5E 18
42U-06-50000 5-3 6E 18
W01 0
42U-06-50000 5-3 6E 18
42U-06-50000 5-3 6E 18
ACC PEDAL 42W-43-52210 0
CN-P09M 0
1 0
42U-06-50000 3-0 5C 9
2 0
42U-06-50000 3-0 5C 9
3 0
42U-06-50000 3-0 5C 9
4 0
42U-06-50000 3-0 5C 9
5 0
42U-06-50000 3-0 5C 9
6 0
42U-06-50000 3-0 5C 9
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
Unspezifizierter Draht 0
42U-06-50000 3-0 5C 9
42U-06-50000 3-0 5C 9
CABIN GROUND 42T-06-22120
STD JOYSTICK 42W-43-48106 0
CN-G71M 0
42U-06-50000 10-0 7F 29
J1 0
42U-06-50000 9-0 3D 27
42U-06-50000 10-0 8F 29
Unspezifizierter Draht 0
42U-06-50000 9-0 3D 27
42U-06-50000 10-1 1E 30
Unspezifizierter Draht 0
42U-06-50000 9-0 2D 27
42U-06-50000 10-0 8F 29
42U-06-50000 10-1 1F 30
Unspezifizierter Draht 0
42U-06-50000 5-0 5F 15
42U-06-50000 9-0 3E 27
Unspezifizierter Draht 0
42U-06-50000 5-0 5F 15
42U-06-50000 9-0 3E 27
Unspezifizierter Draht 0
42U-06-50000 5-0 5F 15
42U-06-50000 9-0 3E 27
Unspezifizierter Draht 0
42U-06-50000 5-0 5F 15
42U-06-50000 9-0 3E 27
Unspezifizierter Draht 0
42U-06-50000 9-0 3D 27
42U-06-50000 10-0 8E 29
Unspezifizierter Draht 0
42U-06-50000 9-0 3D 27
42U-06-50000 10-0 8F 29
Unspezifizierter Draht 0
42U-06-50000 9-0 3C 27
Unspezifizierter Draht 0
42U-06-50000 9-0 3C 27
Unspezifizierter Draht 0
42U-06-50000 9-0 3D 27
42U-06-50000 10-0 8E 29
Unspezifizierter Draht 0
42U-06-50000 9-0 3C 27
Unspezifizierter Draht 0
42U-06-50000 9-0 3C 27
42U-06-50000 5-0 6F 15
42U-06-50000 9-0 3E 27
42U-06-50000 10-0 8F 29
42U-06-50000 10-1 2F 30
STEERING COLUMN SWITCH 42W-06-46120 0
CN-G02F 0
1 0
42U-06-50000 8-1 5E 23
2 0
42U-06-50000 8-1 5F 23
3 0
42U-06-50000 8-1 5E 23
4 0
42U-06-50000 7-1 7E 21
5 0
42U-06-50000 8-0 5E 22
6 0
42U-06-50000 8-0 5E 22
7 0
42U-06-50000 8-0 5E 22
8 0
42U-06-50000 8-0 5E 22
42U-06-50000 7-1 7E 21
CN-G05M 0
1 0
42U-06-50000 7-1 6F 21
2 0
42U-06-50000 7-1 7E 21
3 0
42U-06-50000 7-1 7E 21
4 0
42U-06-50000 7-1 8E 21
5 0
42U-06-50000 7-1 8E 21
6 0
42U-06-50000 7-1 8E 21
42U-06-50000 7-1 7E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 7E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 7E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 7E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 8E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 7F 21
Unspezifizierter Draht 0
42U-06-50000 7-1 8E 21
Unspezifizierter Draht 0
42U-06-50000 7-1 8E 21
Unspezifizierter Draht 0
42U-06-50000 8-1 5E 23
Unspezifizierter Draht 0
42U-06-50000 8-1 5E 23
Unspezifizierter Draht 0
42U-06-50000 8-1 5E 23
Unspezifizierter Draht 0
42U-06-50000 8-0 5E 22
Unspezifizierter Draht 0
42U-06-50000 8-0 5E 22
Unspezifizierter Draht 0
42U-06-50000 8-0 5E 22
Unspezifizierter Draht 0
42U-06-50000 8-0 5E 22
42U-06-50000 7-1 8F 21
42U-06-50000 8-0 5E 22
42U-06-50000 8-1 6F 23
W/O HIGH FLOW JUMPER 42W-06-51750 (OPT) 0
CN-A108M 0
3 0
42U-06-50000 5-3 2E 18
5 0
42U-06-50000 5-3 2E 18
42U-06-50000 5-3 2E 18
D01 0
42U-06-50000 5-3 2E 18
42U-06-50000 5-3 2E 18
FRONT FRAME – 0
FRONT FRAME PARTS 0
CENTRAL LUBRICATION PUMP (OPT) 0
42U-06-50000 10-2 5C 31
DIFFERENTIAL LOCK SWITCH FRONT (OPT) 0
42U-06-50000 10-1 4C 30
ECSS SOLENOID 1 (OPT) 0
42U-06-50000 10-0 6B 29
ECSS SOLENOID 2 (OPT) 0
42U-06-50000 10-0 5B 29
ECSS SOLENOID 3 (OPT) 0
42U-06-50000 10-0 4B 29
FRONT FRAME GROUND 0
42U-06-50000 2-1 2B 6
HEAD LAMP LED LEFT LH DR (OPT) 0
42U-06-50000 8-0 2B 22
HEAD LAMP LED LEFT RH DR (OPT) 0
42U-06-50000 8-0 2C 22
HEAD LAMP LED RIGHT LH DR (OPT) 0
42U-06-50000 8-0 1B 22
HEAD LAMP LED RIGHT RH DR (OPT) 0
42U-06-50000 8-0 1C 22
HEAD LAMP LEFT LH DR (OPT) 0
42U-06-50000 8-0 3E 22
HEAD LAMP LEFT RH DR 0
42U-06-50000 8-0 3B 22
HEAD LAMP RIGHT LH DR (OPT) 0
42U-06-50000 8-0 2E 22
HEAD LAMP RIGHT RH DR 0
42U-06-50000 8-0 2B 22
HORN 0
42U-06-50000 7-1 7B 21
42U-06-50000 7-1 8B 21
QUICK COUPLER SOLENOID VALVE 0
42U-06-50000 10-1 5C 30
RTD SENSOR INDUCTIVE (OPT) 0
42U-06-50000 10-1 8C 30
SPEED SENSOR FRONT 0
42U-06-50000 4-2 1C 14
CLS HARNESS 42U-S95-5140 (OPT) 0
CN-A68M 3 0
1 0
42U-06-50000 10-2 5D 31
42U-06-50000 10-2 5D 31
CN-A68M 4 0
1 0
42U-06-50000 10-2 6B 31
42U-06-50000 10-2 5B 31
CN-Y01F 0
1 0
42U-06-50000 10-2 5C 31
2 0
42U-06-50000 10-2 5C 31
42U-06-50000 10-2 5C 31
W001 0
42U-06-50000 10-2 5D 31
W002 0
42U-06-50000 10-2 6C 31
42U-06-50000 10-2 6D 31
DIFF LOCK FRONT HARNESS 42U-06-51110 (OPT) 0
CN-A49M 0
1 0
42U-06-50000 10-1 4C 30
2 0
42U-06-50000 10-1 4B 30
42U-06-50000 10-1 4C 30
CN-S66 1F 0
1 0
42U-06-50000 10-1 4C 30
42U-06-50000 10-1 3B 30
CN-S66 2F 0
1 0
42U-06-50000 10-1 4B 30
42U-06-50000 10-1 3B 30
W01 0
42U-06-50000 10-1 4C 30
W02 0
42U-06-50000 10-1 4B 30
42U-06-50000 10-1 4B 30
ECSS HARNESS 42W-06-42300 (OPT) 0
CN-V61F (X315 1) 0
1 0
42U-06-50000 10-0 6B 29
2 0
42U-06-50000 10-0 6B 29
42U-06-50000 10-0 6B 29
CN-V65F (X315 2) 0
1 0
42U-06-50000 10-0 5B 29
2 0
42U-06-50000 10-0 5B 29
42U-06-50000 10-0 5B 29
CN-V66F (X315 3) 0
1 0
42U-06-50000 10-0 4B 29
2 0
42U-06-50000 10-0 4B 29
42U-06-50000 10-0 4B 29
CN-XE1F(XF6) 0
1 0
42U-06-50000 10-0 5C 29
2 0
42U-06-50000 10-0 6A 29
42U-06-50000 10-0 5B 29
EC1 0
42U-06-50000 10-0 5B 29
EC2 0
42U-06-50000 10-0 5A 29
Unspezifizierter Draht 0
42U-06-50000 10-0 5B 29
Unspezifizierter Draht 0
42U-06-50000 10-0 5B 29
Unspezifizierter Draht 0
42U-06-50000 10-0 5A 29
Unspezifizierter Draht 0
42U-06-50000 10-0 5A 29
Unspezifizierter Draht 0
42U-06-50000 10-0 6A 29
Unspezifizierter Draht 0
42U-06-50000 10-0 6B 29
Unspezifizierter Draht 0
42U-06-50000 10-0 6A 29
Unspezifizierter Draht 0
42U-06-50000 10-0 5B 29
42U-06-50000 10-0 6C 29
FRONT HARNESS 42U-06-52450 0
CN-A49-BLANK 0
42U-06-50000 10-1 3C 30
CN-A49F 0
1 0
42U-06-50000 10-1 4C 30
2 0
42U-06-50000 10-1 4B 30
42U-06-50000 10-1 4C 30
CN-A57F 0
A 0
42U-06-50000 4-2 1C 14
B 0
42U-06-50000 4-2 1C 14
C 0
42U-06-50000 4-2 1C 14
42U-06-50000 4-2 1C 14
CN-A68-BLANK 0
42U-06-50000 9-1 4E 28
CN-A68F 0
1 0
42U-06-50000 9-1 4E 28
2 0
42U-06-50000 9-1 4E 28
3 0
42U-06-50000 10-2 5D 31
4 0
42U-06-50000 10-2 6B 31
42U-06-50000 9-1 4E 28
CN-A85F 0
1 0
42U-06-50000 8-0 3F 22
2 0
42U-06-50000 8-0 2F 22
3 0
42U-06-50000 8-0 2F 22
4 0
42U-06-50000 8-0 3F 22
5 0
42U-06-50000 8-1 3D 23
6 0
42U-06-50000 8-1 3D 23
7 0
42U-06-50000 7-1 8D 21
8 0
42U-06-50000 10-1 5D 30
9 0
42U-06-50000 4-2 1D 14
10 0
42U-06-50000 4-2 1D 14
11 0
42U-06-50000 4-2 1D 14
12 0
42U-06-50000 9-1 5E 28
42U-06-50000 4-2 1D 14
CN-A86F 0
1 0
42U-06-50000 10-1 8D 30
2 0
42U-06-50000 10-1 8D 30
3 0
42U-06-50000 10-0 5C 29
5 0
42U-06-50000 10-1 4D 30
6 0
42U-06-50000 10-1 3A 30
7 0
42U-06-50000 9-1 5E 28
8 0
42U-06-50000 10-2 5D 31
CN-A100-BLANK 0
42U-06-50000 10-1 8D 30
CN-A100M 0
A 0
42U-06-50000 10-1 8D 30
B 0
42U-06-50000 10-1 8D 30
C 0
42U-06-50000 10-1 8B 30
42U-06-50000 10-1 7D 30
CN-L23F 0
1 0
42U-06-50000 8-0 3D 22
2 0
42U-06-50000 8-0 3E 22
3 0
42U-06-50000 8-0 3E 22
4 0
42U-06-50000 8-0 3E 22
5 0
42U-06-50000 8-0 2E 22
7 0
42U-06-50000 7-1 8C 21
8 0
42U-06-50000 7-1 8C 21
CN-L24F 0
1 0
42U-06-50000 8-0 1D 22
2 0
42U-06-50000 8-0 1E 22
3 0
42U-06-50000 8-0 1E 22
4 0
42U-06-50000 8-0 2E 22
5 0
42U-06-50000 8-0 1E 22
CN-T15F 0
1 0
42U-06-50000 2-1 2B 6
42U-06-50000 2-1 2B 6
CN-V40F 0
1 0
42U-06-50000 10-1 5C 30
2 0
42U-06-50000 10-1 5B 30
42U-06-50000 10-1 5C 30
CN-XE1-BLANK 0
42U-06-50000 10-0 5C 29
CN-XE1M(XF6) 0
1 0
42U-06-50000 10-0 5C 29
2 0
42U-06-50000 10-0 6A 29
42U-06-50000 10-0 5C 29
FF1 0
42U-06-50000 2-1 2B 6
FF2 0
42U-06-50000 2-1 2B 6
FF3 0
42U-06-50000 8-0 2F 22
FF4 0
42U-06-50000 8-0 3F 22
FF5 0
42U-06-50000 2-1 2B 6
W001 0
42U-06-50000 10-1 4C 30
W002 0
42U-06-50000 4-2 1D 14
42U-06-50000 4-2 1D 14
W003 0
42U-06-50000 4-2 1D 14
42U-06-50000 4-2 1D 14
W004 0
42U-06-50000 4-2 1D 14
W005 0
42U-06-50000 8-0 3E 22
W006 0
42U-06-50000 8-0 2E 22
W007 0
42U-06-50000 8-0 2E 22
42U-06-50000 8-1 3C 23
W008 0
42U-06-50000 8-0 1E 22
42U-06-50000 8-1 3C 23
W009 0
42U-06-50000 7-1 8C 21
W010 0
42U-06-50000 10-1 5C 30
W011 0
42U-06-50000 10-1 8D 30
W012 0
42U-06-50000 10-1 8D 30
W013 0
42U-06-50000 10-0 5C 29
W014 0
42U-06-50000 10-1 4A 30
W015 0
42U-06-50000 2-1 2B 6
42U-06-50000 10-1 8A 30
W016 0
42U-06-50000 2-1 2B 6
42U-06-50000 8-0 3D 22
W017 0
42U-06-50000 2-1 2B 6
42U-06-50000 8-0 3C 22
W018 0
42U-06-50000 2-1 2B 6
42U-06-50000 7-1 8C 21
W019 0
42U-06-50000 2-1 2B 6
42U-06-50000 10-1 5B 30
W020 0
42U-06-50000 2-1 2B 6
42U-06-50000 10-0 6A 29
W021 0
42U-06-50000 2-1 2B 6
W022 0
42U-06-50000 2-1 2B 6
W023 0
42U-06-50000 8-0 2F 22
W024 0
42U-06-50000 8-0 3E 22
W025 0
42U-06-50000 8-0 1E 22
W026 0
42U-06-50000 8-0 3F 22
W027 0
42U-06-50000 8-0 3E 22
W028 0
42U-06-50000 8-0 1E 22
W029 0
42U-06-50000 2-1 2B 6
W034 0
42U-06-50000 9-1 4E 28
W035 0
42U-06-50000 9-1 4E 28
W037 0
42U-06-50000 10-2 5D 31
W038 0
42U-06-50000 2-1 2B 6
42U-06-50000 10-2 6B 31
42U-06-50000 2-1 2C 6
42U-06-50000 4-2 2D 14
42U-06-50000 7-1 8D 21
42U-06-50000 8-0 3F 22
42U-06-50000 8-1 3D 23
42U-06-50000 9-1 5E 28
42U-06-50000 10-0 7C 29
42U-06-50000 10-1 4D 30
42U-06-50000 10-1 6D 30
42U-06-50000 10-1 8D 30
42U-06-50000 10-2 6D 31
HEAD LIGHTS ADAPTER HARNESS LEFT 42W-06-53140 0
REAR FRAME – 0
ENGINE PARTS 0
ALTERNATOR 0
42U-06-50000 2-2 7B 7
AMBIENT TEMPERATURE SENSOR 0
42U-06-50000 3-1 2E 10
CAM SPEED SENSOR 0
42U-06-50000 3-1 2A 10
COOLING WATER TEMPERATURE SENSOR 0
42U-06-50000 3-1 2D 10
CRANK SPEED SENSOR 0
42U-06-50000 3-1 2B 1
Documents 0
A/C INT 0
42U-06-50000 7-0 7E 20
42U-06-50000 7-0 7F 20
ACC 0
42U-06-50000 2-0 7B 5
42U-06-50000 2-0 8B 5
42U-06-50000 4-1 5F 13
42U-06-50000 5-0 6E 15
ACC_CEB 0
42U-06-50000 4-1 3F 13
42U-06-50000 4-1 3F 13
42U-06-50000 4-2 8F 14
42U-06-50000 7-0 3F 20
ACC_IN 0
42U-06-50000 2-0 8F 5
42U-06-50000 2-2 1F 7
ALT KEY 0
42U-06-50000 2-2 8B 7
42U-06-50000 4-1 5C 13
42U-06-50000 4-1 7C 13
42U-06-50000 5-0 6B 15
ALT KEY 2 0
42U-06-50000 2-2 8B 7
42U-06-50000 5-0 6B 15
BACKUP REL SIG 0
42U-06-50000 5-0 2D 15
42U-06-50000 8-2 4F 24
BODAS SERVICE H 0
42U-06-50000 4-1 2B 13
42U-06-50000 5-2 5F 17
BODAS SERVICE L 0
42U-06-50000 4-1 2B 13
42U-06-50000 5-2 5F 17
CONTROLLER CAN H 0
42U-06-50000 4-1 3C 13
42U-06-50000 4-1 4C 13
42U-06-50000 6-0 4B 19
42U-06-50000 9-0 2F 27
CONTROLLER CAN H_CEB 0
42U-06-50000 4-0 8E 12
42U-06-50000 4-1 3D 13
CONTROLLER CAN L 0
42U-06-50000 4-1 3C 13
42U-06-50000 4-1 4C 13
42U-06-50000 6-0 4C 19
42U-06-50000 9-0 2F 27
CONTROLLER CAN L_CEB 0
42U-06-50000 4-0 8E 12
42U-06-50000 4-1 3D 13
ENG REL GND 0
42U-06-50000 2-2 5C 7
42U-06-50000 2-3 7C 8
ENG REL SIG 0
42U-06-50000 2-3 7C 8
42U-06-50000 3-1 6E 10
FB1 1 10A 0
42U-06-50000 2-0 7B 5
42U-06-50000 2-0 7B 5
42U-06-50000 2-0 7C 5
42U-06-50000 2-0 7C 5
42U-06-50000 4-1 3C 13
42U-06-50000 4-1 8F 13
42U-06-50000 4-1 8F 13
42U-06-50000 5-0 6E 15
FB1 2 25A_CEB 0
42U-06-50000 2-0 8E 5
42U-06-50000 5-1 5F 16
FB1 3 10A 0
42U-06-50000 2-0 8D 5
42U-06-50000 8-4 5F 26
FB1 4 10A 0
42U-06-50000 2-0 7C 5
42U-06-50000 2-0 7C 5
42U-06-50000 8-4 8F 26
42U-06-50000 10-2 8F 31
FB1 5 10A 0
42U-06-50000 2-0 8D 5
42U-06-50000 8-1 8F 23
FB1 6 15A 0
42U-06-50000 2-0 7C 5
42U-06-50000 2-0 7C 5
42U-06-50000 7-1 7C 21
42U-06-50000 7-1 8F 21
FB1 6 15A_CEB 0
42U-06-50000 2-0 7E 5
42U-06-50000 7-1 6B 21
FB1 7 10A 0
42U-06-50000 2-0 7D 5
42U-06-50000 8-2 6F 24
FB1 8 15/30A 0
42U-06-50000 2-0 7D 5
42U-06-50000 7-0 8F 20
FB2 1 10A 0
42U-06-50000 2-0 7D 5
42U-06-50000 7-1 8F 21
FB2 2 10A 0
42U-06-50000 2-0 6C 5
42U-06-50000 2-0 6C 5
42U-06-50000 5-0 6F 15
42U-06-50000 5-3 4F 18
FB2 2 10A RETURN 0
42U-06-50000 5-3 3F 18
42U-06-50000 10-0 7F 29
FB2 2 10A_CEB 0
42U-06-50000 2-0 6E 5
42U-06-50000 5-0 2F 15
FB2 3 10A 0
42U-06-50000 2-0 6D 5
42U-06-50000 8-1 1F 23
42U-06-50000 8-1 1F 23
42U-06-50000 8-1 8F 23
42U-06-50000 10-2 1D 31
42U-06-50000 10-2 2F 31
FB2 4 5A_CEB 0
42U-06-50000 2-0 6E 5
42U-06-50000 5-1 5F 16
FB2 5 5A 0
42U-06-50000 2-0 6D 5
42U-06-50000 9-0 2F 27
FB2 5 5A_CEB 0
42U-06-50000 2-0 6E 5
42U-06-50000 9-0 1F 27
FB2 6 20A 0
42U-06-50000 2-0 6C 5
42U-06-50000 2-0 6C 5
42U-06-50000 8-3 8F 25
42U-06-50000 8-3 8F 25
FB2 7 10A 0
42U-06-50000 2-0 6C 5
42U-06-50000 2-0 6C 5
42U-06-50000 8-0 4F 22
42U-06-50000 8-2 6E 24
FB2 8 10A 0
42U-06-50000 2-0 6C 5
42U-06-50000 2-0 6C 5
42U-06-50000 8-0 4F 22
42U-06-50000 8-2 6F 24
FB3 1 10A_CEB 0
42U-06-50000 2-0 5E 5
42U-06-50000 8-0 4C 22
FB3 2 10A_CEB 0
42U-06-50000 2-0 5E 5
42U-06-50000 8-0 5C 22
FB3 3 10A 0
42U-06-50000 2-0 5D 5
42U-06-50000 10-1 6F 30
FB3 3 10A_CEB 0
42U-06-50000 2-0 4E 5
42U-06-50000 10-1 8F 30
FB3 4 10A_CEB 0
42U-06-50000 2-0 5E 5
42U-06-50000 10-0 8F 29
FB3 5 25A_CEB 0
42U-06-50000 2-0 5E 5
42U-06-50000 7-0 4E 20
FB3 6 10A 0
42U-06-50000 2-0 4C 5
42U-06-50000 2-0 4C 5
42U-06-50000 6-0 4F 19
42U-06-50000 10-2 8F 31
FB3 6 10A_CEB 0
42U-06-50000 2-0 4E 5
42U-06-50000 6-0 2F 19
FB3 7 10A 0
42U-06-50000 2-0 5D 5
42U-06-50000 8-4 7F 26
FB3 8 10A 0
42U-06-50000 2-0 4C 5
42U-06-50000 2-0 4C 5
42U-06-50000 8-0 5F 22
42U-06-50000 8-0 8F 22
FB3 8 10A_CEB 0
42U-06-50000 2-0 4E 5
42U-06-50000 8-0 8C 22
FB4 1 10A_CEB 0
42U-06-50000 2-0 4E 5
42U-06-50000 8-2 3F 24
FB4 2 10A 0
42U-06-50000 2-0 4D 5
42U-06-50000 7-1 8F 21
FB4 3 15A 0
42U-06-50000 2-0 4D 5
42U-06-50000 7-0 2F 20
FB4 4 10A 0
42U-06-50000 2-0 3C 5
42U-06-50000 2-0 3C 5
42U-06-50000 2-0 3C 5
42U-06-50000 5-1 4C 16
42U-06-50000 10-1 4D 30
42U-06-50000 10-1 6F 30
FB4 4 10A_CEB 0
42U-06-50000 2-0 3E 5
42U-06-50000 2-0 3E 5
42U-06-50000 4-2 8E 14
42U-06-50000 10-1 3F 30
FB4 5 5A_CEB 0
42U-06-50000 2-0 4E 5
42U-06-50000 4-0 8D 12
FB4 6 10A 0
42U-06-50000 2-0 3C 5
42U-06-50000 2-0 3C 5
42U-06-50000 10-0 7F 29
42U-06-50000 10-0 8F 29
42U-06-50000 10-1 1F 30
42U-06-50000 10-2 5F 31
FB4 8 10A_CEB 0
42U-06-50000 2-0 3E 5
42U-06-50000 10-2 4F 31
FB5 1 10A_CEB 0
42U-06-50000 2-0 3E 5
42U-06-50000 9-0 1F 27
FB5 2 10A_CEB 0
42U-06-50000 2-0 3E 5
42U-06-50000 9-0 1E 27
FB5 3 5A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 5-0 8C 15
FB5 4 10A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 4-0 8F 12
FB5 5 10A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 4-0 8F 12
FB5 6 10A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 4-0 8F 12
FB5 7 10A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 4-0 8F 12
FB5 8 5A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 4-0 8D 12
FB5 9 10A_CEB 0
42U-06-50000 2-0 2E 5
42U-06-50000 9-0 1E 27
FLASH LH 0
42U-06-50000 8-0 2F 22
42U-06-50000 8-1 3B 23
42U-06-50000 8-1 5B 23
42U-06-50000 8-2 6C 24
FLASH RH 0
42U-06-50000 8-0 1F 22
42U-06-50000 8-1 3B 23
42U-06-50000 8-1 5B 23
42U-06-50000 8-2 3C 24
FR1 4 20A 0
42U-06-50000 2-2 3D 7
42U-06-50000 2-3 8F 8
FR2 3 25A 0
42U-06-50000 2-2 2D 7
42U-06-50000 2-3 7F 8
FR2 4 5A 0
42U-06-50000 2-2 1B 7
42U-06-50000 2-2 1D 7
42U-06-50000 2-3 4F 8
42U-06-50000 4-0 3C 12
FR2 5 5A 0
42U-06-50000 2-2 1D 7
42U-06-50000 6-0 8F 19
FWD 0
42U-06-50000 5-0 4F 15
42U-06-50000 5-0 5C 15
42U-06-50000 5-2 2E 17
42U-06-50000 5-2 2F 17
GEAR SIG 1 0
42U-06-50000 5-0 1B 15
42U-06-50000 5-2 3C 17
GEAR SIG 2 0
42U-06-50000 5-2 3C 17
42U-06-50000 10-0 8B 29
GLOW PLUG SIG 0
42U-06-50000 2-2 4B 7
42U-06-50000 3-0 6D 9
GND BAT 0
42U-06-50000 2-1 5D 6
42U-06-50000 2-2 8C 7
GND CAB 0
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 2-1 3F 6
42U-06-50000 4-1 7A 13
42U-06-50000 5-0 4A 15
42U-06-50000 5-2 4B 17
42U-06-50000 5-2 4B 17
42U-06-50000 5-3 7B 18
42U-06-50000 5-3 7D 18
42U-06-50000 7-0 2A 20
42U-06-50000 7-0 6B 20
42U-06-50000 7-0 7B 20
42U-06-50000 7-1 2A 21
42U-06-50000 8-3 8A 25
42U-06-50000 8-3 8B 25
42U-06-50000 8-4 6A 26
42U-06-50000 9-0 8A 27
42U-06-50000 10-0 2C 29
42U-06-50000 10-1 6A 30
42U-06-50000 10-1 8A 30
42U-06-50000 10-2 2A 31
GND CEB 0
42U-06-50000 2-0 1D 5
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5B 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 2-1 5C 6
42U-06-50000 4-0 7B 12
42U-06-50000 4-0 8A 12
42U-06-50000 4-1 5D 13
42U-06-50000 4-2 6B 14
42U-06-50000 4-2 8A 14
42U-06-50000 4-2 8E 14
42U-06-50000 5-0 1F 15
42U-06-50000 6-0 2D 19
42U-06-50000 7-0 5C 20
42U-06-50000 7-1 6B 21
42U-06-50000 8-0 8A 22
42U-06-50000 8-1 8B 23
42U-06-50000 8-2 4F 24
42U-06-50000 9-0 2E 27
42U-06-50000 10-0 6E 29
42U-06-50000 10-0 8C 29
42U-06-50000 10-1 3E 30
42U-06-50000 10-2 4C 31
GND FF 0
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 2-1 1B 6
42U-06-50000 7-1 8C 21
42U-06-50000 8-0 3C 22
42U-06-50000 8-0 3D 22
42U-06-50000 10-0 6A 29
42U-06-50000 10-1 5A 30
42U-06-50000 10-1 8A 30
42U-06-50000 10-2 6B 31
GND HST 0
42U-06-50000 2-1 3B 6
42U-06-50000 2-1 3B 6
42U-06-50000 2-1 3B 6
42U-06-50000 2-1 3B 6
42U-06-50000 5-1 6A 16
42U-06-50000 5-1 6C 16
42U-06-50000 5-3 7A 18
42U-06-50000 5-3 7A 18
GND LIGHT 0
42U-06-50000 2-1 3D 6
42U-06-50000 2-1 3D 6
42U-06-50000 2-1 3D 6
42U-06-50000 2-1 3D 6
42U-06-50000 6-0 4C 19
42U-06-50000 6-0 4C 19
42U-06-50000 7-1 2D 21
42U-06-50000 7-1 2D 21
42U-06-50000 7-1 5E 21
42U-06-50000 7-1 5E 21
42U-06-50000 8-1 3F 23
42U-06-50000 8-1 3F 23
42U-06-50000 8-2 3D 24
42U-06-50000 8-2 3D 24
42U-06-50000 8-3 7E 25
42U-06-50000 8-3 7E 25
42U-06-50000 8-4 7D 26
42U-06-50000 8-4 7D 26
42U-06-50000 10-0 2C 29
42U-06-50000 10-0 5C 29
42U-06-50000 10-0 5C 29
42U-06-50000 10-1 6E 30
42U-06-50000 10-2 1B 31
42U-06-50000 10-2 2D 31
GND RF FRONT 0
42U-06-50000 2-1 7F 6
42U-06-50000 2-1 7F 6
42U-06-50000 2-1 7F 6
42U-06-50000 2-1 7F 6
42U-06-50000 2-1 7F 6
42U-06-50000 2-2 4B 7
42U-06-50000 4-0 3B 12
42U-06-50000 5-0 1A 15
42U-06-50000 10-0 3A 29
42U-06-50000 10-0 3B 29
42U-06-50000 10-0 8A 29
42U-06-50000 10-1 2A 30
GND RF LH 0
42U-06-50000 2-1 6F 6
42U-06-50000 2-1 6F 6
42U-06-50000 2-1 6F 6
42U-06-50000 2-1 6F 6
42U-06-50000 3-0 7A 9
42U-06-50000 3-1 7F 10
42U-06-50000 4-2 2A 14
42U-06-50000 8-2 8A 24
GND RF REAR 0
42U-06-50000 2-1 8F 6
42U-06-50000 2-1 8F 6
42U-06-50000 2-1 8F 6
42U-06-50000 2-1 8F 6
42U-06-50000 2-1 8F 6
42U-06-50000 3-2 5B 11
42U-06-50000 3-2 7B 11
42U-06-50000 4-2 4A 14
42U-06-50000 4-2 4A 14
42U-06-50000 6-0 2A 19
42U-06-50000 8-2 2A 24
42U-06-50000 8-2 2A 24
42U-06-50000 8-2 4A 24
42U-06-50000 8-2 4A 24
42U-06-50000 8-2 5A 24
42U-06-50000 8-2 7A 24
GND SS2 0
42U-06-50000 2-1 3D 6
42U-06-50000 2-1 3E 6
42U-06-50000 5-0 6E 15
42U-06-50000 8-4 8A 26
GND SS4 0
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 2-1 3E 6
42U-06-50000 7-1 3A 21
42U-06-50000 8-4 5A 26
42U-06-50000 10-2 8A 31
GND SS17 0
42U-06-50000 2-1 3D 6
42U-06-50000 2-1 3D 6
42U-06-50000 7-0 8B 20
42U-06-50000 7-1 7A 21
GND WASH MOT 0
42U-06-50000 2-2 5C 7
42U-06-50000 2-2 5C 7
42U-06-50000 7-1 4B 21
42U-06-50000 7-1 4B 21
HAZ S/W 0
42U-06-50000 8-1 1F 23
42U-06-50000 8-1 7F 23
HST SENS PWR 5V 2 0
42U-06-50000 5-1 4B 16
42U-06-50000 5-1 6E 16
42U-06-50000 5-2 4B 17
42U-06-50000 10-0 5E 29
J1939_H 0
42U-06-50000 3-0 4B 9
42U-06-50000 4-1 2A 13
42U-06-50000 4-1 3A 13
42U-06-50000 5-1 4C 16
J1939_H_CEB 0
42U-06-50000 4-0 8E 12
42U-06-50000 4-1 1D 13
J1939_L 0
42U-06-50000 3-0 4B 9
42U-06-50000 4-1 2A 13
42U-06-50000 4-1 3A 13
42U-06-50000 5-1 4C 16
J1939_L_CEB 0
42U-06-50000 4-0 8E 12
42U-06-50000 4-1 1D 13
KEY ENG 0
42U-06-50000 3-0 4B 9
42U-06-50000 5-0 5A 15
KEY SW BR 0
42U-06-50000 2-0 8B 5
42U-06-50000 2-2 3F 7
42U-06-50000 5-0 6C 15
42U-06-50000 5-0 8C 15
42U-06-50000 5-1 4B 16
42U-06-50000 5-1 4E 16
KEY SW BR_CEB 0
42U-06-50000 2-0 2F 5
42U-06-50000 5-0 8C 15
KEY SW C 0
42U-06-50000 2-0 7B 5
42U-06-50000 2-0 8B 5
42U-06-50000 3-0 4D 9
42U-06-50000 4-1 6F 13
42U-06-50000 4-1 6F 13
42U-06-50000 5-0 6E 15
KEY SW D 0
42U-06-50000 2-0 6B 5
42U-06-50000 5-0 6E 15
LIGHT SIG 0
42U-06-50000 5-3 4E 18
42U-06-50000 5-3 4F 18
42U-06-50000 8-0 7E 22
42U-06-50000 9-0 4C 27
MODE SIGNAL 0
42U-06-50000 5-1 4C 16
42U-06-50000 10-0 7F 29
NEUTR 0
42U-06-50000 5-0 5E 15
42U-06-50000 5-2 2F 17
PARK BRAKE_CEB 0
42U-06-50000 4-1 3F 13
42U-06-50000 5-0 4C 15
PWR ECU 0
42U-06-50000 2-2 3B 7
42U-06-50000 3-0 6F 9
PWR EGR 0
42U-06-50000 2-3 7C 8
42U-06-50000 3-1 7F 10
PWR SEN 0
42U-06-50000 2-2 2B 7
42U-06-50000 3-0 2D 9
42U-06-50000 3-2 5D 11
42U-06-50000 3-2 7D 11
REB_GND 0
42U-06-50000 2-2 4D 7
42U-06-50000 6-0 7D 19
REGEN_INHIB 0
42U-06-50000 3-0 4E 9
42U-06-50000 10-2 2D 31
REGEN_REQ 0
42U-06-50000 3-0 4E 9
42U-06-50000 10-2 2D 31
REV 0
42U-06-50000 5-0 4F 15
42U-06-50000 5-2 2E 17
SPEED 0
42U-06-50000 4-2 5F 14
42U-06-50000 10-0 5F 29
STARTER PERM OUT 0
42U-06-50000 3-0 4D 9
42U-06-50000 5-0 4D 15
STARTER REL GND 0
42U-06-50000 2-2 6B 7
42U-06-50000 3-0 6D 9
STARTER REL SIG 0
42U-06-50000 2-2 5B 7
42U-06-50000 3-0 6D 9
SUPPLY 1 0
42U-06-50000 2-0 8F 5
42U-06-50000 2-2 1E 7
SYS OPERATING LAMP 0
42U-06-50000 2-2 2F 7
42U-06-50000 4-1 3B 13
TO FB2 7 0
42U-06-50000 2-0 6F 5
42U-06-50000 2-0 6F 5
42U-06-50000 6-0 4F 19
42U-06-50000 6-0 4F 19
42U-06-50000 7-0 8F 20
42U-06-50000 7-0 8F 20
42U-06-50000 7-1 2F 21
42U-06-50000 7-1 2F 21
42U-06-50000 7-1 5F 21
42U-06-50000 7-1 5F 21
42U-06-50000 8-0 6C 22
42U-06-50000 8-0 6E 22
42U-06-50000 8-0 6E 22
42U-06-50000 8-0 6E 22
42U-06-50000 8-0 6E 22
42U-06-50000 8-1 3E 23
42U-06-50000 8-1 3E 23
42U-06-50000 8-2 1E 24
42U-06-50000 8-2 1E 24
42U-06-50000 8-3 7F 25
42U-06-50000 8-3 7F 25
42U-06-50000 8-3 8B 25
42U-06-50000 8-4 7F 26
42U-06-50000 8-4 7F 26
42U-06-50000 10-0 2E 29
42U-06-50000 10-0 5D 29
42U-06-50000 10-0 5D 29
42U-06-50000 10-1 6F 30
42U-06-50000 10-2 1D 31
42U-06-50000 10-2 2F 31

S.V 31/12/24
